3-52 — BRAKE PIPING; OIL,FRONT
(#164434) — 19 parça
◀

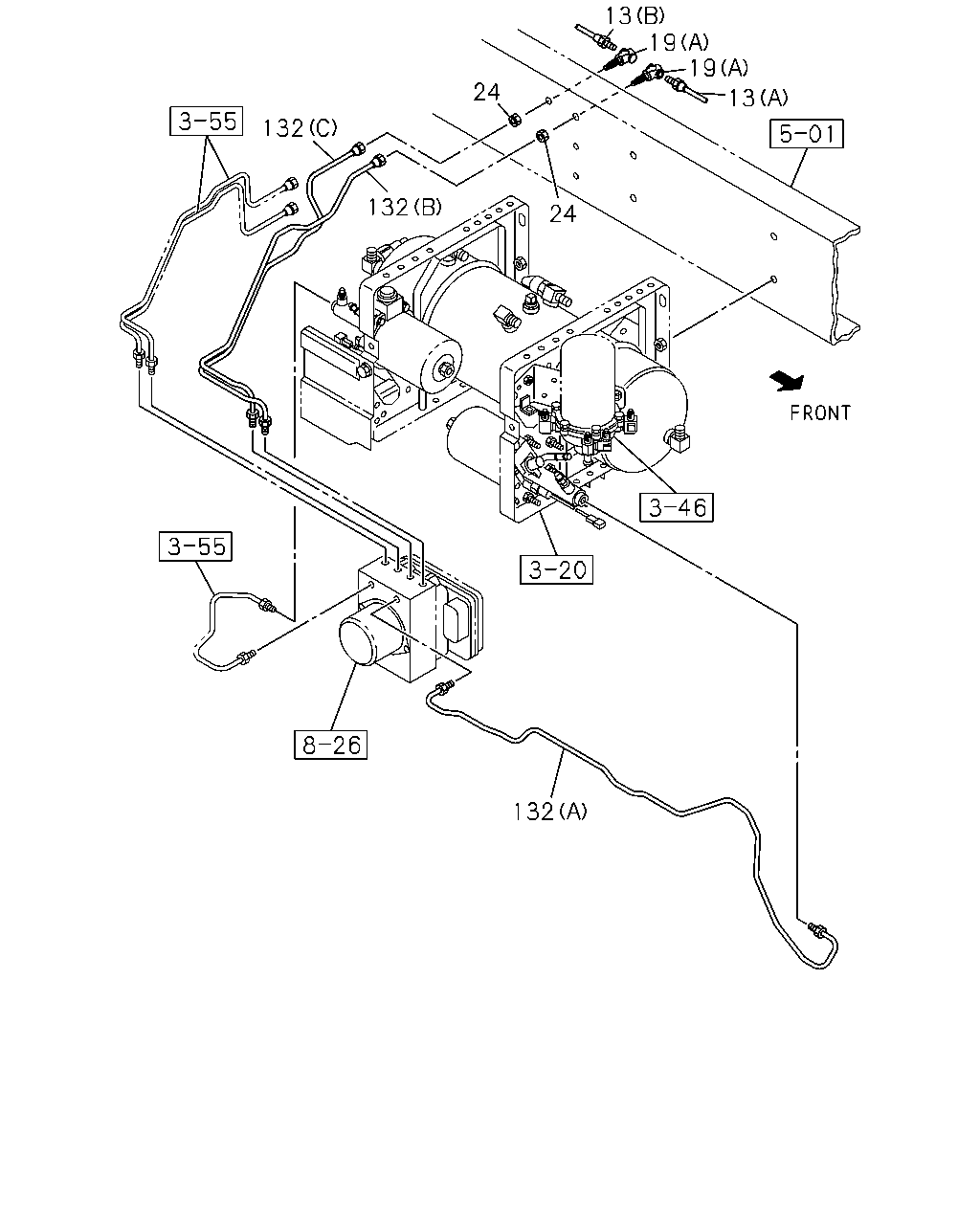

[352A] AIR TANK SIDE (8 parça)

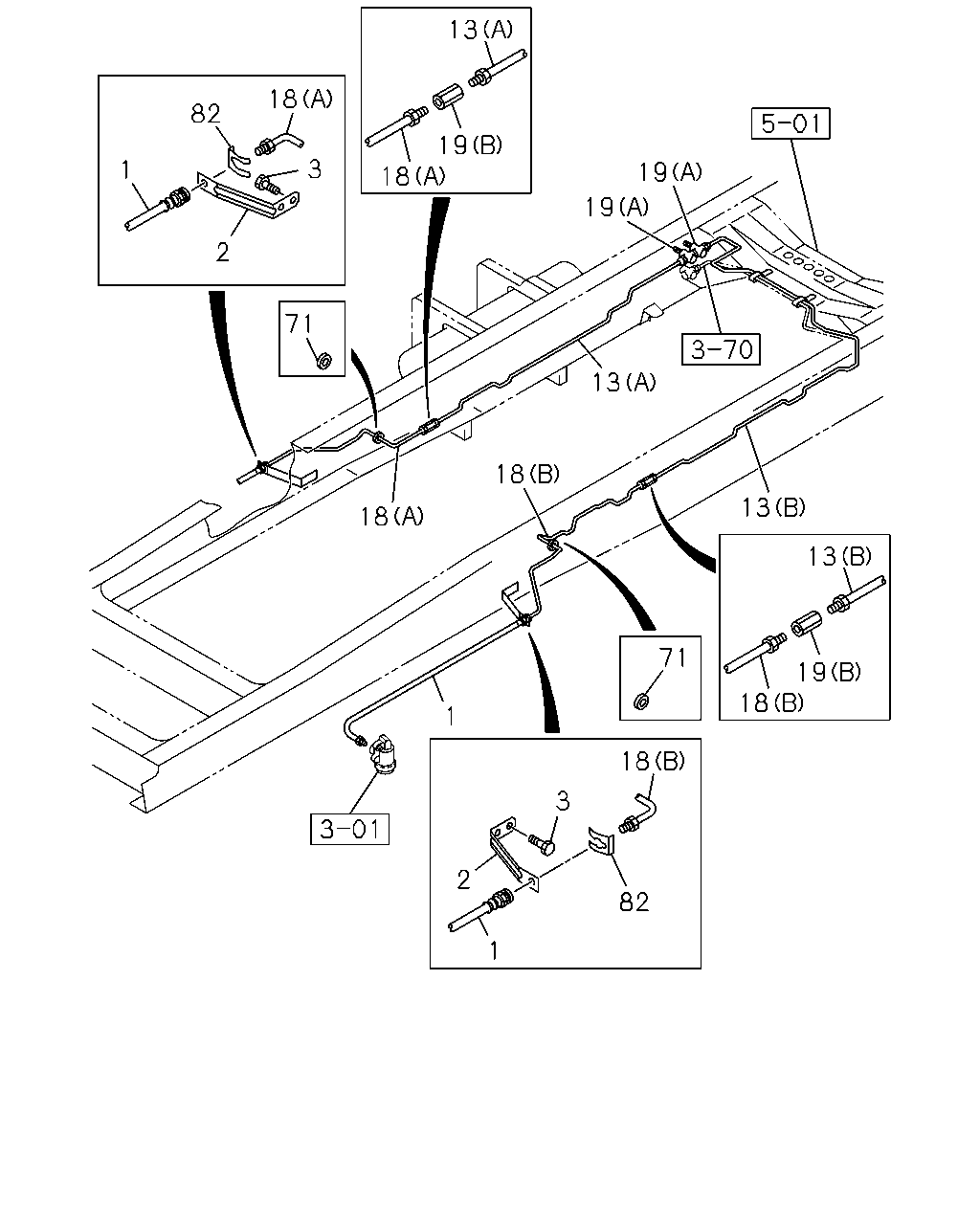

[352A] FRAME SIDE (11 parça)
▶
13
19
19
13
24
24
132
132
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; OIL,UNION TO UNION
(B) LH LINE L=2192
8-98222-476-0
01
1
1507-
13
PIPE; OIL,UNION TO UNION
(A) RH LINE L=975
8-98204-971-0
01
1
1507-
19
UNION; OIL PIPE
(B) M10 STRAIGHT
0-92107-005-0
02
1
1507-
19
UNION; OIL PIPE
(A) M10X2 ELBOW
8-98018-438-0
02
1
1507-
24
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
1507-
132
PIPE; OIL,BRK,HYD UNIT
(A) L=966
8-98276-129-0
01
1
1507-
132
PIPE; OIL,BRK,HYD UNIT
(B) RH SIDE L=565
8-98287-319-0
01
1
1507-
132
PIPE; OIL,BRK,HYD UNIT
(C) LH SIDE L=582
8-98287-320-0
01
1
1507-
1
82
3
18
2
71
18
18
13
19
19
19
18
13
13
19
13
18
71
1
1
2
3
82
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=450
8-98242-141-0
02
1
1507-
2
BRACKET; FLEX HOSE,FRT BRK
8-98011-946-1
02
1
1507-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
04
1
1507-
13
PIPE; OIL,UNION TO UNION
(B) LH LINE L=2192
8-98222-476-0
01
1
1507-
13
PIPE; OIL,UNION TO UNION
(A) RH LINE L=975
8-98204-971-0
01
1
1507-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=559
8-98208-697-0
01
1
1507-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=567
8-98067-426-0
01
1
1507-
19
UNION; OIL PIPE
(B) M10 STRAIGHT
0-92107-005-0
02
1
1507-
19
UNION; OIL PIPE
(A) M10X2 ELBOW
8-98018-438-0
02
1
1507-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
1507-
82
PLATE; FLEX HOSE
8-97360-054-0
02
1
1507-
