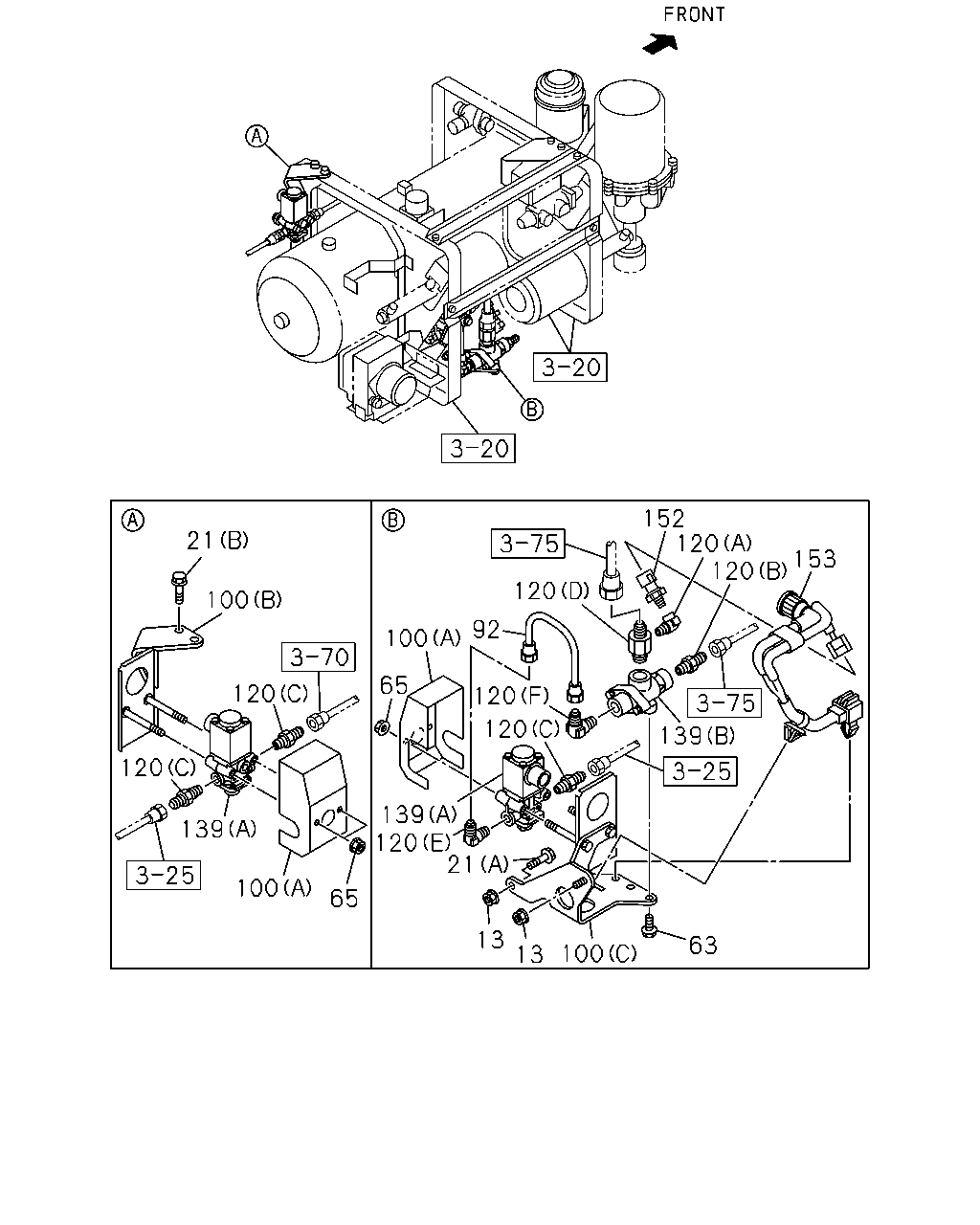

3-45 — LOAD SENSING PROPORTIONING VALVE
(#164432) — 19 parça
152
120
120
153
139
92
100
120
120
120
65
139
120
21
13
13
100
63
100
65
139
120
120
100
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
NUT; LSPV TO BRKT
M8 FLANGE
0-91180-108-0
02
1
1507-
21
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
01
1
1507-
21
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
02
1
1507-
63
BOLT; LSPV
M8X16 FLANGE
0-28050-816-0
02
1
1507-
65
NUT; LSPV
M8 FLANGE
0-91180-108-0
04
1
1507-
92
PIPE; LSPV
L=220
8-98245-169-0
01
1
1507-
100
BRACKET; LSPV
(A)
8-98285-733-0
02
1
1507-
100
BRACKET; LSPV
(C)
8-98285-734-0
01
1
1507-
100
BRACKET; LSPV
(B)
8-98285-735-0
01
1
1507-
120
CONNECTOR
(C) M16 & PT1/4 STRAIGHT
0-92121-810-0
03
1
1507-
120
CONNECTOR
(E) M16 & PT1/4 ELBOW
0-92134-310-0
01
1
1507-
120
CONNECTOR
(B) M16 & PT3/8 STRAIGHT
1-09650-179-1
01
1
1507-
120
CONNECTOR
(F) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1507-
120
CONNECTOR
(D) M16 & PT3/8 STRAIGHT
1-09656-643-1
01
1
1507-
120
CONNECTOR
(A) DIN6 & RC1/8 ELBOW
8-98245-263-0
01
1
1507-
139
VALVE; CHECK
(B)
1-48410-531-1
01
1
1507-
139
VALVE; CHECK
(A)
8-98228-849-0
02
1
1507-
152
SENSOR; AIR PRESSURE
THREAD R1/8
1-80220-025-0
01
1
1507-
153
HARNESS ASM
8-98255-858-1
01
1
1507-
