Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#16441) — 68 parça

235 101 210 16 42 30 42 207 210 27 107 106 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	03	1	1110-
27	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1110-
27	NUT; BRKT (B) M10 FLANGE THA	0-91180-210-0	03	1	1110-
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1110-
30	BOLT; BRKT (B) M8X35 FLANGE THA	0-28650-835-0	01	1	1110-
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1110-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1110-
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1110-1402
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98184-114-0	01	1	1110-
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1110-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98184-197-0	01	1	1110-
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1110-
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1110-
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1110-
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1110-
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1110-
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1110-
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1110-

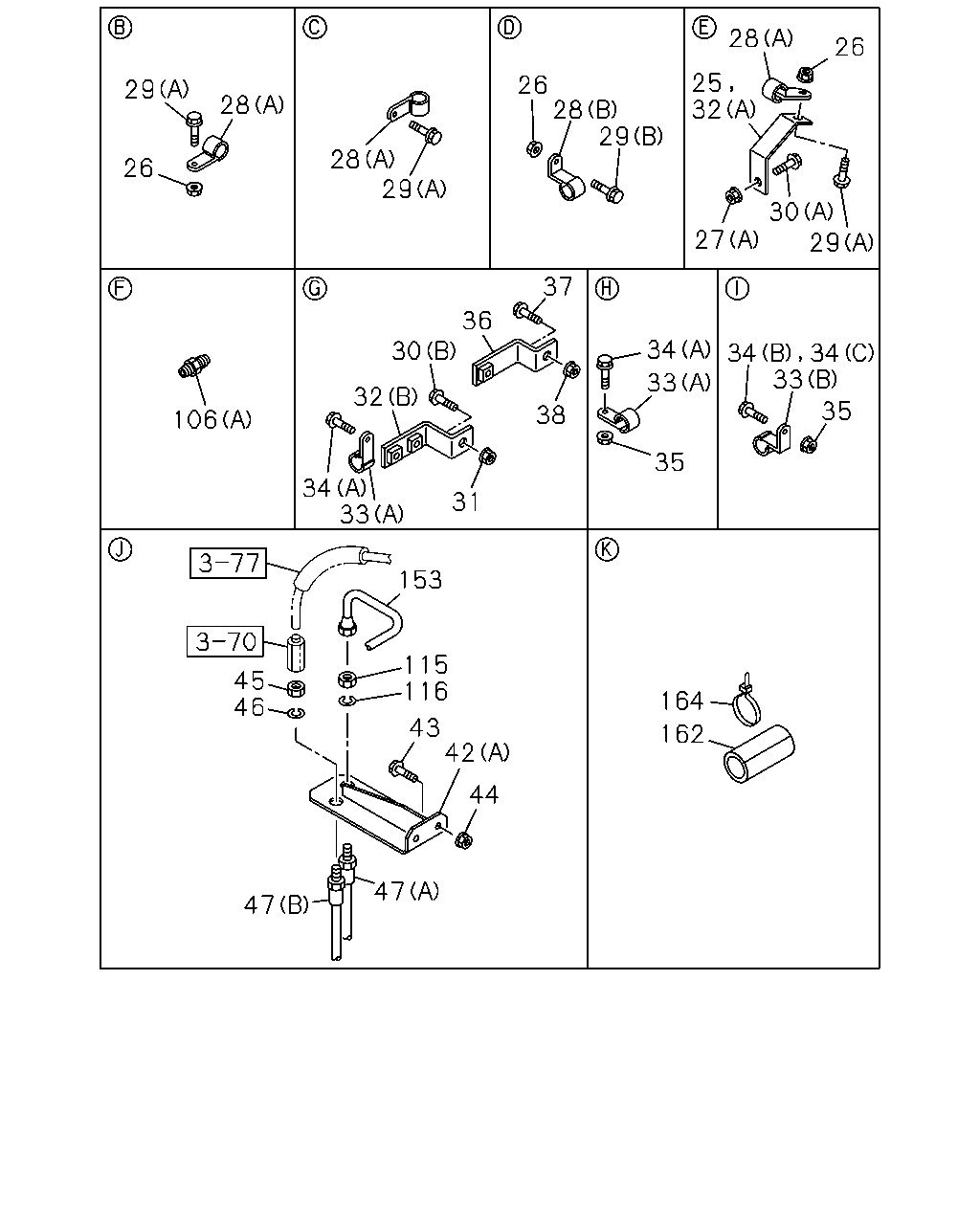

29 26 28 28 29 26 29 28 106 34 31 36 30 32 38 37 33 153 45 46 115 116 43 42 44 47 47 164 162 35 33 34 33 34 35 34 30 27 29 32 25 28 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE	8-98123-059-0	01	1	1110-
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	1110-
27	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1110-
27	NUT; BRKT (B) M10 FLANGE THA	0-91180-210-0	03	1	1110-
28	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	1110-
28	CLIP; OIL PIPE (A) ID=9 L=40	0-95234-875-0	01	1	1110-
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1110-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1110-
29	BOLT; CLIP,OIL PIPE (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1110-
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1110-
30	BOLT; BRKT (B) M8X35 FLANGE THA	0-28650-835-0	01	1	1110-
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1110-
31	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1110-
31	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1110-
32	BRACKET; CLIP OIL PIPE (B)	1-47479-482-0	01	1	1110-
32	BRACKET; CLIP OIL PIPE (A)	8-98123-059-0	01	1	1110-
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	1110-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1110-
34	BOLT; PIPE CLIP (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1110-
34	BOLT; PIPE CLIP (A) M8X25 FLANGE THA	0-28650-825-0	04	1	1110-
34	BOLT; PIPE CLIP (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1110-
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	01	1	1110-
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1110-
36	BRACKET; CLIP L=80 H=20	1-82699-304-0	01	1	1110-
37	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1110-
38	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	01	1	1110-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1110-
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1110-1402
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98184-114-0	01	1	1110-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE THA	0-28650-835-0	02	1	1110-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	1110-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1110-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1110-
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	1110-
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	1110-
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1110-
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1110-
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1110-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1110-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1110-
153	PIPE ASM; CLU,UNION TO FLEX L=1156 SERVICED BY L=1250 THA	1-47428-764-0	01	1	1110-
162	COVER; RUBBER,FLEX HOSE L=175	1-09707-178-0	01	1	1110-
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	1110-

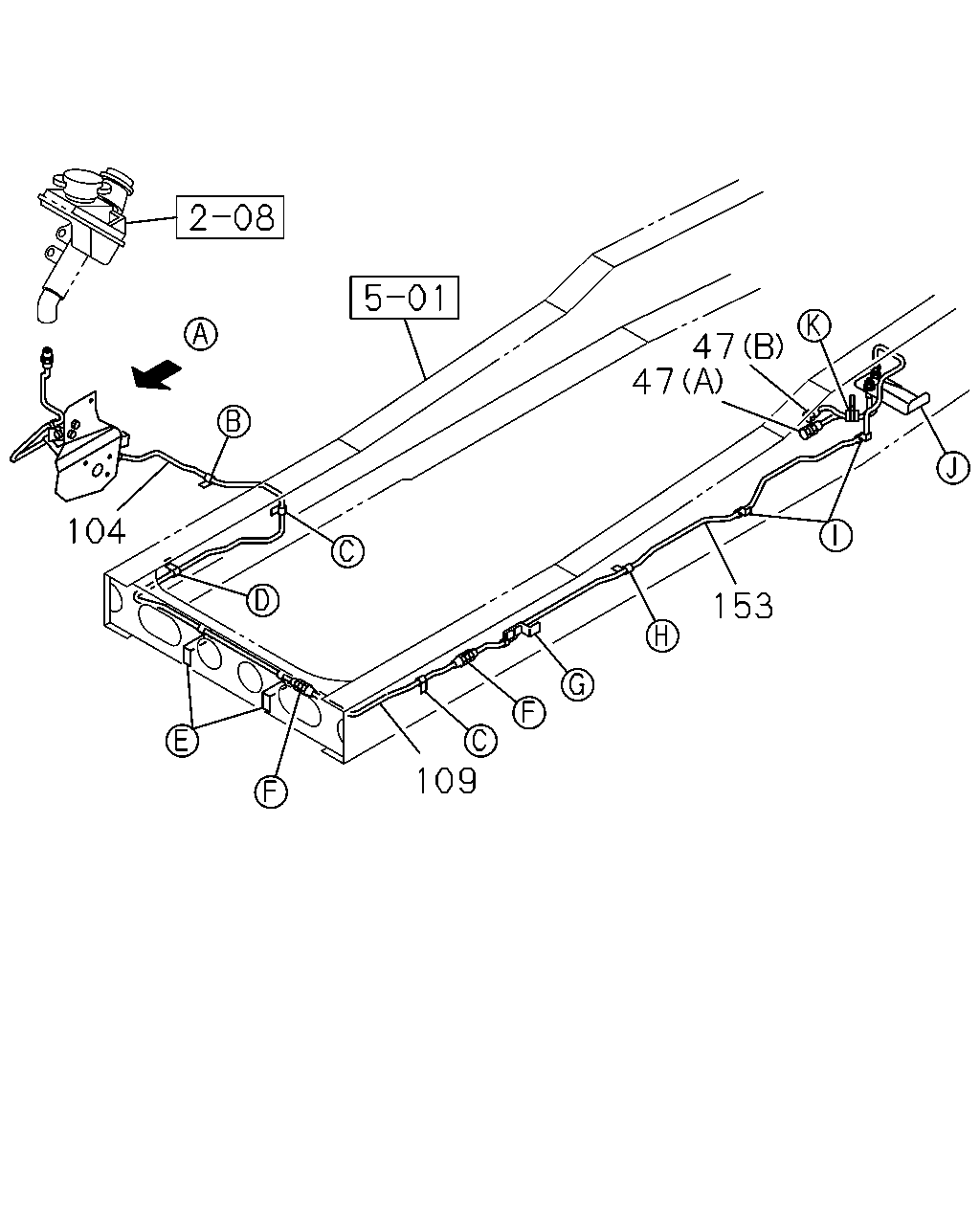

104 109 153 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	1110-
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	1110-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1796 SERVICED BY L=1800 THA	1-47428-768-0	01	1	1110-
109	PIPE; AIR,UNION TO UNION L=1676 SERVICED BY L=1700 THA	1-47428-767-0	01	1	1110-
153	PIPE ASM; CLU,UNION TO FLEX L=1156 SERVICED BY L=1250 THA	1-47428-764-0	01	1	1110-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
