2-05 — CLUTCH PIPING (#164405) — 38 parça
çizim 484246
48 101 50 239 104 23 50 173 39 173
BalonParca AdiParca NoAdetTipApplied Date
23 GROMMET; CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1507-
39 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09920-268-0 01 1 1507-
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1507-
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 02 1 1507-
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1507-
50 NUT; UNION
14" CLUTCH(WF6) (A) M12 		9-09840-280-0 01 1 1507-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=440 		8-98072-346-0 01 1 1507-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2464 SERVICED BY L=2500 		1-47428-742-0 01 1 1507-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1507-
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 2WAY 		1-09654-059-2 01 1 1507-
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98203-740-0 01 1 1507-
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98205-344-0 01 1 1507-
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5 		0-92113-306-0 01 1 1507-

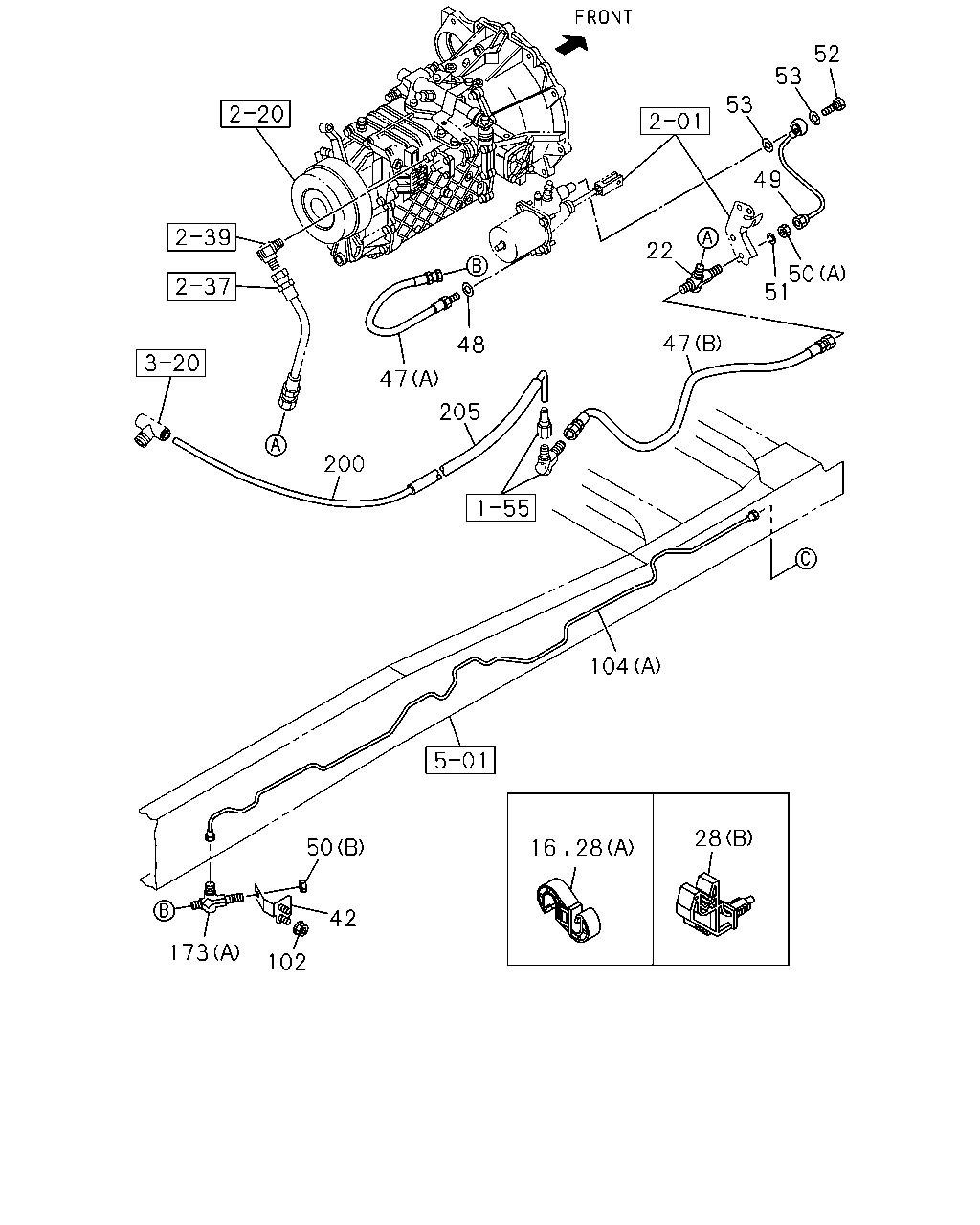

çizim 484256
47 48 200 205 47 22 50 51 49 53 53 52 104 16 28 28 50 42 102 173
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12 		1-09709-278-1 01 1 1507-
22 UNION; CLU PIPE
14" CLUTCH(WF6) M12 3WAY 		0-92138-706-0 01 1 1507-
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 		1-09701-247-1 01 1 1507-
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1507-
42 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98203-636-0 01 1 1507-
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=500 		1-09363-733-0 01 1 1507-
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=440 		8-98072-346-0 01 1 1507-
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1507-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
14" CLUTCH(WF6) 		8-98222-994-0 01 1 1507-
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 02 1 1507-
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1507-
50 NUT; UNION
14" CLUTCH(WF6) (A) M12 		9-09840-280-0 01 1 1507-
51 WASHER; LK
14" CLUTCH(WF6) ID=12.2 		0-91510-812-0 01 1 1507-
52 BOLT; EYE,AIR PIPE
14" CLUTCH(WF6) M14X27 FLANGE 		1-09675-086-0 01 1 1507-
53 GASKET; JOINT BOLT
14" CLUTCH(WF6) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1507-
102 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1507-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2464 SERVICED BY L=2500 		1-47428-742-0 01 1 1507-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1507-
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 2WAY 		1-09654-059-2 01 1 1507-
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98203-740-0 01 1 1507-
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98205-344-0 01 1 1507-
200 TUBE; NYLON
WHEEL BASE 4000MM(40W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1507-
200 TUBE; NYLON
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1507-
205 TUBE; CORRUGATE
WHEEL BASE 4000MM(40W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1507-
205 TUBE; CORRUGATE
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1507-
