◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11629 - FRR RHD EUROPE EURO6 SPACECAB EVSC ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#164402) — 23 parça

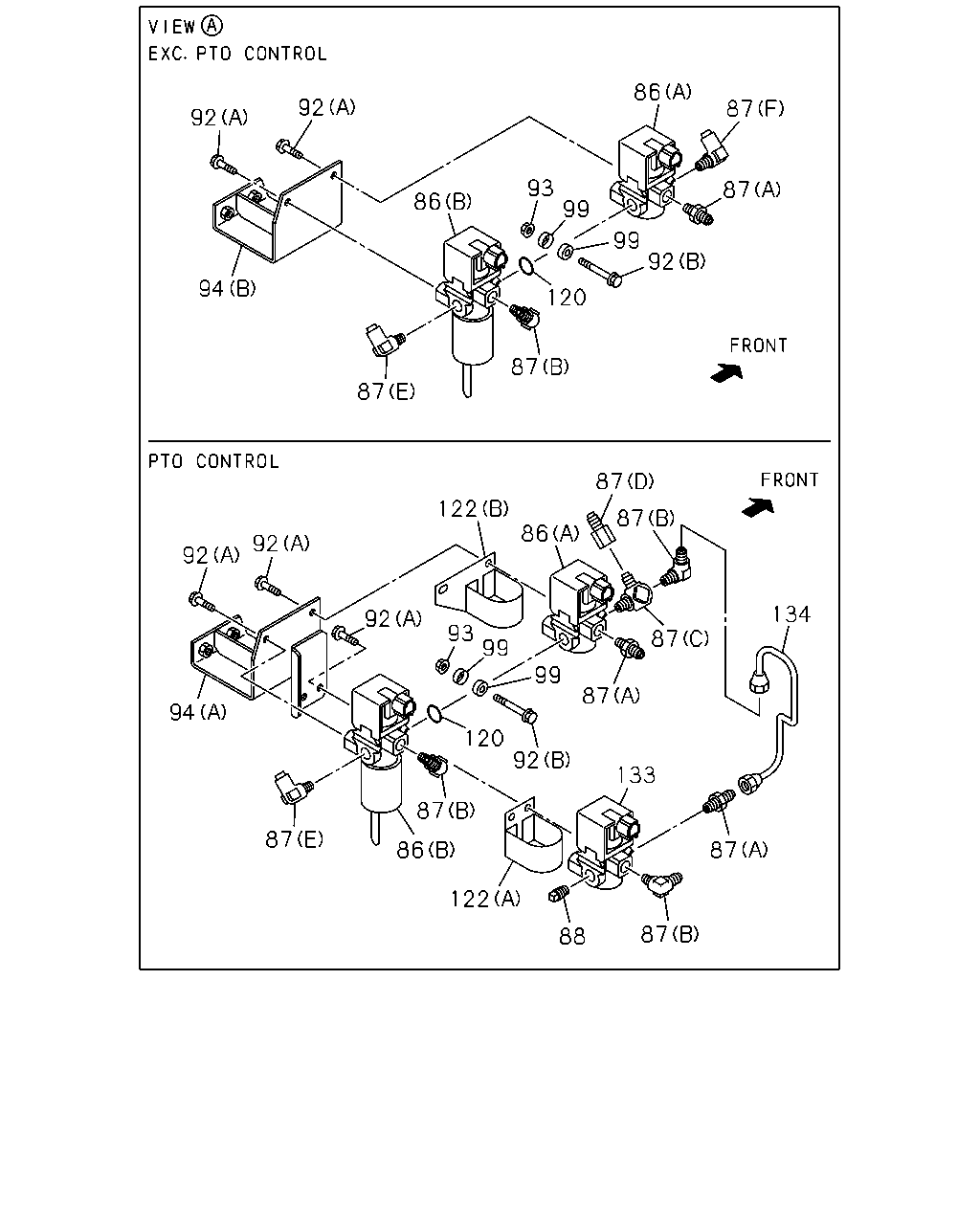

çizim 485005
87 86 122 92 93 99 99 87 133 92 120 87 86 87 94 92 92 122 88 87 87 87 134 87 87 87 120 86 94 92 92 93 99 99 92 87 86 87
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 1507-
86 VALVE; MAG,EXH BRK
(B) 		8-97633-075-0 01 1 1507-
87 CONNECTOR
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1507-
87 CONNECTOR
PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1507-
87 CONNECTOR
PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 1507-
87 CONNECTOR
PTO CONTROL<SV6> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1507-
87 CONNECTOR
PTO CONTROL<SV6> (D) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1507-
87 CONNECTOR
EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1507-
87 CONNECTOR
EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1507-
87 CONNECTOR
EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1507-
88 PLUG
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 1507-
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 1507-
92 BOLT; MAG VLV
PTO CONTROL<SV6> (A) M8X20 FLANGE 		0-28650-820-0 04 1 1507-
92 BOLT; MAG VLV
EXC. PTO CONTROL<SV6> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
93 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 1507-
94 BRACKET; MAG VLV,EXH BRAKE
PTO CONTROL<SV6> (A) 		8-98237-819-0 01 1 1507-
94 BRACKET; MAG VLV,EXH BRAKE
EXC. PTO CONTROL<SV6> (B) 		8-98223-109-0 01 1 1507-
99 WASHER; MAG VLV 1-82569-266-0 02 1 1507-
120 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 1507-
122 PROTECTOR; MAG VLV
PTO CONTROL<SV6> (A) 		1-47471-046-0 01 1 1507-
122 PROTECTOR; MAG VLV
PTO CONTROL<SV6> (B) 		8-98237-820-0 01 1 1507-
133 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-871-2 01 1 1507-
134 PIPE; AIR,MAG VLV
PTO CONTROL<SV6> 		8-98237-821-0 01 1 1507-
