6-01 — FRONT BUMPER (#1644) — 135 parça

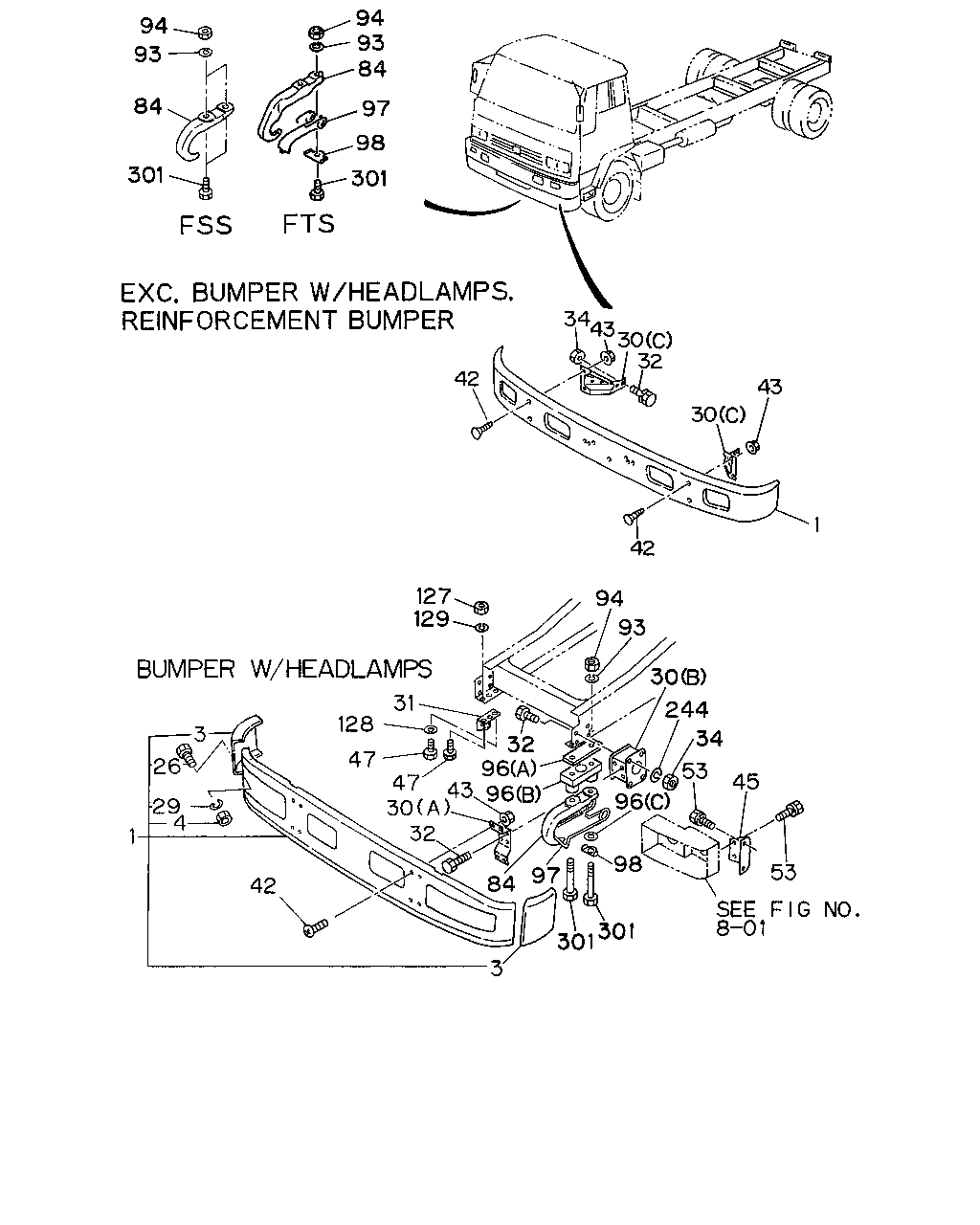

301 301 3 42 4 1 29 26 3 128 47 47 30 32 84 97 43 96 96 32 31 127 129 94 42 34 43 30 32 30 43 1 42 93 30 34 53 96 98 45 53 301 98 97 84 93 94 94 93 84 301 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71210-241-6	01	1	9207-	●	●	●	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7>	1-71210-299-4	01	1	9207-	●	●	●	●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB>	1-71210-502-2	01	1	9207-9406		●		●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB>	1-71210-656-0	01	1	9407-		●		●	●
3	BUMPER; FRT,SIDE BUMPER W/HEADLAMPS<SLB>	1-71210-496-0	01	1	9207-		●		●	●
3	BUMPER; FRT,SIDE BUMPER W/HEADLAMPS<SLB>	1-71210-495-0	01	1	9207-		●		●	●
4	NUT; CTR BUMPER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	06	1	9207-		●		●	●
26	BOLT; CTR BUMPER BUMPER W/HEADLAMPS<SLB>	1-09060-008-0	06	1	9207-		●		●	●
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=22	9-09160-708-0	06	1	9207-		●		●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (C)	1-71230-113-3	01	1	9207-	●	●	●	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (C)	1-71230-114-3	01	1	9207-	●	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-143-0	01	1	9207-	●	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-130-0	01	1	9207-	●	●	●	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-188-0	01	1	9207-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-189-0	01	1	9207-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-190-1	01	1	9207-		●		●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-191-1	01	1	9207-		●		●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-193-0	01	1	9207-				●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-194-0	01	1	9207-				●	●
31	SUPPORT; FRT BUMPER,LWR BUMPER W/HEADLAMPS<SLB>	1-71230-210-1	01	1	9207-		●
31	SUPPORT; FRT BUMPER,LWR BUMPER W/HEADLAMPS<SLB>	1-71230-209-1	01	1	9207-		●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	06	1	9207-	●	●	●	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	03	1	9207-	●	●	●	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	0-20801-025-0	08	1	9207-		●		●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	06	1	9207-	●	●	●	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	03	1	9207-	●	●	●	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	06	1	9207-		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	08	1	9207-				●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	04	1	9207-	●	●	●	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	9207-	●	●	●	●	●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	1-09060-010-1	08	1	9207-		●		●	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	04	1	9207-	●	●	●	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9207-	●	●	●	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	9207-		●		●	●
45	BRACKET; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-211-1	02	1	9207-		●		●	●
47	BOLT; SUPPORT TO BODY BUMPER W/HEADLAMPS<SLB> M14X35	0-20801-435-0	04	1	9207-		●
47	BOLT; SUPPORT TO BODY BUMPER W/HEADLAMPS<SLB> M14X45	0-20801-445-0	02	1	9207-		●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M14X30	0-20801-430-0	04	1	9207-		●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M14X35	0-20801-435-0	02	1	9207-		●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M10X20 W/LK&PL WASHER	0-50141-020-0	08	1	9207-		●		●	●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M14X35	0-20801-435-0	08	1	9207-				●	●
84	HOOK REINFORCEMENT BUMPER<VG7>	1-57181-027-1	01	1	9207-	●	●
84	HOOK	1-57181-027-1	01	1	9207-			●	●	●
84	HOOK EXC. REINFORCEMENT BUMPER<VG7>	1-57181-020-1	01	1	9207-	●	●
93	WASHER; LK,HOOK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	02	1	9207-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9207-			●	●	●
93	WASHER; LK,HOOK EXC. REINFORCEMENT BUMPER<VG7> ID=14.2	9-09150-514-0	02	1	9207-	●	●
94	NUT; HOOK REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	02	1	9207-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9207-			●	●	●
94	NUT; HOOK EXC. REINFORCEMENT BUMPER<VG7> M14	9-99110-414-0	02	1	9207-	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> (C) ID=15 OD=40	9-09851-995-0	01	1	9207-		●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	9-09857-022-0	01	1	9207-			●	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> (A)	1-57189-190-0	01	1	9207-				●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> (B)	8-94300-894-0	01	1	9207-				●	●
97	SPRING; FRT HOOK REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9207-	●	●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	9207-			●	●	●
98	STOPPER; SPR,FRT HOOK REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9207-	●	●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	9207-			●	●	●
127	NUT; FRT BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	06	1	9207-		●
128	WASHER; PL,FRT BUMPER BUMPER W/HEADLAMPS<SLB> ID=15 OD=36	9-09164-714-0	02	1	9207-		●
129	WASHER; LK,FRT BUMPER BUMPER W/HEADLAMPS<SLB> ID=14.2	9-09150-514-0	06	1	9207-		●
244	WASHER; LK,BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> ID=14.2	9-09150-514-0	06	1	9207-		●
244	WASHER; LK,BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> ID=14.2	9-09150-514-0	08	1	9207-				●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X55	0-10811-455-0	01	1	9207-	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M14X55	0-10811-455-0	01	1	9207-		●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME M16X60	0-10811-660-0	01	1	9207-			●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X60	0-10811-660-0	01	1	9207-				●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X75	0-10811-675-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X70	0-10811-470-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M14X60	0-10811-460-0	01	1	9207-		●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9207-			●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X70	0-10811-670-0	01	1	9207-				●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M16X130	1-09000-569-0	01	1	9207-				●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M16X120	5-09000-124-0	01	1	9207-				●	●

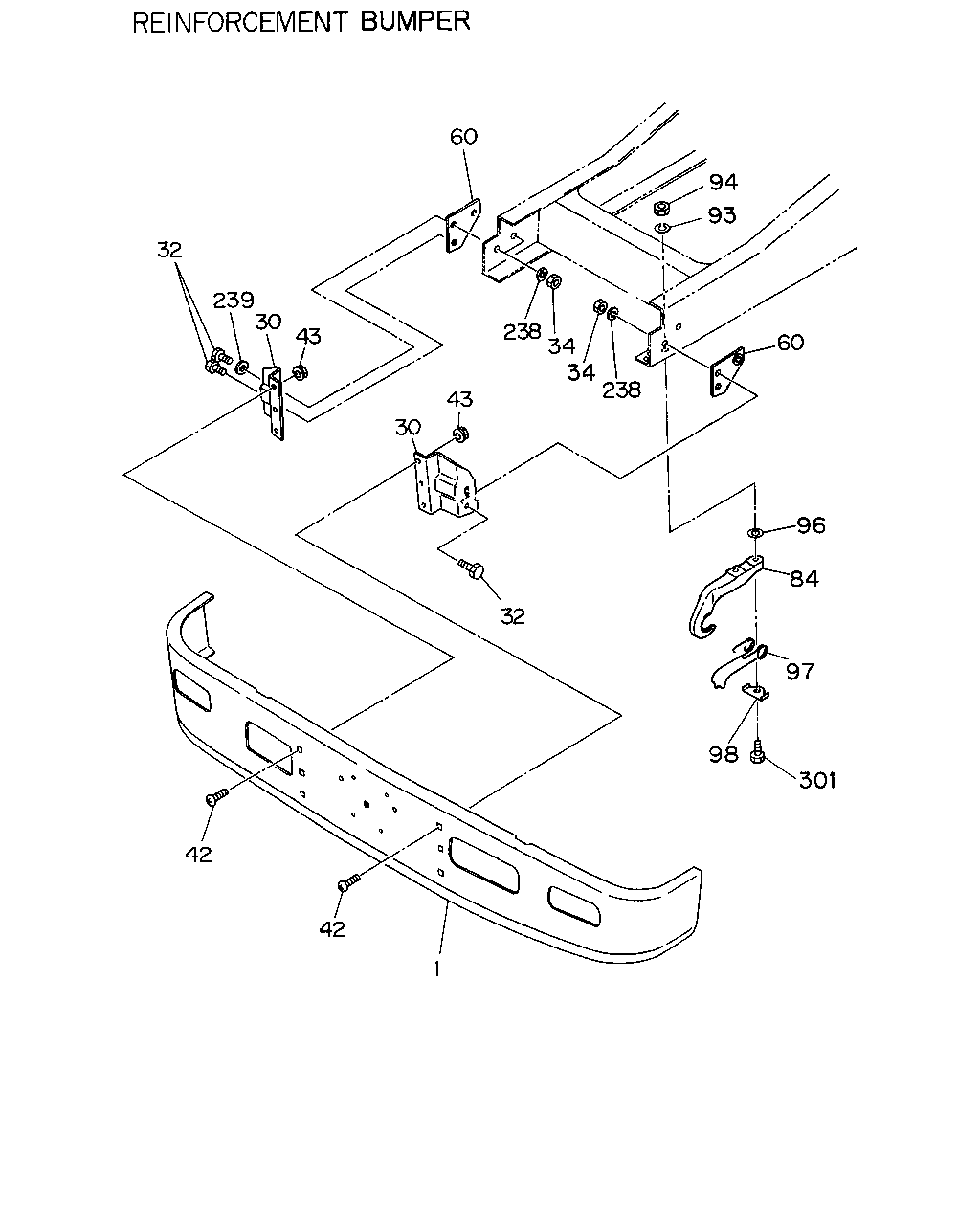

1 42 42 301 98 97 84 96 60 238 34 34 238 43 30 32 239 30 43 32 60 94 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71210-241-6	01	1	9207-	●	●	●	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7>	1-71210-299-4	01	1	9207-	●	●	●	●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB>	1-71210-502-2	01	1	9207-9406		●		●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB>	1-71210-656-0	01	1	9407-		●		●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (C)	1-71230-113-3	01	1	9207-	●	●	●	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (C)	1-71230-114-3	01	1	9207-	●	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-143-0	01	1	9207-	●	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-130-0	01	1	9207-	●	●	●	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-188-0	01	1	9207-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-189-0	01	1	9207-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-190-1	01	1	9207-		●		●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-191-1	01	1	9207-		●		●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-193-0	01	1	9207-				●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-194-0	01	1	9207-				●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	06	1	9207-	●	●	●	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	03	1	9207-	●	●	●	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	0-20801-025-0	08	1	9207-		●		●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	06	1	9207-	●	●	●	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	03	1	9207-	●	●	●	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	06	1	9207-		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	08	1	9207-				●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	04	1	9207-	●	●	●	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	9207-	●	●	●	●	●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	1-09060-010-1	08	1	9207-		●		●	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	04	1	9207-	●	●	●	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9207-	●	●	●	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	9207-		●		●	●
60	SPACER; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-57189-172-0	01	1	9207-	●	●
60	SPACER; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-57189-173-0	01	1	9207-	●	●
84	HOOK REINFORCEMENT BUMPER<VG7>	1-57181-027-1	01	1	9207-	●	●
84	HOOK	1-57181-027-1	01	1	9207-			●	●	●
84	HOOK EXC. REINFORCEMENT BUMPER<VG7>	1-57181-020-1	01	1	9207-	●	●
93	WASHER; LK,HOOK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	02	1	9207-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9207-			●	●	●
93	WASHER; LK,HOOK EXC. REINFORCEMENT BUMPER<VG7> ID=14.2	9-09150-514-0	02	1	9207-	●	●
94	NUT; HOOK REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	02	1	9207-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9207-			●	●	●
94	NUT; HOOK EXC. REINFORCEMENT BUMPER<VG7> M14	9-99110-414-0	02	1	9207-	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> (C) ID=15 OD=40	9-09851-995-0	01	1	9207-		●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	9-09857-022-0	01	1	9207-			●	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> (A)	1-57189-190-0	01	1	9207-				●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> (B)	8-94300-894-0	01	1	9207-				●	●
97	SPRING; FRT HOOK REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9207-	●	●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	9207-			●	●	●
98	STOPPER; SPR,FRT HOOK REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9207-	●	●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	9207-			●	●	●
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	03	1	9207-	●	●	●	●	●
239	WASHER; PL,BRKT REINFORCEMENT BUMPER<VG7>	9-09857-022-0	02	1	9207-	●	●	●	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X55	0-10811-455-0	01	1	9207-	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M14X55	0-10811-455-0	01	1	9207-		●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME M16X60	0-10811-660-0	01	1	9207-			●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X60	0-10811-660-0	01	1	9207-				●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X75	0-10811-675-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X70	0-10811-470-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M14X60	0-10811-460-0	01	1	9207-		●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9207-			●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X70	0-10811-670-0	01	1	9207-				●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M16X130	1-09000-569-0	01	1	9207-				●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M16X120	5-09000-124-0	01	1	9207-				●	●
