◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11629 - FRR RHD EUROPE EURO6 SPACECAB EVSC ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-46 - DEF TANK AND PIPING ▶
1-46 — DEF TANK AND PIPING (#164399) — 205 parça

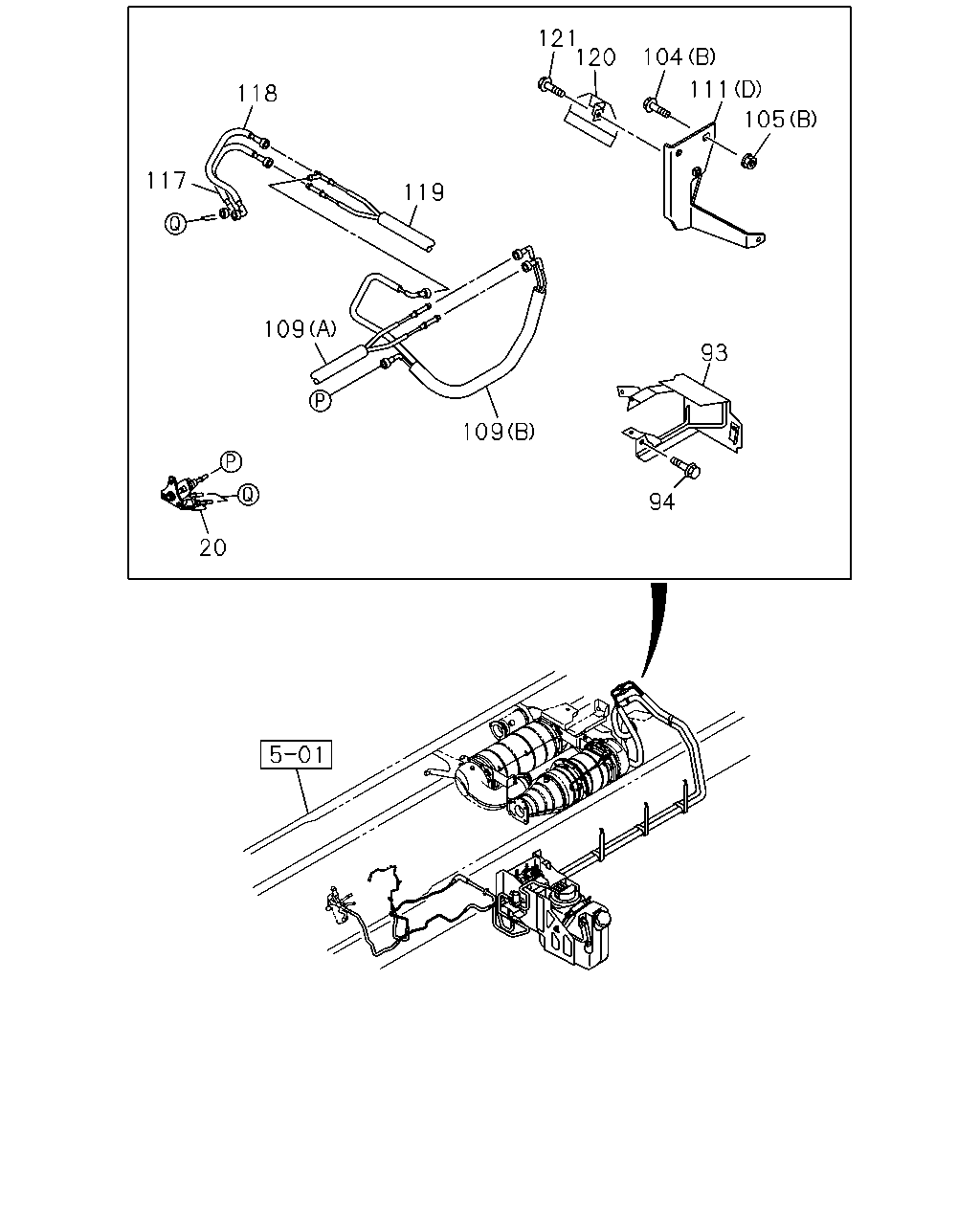

çizim 484233
118 117 119 109 20 109 94 93 121 104 120 111 105
BalonParca AdiParca NoAdetTipApplied Date
20 INJECTOR ASM; DEF DCM 8-98231-898-2 01 1 1507-
93 PROTECTOR; DEF DCM 8-98166-811-0 01 1 1507-
94 BOLT; PROTECTOR,DEF DCM
M8X25 FLANGE 		0-28650-825-0 02 1 1507-
104 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1507-
104 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1507-
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1507-
104 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1507-
104 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (B) M10X30 FLANGE 		0-28651-030-0 06 1 1507-
104 BOLT; BRKT
WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE 		0-28651-030-0 07 1 1507-
105 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1507-
105 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1507-
105 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1507-
105 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE 		0-91180-210-0 04 1 1507-
105 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE 		0-91180-210-0 06 1 1507-
109 TUBE ASM; DEF & WATER
(B) 		8-98206-720-0 01 1 1507-1508
109 TUBE ASM; DEF & WATER
(B) 		8-98329-849-0 01 1 1509-
109 TUBE ASM; DEF & WATER
(C) 		8-98233-439-0 01 1 1507-
109 TUBE ASM; DEF & WATER
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) 		8-98210-290-1 01 1 1507-1509
109 TUBE ASM; DEF & WATER
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) 		8-98329-854-0 01 1 1510-
109 TUBE ASM; DEF & WATER
WHEEL BASE 4600MM(46W) (A) 		8-98206-717-1 01 1 1507-1509
109 TUBE ASM; DEF & WATER
WHEEL BASE 4600MM(46W) (A) 		8-98329-853-0 01 1 1510-
111 BRACKET; CLIP,TUBE ASM
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) 		8-98309-774-0 06 1 1507-
111 BRACKET; CLIP,TUBE ASM
WHEEL BASE 4600MM(46W) (A) 		8-98309-774-0 07 1 1507-
111 BRACKET; CLIP,TUBE ASM
(B) L=225 		1-47477-646-3 02 1 1507-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98206-696-0 01 1 1507-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98206-700-0 01 1 1507-
117 TUBE ASM; DEF DCM COOL DLVY 8-98169-122-0 01 1 1507-
118 TUBE ASM; DEF DCM COOL RTN 8-98169-121-0 01 1 1507-
119 TUBE ASM; DEF COOL & HTR WAT
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) 		8-98210-287-2 01 1 1507-1509
119 TUBE ASM; DEF COOL & HTR WAT
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) 		8-98329-862-0 01 1 1510-
119 TUBE ASM; DEF COOL & HTR WAT
WHEEL BASE 4600MM(46W) 		8-98210-366-2 01 1 1507-1509
119 TUBE ASM; DEF COOL & HTR WAT
WHEEL BASE 4600MM(46W) 		8-98329-863-0 01 1 1510-
120 PROTECTOR; DEF COOL & HTR WAT TUBE 8-98169-727-0 01 1 1507-
121 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 01 1 1507-

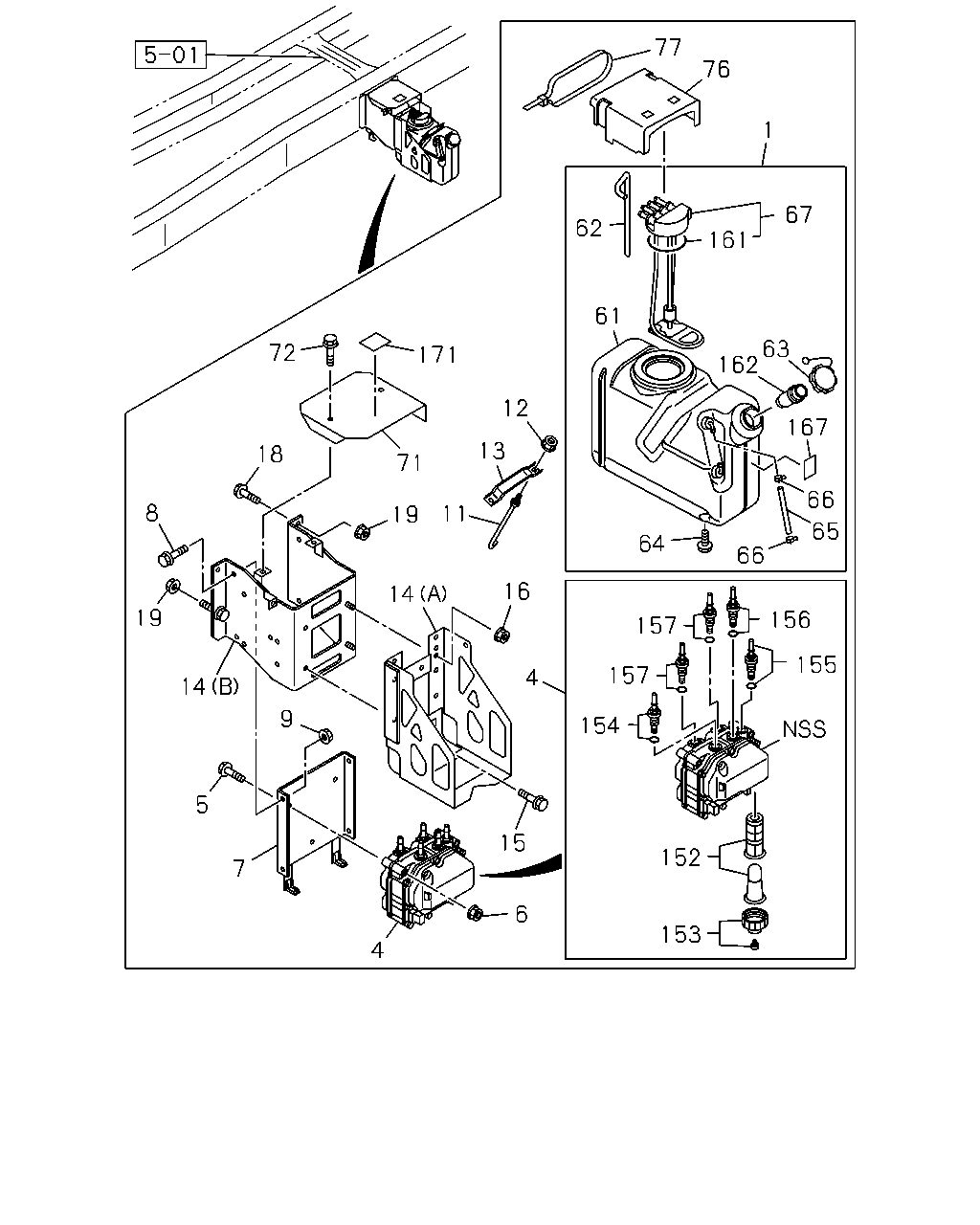

çizim 485043
77 76 1 67 161 62 61 162 63 167 66 65 66 64 157 157 154 156 155 152 153 15 6 4 7 5 14 19 8 9 14 19 71 171 72 12 13 11 16 4 18
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; DEF 8-98239-382-3 01 1 1507-
4 PUMP ASM; DEF,DCM SPLY 8-98268-812-0 01 1 1507-
5 BOLT; PUMP ASM,DEF DCM SPLY
M8X90 FLANGE 		0-28050-890-0 03 1 1507-
6 NUT; DEF DCM SPLY
M8 FLANGE 		0-91180-108-0 03 1 1507-
7 BRACKET; DEF DCM SPLY 8-98239-367-0 01 1 1507-
8 BOLT; BRKT,DEF DCM SPLY
M8X20 FLANGE 		0-28050-820-0 04 1 1507-
9 NUT; BRKT,DEF DCM SPLY
M8 FLANGE 		0-91180-208-0 04 1 1507-
11 BOLT; DEF TANK 8-98157-936-0 02 1 1507-
12 NUT; DEF TANK
M10 FLANGE 		0-91180-110-0 02 1 1507-
13 RETAINER; DEF TANK 8-98156-747-0 01 1 1507-
14 BRACKET ASM; DEF TANK
(A) 		8-98214-590-0 01 1 1507-
14 BRACKET ASM; DEF TANK
(B) 		8-98239-989-1 01 1 1507-
15 BOLT; BRKT,DEF TANK
M10X40 FLANGE 		0-28651-040-0 02 1 1507-
16 NUT; BRKT,DEF TANK
M10 FLANGE 		0-91180-210-0 04 1 1507-
18 BOLT; BRKT,DEF TANK
M10X40 FLANGE 		0-28651-040-0 02 1 1507-
19 NUT; BRKT,DEF TANK
M10 FLANGE 		0-91180-210-0 04 1 1507-
61 BODY ASM; DEF TANK 8-98220-878-1 01 1 1507-
62 HOSE; VENT,DEF TANK 8-98239-981-1 01 1 1507-
63 CAP ASM; FILLER,DEF TANK 8-98147-581-1 01 1 1507-
64 PLUG; DRAIN,DEF TANK 8-98120-263-0 01 1 1507-
65 HOSE; WATER LEVEL 8-98120-264-1 01 1 1507-
66 CLAMP; WATER LEVEL HOSE 8-98120-265-1 02 1 1507-
67 SENSOR ASM; DEF TANK 8-98213-926-1 01 1 1507-
71 COVER; DEF DCM SPLY 8-98233-434-0 01 1 1507-
72 BOLT; COVER,DEF DCM SPLY
M8X20 FLANGE 		0-28650-820-0 02 1 1507-
76 COVER; DEF TANK CAP 8-98156-298-1 01 1 1507-
77 CLIP; DEF TANK CAP CVR
L=350 		1-09707-183-0 01 1 1507-
152 FILTER KIT; PUMP ASM,DEF DCM SPLY 8-98169-403-0 01 1 1507-
153 COVER KIT; PUMP ASM,DEF DCM SPLY 8-98169-408-0 01 1 1507-
154 CONNECTOR KIT; INLET PUMP,DEF 8-98169-409-0 01 1 1507-
155 CONNECTOR KIT; OUTLET PUMP,DEF 8-98169-411-0 01 1 1507-
156 CONNECTOR KIT; RETURN PUMP,DEF 8-98268-813-0 01 1 1507-
157 CONNECTOR KIT; COOLANT PUMP,DEF 8-98169-414-1 02 1 1507-
161 GASKET; SENSOR ASM,DEF TANK 8-98170-383-0 01 1 1507-
162 ADAPTER; DEF TANK 8-98131-158-0 01 1 1507-
167 PLATE; CAUTION,DEF 8-98231-935-0 01 1 1507-
171 LABEL; NO STEP 8-98158-131-0 01 1 1507-

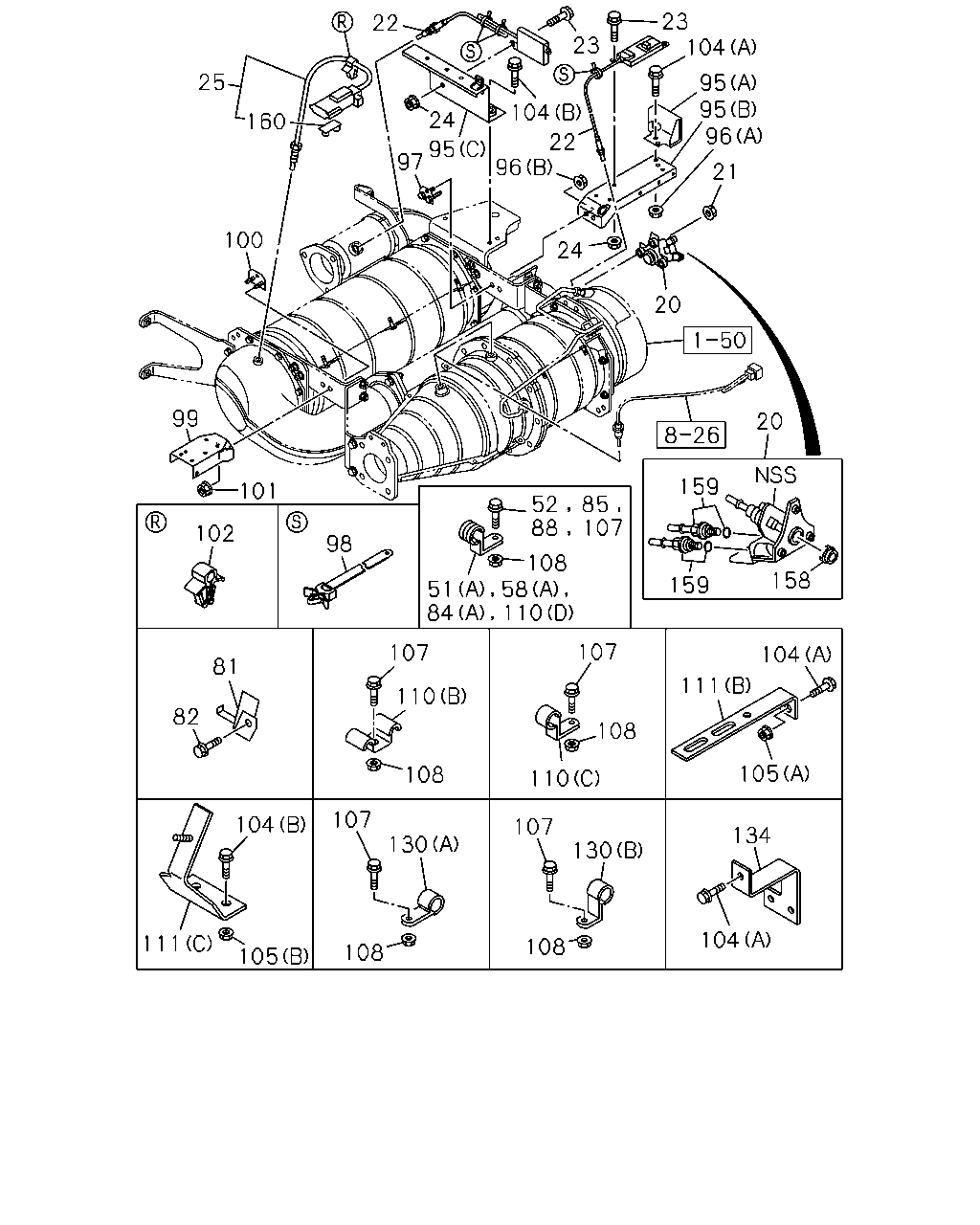

çizim 485154
22 160 25 24 95 97 96 22 104 23 23 104 95 95 96 21 20 24 100 99 101 102 98 81 82 107 51 84 58 88 107 52 85 108 110 159 159 158 111 104 105 110 108 107 108 110 107 130 108 104 134 105 111 104 107 130 20 108
BalonParca AdiParca NoAdetTipApplied Date
20 INJECTOR ASM; DEF DCM 8-98231-898-2 01 1 1507-
21 NUT; INJECTOR ASM,DEF DCM
M6 FLANGE 		0-91180-106-0 03 1 1507-
22 SENSOR; DEF DCM EXH NOX 8-98302-394-0 02 1 1507-
23 BOLT; SENSOR,DEF DCM EXH NOX 8-98155-181-0 04 1 1507-
24 NUT; SENSOR,DEF DCM EXH NOX
M6 FLANGE 		0-91180-106-0 04 1 1507-
25 SENSOR; DEF DCM EXH TEMP 8-98086-329-0 01 1 1507-
51 CLIP; DEF DCM MDL COOL DLVY HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1507-
51 CLIP; DEF DCM MDL COOL DLVY HOSE
(B) ID=16 		8-97329-628-0 03 1 1507-
51 CLIP; DEF DCM MDL COOL DLVY HOSE
(C) ID=16 		8-98008-098-0 01 1 1507-
52 BOLT; DEF DCM MDL COOL DLVY HOSE CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 1507-
58 CLIP; DEF RSVR HTR DLVY HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1507-
58 CLIP; DEF RSVR HTR DLVY HOSE
(B) ID=16 		8-97329-628-0 02 1 1507-
81 BRACKET; DEF DCM MDL COOL RTN HOSE 8-98239-525-0 01 1 1507-
82 BOLT/SCREW;DEF DCM MDL COOL RTN HOSE B
M8X30 FLANGE 		0-28650-830-0 01 1 1507-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1507-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(B) ID=16 		8-97329-628-0 01 1 1507-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(B) ID=16 		8-97329-628-0 02 1 1507-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(C) ID=16 		8-98008-098-0 01 1 1507-
85 BOLT/SCREW;DEF DCM MDL COOL RTN HOSE C
M8X20 FLANGE 		0-28650-820-0 01 1 1507-
88 BOLT; CLIP,DEF RSVR HTR DLVY HOSE
M8X25 FLANGE 		0-28650-825-0 01 1 1507-
95 BRACKET; HARN,DEF DCM EXH NOX SEN
(B) 		8-98142-266-3 01 1 1507-
95 BRACKET; HARN,DEF DCM EXH NOX SEN
(A) 		8-98170-211-0 01 1 1507-
95 BRACKET; HARN,DEF DCM EXH NOX SEN
(C) 		8-98241-870-0 01 1 1507-
96 NUT; BRACKET,DEF DCM EXH NOX SEN HARN
(A) M8 FLANGE 		0-91180-108-0 02 1 1507-
96 NUT; BRACKET,DEF DCM EXH NOX SEN HARN
(B) M10 FLANGE 		0-91180-210-0 02 1 1507-
97 STUD; BRACKET,DEF DCM EXH NOX SEN HARN 8-98005-985-0 01 1 1507-
98 CLIP; DEF DCM EXH NOX SEN HARN
L=112 		8-94232-618-0 08 1 1507-
99 BRACKET; DEF DCM EXH TEMP SEN HARN 8-98248-149-0 01 1 1507-
100 BOLT; BRKT,DEF DCM EXH TEMP SEN HARN 8-98005-985-0 01 1 1507-
101 NUT; CLIP,DEF DCM EXH TEMP SEN HARN
M10 FLANGE 		0-91180-210-0 02 1 1507-
102 CLIP; DEF DCM EXH TEMP SEN HARN
ID=4.8 		1-09701-218-0 03 1 1507-
104 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1507-
104 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1507-
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1507-
104 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1507-
104 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (B) M10X30 FLANGE 		0-28651-030-0 06 1 1507-
104 BOLT; BRKT
WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE 		0-28651-030-0 07 1 1507-
105 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1507-
105 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1507-
105 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1507-
105 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE 		0-91180-210-0 04 1 1507-
105 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE 		0-91180-210-0 06 1 1507-
107 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1507-
107 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1507-
107 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1507-
107 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1507-
108 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1507-
108 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1507-
110 CLIP; TUBE ASM
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 1507-
110 CLIP; TUBE ASM
(B) ID=11 & 13 L=17 & 18 		1-09700-748-0 01 1 1507-
110 CLIP; TUBE ASM
(C) ID=13 H=18 L=20 		1-09700-813-0 01 1 1507-
110 CLIP; TUBE ASM
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1507-1508
110 CLIP; TUBE ASM
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1509-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 03 1 1507-
110 CLIP; TUBE ASM
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) L=350 		1-09707-183-0 07 1 1507-
110 CLIP; TUBE ASM
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 08 1 1507-
111 BRACKET; CLIP,TUBE ASM
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) 		8-98309-774-0 06 1 1507-
111 BRACKET; CLIP,TUBE ASM
WHEEL BASE 4600MM(46W) (A) 		8-98309-774-0 07 1 1507-
111 BRACKET; CLIP,TUBE ASM
(B) L=225 		1-47477-646-3 02 1 1507-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98206-696-0 01 1 1507-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98206-700-0 01 1 1507-
130 CLIP; PIPE ASM
(A) ID=13 L=20 		0-95235-235-0 01 1 1507-
130 CLIP; PIPE ASM
(A) ID=13 L=40 		0-95235-276-0 01 1 1507-
130 CLIP; PIPE ASM
(B) ID=13 H=18 L=20 		1-09700-813-0 03 1 1507-
134 BRACKET; PIPE ASM 8-98206-701-0 01 1 1507-
158 GASKET; INJECTOR ASM,DEF DCM 8-98086-333-0 01 1 1507-
159 CONNECTOR KIT; COOLANT,INJECTOR ASM DE 8-98169-416-1 02 1 1507-
160 CLIP; HARNESS,SENSOR DEF DCM EXH TEMP 8-98170-331-0 01 1 1507-

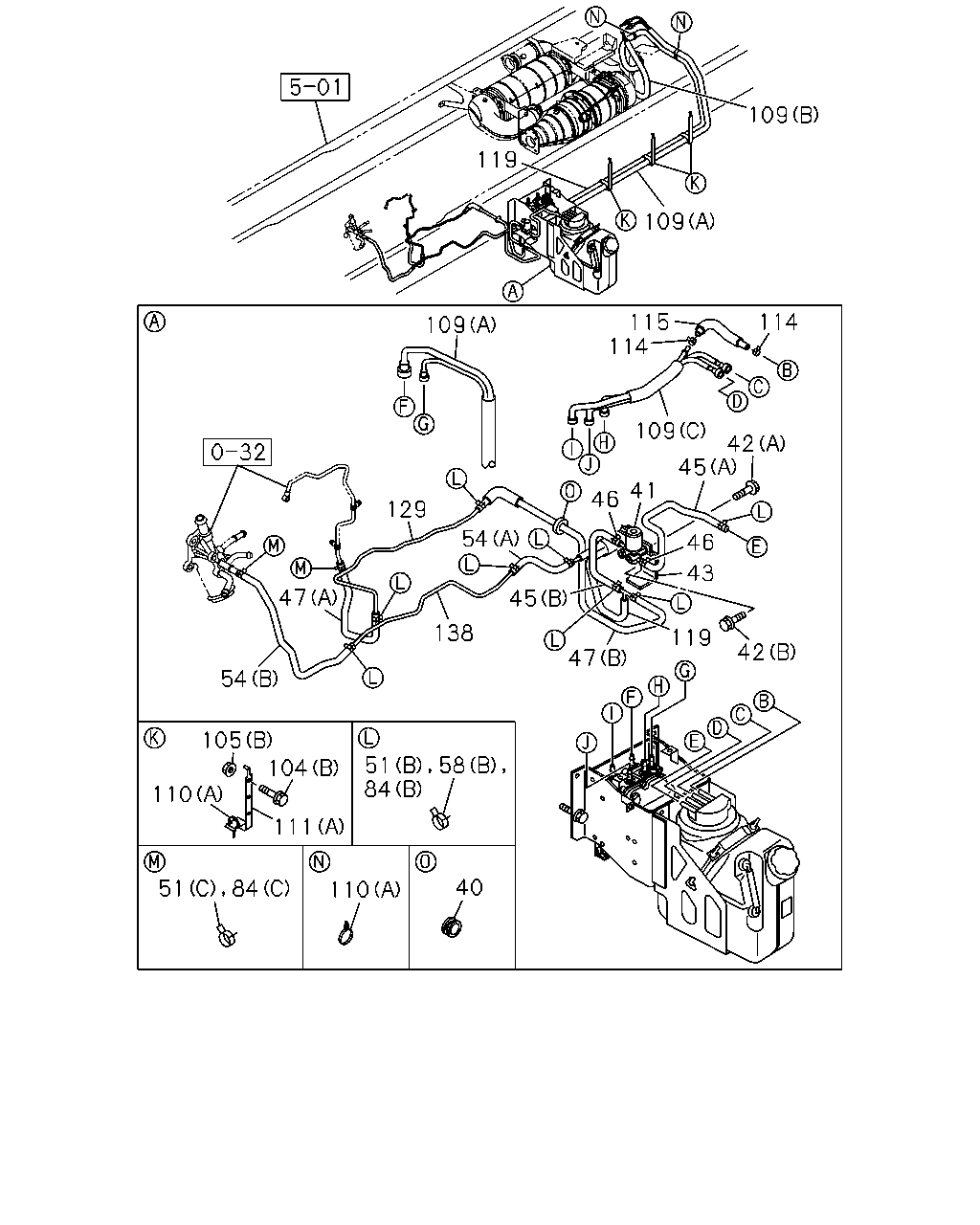

çizim 485226
109 109 119 109 115 114 109 42 45 46 41 46 43 119 42 47 45 54 129 138 47 54 105 110 51 84 110 111 104 51 84 58 40 114
BalonParca AdiParca NoAdetTipApplied Date
40 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1507-
41 VALVE ASM; DEF TANK HTR DLVY 8-97628-956-1 01 1 1507-
42 BOLT; DEF RSVR HTR DLVY VLV
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1507-
42 BOLT; DEF RSVR HTR DLVY VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1507-
43 BRACKET; DEF RSVR HTR DLVY VLV 8-98206-706-0 01 1 1507-
45 HOSE ASM; DEF TANK HTR DLVY
(B) 		8-98206-772-0 01 1 1507-
45 HOSE ASM; DEF TANK HTR DLVY
(A) 		8-98206-773-1 01 1 1507-
46 CLAMP; DEF TANK HTR DLVY
ID=16 		8-97329-628-0 02 1 1507-
47 HOSE; DEF DCM COOL DLVY
(A) 		8-98206-774-0 01 1 1507-
47 HOSE; DEF DCM COOL DLVY
(B) 		8-98245-739-1 01 1 1507-
51 CLIP; DEF DCM MDL COOL DLVY HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1507-
51 CLIP; DEF DCM MDL COOL DLVY HOSE
(B) ID=16 		8-97329-628-0 03 1 1507-
51 CLIP; DEF DCM MDL COOL DLVY HOSE
(C) ID=16 		8-98008-098-0 01 1 1507-
54 HOSE; DEF DCM COOL RTN
(A) 		8-98233-333-0 01 1 1507-
54 HOSE; DEF DCM COOL RTN
(B) 		8-98239-522-0 01 1 1507-
58 CLIP; DEF RSVR HTR DLVY HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1507-
58 CLIP; DEF RSVR HTR DLVY HOSE
(B) ID=16 		8-97329-628-0 02 1 1507-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1507-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(B) ID=16 		8-97329-628-0 01 1 1507-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(B) ID=16 		8-97329-628-0 02 1 1507-
84 CLIP; DEF DCM MDL COOL RTN HOSE
(C) ID=16 		8-98008-098-0 01 1 1507-
104 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1507-
104 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1507-
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1507-
104 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1507-
104 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (B) M10X30 FLANGE 		0-28651-030-0 06 1 1507-
104 BOLT; BRKT
WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE 		0-28651-030-0 07 1 1507-
105 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1507-
105 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1507-
105 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1507-
105 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE 		0-91180-210-0 04 1 1507-
105 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE 		0-91180-210-0 06 1 1507-
109 TUBE ASM; DEF & WATER
(B) 		8-98206-720-0 01 1 1507-1508
109 TUBE ASM; DEF & WATER
(B) 		8-98329-849-0 01 1 1509-
109 TUBE ASM; DEF & WATER
(C) 		8-98233-439-0 01 1 1507-
109 TUBE ASM; DEF & WATER
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) 		8-98210-290-1 01 1 1507-1509
109 TUBE ASM; DEF & WATER
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) 		8-98329-854-0 01 1 1510-
109 TUBE ASM; DEF & WATER
WHEEL BASE 4600MM(46W) (A) 		8-98206-717-1 01 1 1507-1509
109 TUBE ASM; DEF & WATER
WHEEL BASE 4600MM(46W) (A) 		8-98329-853-0 01 1 1510-
110 CLIP; TUBE ASM
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 1507-
110 CLIP; TUBE ASM
(B) ID=11 & 13 L=17 & 18 		1-09700-748-0 01 1 1507-
110 CLIP; TUBE ASM
(C) ID=13 H=18 L=20 		1-09700-813-0 01 1 1507-
110 CLIP; TUBE ASM
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1507-1508
110 CLIP; TUBE ASM
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1509-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 03 1 1507-
110 CLIP; TUBE ASM
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) L=350 		1-09707-183-0 07 1 1507-
110 CLIP; TUBE ASM
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 08 1 1507-
111 BRACKET; CLIP,TUBE ASM
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) 		8-98309-774-0 06 1 1507-
111 BRACKET; CLIP,TUBE ASM
WHEEL BASE 4600MM(46W) (A) 		8-98309-774-0 07 1 1507-
111 BRACKET; CLIP,TUBE ASM
(B) L=225 		1-47477-646-3 02 1 1507-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98206-696-0 01 1 1507-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98206-700-0 01 1 1507-
114 CLIP; HOSE
ID=16 		8-97329-628-0 02 1 1507-
115 HOSE; DEF TANK HTR RTN 8-98237-190-0 01 1 1507-
119 TUBE ASM; DEF COOL & HTR WAT
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) 		8-98210-287-2 01 1 1507-1509
119 TUBE ASM; DEF COOL & HTR WAT
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) 		8-98329-862-0 01 1 1510-
119 TUBE ASM; DEF COOL & HTR WAT
WHEEL BASE 4600MM(46W) 		8-98210-366-2 01 1 1507-1509
119 TUBE ASM; DEF COOL & HTR WAT
WHEEL BASE 4600MM(46W) 		8-98329-863-0 01 1 1510-
129 PIPE ASM; DEF DCM COOL DLVY 8-98245-736-0 01 1 1507-
138 PIPE ASM; DEF DCM COOL RTN 8-98233-324-0 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
