1-41 — FUEL PIPING; CHASSIS (#164397) — 95 parça

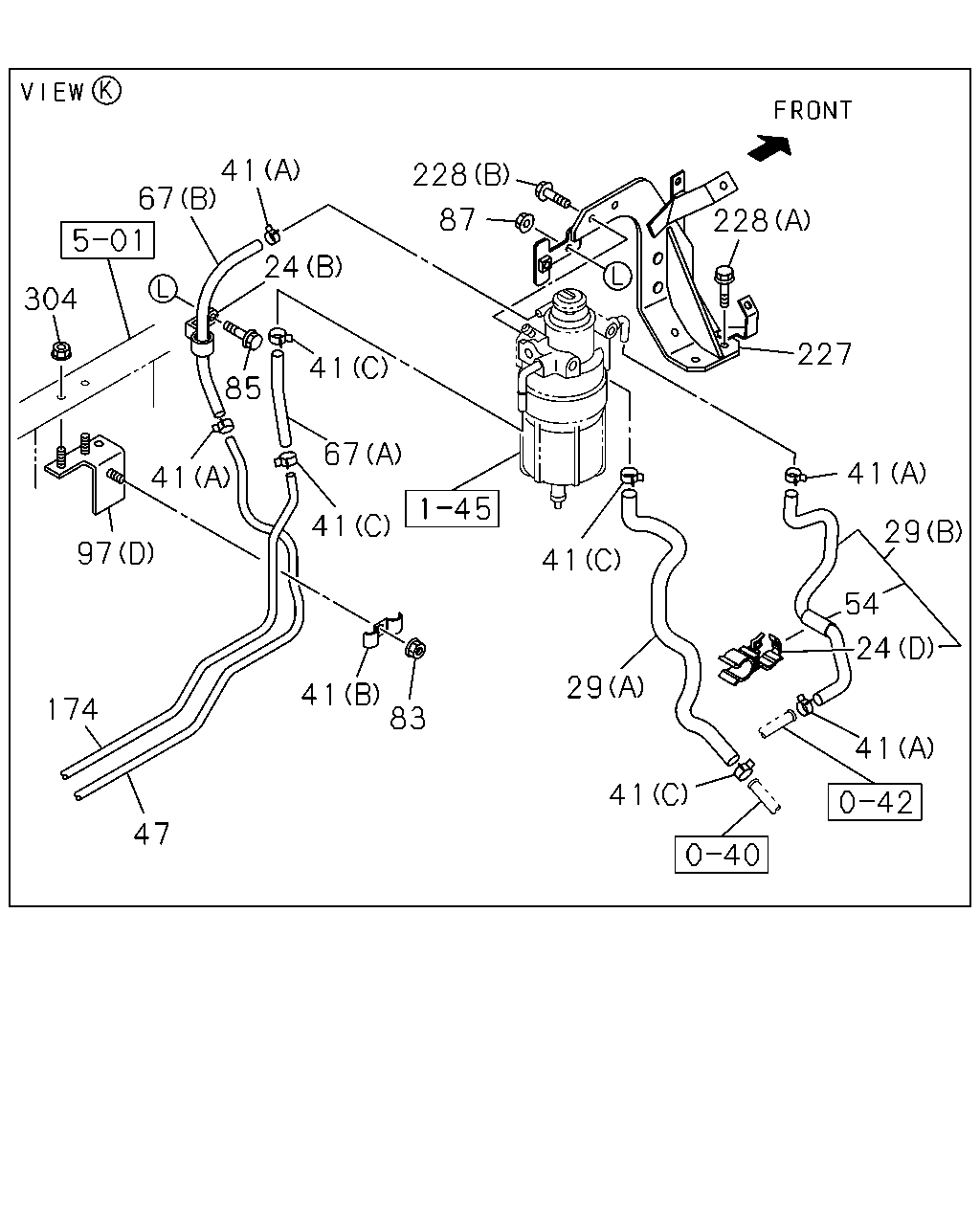

çizim 484210
41 67 304 24 41 67 41 41 97 41 85 174 47 83 29 41 41 87 228 228 227 41 54 29 24 41
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1507-
24 CLIP; FUEL HOSE
(D) ID=16.5 & 10.5-14 		8-98147-093-0 01 1 1507-
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (C) ID=21 L=24 		8-98019-191-0 01 1 1507-
24 CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1507-
24 CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=21 L=24 		8-98019-191-0 02 1 1507-
29 HOSE; FUEL
(B) 		8-98147-183-0 01 1 1507-
29 HOSE; FUEL
(A) 		8-98156-676-0 01 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 04 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4000MM(40W) (D) ID=8 H=20 L=20 		1-09700-604-0 01 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (D) ID=8 H=20 L=20 		1-09700-604-0 02 1 1507-
47 PIPE; FUEL,RETURN
WHEEL BASE 4000MM(40W) L=2512 		8-98245-730-0 01 1 1507-
47 PIPE; FUEL,RETURN
WHEEL BASE 4600MM(46W) L=3106 		8-98239-745-0 01 1 1507-
47 PIPE; FUEL,RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=3008 		8-98245-731-0 01 1 1507-
54 SPACER; CLIP,FUEL PIPE 8-98148-172-0 01 1 1507-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1507-
67 HOSE; FUEL,DELIVERY
(A) L=140 SERVICED BY L=3000 		0-01859-300-0 01 1 1507-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1507-
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4000MM(40W) M8 FLANGE 		0-91180-108-0 04 1 1507-
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 05 1 1507-
85 BOLT; CLIP,FUEL HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 1507-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 01 1 1507-
97 BRACKET; CLIP
(D) 		8-98209-221-0 01 1 1507-
97 BRACKET; CLIP
(C) 		8-98245-737-0 01 1 1507-
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W) (A) L=55 		1-47476-177-0 01 1 1507-
97 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=55 		1-47476-177-0 02 1 1507-
97 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) 		8-98109-768-0 01 1 1507-
174 PIPE; FUEL,FEED,FRT 8-98245-726-0 01 1 1507-
227 BRACKET; FUEL SEDIMENTER 8-98133-172-0 01 1 1507-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1507-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
304 NUT; BRKT
WHEEL BASE 4600MM(46W) M10 FLANGE 		0-91180-210-0 01 1 1507-
304 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-210-0 03 1 1507-

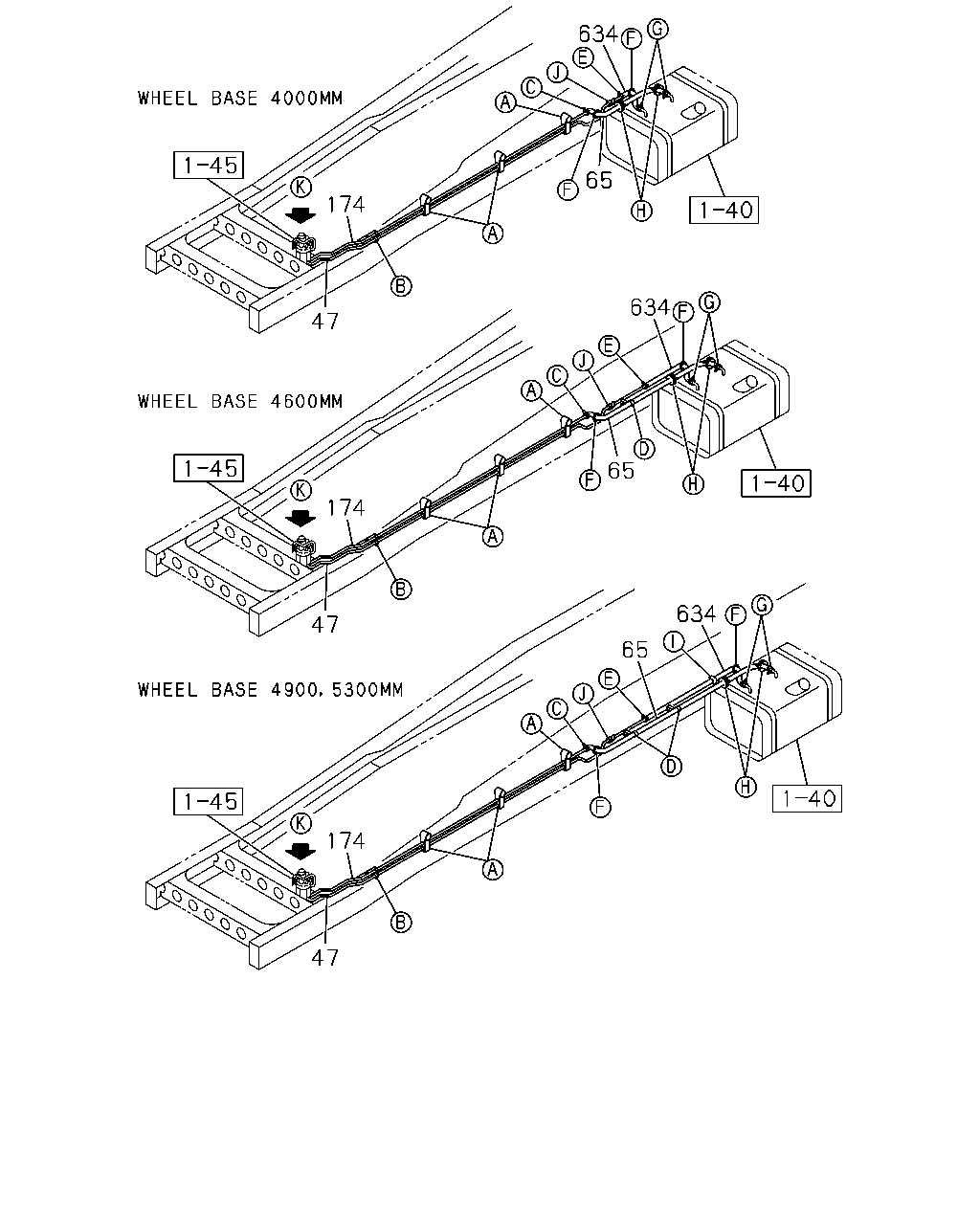

çizim 484216
174 47 174 47 174 47 634 65 634 65 634 65
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; FUEL,RETURN
WHEEL BASE 4000MM(40W) L=2512 		8-98245-730-0 01 1 1507-
47 PIPE; FUEL,RETURN
WHEEL BASE 4600MM(46W) L=3106 		8-98239-745-0 01 1 1507-
47 PIPE; FUEL,RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=3008 		8-98245-731-0 01 1 1507-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4000MM(40W) L=850 		8-98183-311-0 01 1 1507-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W) L=1200 		8-98183-312-0 01 1 1507-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550 		8-98183-313-0 01 1 1507-
174 PIPE; FUEL,FEED,FRT 8-98245-726-0 01 1 1507-
634 HOSE; RUBBER RETURN
WHEEL BASE 4000MM(40W) 		8-98245-302-0 01 1 1507-
634 HOSE; RUBBER RETURN
WHEEL BASE 4600MM(46W) 		8-98245-303-0 01 1 1507-
634 HOSE; RUBBER RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98245-304-0 01 1 1507-

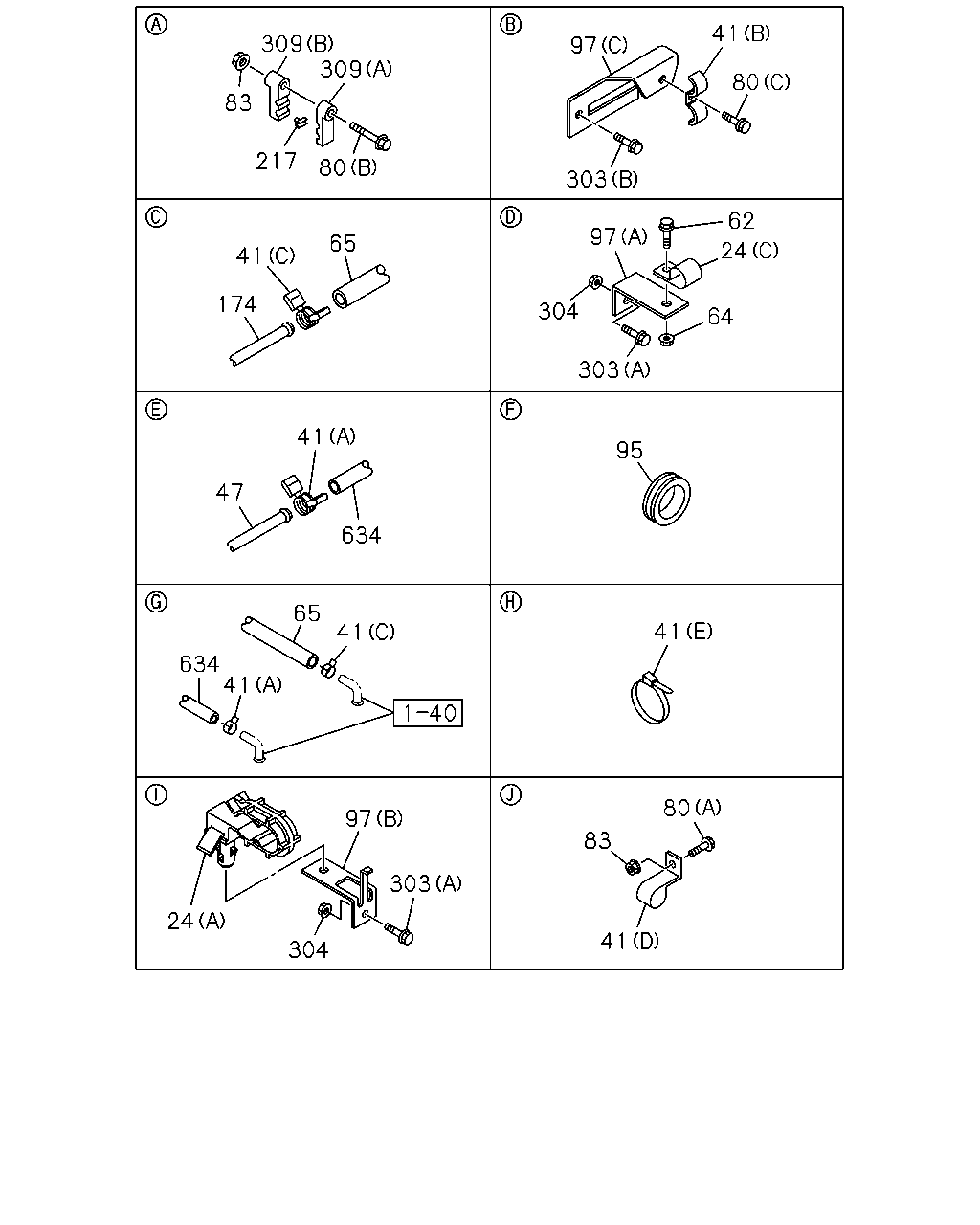

çizim 485048
309 309 83 217 80 65 41 174 41 47 634 65 41 41 634 97 303 304 24 83 41 80 41 95 64 303 304 97 62 24 303 97 41 80
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1507-
24 CLIP; FUEL HOSE
(D) ID=16.5 & 10.5-14 		8-98147-093-0 01 1 1507-
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (C) ID=21 L=24 		8-98019-191-0 01 1 1507-
24 CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1507-
24 CLIP; FUEL HOSE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=21 L=24 		8-98019-191-0 02 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 04 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4000MM(40W) (D) ID=8 H=20 L=20 		1-09700-604-0 01 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (D) ID=8 H=20 L=20 		1-09700-604-0 02 1 1507-
47 PIPE; FUEL,RETURN
WHEEL BASE 4000MM(40W) L=2512 		8-98245-730-0 01 1 1507-
47 PIPE; FUEL,RETURN
WHEEL BASE 4600MM(46W) L=3106 		8-98239-745-0 01 1 1507-
47 PIPE; FUEL,RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=3008 		8-98245-731-0 01 1 1507-
62 BOLT; CLIP FIX
WHEEL BASE 4600MM(46W) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
62 BOLT; CLIP FIX
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
64 NUT; CLIP
WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 01 1 1507-
64 NUT; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 02 1 1507-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4000MM(40W) L=850 		8-98183-311-0 01 1 1507-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W) L=1200 		8-98183-312-0 01 1 1507-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550 		8-98183-313-0 01 1 1507-
80 BOLT; CLIP,FUEL TANK
(B) M8X50 FLANGE 		0-28050-850-0 03 1 1507-
80 BOLT; CLIP,FUEL TANK
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 4000MM(40W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1507-
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1507-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1507-
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4000MM(40W) M8 FLANGE 		0-91180-108-0 04 1 1507-
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 05 1 1507-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1507-
97 BRACKET; CLIP
(D) 		8-98209-221-0 01 1 1507-
97 BRACKET; CLIP
(C) 		8-98245-737-0 01 1 1507-
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W) (A) L=55 		1-47476-177-0 01 1 1507-
97 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=55 		1-47476-177-0 02 1 1507-
97 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) 		8-98109-768-0 01 1 1507-
174 PIPE; FUEL,FEED,FRT 8-98245-726-0 01 1 1507-
217 COLLAR; FUEL PIPE FIX
ID=8 		1-47459-011-0 03 1 1507-
303 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
303 BOLT; BRKT
WHEEL BASE 4600MM(46W) (A) M10X30 FLANGE 		0-28651-030-0 01 1 1507-
303 BOLT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE 		0-28651-030-0 03 1 1507-
304 NUT; BRKT
WHEEL BASE 4600MM(46W) M10 FLANGE 		0-91180-210-0 01 1 1507-
304 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-210-0 03 1 1507-
309 CLIP; PIPE
(A) ID=10 & 10 		1-09709-241-0 03 1 1507-
309 CLIP; PIPE
(B) ID=10 & 10 		1-09709-243-0 03 1 1507-
634 HOSE; RUBBER RETURN
WHEEL BASE 4000MM(40W) 		8-98245-302-0 01 1 1507-
634 HOSE; RUBBER RETURN
WHEEL BASE 4600MM(46W) 		8-98245-303-0 01 1 1507-
634 HOSE; RUBBER RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98245-304-0 01 1 1507-
