Isuzu WW
▶
TRUCKS
▶
FRR
▶
11629 - FRR RHD EUROPE EURO6 SPACECAB EVSC
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

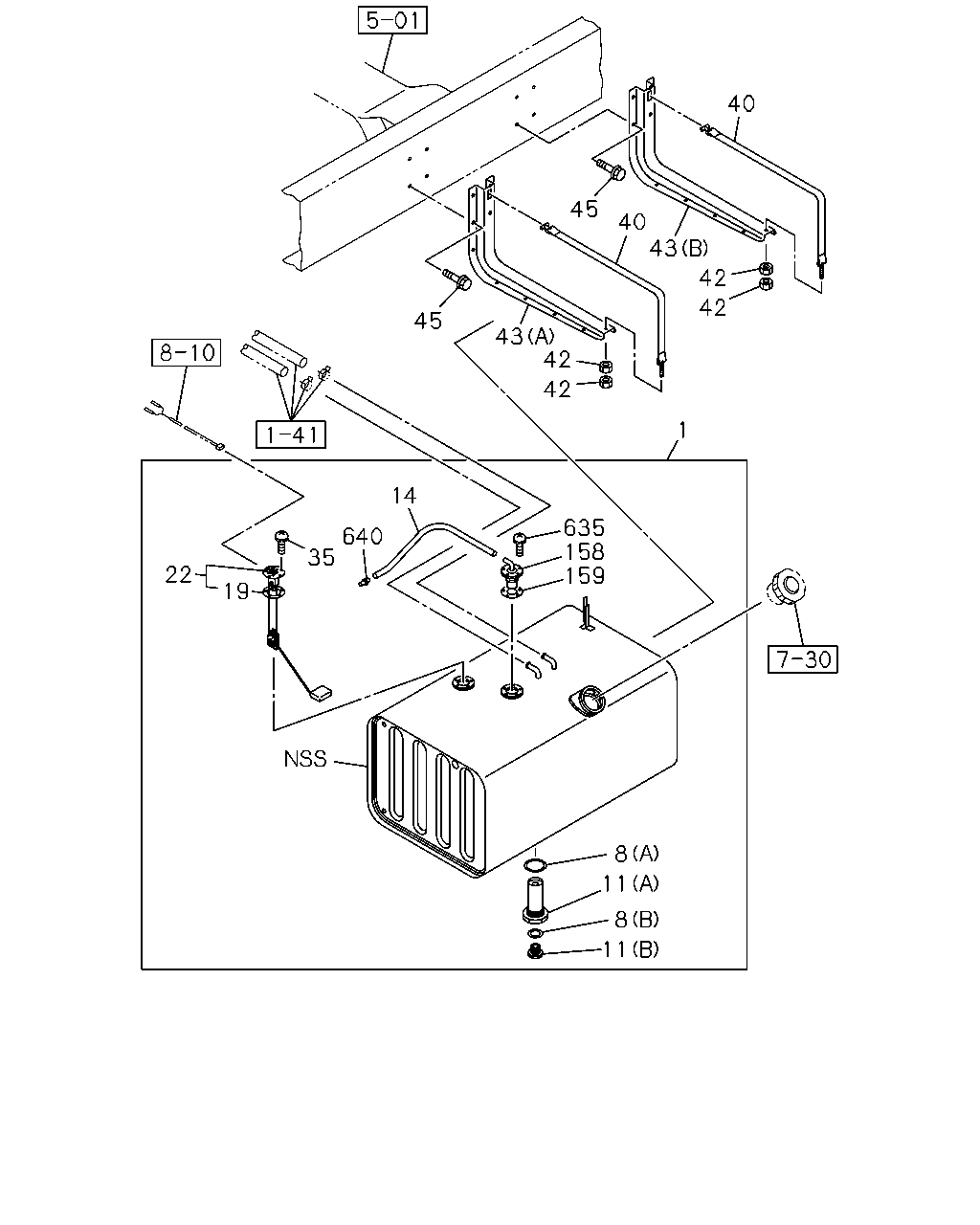

1-40 — FUEL TANK
(#164396) — 18 parça
40
45
40
43
42
42
42
42
43
45
14
640
35
19
22
635
158
159
1
8
11
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
820X500X400 140L
8-98224-123-0
01
1
1507-
8
GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30
8-98067-041-0
01
1
1507-
8
GASKET; DRAIN PLUG,FUEL TANK
(B) ID=18.2 OD=26.0
9-09571-418-0
01
1
1507-
11
PLUG; DRAIN,FUEL TANK
(A) M30
8-98067-038-0
01
1
1507-
11
PLUG; DRAIN,FUEL TANK
(B) M18
8-98068-006-0
01
1
1507-
14
HOSE; BREATHER,OUTLET
L=430
8-98131-037-0
01
1
1507-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1507-
22
UNIT; FUEL TANK
8-98099-319-0
01
1
1507-
35
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
0-36220-512-0
05
1
1507-
40
BELT; SUPPORT,FUEL TANK
L=925
8-98049-769-1
02
1
1507-
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
1507-
43
BRACKET; FUEL TANK
(A)
8-98127-229-0
01
1
1507-
43
BRACKET; FUEL TANK
(B)
8-98127-230-0
01
1
1507-
45
BOLT; BRKT,FUEL TANK
M10X35 FLANGE
0-28651-035-0
08
1
1507-
158
VALVE; ROLL OVER & FLOAT
8-98095-223-0
01
1
1507-
159
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
01
1
1507-
635
SCREW; ROLL OVER & FLOAT VALVE
M5X10 W/LK WASHER
0-36220-510-0
05
1
1507-
640
VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
1507-
