1-31 — AIR DUCT (#164394) — 66 parça

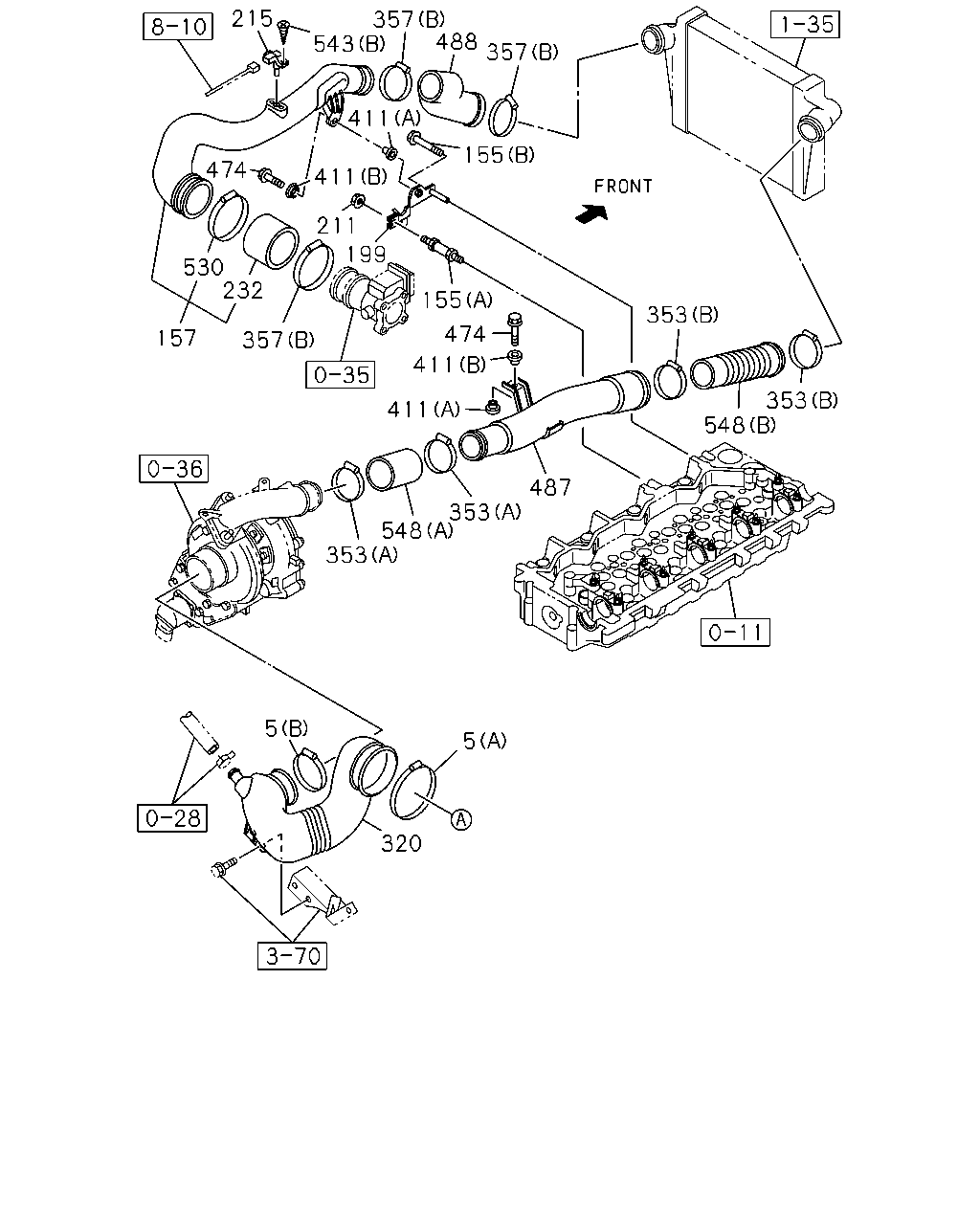

çizim 484190
487 353 548 353 5 320 5 548 353 353 411 411 474 155 199 211 155 357 488 357 543 411 411 474 530 357 232 157 215
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 01 1 1507-
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1507-
155 BOLT; BRKT
(B) M10X110 FLANGE 		0-28156-011-0 01 1 1507-
155 BOLT; BRKT
(A) M10X17,M10X30 L=105 		8-97233-428-0 01 1 1507-
157 PIPE; AIR 8-98166-967-0 01 1 1507-
199 BRACKET; PIPE 8-98252-223-0 01 1 1507-
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1507-
215 SENSOR; MAP 8-98009-418-0 01 1 1507-
232 HOSE; CONN 8-98128-293-0 01 1 1507-
320 HOSE; CONN,ACL 8-98010-643-3 01 1 1507-
353 CLIP; RUBBER HOSE
(A) ID=45-65 		8-98133-348-0 02 1 1507-
353 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 02 1 1507-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1507-
357 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 03 1 1507-
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1507-
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1507-
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1507-
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98250-695-0 01 1 1507-
488 HOSE; RUBBER,PIPE 8-98204-041-0 01 1 1507-
530 CLAMP; AIR DUCT
ID=65-85 		8-98133-350-0 01 1 1507-
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1507-
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1507-
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98204-039-0 01 1 1507-1511
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98317-803-0 01 1 1512-
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98317-803-0 01 1 1512-
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98204-040-0 01 1 1507-1511
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98317-804-0 01 1 1512-
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98317-804-0 01 1 1512-

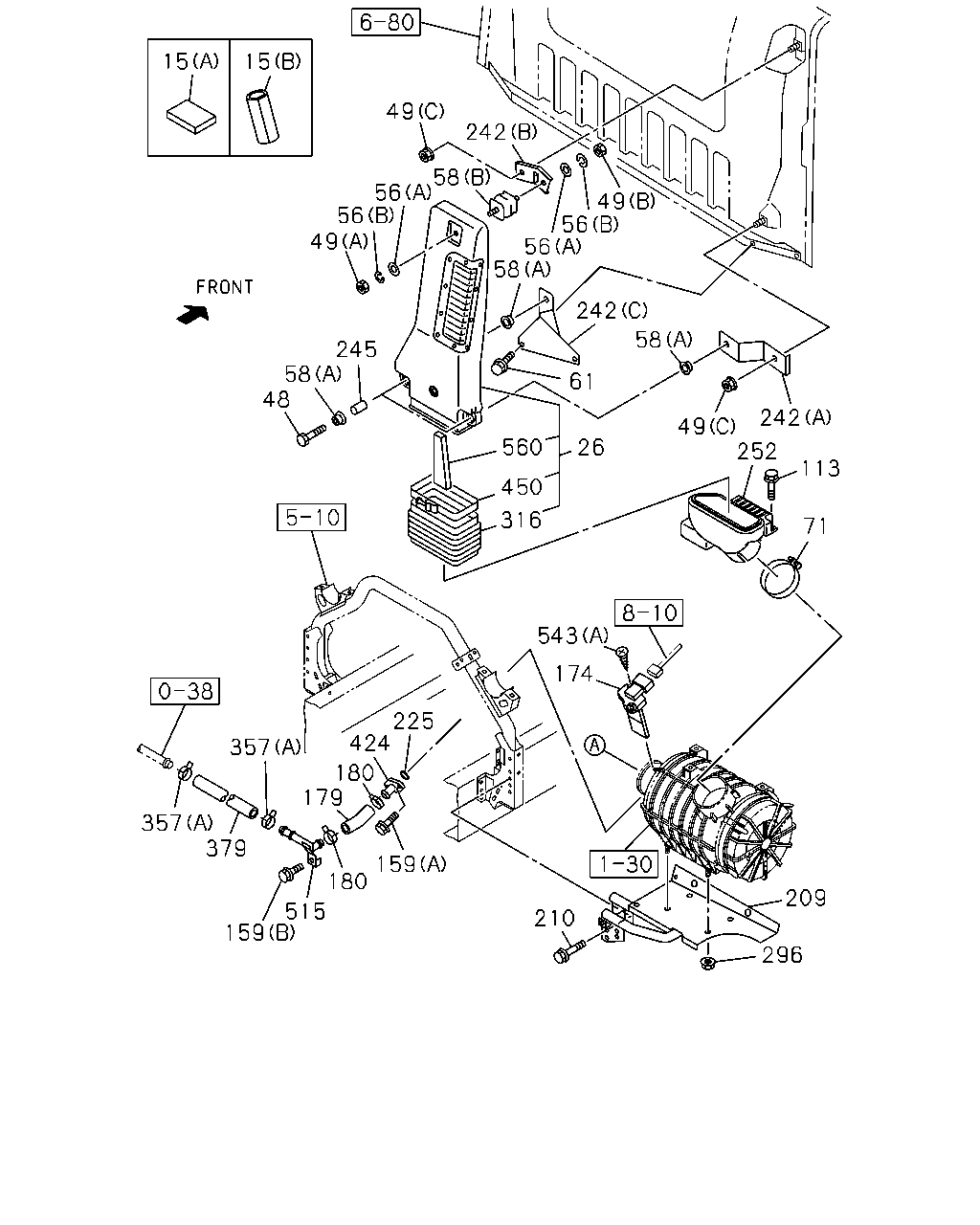

çizim 485033
49 15 15 58 48 245 560 450 316 49 26 61 58 242 210 296 209 159 180 515 159 379 357 357 180 179 225 424 543 174 71 113 252 242 56 56 58 56 49 56 58 242 49
BalonParca AdiParca NoAdetTipApplied Date
15 INSULATOR
(A) ID=18 L=40 		8-98070-445-0 01 1 1507-
15 INSULATOR
(B) 265X79 		8-98270-803-0 01 1 1507-
26 DUCT; AIR INT 8-98010-361-2 01 1 1507-
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1507-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1507-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1507-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1507-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1507-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1507-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1507-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1507-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1507-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1507-
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 1507-
159 BOLT; AIR PIPE
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1507-
159 BOLT; AIR PIPE
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1507-
174 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1507-
179 HOSE; AIR INT 8-98063-233-0 01 1 1507-
180 CLIP; AIR INT HOSE
ID=24 		8-98025-921-0 02 1 1507-
209 BRACKET; ACL 8-98010-343-4 01 1 1507-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1507-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1507-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1507-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1507-
242 BRACKET; AIR DUCT
(A) 		8-98238-917-0 01 1 1507-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1507-
252 DUCT; AIR INT 8-98095-778-0 01 1 1507-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1507-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1507-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1507-
357 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 03 1 1507-
379 HOSE; RUBBER 8-98062-621-1 01 1 1507-
424 PIPE; AIR,INL 8-98081-835-0 01 1 1507-
450 CLAMP; HOSE 9-09915-504-1 01 1 1507-
515 PIPE; AIR,SUCTION 8-98061-569-1 01 1 1507-
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1507-
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1507-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1507-
