0-66 — GENERATOR (#164387) — 19 parça

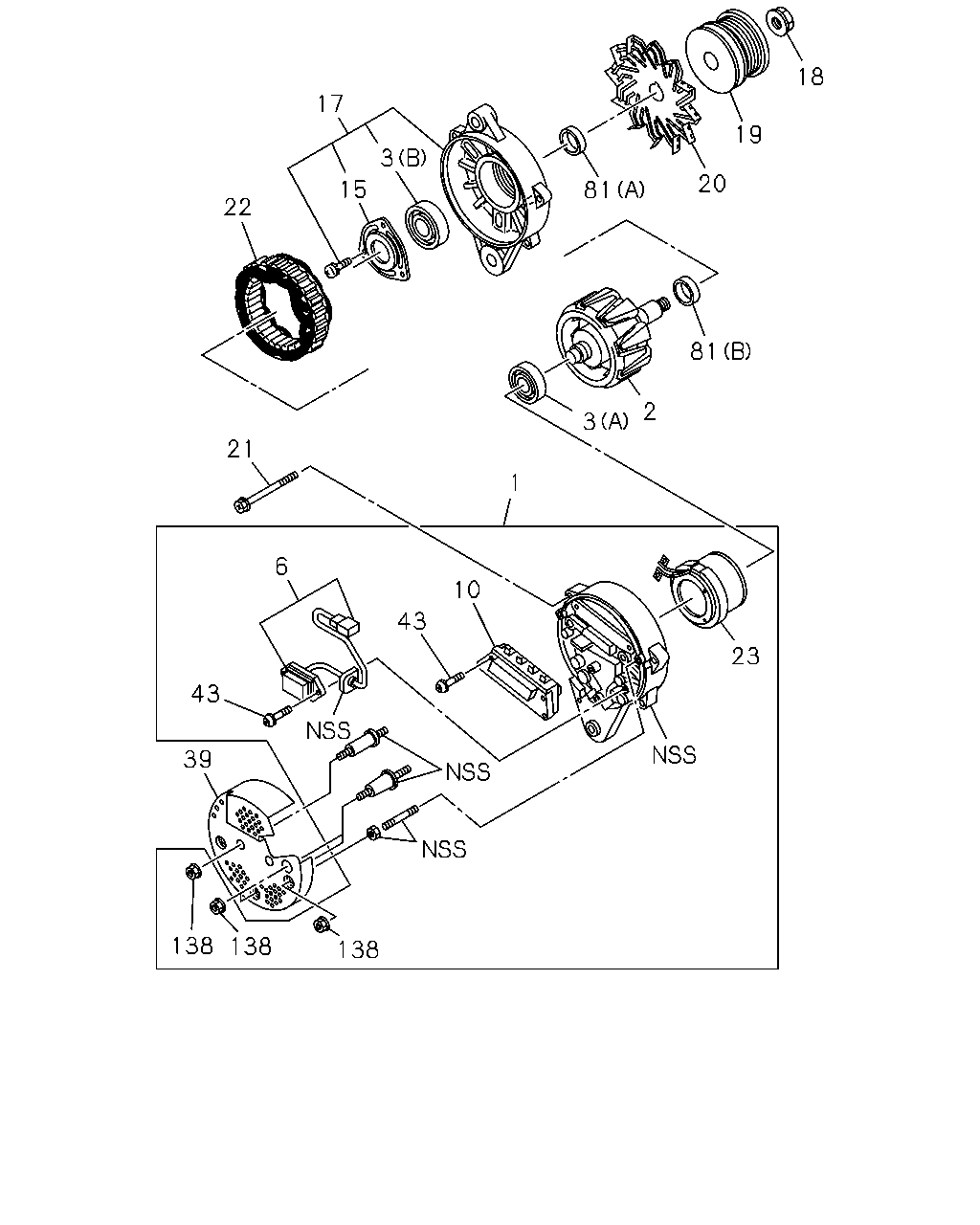

çizim 484178
23 1 10 43 6 21 43 39 138 138 138 2 81 3 81 20 19 18 3 15 17 22
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-98307-701-0 		8-98312-671-0 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-98307-701-0 		8-98260-553-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98307-701-0 		8-98260-557-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98307-701-0 		8-98260-563-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98307-701-0 		8-98312-672-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-98307-701-0 		8-98260-577-0 01 1 -
15 RETAINER; ROTOR,GEN
ASM PART: A = 8-98307-701-0 		8-98260-562-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98307-701-0 		8-98260-561-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: A = 8-98307-701-0 		8-98260-569-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98307-701-0 		8-98274-284-0 01 1 -
20 FAN; GEN
ASM PART: A = 8-98307-701-0 		8-98260-568-0 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: A = 8-98307-701-0 		8-98260-564-0 04 1 -
22 STATOR; GEN
ASM PART: A = 8-98307-701-0 		8-98260-559-0 01 1 -
23 COIL; ROTOR GEN
ASM PART: A = 8-98307-701-0 		8-98260-571-0 01 1 -
39 COVER; END,RR COVER,GEN
ASM PART: A = 8-98307-701-0 		8-98260-581-0 01 1 -
43 SCREW; RR END COVER
ASM PART: A = 8-98307-701-0 		8-98260-578-0 03 1 -
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 8-98307-701-0 		8-98260-554-0 01 1 -
81 SPACER; ROTOR,GEN
(B) ASM PART: A = 8-98307-701-0 		8-98260-556-0 01 1 -
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98307-701-0 		8-98260-579-0 04 1 -
