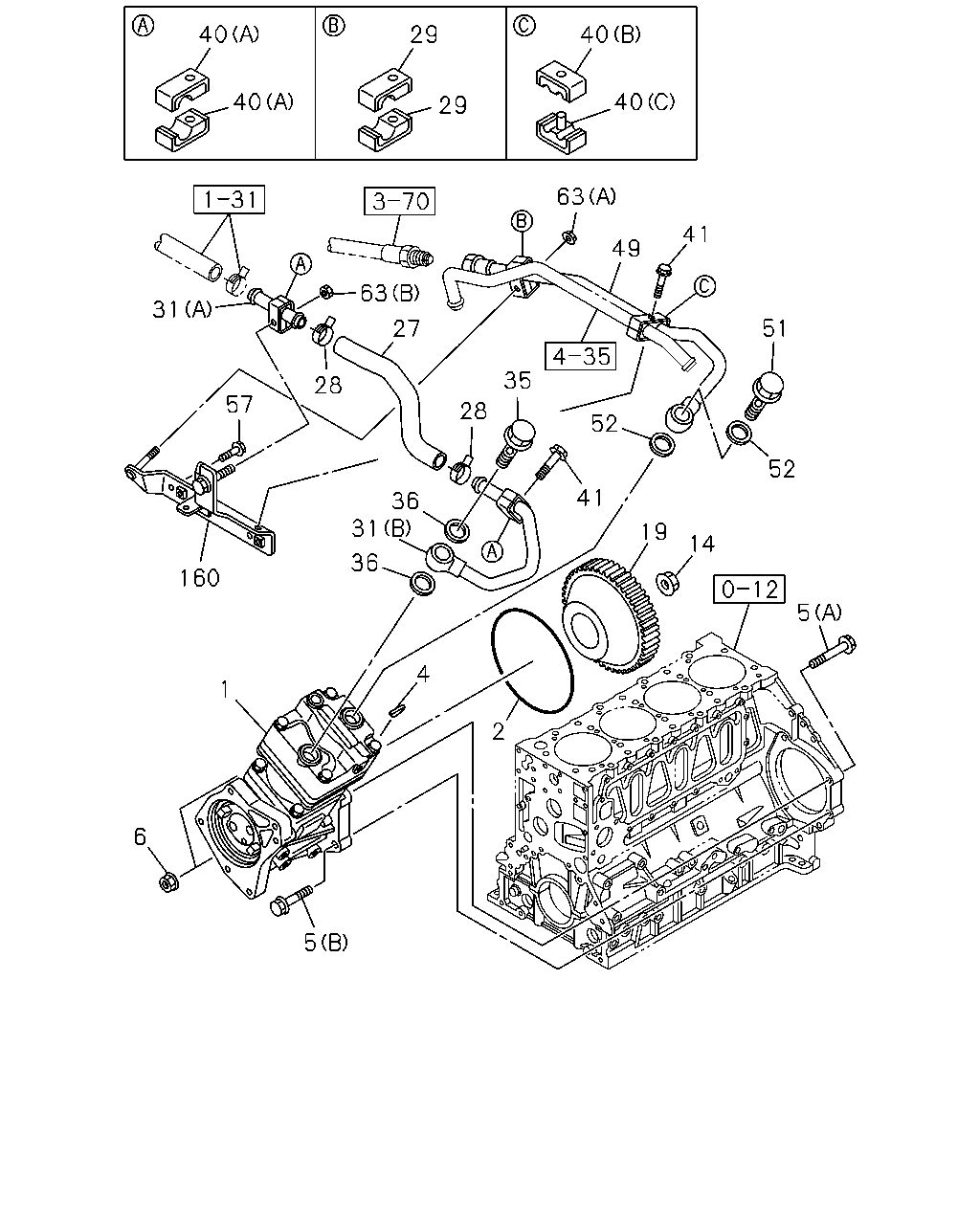

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#164376) — 26 parça
40
40
29
29
40
40
31
63
28
57
160
27
63
41
49
51
35
28
52
52
41
36
31
36
19
14
5
2
4
1
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98270-233-0
01
1
1507-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6
1-09623-464-0
01
1
1507-
4
KEY; INJ PUMP GEAR
9-08055-519-0
01
1
1507-
5
BOLT; AIR CMPR FIX
(B) M12X70 FLANGE
0-28151-270-0
01
1
1507-
5
BOLT; AIR CMPR FIX
(A) M12X95 FLANGE
8-94396-485-1
01
1
1507-
6
NUT; AIR CMPR
M10 FLANGE
0-91180-110-0
02
1
1507-
14
NUT; GEAR
M18
8-97141-154-0
01
1
1507-
19
GEAR; INJ PUMP
Z=35
8-97600-987-2
01
1
1507-
27
HOSE; AIR CMPR,SUCTION
8-98057-031-1
01
1
1507-
28
CLIP; HOSE,AIR CMPR
ID=24
8-98025-921-0
02
1
1507-
29
CLIP; AIR PIPE
1-09701-282-0
02
1
1507-
31
PIPE; AIR,AIR CMPR SUCTION
(B)
8-98023-170-0
01
1
1507-
31
PIPE; AIR,AIR CMPR SUCTION
(A)
8-98076-324-0
01
1
1507-
35
BOLT; EYE,AIR PIPE
M24X39
1-09675-175-2
01
1
1507-
36
GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
1507-
40
CLIP; AIR PIPE
(A) ID=17 L=17
1-09701-284-0
04
1
1507-
40
CLIP; AIR PIPE
(C) ID=14&17 L=32.5
8-97619-417-0
01
1
1507-
40
CLIP; AIR PIPE
(B) ID=14&17 L=32.5
8-97619-418-0
01
1
1507-
41
BOLT; CLIP
M8X45 FLANGE
0-28050-845-0
02
1
1507-
49
PIPE; AIR,CHARGE
8-98057-015-0
01
1
1507-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-2
01
1
1507-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
1507-
57
BOLT; BRKT,AIR PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1507-
63
NUT; CLIP
(A) M6 FLANGE
0-91180-106-0
03
1
1507-
63
NUT; CLIP
(B) M8 FLANGE
0-91180-108-0
01
1
1507-
160
BRACKET; AIR PIPE
8-98076-098-0
01
1
1507-
