Isuzu WW
▶
TRUCKS
▶
FRR
▶
11629 - FRR RHD EUROPE EURO6 SPACECAB EVSC
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#164372) — 36 parça
◀

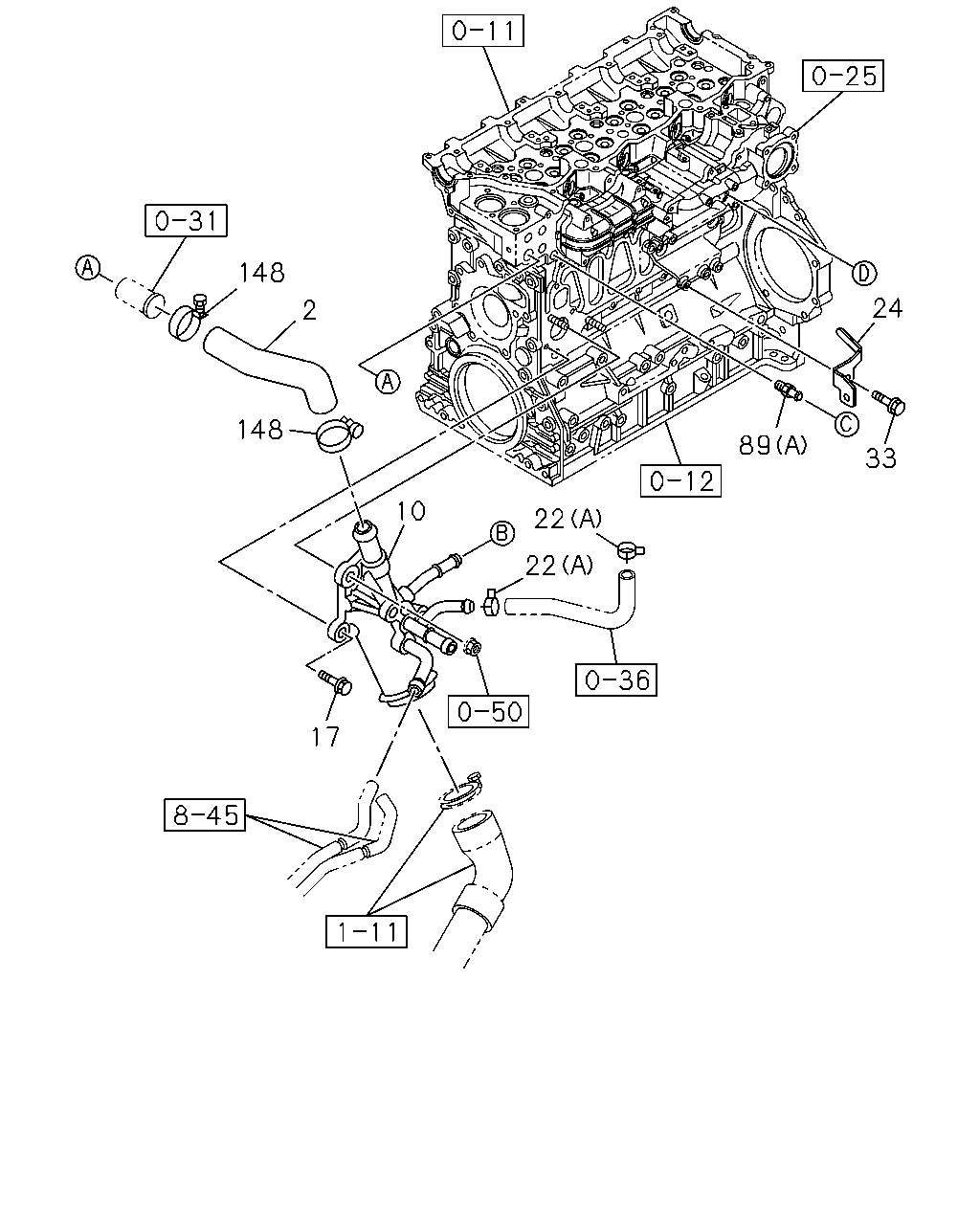

[032A] SUCTION PIPE (10 parça)

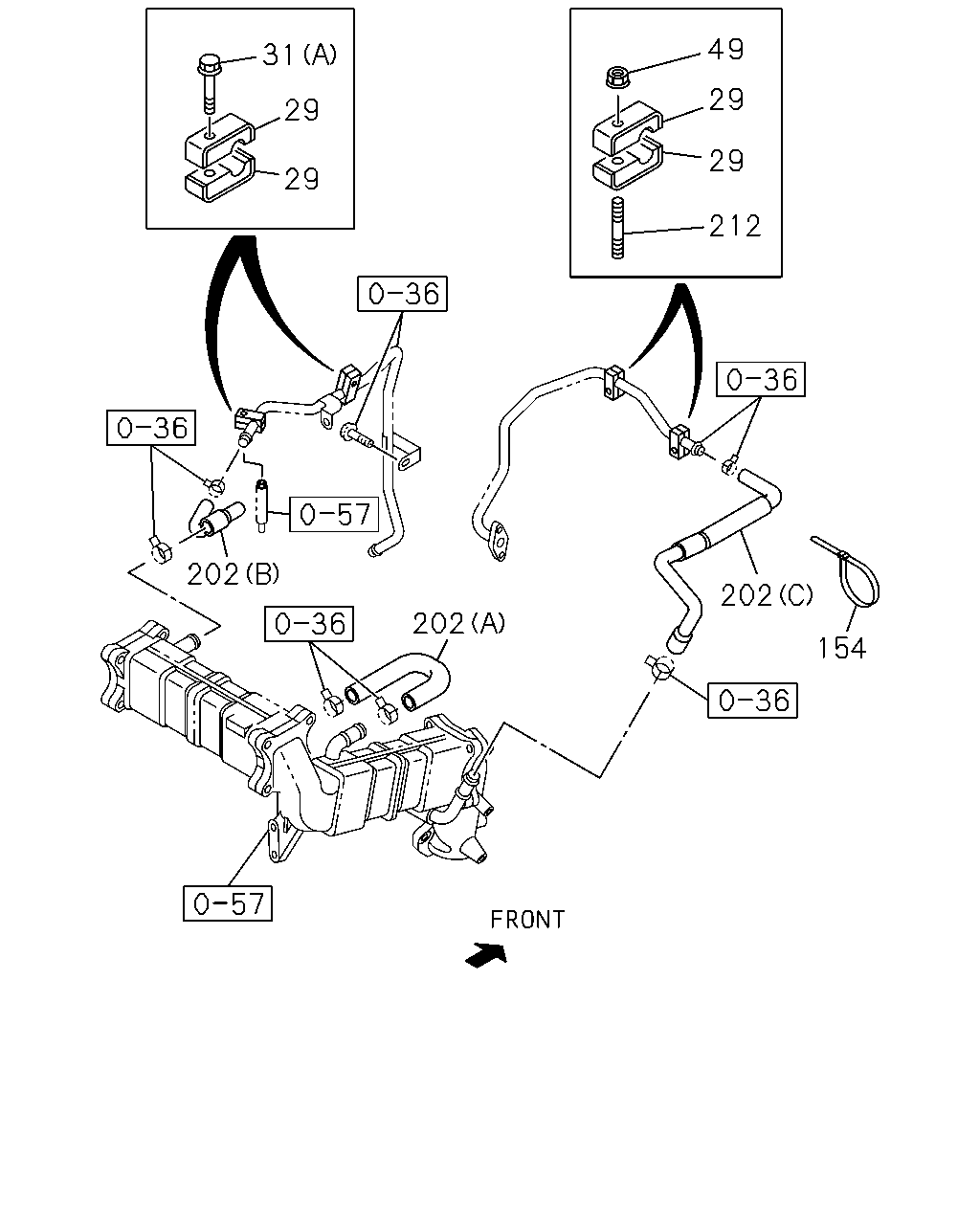

[032A] EGR COOLER SIDE (9 parça)

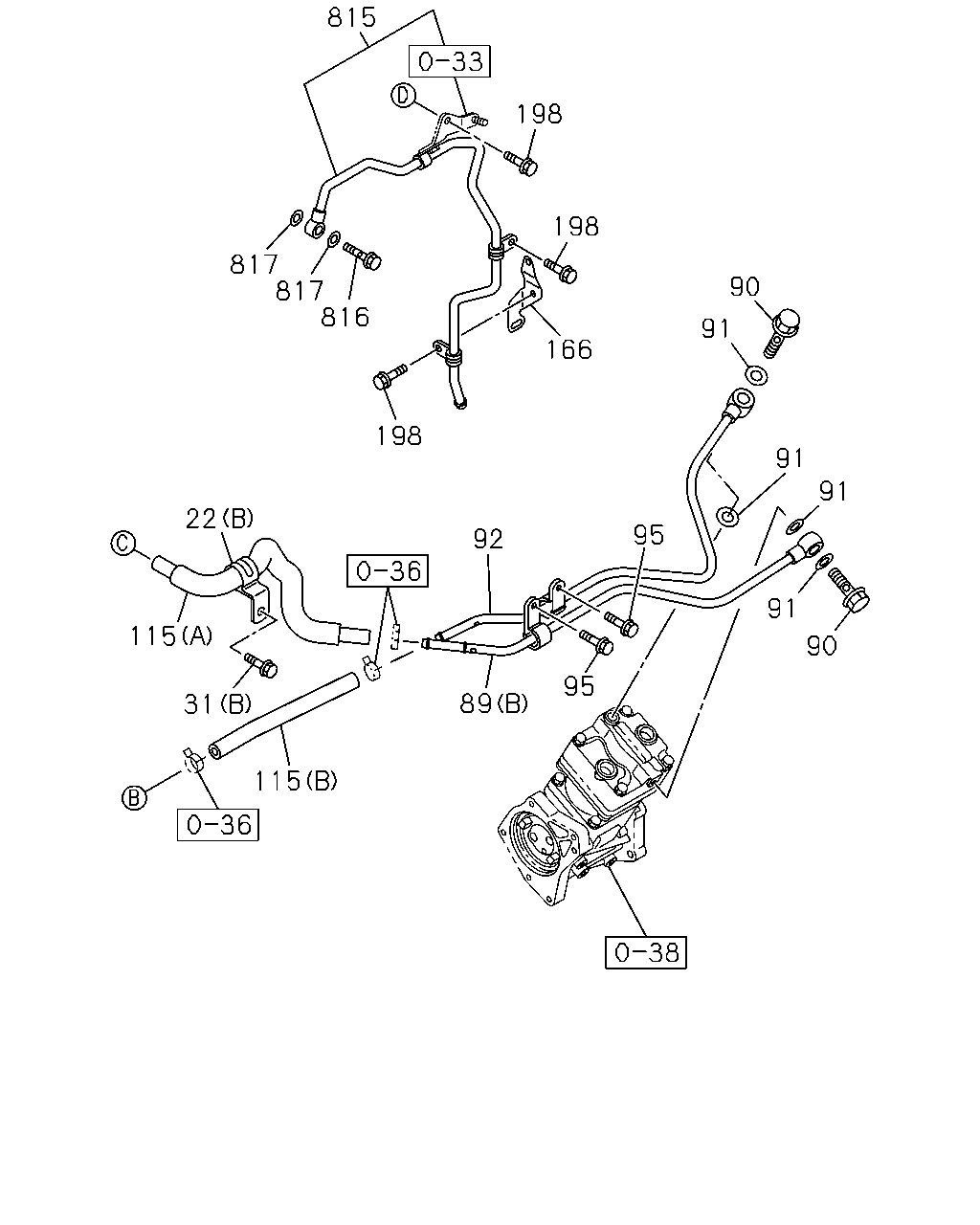

[032A] AIR COMPRESSOR SIDE (17 parça)
▶
148
148
2
10
17
22
22
89
33
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; WATER,BY-PASS
8-97379-228-1
01
1
1507-
10
PIPE; SUCTION
8-98200-774-2
01
1
1507-
17
BOLT; SUCTION PIPE
M8X48 FLANGE
8-94458-473-1
01
1
1507-
22
CLIP; WATER HOSE
(B) ID=25 H=30 L=35
1-09700-875-0
01
1
1507-
22
CLIP; WATER HOSE
(A) ID=14.2
8-97375-636-0
02
1
1507-
24
BRACKET; WATER PIPE
8-98209-357-1
01
1
1507-
33
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
1507-
89
PIPE; WATER,AIR CMPR,IN
(A)
8-97358-699-0
01
1
1507-
89
PIPE; WATER,AIR CMPR,IN
(B)
8-98095-668-0
01
1
1507-
148
CLIP; BYPASS HOSE
ID=30
9-09915-315-1
02
1
1507-
31
29
29
49
29
29
212
202
202
202
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CLIP; PIPE
8-98147-433-1
08
1
1507-
31
BOLT; CLIP
(B) M8X12 FLANGE
0-28050-812-0
01
1
1507-
31
BOLT; CLIP
(A) M8X45 FLANGE
0-28050-845-0
02
1
1507-
49
NUT; WATER PIPE
M8 FLANGE
0-91180-108-0
02
1
1507-
154
CLIP; WATER HOSE
L=170.3
1-09987-182-0
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(A)
8-98028-171-0
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(B)
8-98200-803-1
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(C)
8-98231-795-1
01
1
1507-
212
STUD; PIPE
M8X45 L=55
8-94217-227-0
02
1
1507-
90
91
91
91
90
95
92
89
198
166
198
198
815
817
816
817
22
115
31
115
95
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
CLIP; WATER HOSE
(B) ID=25 H=30 L=35
1-09700-875-0
01
1
1507-
22
CLIP; WATER HOSE
(A) ID=14.2
8-97375-636-0
02
1
1507-
31
BOLT; CLIP
(B) M8X12 FLANGE
0-28050-812-0
01
1
1507-
31
BOLT; CLIP
(A) M8X45 FLANGE
0-28050-845-0
02
1
1507-
89
PIPE; WATER,AIR CMPR,IN
(A)
8-97358-699-0
01
1
1507-
89
PIPE; WATER,AIR CMPR,IN
(B)
8-98095-668-0
01
1
1507-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
02
1
1507-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
04
1
1507-
92
PIPE; WATER,AIR CMPR,OUT
8-98132-662-0
01
1
1507-
95
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1507-
115
HOSE; RUBBER
(B) L=130
8-98136-884-0
01
1
1507-
115
HOSE; RUBBER
(A)
8-98200-802-1
01
1
1507-
166
BRACKET; CLIP
8-98200-776-1
01
1
1507-
198
BOLT; PIPE
M8X16 FLANGE
0-28050-816-0
03
1
1507-
815
PIPE; WATER,DEF TANK FEED
8-98200-771-2
01
1
1507-
816
BOLT; EYE,DEF
M14X27 EYE-BOLT
1-09675-193-0
01
1
1507-
817
GASKET; DEF
ID=14.2 OD=19.2
8-98251-345-0
02
1
1507-
