Isuzu WW
▶
TRUCKS
▶
FRR
▶
11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶
8-73 — BLOWER UNIT
(#164353) — 20 parça
◀

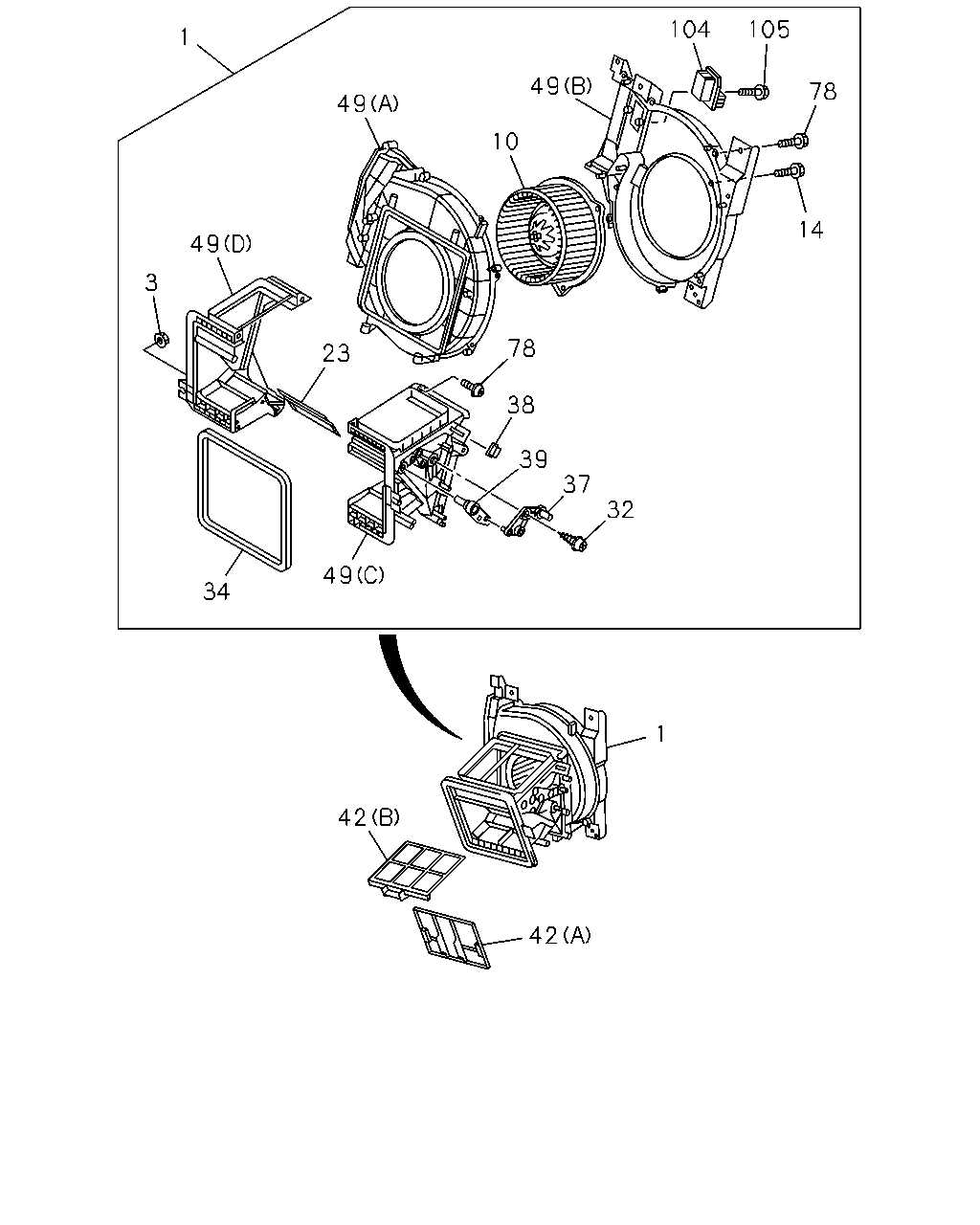

[873A] COMPONENT AND FILTER (19 parça)
[873A] BLOWER UNIT COVER (1 parça)
▶
1
49
3
23
34
49
32
37
39
38
78
10
49
49
14
78
105
104
1
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
8-98183-596-0
01
1
1507-
3
NUT; CASE
M6
1-83539-354-0
02
1
1507-
10
MOTOR ASM; FAN,BLOWER UNIT
8-98183-924-0
01
1
1507-
14
SCREW; COVER TO CASE
M5X16
8-98047-448-0
03
1
1507-
23
SHUTTER; BLOWER UNIT
8-98047-437-0
01
1
1507-
32
SCREW; LEVER
M4X16
8-98047-416-0
01
1
1507-
34
LINING; BLOWER UNIT
8-98096-453-0
01
1
1507-
37
LEVER; MODE LEVER
8-98047-436-0
01
1
1507-
38
CLIP; BLOWER UNIT
8-98047-417-0
01
1
1507-
39
LEVER; SHUTTER,BLOWER UNIT
8-98047-435-0
01
1
1507-
42
FILTER; BLOWER UNIT
(B)
8-98025-006-1
01
1
1507-
42
FILTER; BLOWER UNIT
(A)
8-98041-327-0
01
1
1507-
49
CASE; BLOWER UNIT
(B)
8-98047-440-0
01
1
1507-
49
CASE; BLOWER UNIT
(A)
8-98047-441-0
01
1
1507-
49
CASE; BLOWER UNIT
(D)
8-98077-413-0
01
1
1507-
49
CASE; BLOWER UNIT
(C)
8-98077-414-0
01
1
1507-
78
SCREW; CASE TO CASE
M4X16 TAPPING
8-97957-708-0
15
1
1507-
104
RESISTOR; BLOWER UNIT
8-98074-113-0
01
1
1507-
105
SCREW; RESISTOR
M4X16 TAPPING
8-97957-708-0
02
1
1507-
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
COVER; BLOWER UNIT
8-98061-799-5
01
1
1507-
