◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#164352) — 12 parça

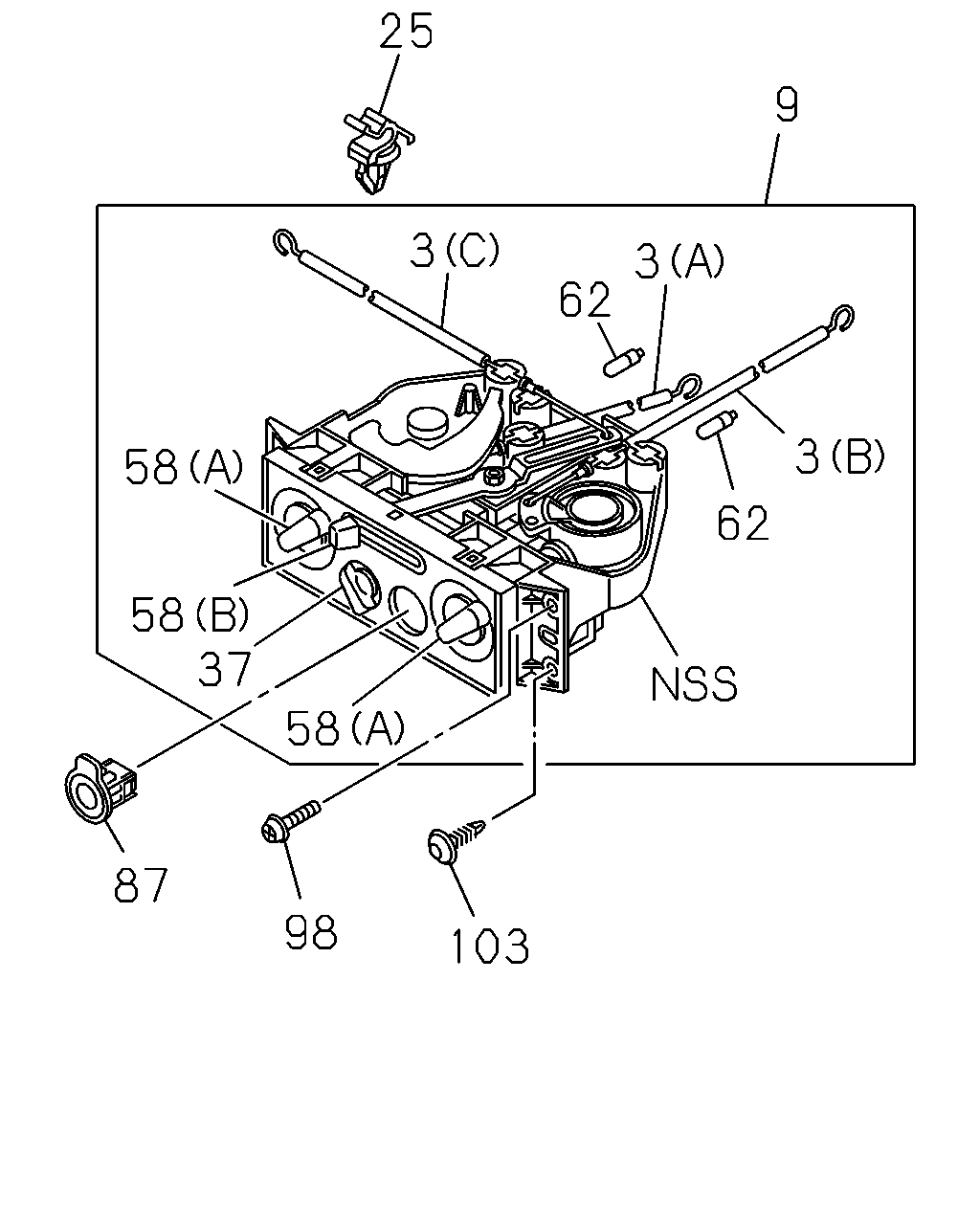

çizim 484599
25 9 3 3 62 58 58 37 58 87 98 103 62 3
BalonParca AdiParca NoAdetTipApplied Date
3 CABLE; HTR CONT LVR
(B) A/M 		8-98041-501-1 01 1 1507-
3 CABLE; HTR CONT LVR
(C) RECIRC/FRESH 		8-98041-504-2 01 1 1507-
3 CABLE; HTR CONT LVR
(A) MODE 		8-98044-176-0 01 1 1507-
9 LEVER ASM; HTR & A/C CONT 8-98041-318-2 01 1 1507-
25 CLIP; CABLE,CONT LEVER
ID=4.8 		8-94128-483-0 02 1 1507-
37 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 1507-
58 KNOB; LVR,HTR CONT LVR
(A) 		8-98037-369-0 02 1 1507-
58 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 1507-
62 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 1507-
87 CAP; A/C SWITCH 8-98006-089-0 01 1 1507-
98 SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1507-
103 CLIP
DARK GRAY 		8-97098-326-0 01 1 1507-
