Isuzu WW
▶
TRUCKS
▶
FRR
▶
11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-60 - HEATER UNIT; FRONT
▶

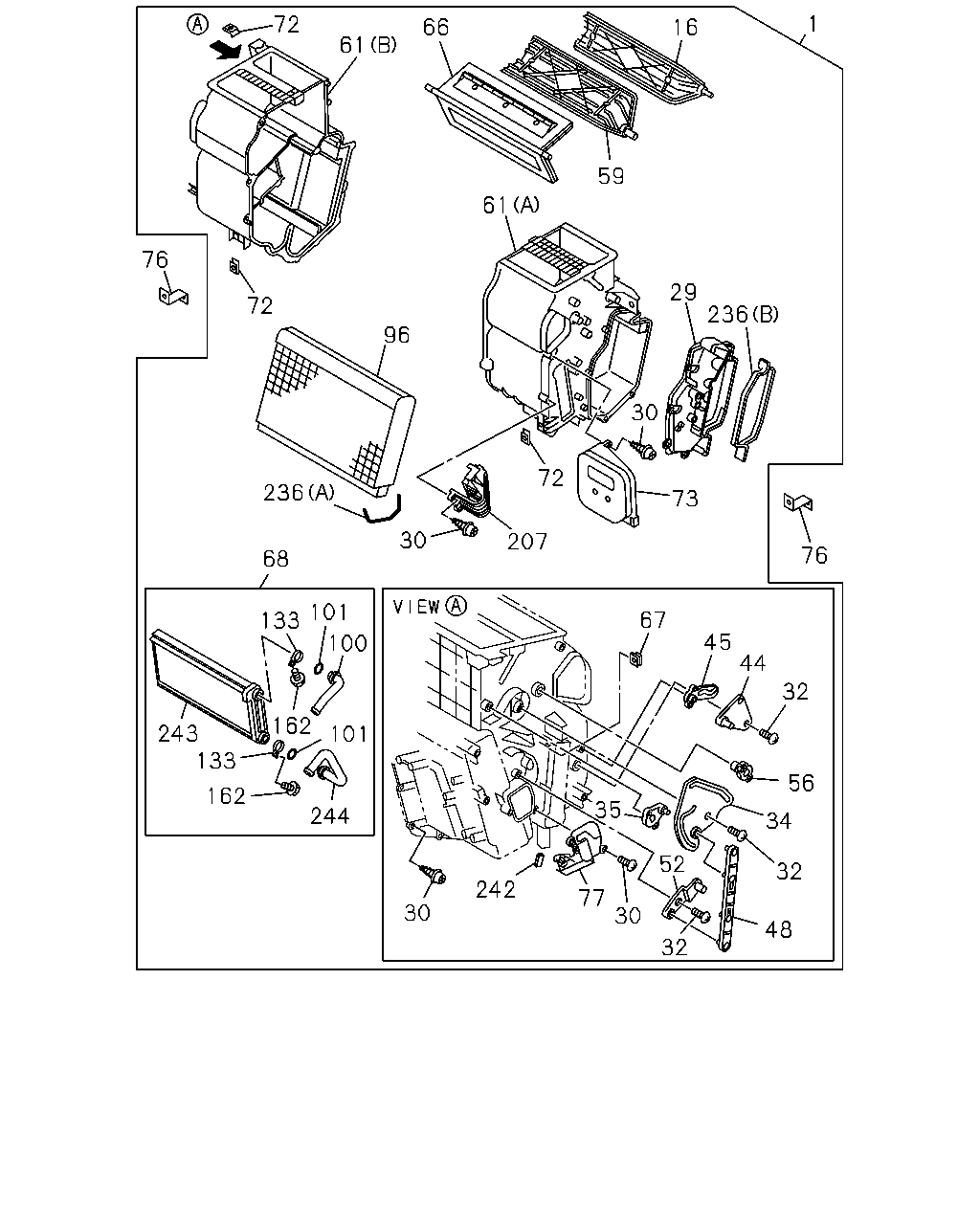

8-60 — HEATER UNIT; FRONT
(#164351) — 33 parça
48
32
30
32
34
56
32
44
45
67
35
52
77
242
30
244
162
133
243
162
101
100
101
133
76
73
72
207
236
30
29
30
68
236
96
61
59
16
1
72
76
61
66
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER UNIT
8-98062-756-1
01
1
1507-
16
SHUTTER; HTR UNIT,CENTER UPR
8-98047-387-0
01
1
1507-
29
COVER; HTR UNIT
8-98074-119-0
01
1
1507-
30
SCREW; HTR UNIT
M4X16 TAPPING
8-97957-708-0
25
1
1507-
32
SCREW; HTR UNIT
M4X16
8-98047-416-0
03
1
1507-
34
LEVER; SHUTTER,HTR UNIT
8-98047-389-0
01
1
1507-
35
LEVER; SHUTTER,HTR UNIT
8-98047-392-0
01
1
1507-
44
LEVER; SHUTTER,HTR UNIT
8-98047-394-0
01
1
1507-
45
LEVER; SHUTTER,HTR UNIT
8-98047-395-0
01
1
1507-
48
LEVER; HTR UNIT
8-98047-391-0
01
1
1507-
52
LEVER; SHUTTER,HTR UNIT
8-98047-390-0
01
1
1507-
56
LEVER; SHUTTER,HTR UNIT
8-98047-393-0
01
1
1507-
59
SHUTTER; HTR UNIT,SIDE
8-98047-386-0
01
1
1507-
61
CASE; HTR UNIT
(B)
8-98047-375-0
01
1
1507-
61
CASE; HTR UNIT
(A)
8-98047-376-0
01
1
1507-
66
SHUTTER; HTR UNIT,CENTER LWR
8-98047-385-0
01
1
1507-
67
CLIP; HTR UNIT
8-98047-417-0
02
1
1507-
68
CORE; HTR UNIT
8-98047-380-0
01
1
1507-
72
NUT; CASE,HTR UNIT
M6
8-98047-428-0
03
1
1507-
73
PLATE; HTR UNIT
8-98072-542-0
01
1
1507-
76
BRACKET; HTR UNIT
8-98009-742-1
02
1
1507-
77
COVER; HTR CASE
8-98047-414-0
01
1
1507-
96
PLATE; HTR UNIT
8-98048-815-0
01
1
1507-
100
PIPE; CORE,HTR UNIT
8-98072-528-0
01
1
1507-
101
GASKET; CORE,HTR UNIT
8-98072-531-0
02
1
1507-
133
CLIP; PIPE
8-98072-530-0
02
1
1507-
162
SCREW; CLIP FIX
8-98072-529-0
02
1
1507-
207
CLAMP; HTR UNIT
8-98047-379-0
01
1
1507-
236
GASKET; HEATER
(A)
8-98047-420-0
01
1
1507-
236
GASKET; HEATER
(B)
8-98047-421-0
01
1
1507-
242
GASKET; CASE
8-98048-816-0
01
1
1507-
243
CORE
8-98048-508-0
01
1
1507-
244
PIPE; INLET
8-98048-510-0
01
1
1507-
