◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#164348) — 28 parça

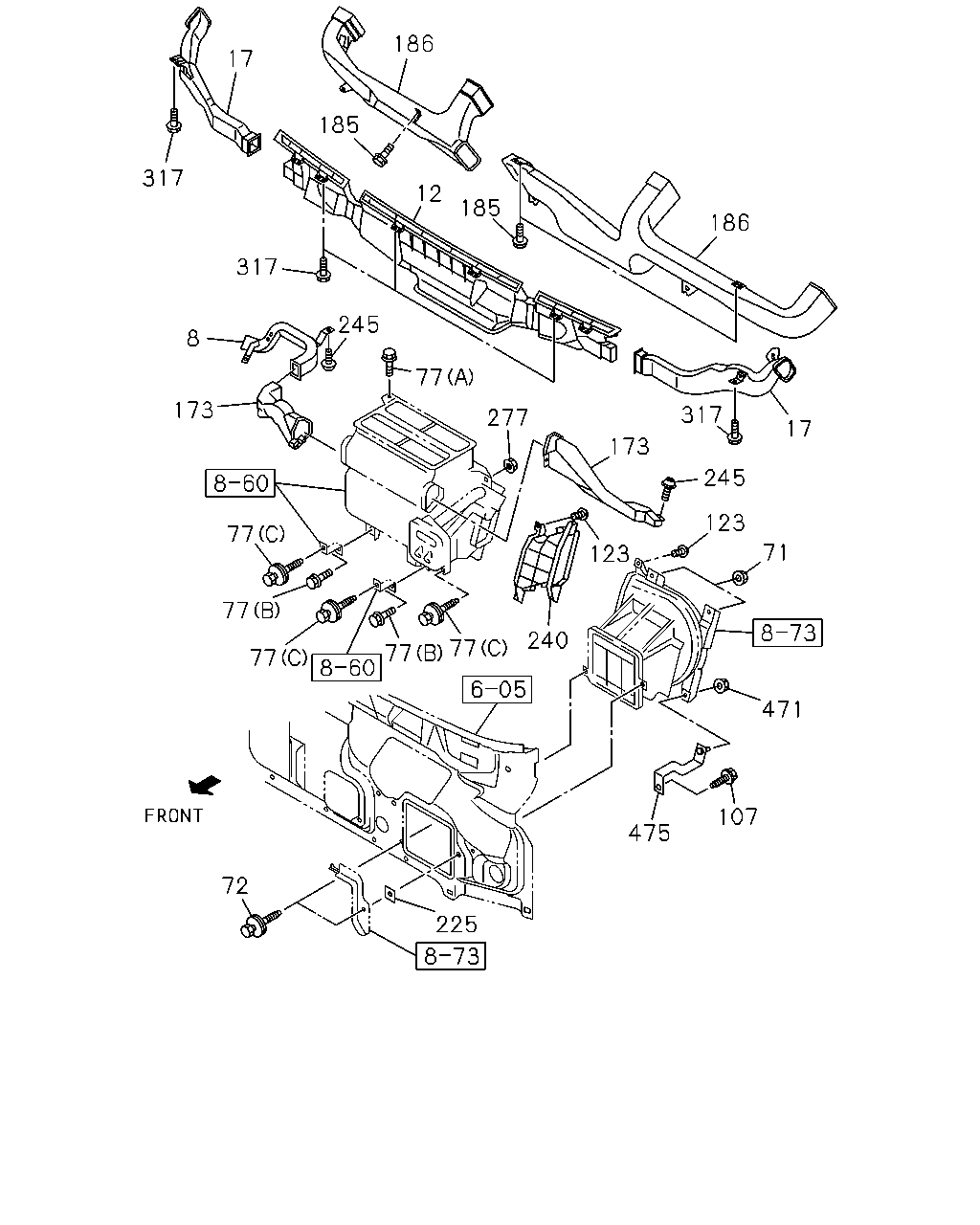

çizim 484541
186 185 12 186 185 17 317 317 245 77 317 173 17 245 71 123 471 107 475 240 123 277 8 173 77 77 77 77 77 72 225
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 8-98290-098-0 01 1 1507-
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 1507-
17 NOZZLE; DEFROSTER,SIDE 8-98040-016-1 01 1 1507-
17 NOZZLE; DEFROSTER,SIDE 8-98040-011-1 01 1 1507-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		0-91180-106-0 02 1 1507-
72 BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1507-
77 BOLT; HTR UNIT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1507-
77 BOLT; HTR UNIT
(B) M6X20 FLANGE 		0-28650-620-0 02 1 1507-
77 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1507-
107 BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1507-
123 SCREW; DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1507-
173 DUCT; FOOT,HTR 8-97585-506-2 01 1 1507-
173 DUCT; FOOT,HTR 8-98290-096-0 01 1 1507-
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1507-
186 DUCT; VENTILATOR 8-98285-576-0 01 1 1507-
186 DUCT; VENTILATOR 8-98285-571-0 01 1 1507-
225 SEAL; WATER 8-97856-616-0 01 1 1507-
240 DUCT; AIR,HTR 8-98041-402-1 01 1 1507-
245 CLIP; FOOT DUCT 8-98056-059-0 04 1 1507-
277 NUT; HTR
M6 FLANGE 		0-91180-106-0 01 1 1507-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1507-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1507-
471 NUT; BLOWER
M6 FLANGE 		0-91180-106-0 01 1 1507-
475 BRACKET; BLOWER 8-98043-500-1 01 1 1507-

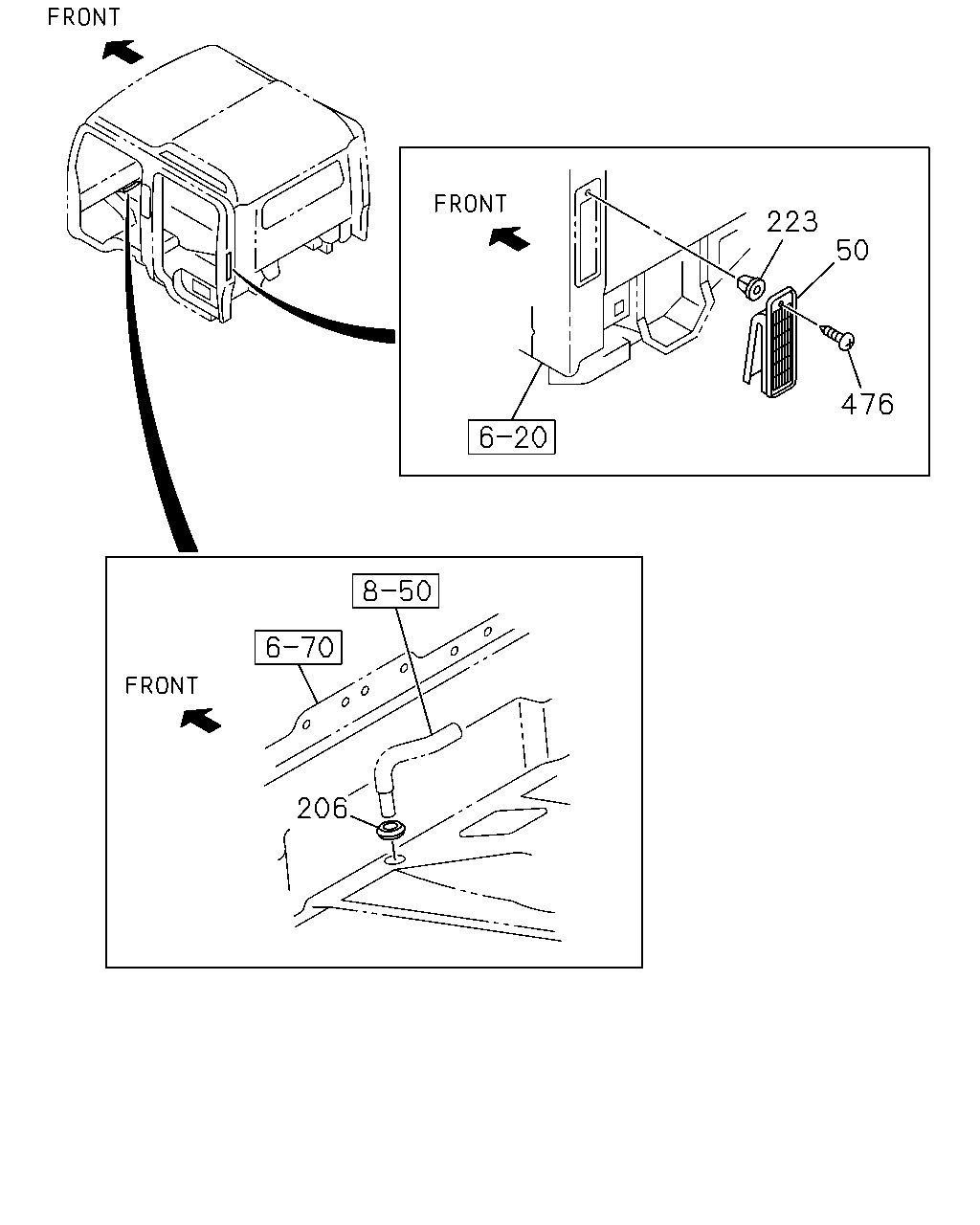

çizim 485042
223 476 50 206
BalonParca AdiParca NoAdetTipApplied Date
50 VALVE ASM; HTR 8-98080-999-2 01 1 1507-
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1507-
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1507-
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1507-
