◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#164345) — 75 parça

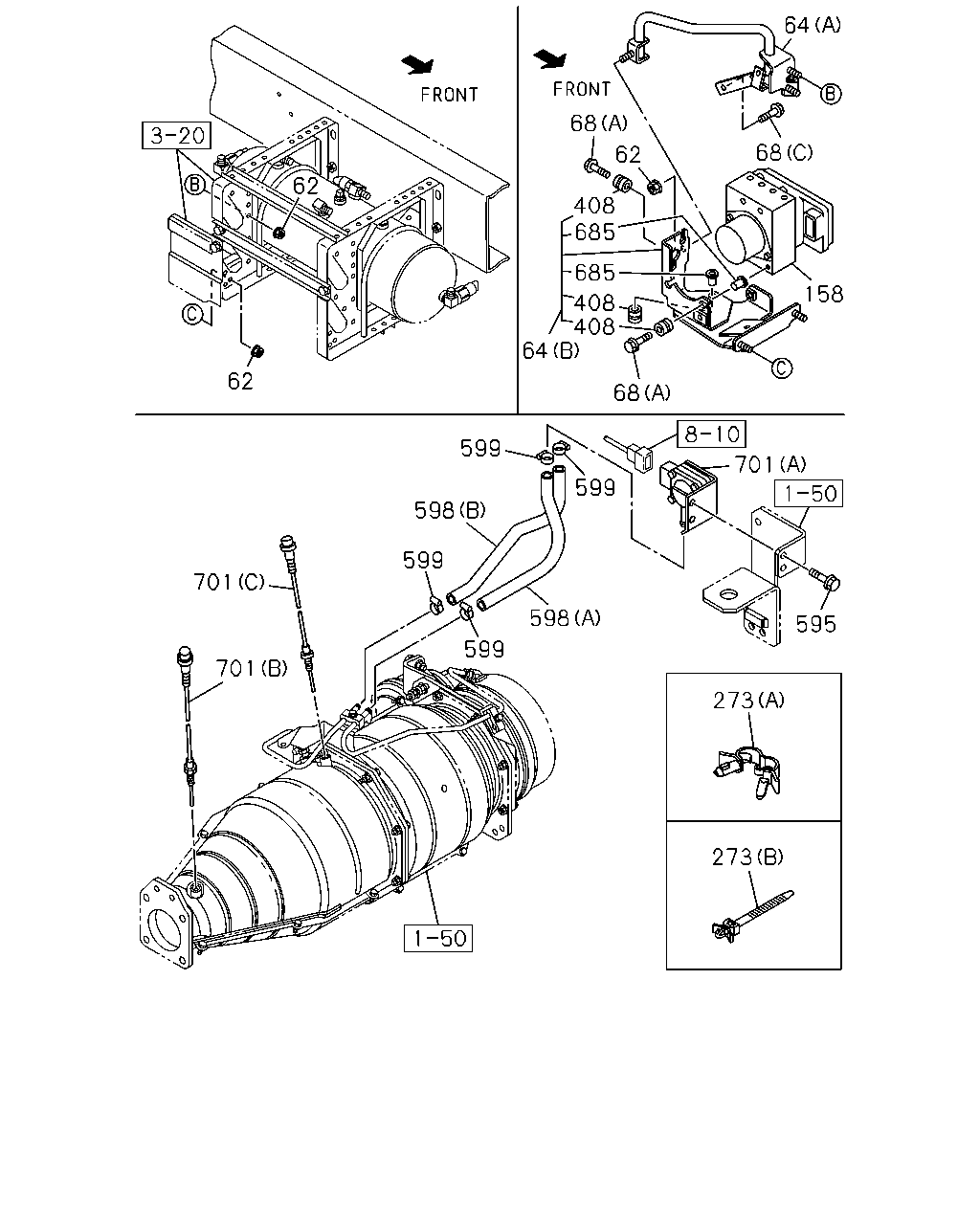

çizim 484539
62 62 598 599 599 599 599 598 273 273 595 701 701 701 68 64 408 408 685 685 408 62 68 68 64 158
BalonParca AdiParca NoAdetTipApplied Date
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1507-
64 BRACKET; CONTROLLER
(A) 		8-98282-105-0 01 1 1507-
64 BRACKET; CONTROLLER
(B) 		8-98282-106-0 01 1 1507-
68 BOLT; BRKT
(D) M6X16 FLANGE 		0-28650-616-0 01 1 1507-
68 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1507-
68 BOLT; BRKT
(A) M6X27 W/PL WASHER 		8-98131-461-0 05 1 1507-
158 CONTROLLER; ABS 8-98306-172-0 01 1 1507-1507
158 CONTROLLER; ABS 8-98327-753-0 01 1 1508-
273 CLIP; HARNESS
(B) L=112 		8-94232-618-0 02 1 1507-
273 CLIP; HARNESS
(A) ID=7 L=7.5 		8-97369-561-0 01 1 1507-
408 RUBBER; CUSHION 8-98130-133-0 05 1 1507-
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1507-
598 HOSE; RUBBER,SENSOR
(B) 		8-98138-715-0 01 1 1507-
598 HOSE; RUBBER,SENSOR
(A) 		8-98138-716-0 01 1 1507-
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1507-
685 SPACER; BRKT 8-98130-134-0 05 1 1507-
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1507-
701 SENSOR; DPD
(B) 		8-98004-329-0 01 1 1507-
701 SENSOR; DPD
(C) 		8-98004-330-0 01 1 1507-

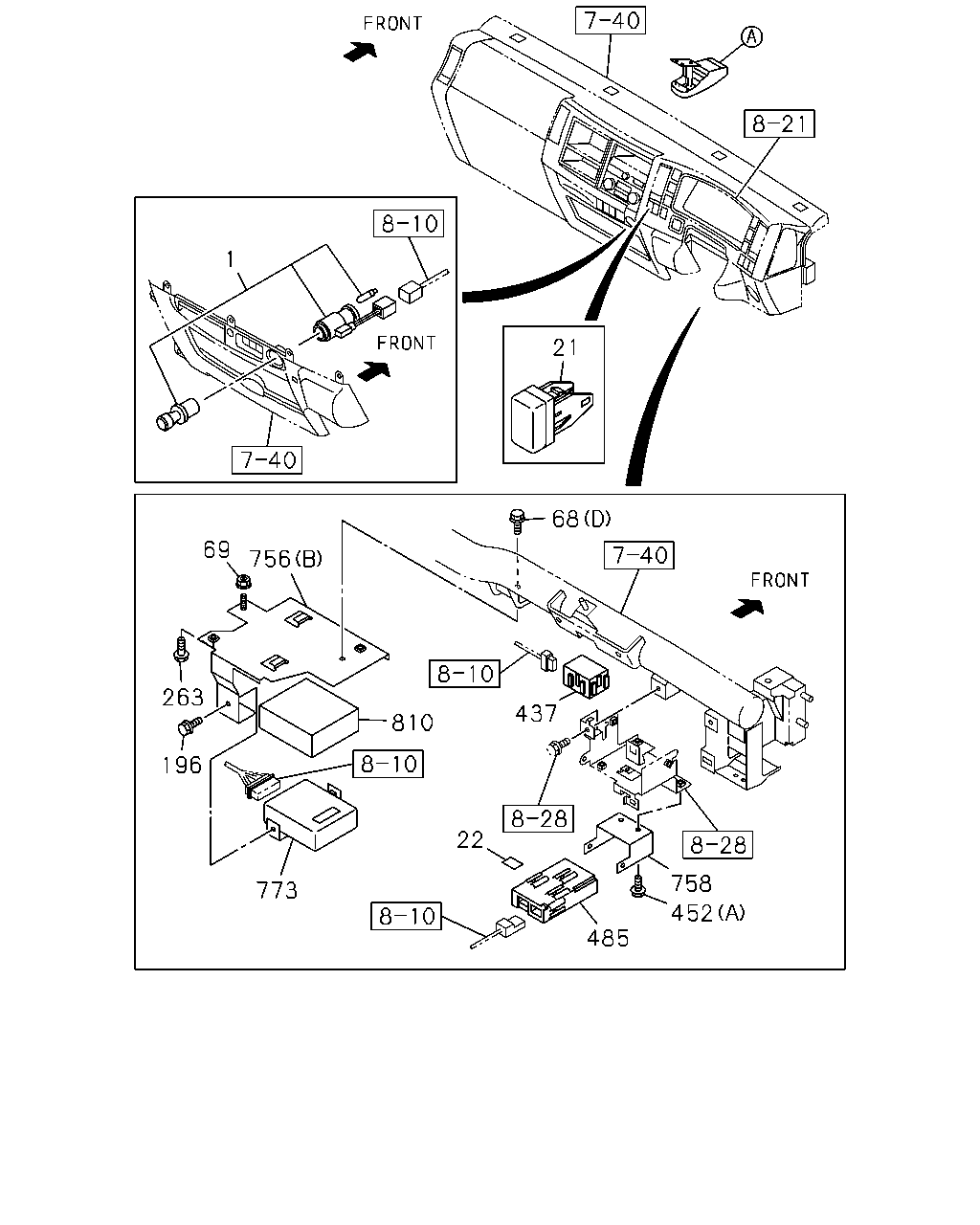

çizim 484612
485 758 22 773 196 263 69 756 68 437 452 21 1 810
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1507-
21 COVER; HOLE 8-98025-954-1 01 1 1507-
22 SEAL; TAPE 8-98166-639-0 02 1 1507-
68 BOLT; BRKT
(D) M6X16 FLANGE 		0-28650-616-0 01 1 1507-
68 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1507-
68 BOLT; BRKT
(A) M6X27 W/PL WASHER 		8-98131-461-0 05 1 1507-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1507-
196 BOLT
M6X16 FLANGE 		0-28650-616-0 02 1 1507-
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1507-
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1507-
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1507-
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1507-
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1507-
485 CONTROL UNIT; SPEED SENSOR 1-80190-061-0 01 1 1507-
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1507-
756 BRACKET; ECU,BCM
(B) 		8-98252-076-1 01 1 1507-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1507-
773 CONTROL UNIT; CMS 8-98312-079-0 01 1 1507-
810 CONTROL UNIT; ISS 8-98322-712-0 01 1 1507-

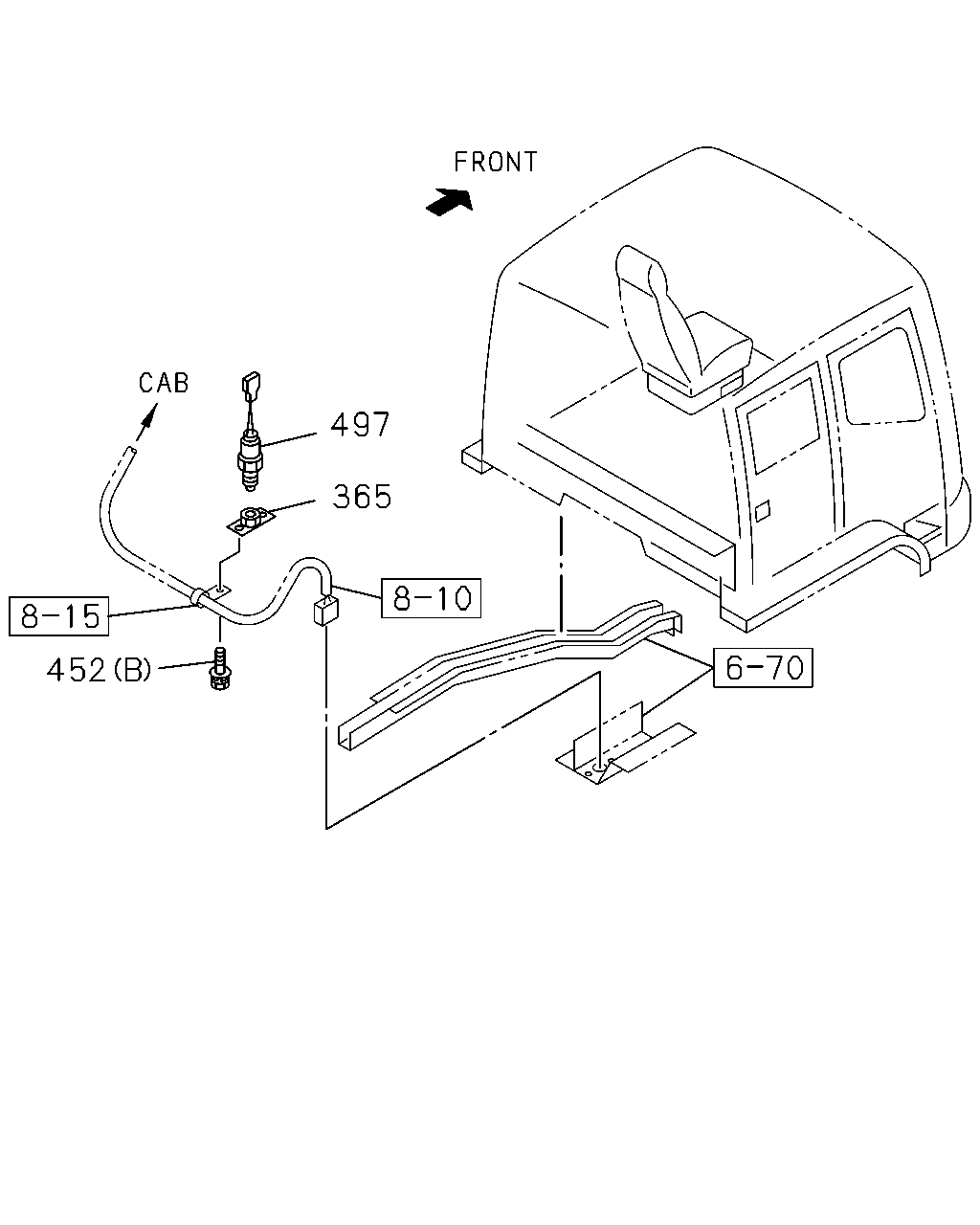

çizim 484915
497 365 452
BalonParca AdiParca NoAdetTipApplied Date
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 1507-
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1507-
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1507-
497 SWITCH; CAB TILT
STAMP NC 		1-82380-125-1 01 1 1507-

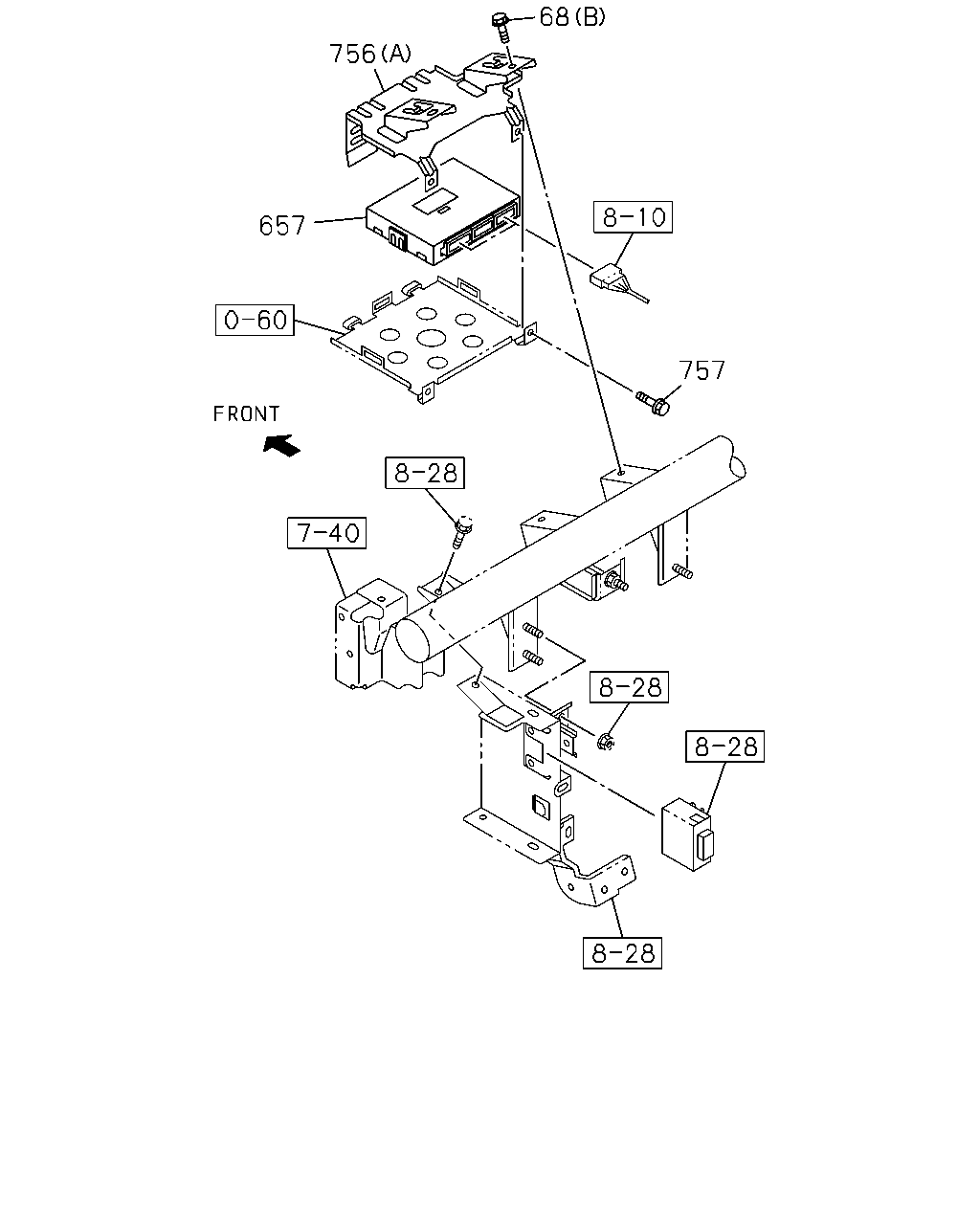

çizim 484947
756 68 657 757
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(D) M6X16 FLANGE 		0-28650-616-0 01 1 1507-
68 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1507-
68 BOLT; BRKT
(A) M6X27 W/PL WASHER 		8-98131-461-0 05 1 1507-
657 CONTROL UNIT; MIMAMORI 8-98290-407-0 01 1 1507-
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1507-
756 BRACKET; ECU,BCM
(B) 		8-98252-076-1 01 1 1507-
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1507-
çizim 484998
802 472 472 802
BalonParca AdiParca NoAdetTipApplied Date
472 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 04 1 1507-
802 RESISTOR; DAYTIME RUNNING LP 8-98225-338-1 02 1 1507-

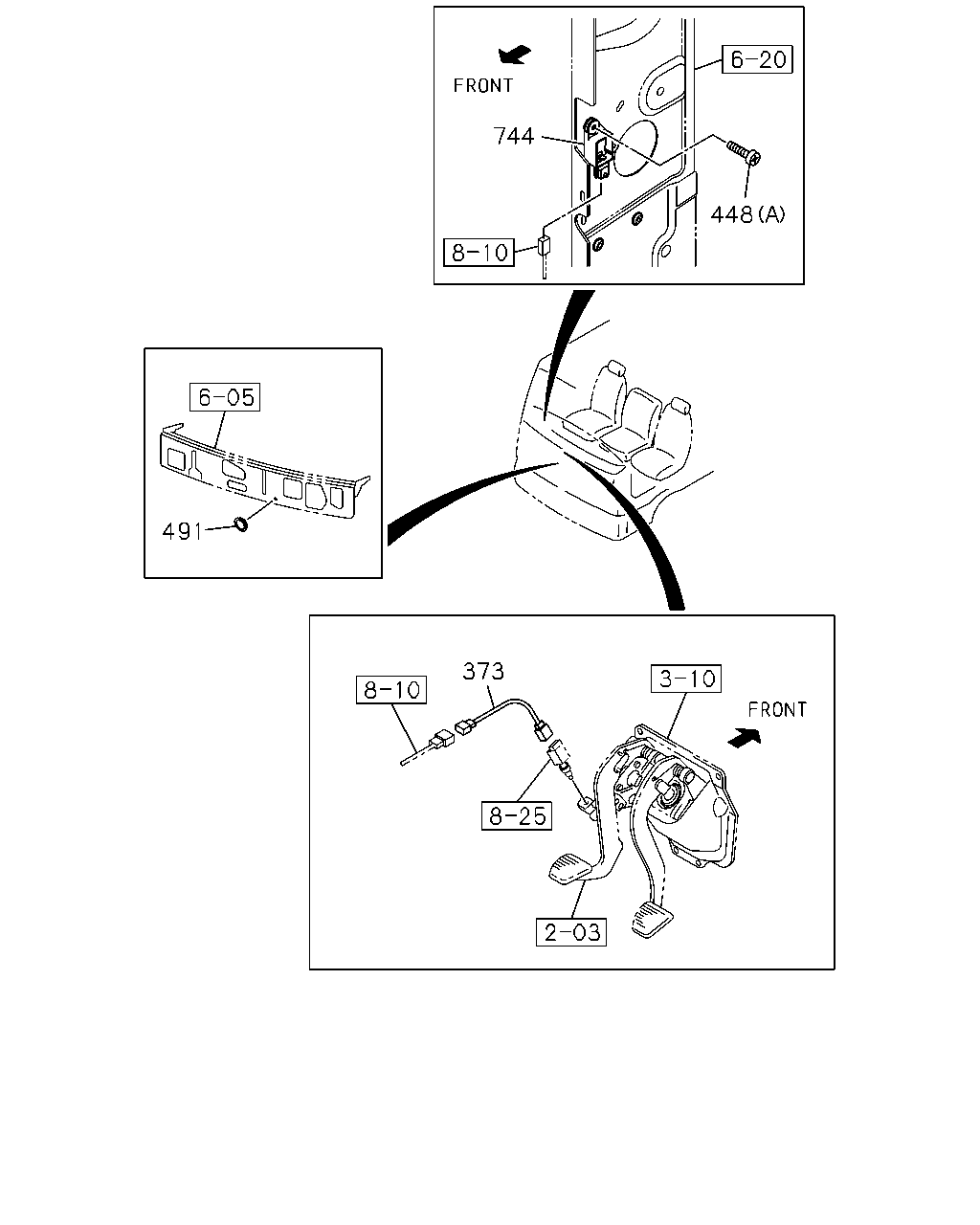

çizim 485120
744 448 491 373
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH 8-98059-419-2 01 1 1507-
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1507-
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1507-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1507-
744 SENSOR; AIR BAG 8-98190-212-0 01 1 1507-

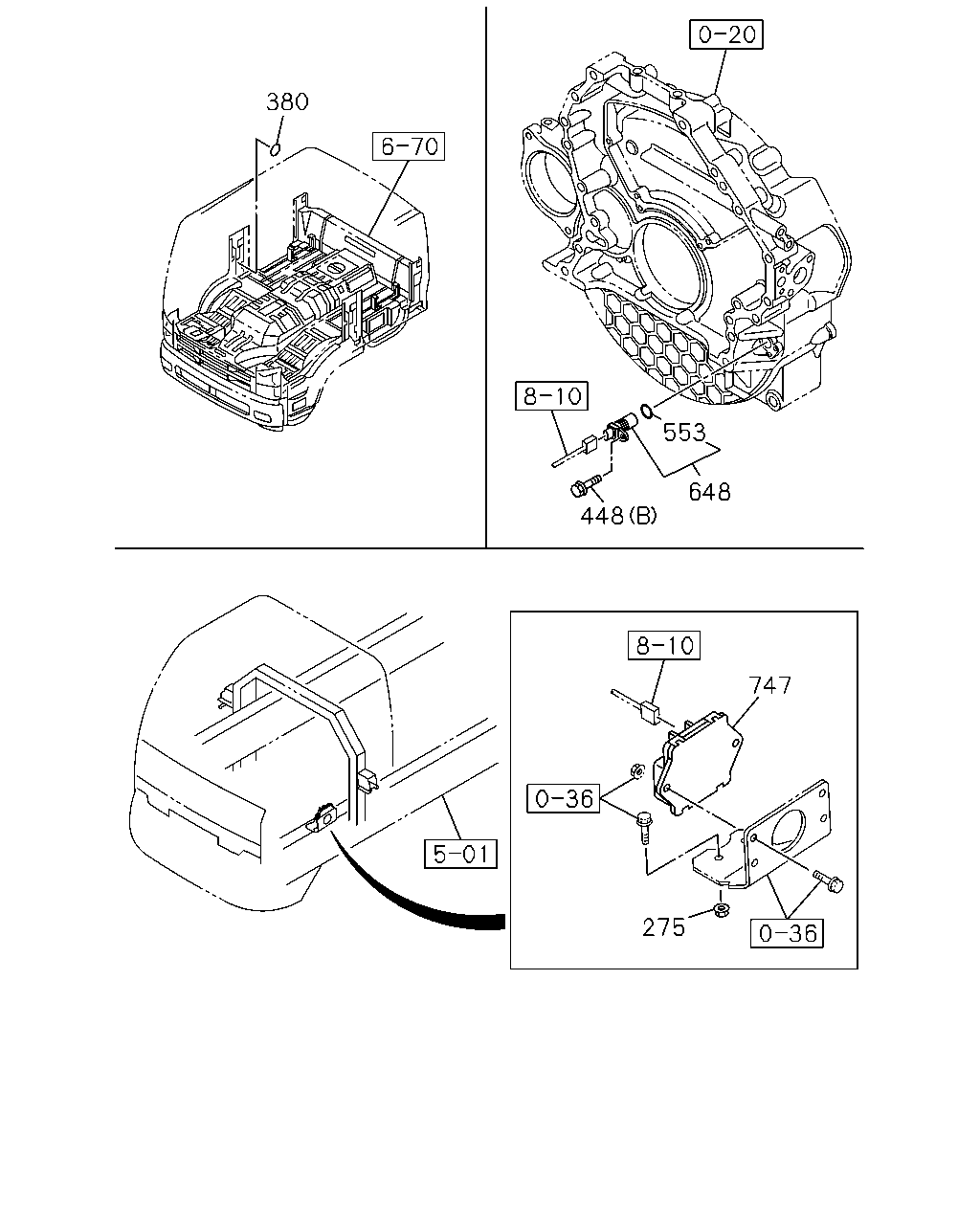

çizim 485304
380 553 648 448 747 275
BalonParca AdiParca NoAdetTipApplied Date
275 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1507-
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1507-
380 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1507-
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1507-
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1507-
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1507-
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1507-
747 CONTROL UNIT; TURBOCHARGER 8-98133-124-1 01 1 1507-
çizim 485365
587 396 587 814 813 621 803 803
BalonParca AdiParca NoAdetTipApplied Date
396 BRACKET 8-98301-125-0 01 1 1507-
587 SCREW; CAMERA
(A) M6X16 		0-52000-616-0 02 1 1507-
587 SCREW; CAMERA
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1507-
621 SCREW
M4X8 		0-36230-408-0 02 1 1507-
803 COVER; CAMERA 8-97466-328-1 01 1 1507-
803 COVER; CAMERA 8-97466-358-2 01 1 1507-
813 CAMERA ASM 8-98318-101-0 01 1 1507-
814 BRACKET ASM; CAMERA 8-98301-124-0 01 1 1507-
