Isuzu WW
▶
TRUCKS
▶
FRR
▶
11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#164344) — 48 parça
◀

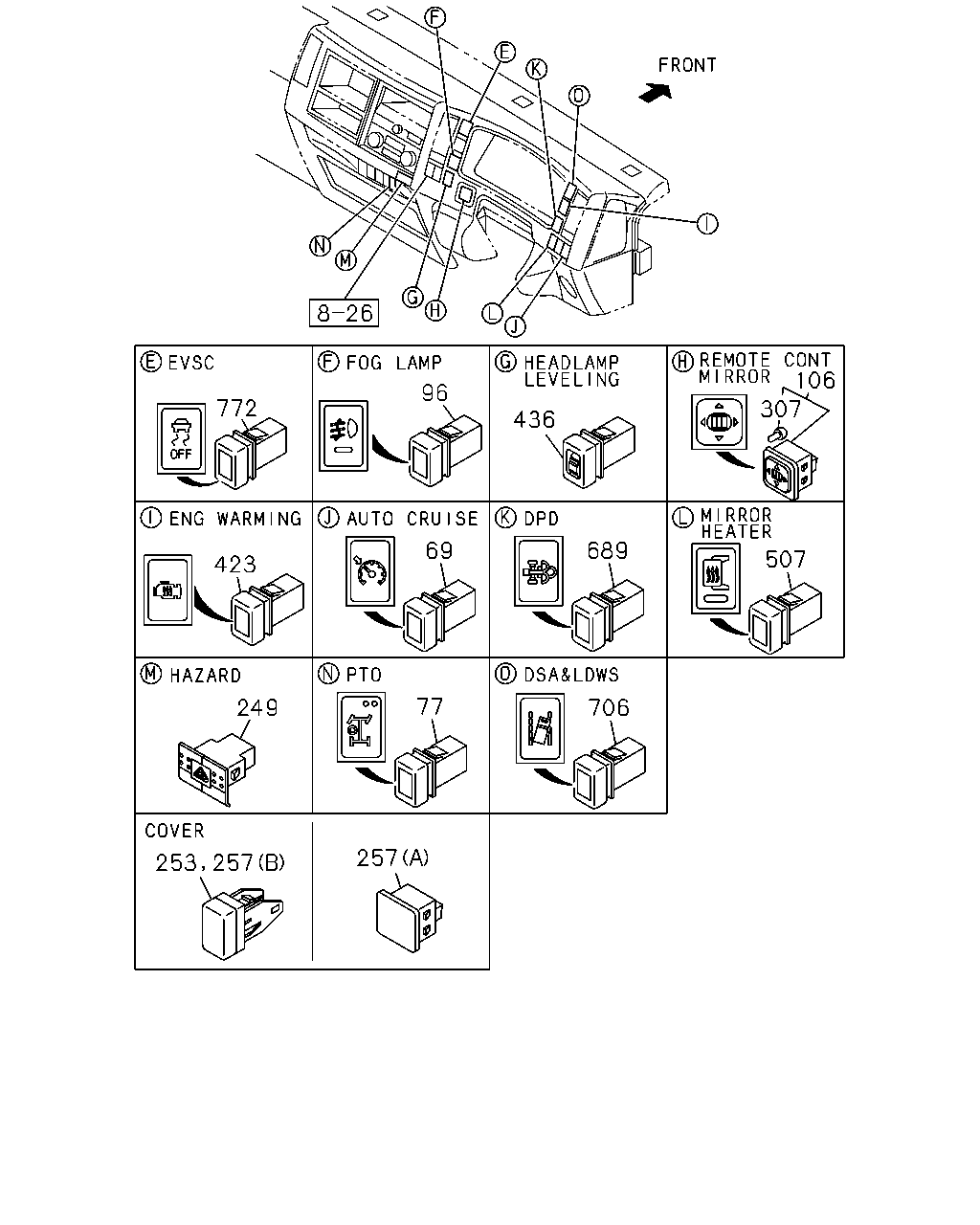

[825A] OTHER SWITCH (18 parça)

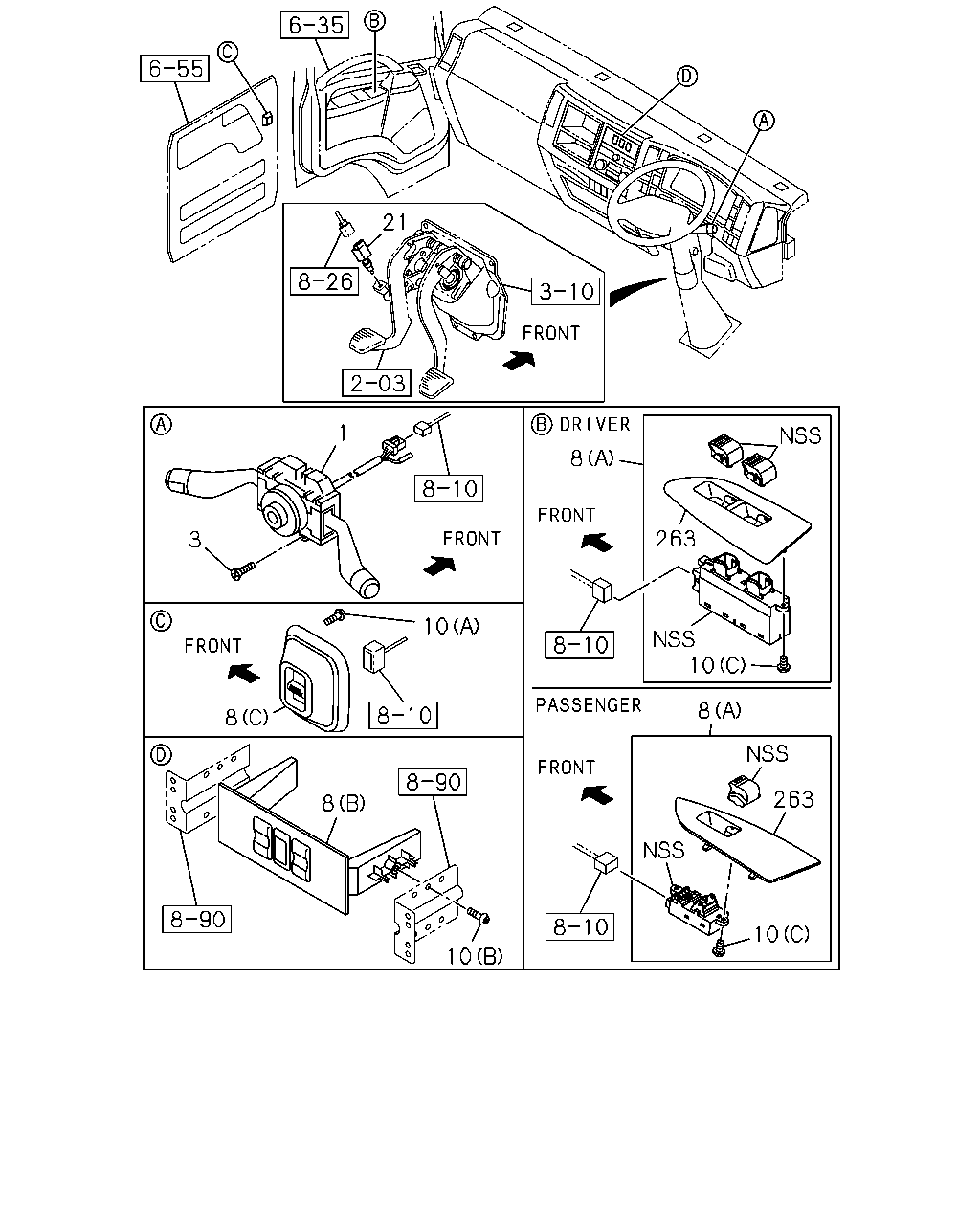

[825A] SWITCH;COMBI,P/W AND CLUTCH (15 parça)

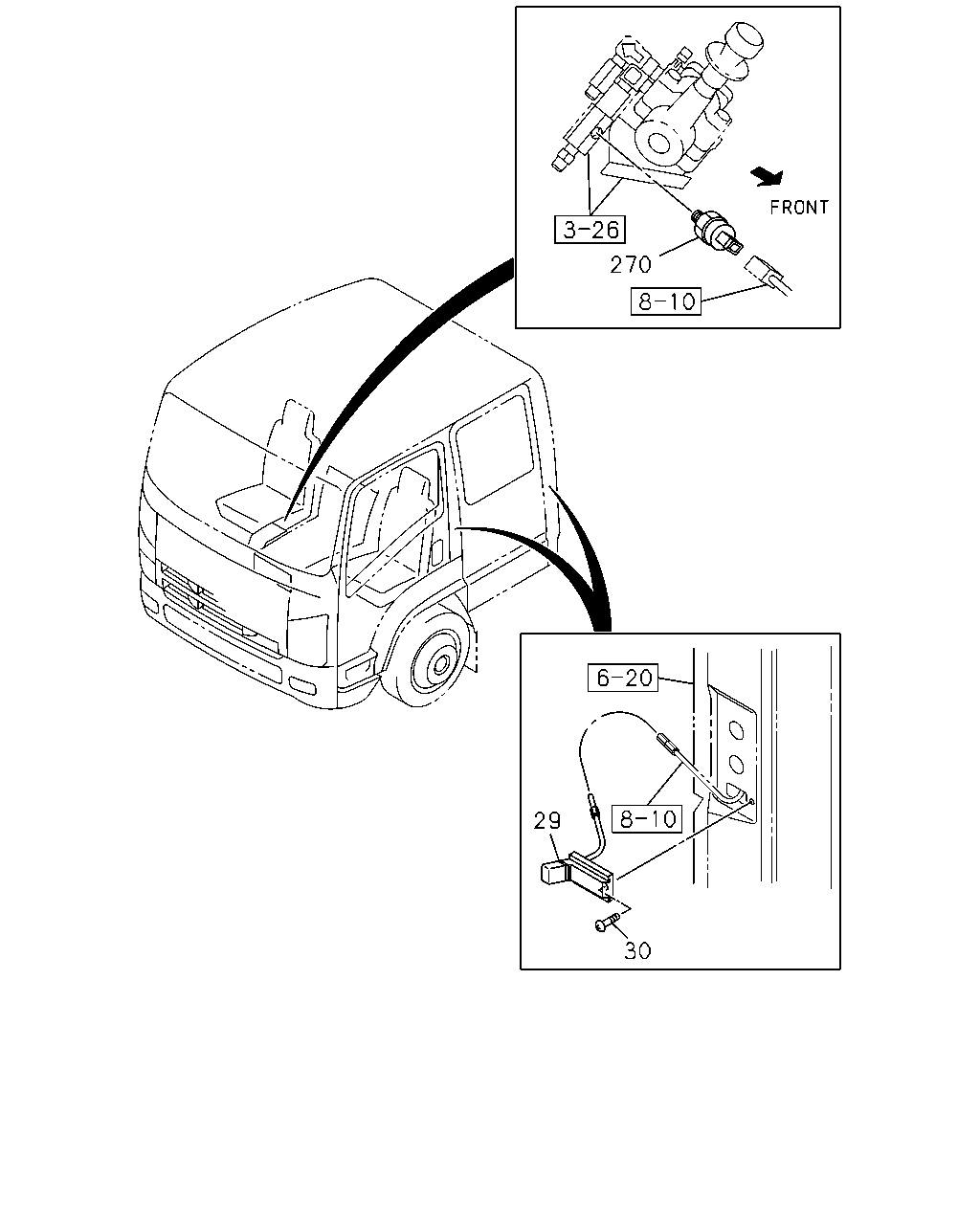

[825A] SWITCH;DOOR AND WHEEL PARKING (4 parça)

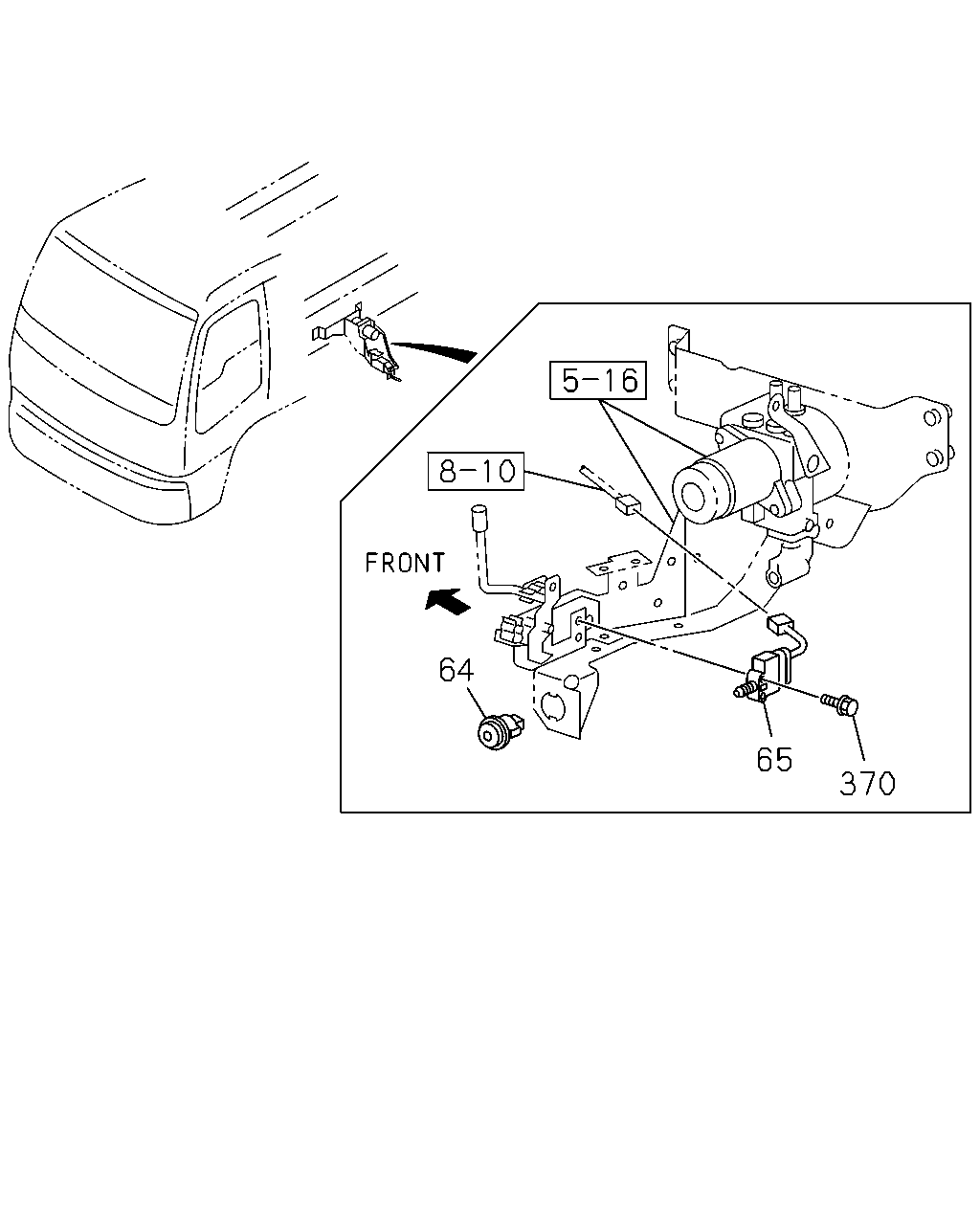

[825A] CAB TILT SWITCH (3 parça)

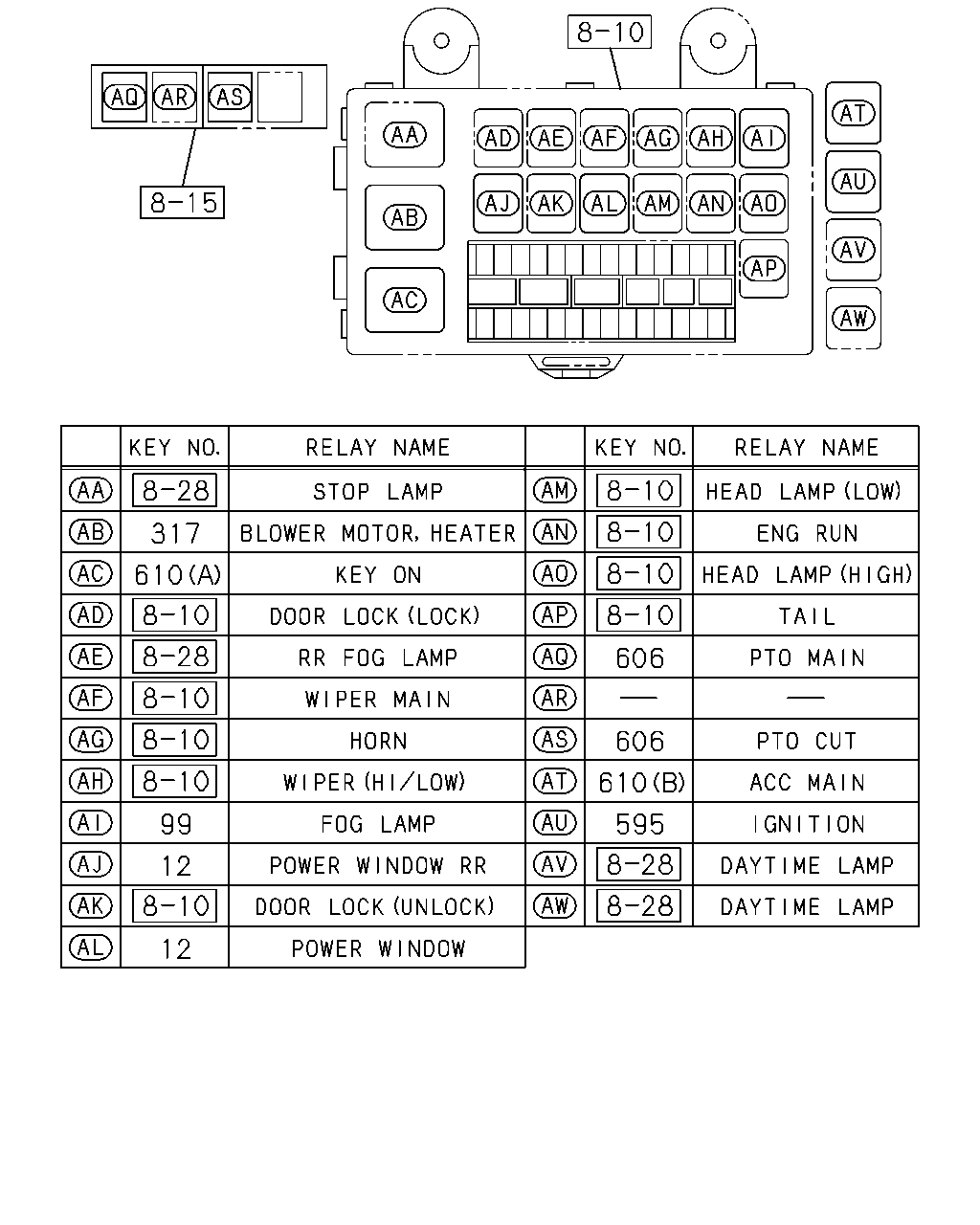

[825A] RELAY;CAB HARNESS (8 parça)
▶
772
96
436
307
106
507
689
69
423
249
77
706
257
253
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
69
SWITCH; AUTO CRUISE
8-98011-344-1
01
1
1507-
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97615-488-2
01
1
1507-
96
SWITCH; FOG LAMP
8-97387-031-4
01
1
1507-
106
SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
8-97173-294-1
01
1
1507-
249
SWITCH; HAZARD
8-97386-922-1
01
1
1507-
253
COVER; SW HOLE
8-98025-954-1
02
1
1507-
257
COVER; HOLE,SW
(B)
8-98025-954-1
04
1
1507-
257
COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)
8-98025-954-1
01
1
1507-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)
8-98025-954-1
01
1
1507-
257
COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)
8-98029-914-1
01
1
1507-
307
BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V
8-98226-896-0
01
1
1507-
423
SWITCH; ENG WARMING
8-97387-010-2
01
1
1507-
436
SWITCH; HEADLAMP LEVELING
8-97386-981-2
01
1
1507-
507
SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
8-97386-924-3
01
1
1507-
689
SWITCH; DPD
8-97386-921-2
01
1
1507-
706
SWITCH; DRIVING SAFETY ADVISER,ADJUST
8-98208-989-1
01
1
1507-
772
SWITCH; EVSC
FLUORESCENT LAMP<6UC>
8-98190-385-1
01
1
1507-
772
SWITCH; EVSC
EXC. FLUORESCENT LAMP<6UC>
8-98190-384-1
01
1
1507-
21
8
263
10
8
263
10
10
8
8
10
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
8-98243-711-0
01
1
1507-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1507-
8
SWITCH; POWER WINDOW
(B)
8-97386-987-2
01
1
1507-
8
SWITCH; POWER WINDOW
(A) PASSENGER
8-97387-034-2
01
1
1507-1509
8
SWITCH; POWER WINDOW
(A) PASSENGER
8-98316-415-0
01
1
1510-
8
SWITCH; POWER WINDOW
(C) REAR
8-97387-035-0
02
1
1507-
8
SWITCH; POWER WINDOW
(A) DRIVER
8-98159-543-0
01
1
1507-1509
8
SWITCH; POWER WINDOW
(A) DRIVER
8-98298-750-0
01
1
1510-
10
SCREW; POWER WINDOW SW
(A) M4X14 TAPPING
0-74360-414-0
04
1
1507-
10
SCREW; POWER WINDOW SW
(B) T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
1507-
10
SCREW; POWER WINDOW SW
(C)
8-98153-865-0
03
1
1507-
21
SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-94337-761-0
01
1
1507-
21
SWITCH; CLU
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97358-248-0
01
1
1507-
263
COVER; SW
DRIVER
8-98153-836-0
01
1
1507-
263
COVER; SW
PASSENGER
8-98153-841-0
01
1
1507-
270
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
FRONT
8-97855-032-3
02
1
1507-
29
SWITCH; DOOR
REAR
8-98054-195-0
02
1
1507-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
04
1
1507-
270
SWITCH; PRESS,WHEEL PARKING
STAMP 2.0
8-98010-856-2
01
1
1507-
64
65
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
1507-
65
SWITCH; CAB TILT LK
STAMP NO
1-82380-172-1
01
1
1507-
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
1507-
317
610
99
12
12
606
606
610
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
RELAY; POWER WINDOW
24V 10A PANASONIC
8-97173-035-1
02
1
1507-
99
RELAY; FOG LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
1507-
317
RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
1507-
595
RELAY; IGNITION
24V 10A PANASONIC
8-97173-035-1
01
1
1507-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1507-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1507-
610
RELAY; KEY ON
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1507-
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1507-
