8-21 — METER ASM (#164343) — 16 parça

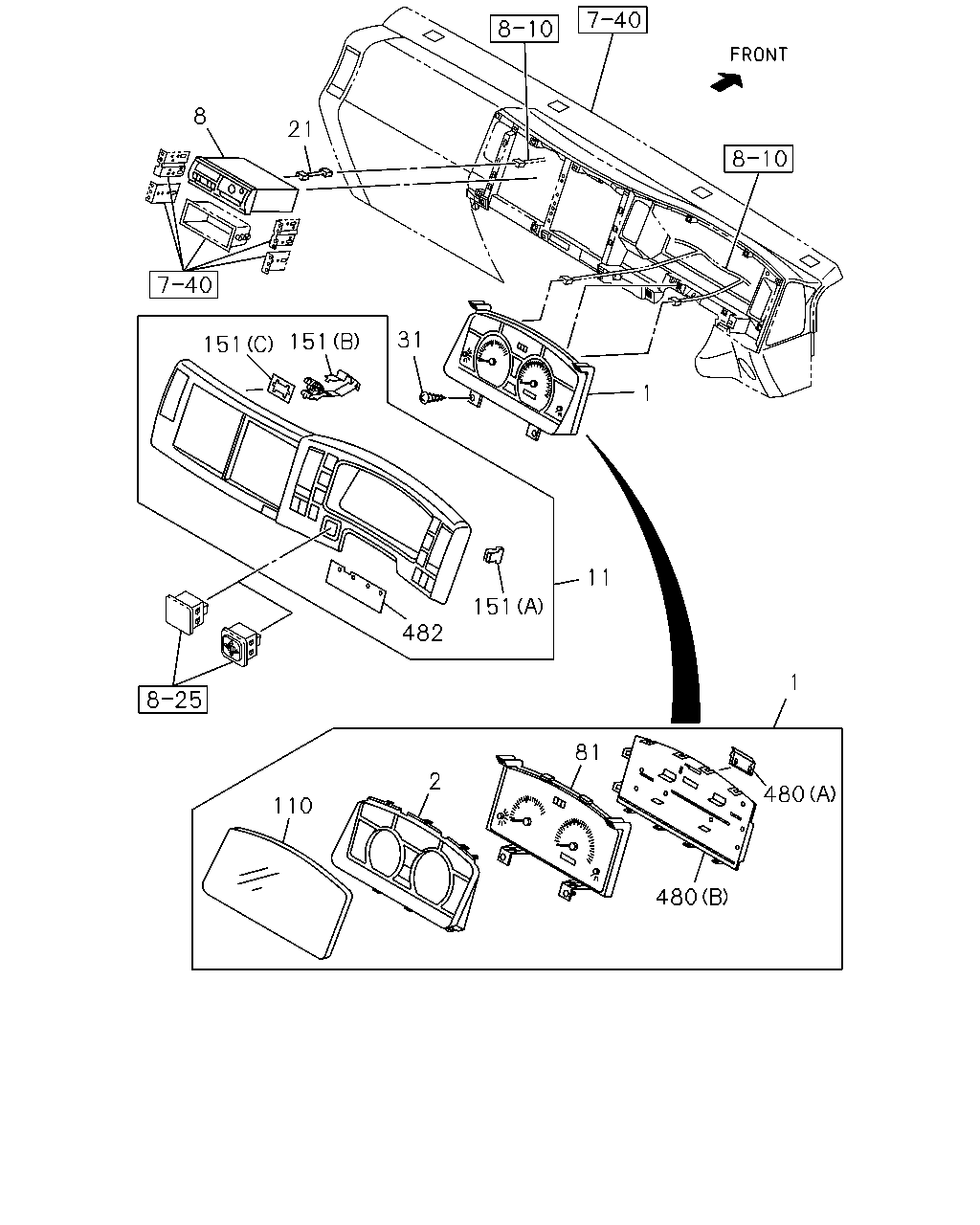

çizim 484328
8 21 31 1 1 11 151 482 151 151 110 2 81 480 480
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> 		8-98286-991-1 01 1 1507-
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> 		8-98286-992-1 01 1 1507-
2 PANEL; CLUSTER 8-98054-432-0 01 1 1507-
8 TACHOGRAPH; CLUSTER METER 8-98204-004-0 01 1 1507-
11 CLUSTER ASM; METER
DARK GRAY 		8-97418-530-1 01 1 1507-
21 HARNESS; TACHOGRAPH 8-98203-747-0 01 1 1507-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1507-
81 METER SUB ASM
KILOMETER SPEEDOMETER<U18> 		8-98287-381-0 01 1 1507-
81 METER SUB ASM
MILE SPEEDOMETER<UC1> 		8-98287-382-0 01 1 1507-
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 1507-
151 CLIP; METER CLUSTER
(A) 		8-98021-271-0 12 1 1507-
151 CLIP; METER CLUSTER
(B) 		8-98152-030-0 01 1 1507-
151 CLIP; METER CLUSTER
(C) 		8-98152-031-0 01 1 1507-
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1507-
480 COVER; METER
(B) 		8-98151-362-0 01 1 1507-
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 1507-
