◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#164340) — 191 parça
çizim 484333
102 534 534 534 28 479 558 267 267 102 639 267 639 535 639 535 267 102 290 525 295 290 540 280 535
BalonParca AdiParca NoAdetTipApplied Date
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1507-
102 BOLT; BRKT,HARNESS CONNECTOR
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1507-
102 BOLT; BRKT,HARNESS CONNECTOR
(C) M10X16 FLANGE 		0-28151-016-0 03 1 1507-
102 BOLT; BRKT,HARNESS CONNECTOR
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1507-
267 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1507-
267 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 1507-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1507-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 05 1 1507-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1507-
295 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1507-
479 CAP; CONNECTOR 1-82690-667-0 01 1 1507-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1507-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1507-
534 BOLT
(D) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1507-
534 BOLT
(A) M10X55 FLANGE 		8-97365-449-0 03 1 1507-
535 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
535 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1507-
535 BOLT; BRKT FIX
(A) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1507-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 03 1 1507-
558 CONNECTOR; HARNESS 1-82690-668-0 01 1 1507-
639 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1507-
639 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1507-

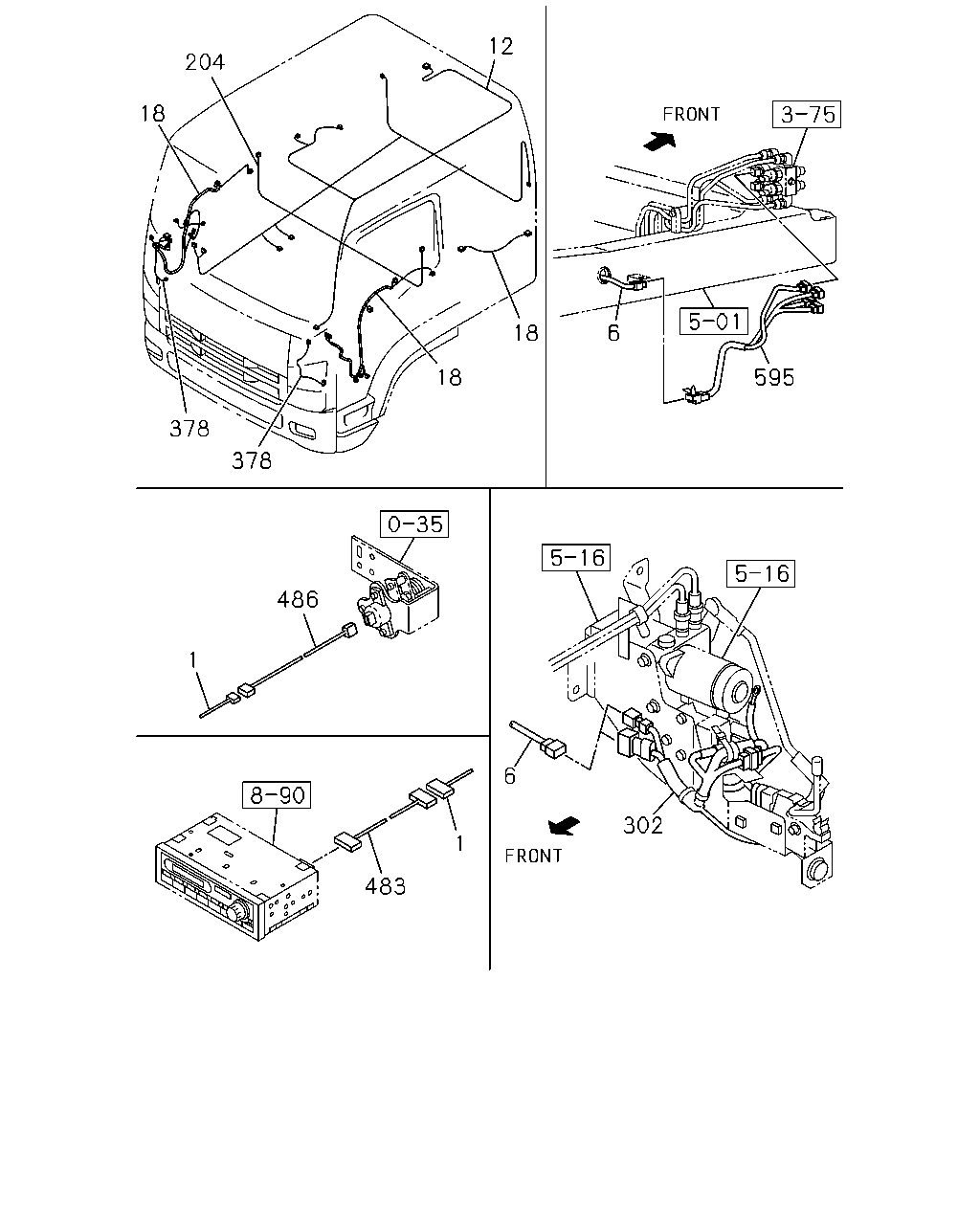

çizim 484337
302 6 1 483 1 486 595 6 18 18 12 204 18 378 378
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98303-368-1 01 1 1507-
6 HARNESS; FRAME 8-98269-611-2 01 1 1507-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98269-192-0 01 1 1507-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98269-193-0 01 1 1507-
18 HARNESS; DOOR
REAR 		8-98056-047-1 02 1 1507-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98268-907-1 01 1 1507-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98268-903-1 01 1 1507-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98268-908-1 01 1 1507-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98268-904-1 01 1 1507-
204 HARNESS; CABLE,FLOOR 8-98269-379-0 01 1 1507-
302 HARNESS; POWER CAB TILT 8-97622-116-0 01 1 1507-
378 HARNESS; EXT,MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98125-654-0 02 1 1507-
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 1507-
483 HARNESS; EXT,RADIO 8-98116-875-0 01 1 1507-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1507-
595 HARNESS; WARNING,BRK 8-98294-153-0 01 1 1507-

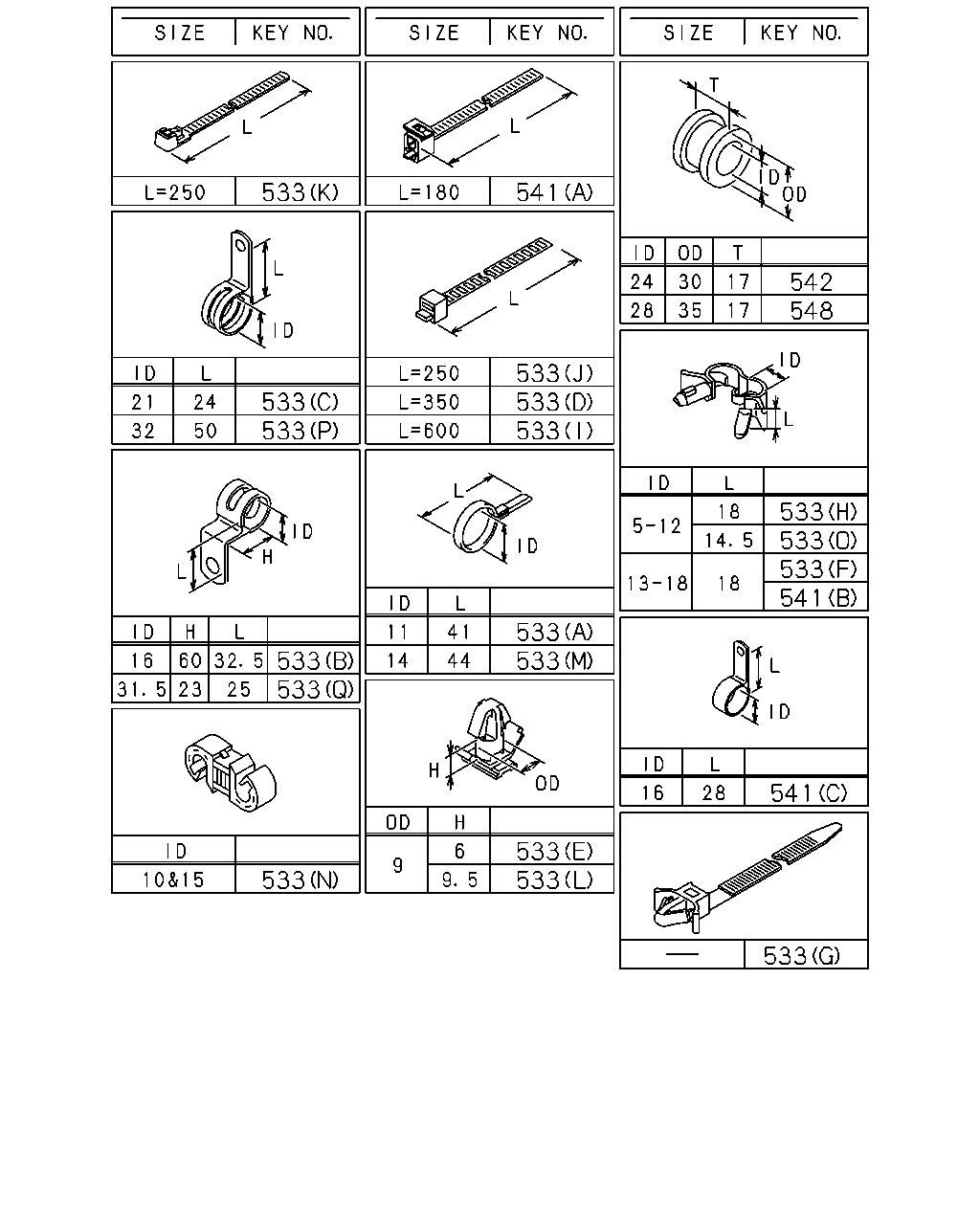

çizim 484340
533 533 541 533 533 533 533 533 533 533 533 533 533 533 542 533 548 533 533 541 541 533
BalonParca AdiParca NoAdetTipApplied Date
533 CLIP
(E) OD=9 H=6 		1-09709-178-0 03 1 1507-
533 CLIP
(O) ID=5-12 L=14.5 		1-09987-221-0 01 1 1507-
533 CLIP
(B) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1507-
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1507-
533 CLIP
(Q) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1507-
533 CLIP
(P) ID=32 L=50 		1-09701-055-1 01 1 1507-
533 CLIP
(I) L=600 		1-09707-107-1 02 1 1507-
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1507-
533 CLIP
(D) L=350 		1-09707-183-0 01 1 1507-
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1507-
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1507-
533 CLIP
(N) ID=10 & 15 		1-09709-279-1 02 1 1507-
533 CLIP
(H) ID=5-12 L=18 		1-09709-287-0 02 1 1507-
533 CLIP
(F) ID=13-18 L=18 		1-09709-291-0 01 1 1507-
533 CLIP
(K) L=250 		5-09707-030-1 04 1 1507-
533 CLIP
(C) ID=21 L=24 		8-94176-807-1 02 1 1507-
533 CLIP
(G) L=112 		8-94232-618-0 03 1 1507-
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 19 1 1507-
541 CLIP
(C) ID=16 L=28 		0-95235-556-0 01 1 1507-
541 CLIP
(A) L=180 		1-09707-162-1 01 1 1507-
541 CLIP
(B) ID=13-18 L=18 		1-09709-291-0 02 1 1507-
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 03 1 1507-
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 03 1 1507-

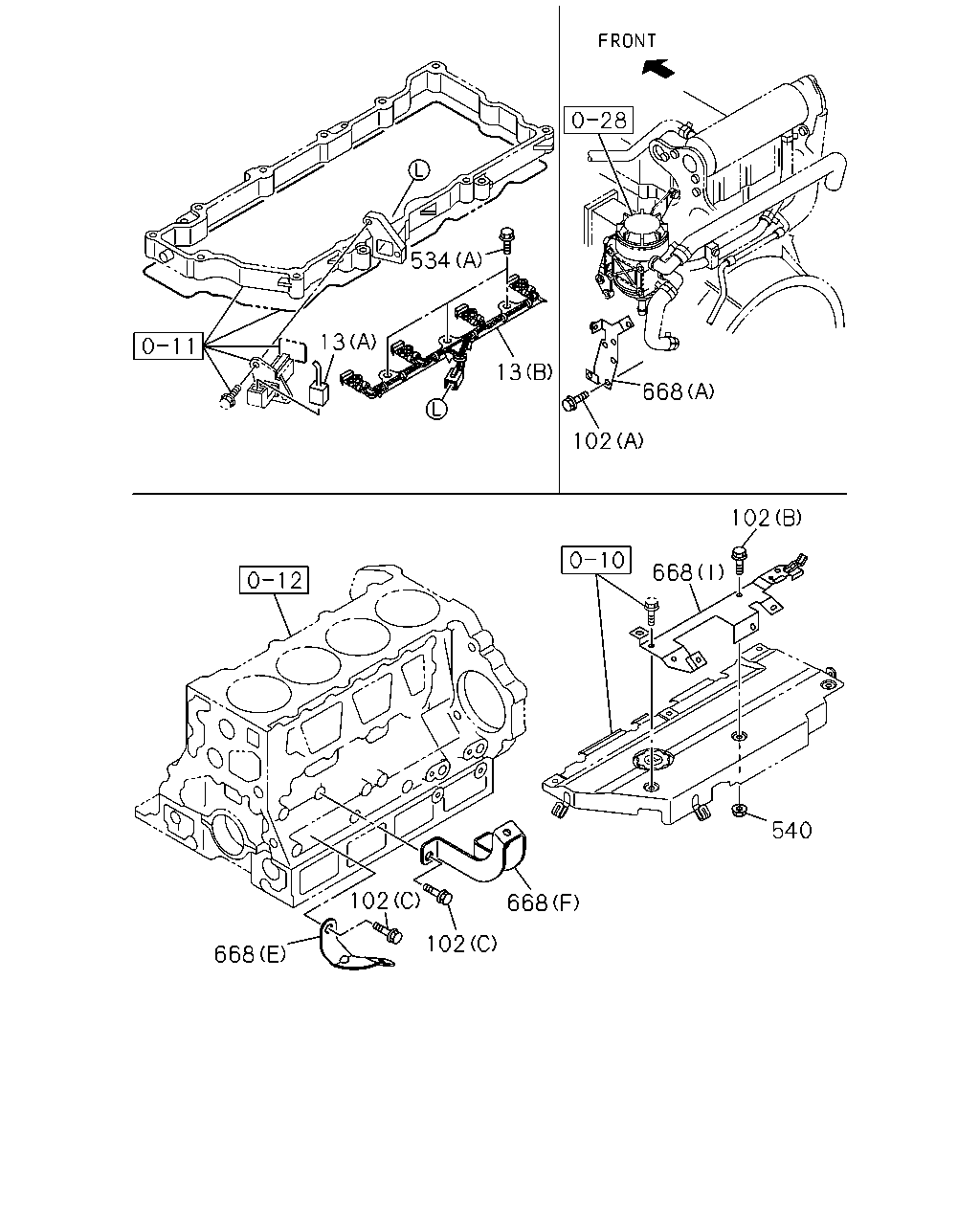

çizim 484351
534 13 668 13 102 102 668 540 668 102 102 668
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-98203-297-0 01 1 1507-
13 HARNESS; ENG
(A) 		8-98308-975-0 01 1 1507-
102 BOLT; BRKT,HARNESS CONNECTOR
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1507-
102 BOLT; BRKT,HARNESS CONNECTOR
(C) M10X16 FLANGE 		0-28151-016-0 03 1 1507-
102 BOLT; BRKT,HARNESS CONNECTOR
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1507-
534 BOLT
(D) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1507-
534 BOLT
(A) M10X55 FLANGE 		8-97365-449-0 03 1 1507-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 03 1 1507-
668 BRACKET; HARNESS
(M) 		1-82698-167-0 01 1 1507-
668 BRACKET; HARNESS
(L) 		8-97612-957-1 01 1 1507-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1507-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1507-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1507-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1507-
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1507-
668 BRACKET; HARNESS
(Q) 		8-98151-455-3 01 1 1507-
668 BRACKET; HARNESS
(R) 		8-98152-414-2 01 1 1507-
668 BRACKET; HARNESS
(J) 		8-98158-109-1 01 1 1507-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1507-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 01 1 1507-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1507-
668 BRACKET; HARNESS
(K) 		8-98207-043-0 01 1 1507-
668 BRACKET; HARNESS
(G) 		8-98240-490-0 01 1 1507-
668 BRACKET; HARNESS
(D) 		8-98240-491-0 01 1 1507-
668 BRACKET; HARNESS
(C) 		8-98254-592-0 01 1 1507-
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1507-

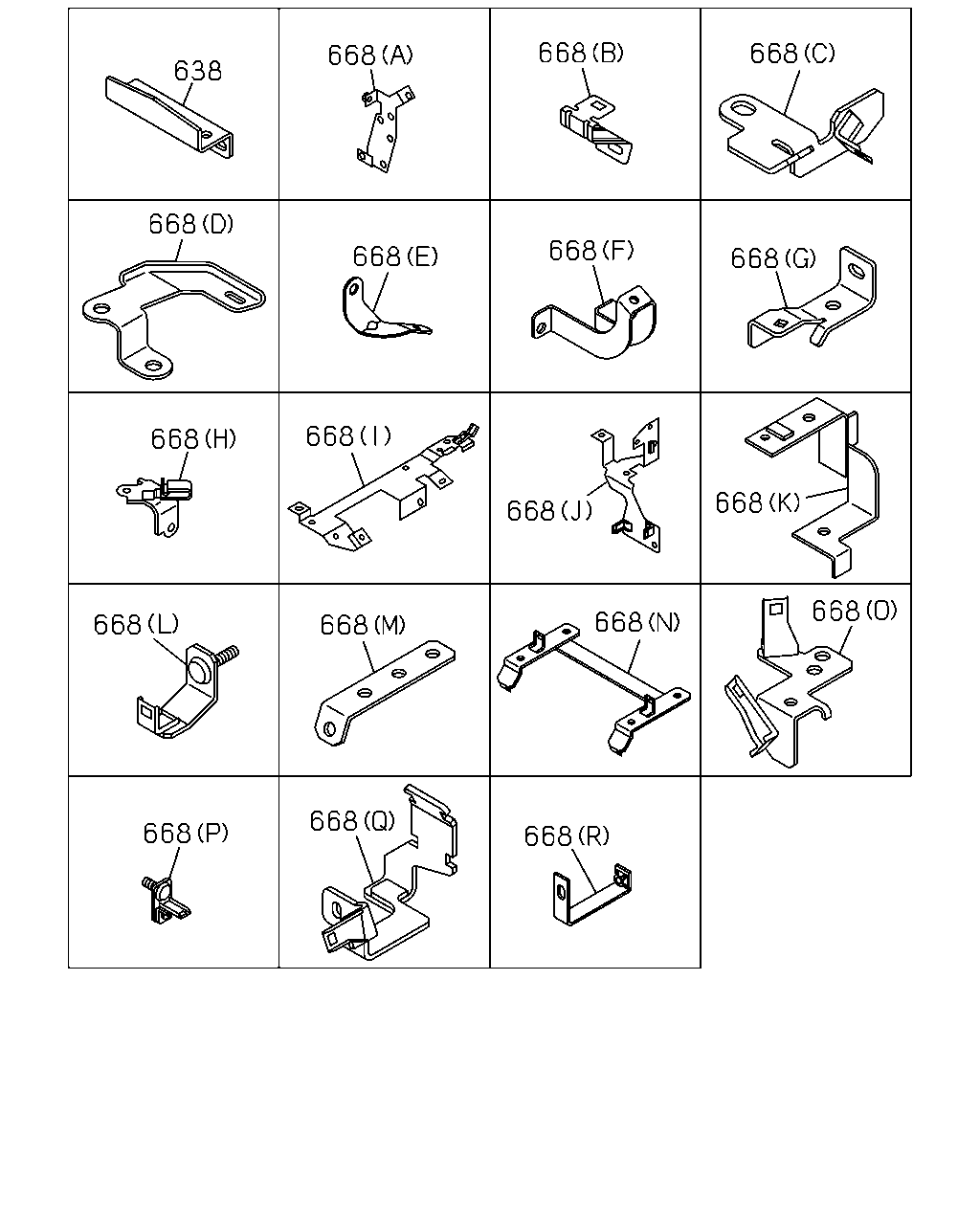

çizim 484367
638 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 1507-
668 BRACKET; HARNESS
(M) 		1-82698-167-0 01 1 1507-
668 BRACKET; HARNESS
(L) 		8-97612-957-1 01 1 1507-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1507-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1507-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1507-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1507-
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1507-
668 BRACKET; HARNESS
(Q) 		8-98151-455-3 01 1 1507-
668 BRACKET; HARNESS
(R) 		8-98152-414-2 01 1 1507-
668 BRACKET; HARNESS
(J) 		8-98158-109-1 01 1 1507-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1507-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 01 1 1507-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1507-
668 BRACKET; HARNESS
(K) 		8-98207-043-0 01 1 1507-
668 BRACKET; HARNESS
(G) 		8-98240-490-0 01 1 1507-
668 BRACKET; HARNESS
(D) 		8-98240-491-0 01 1 1507-
668 BRACKET; HARNESS
(C) 		8-98254-592-0 01 1 1507-
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1507-

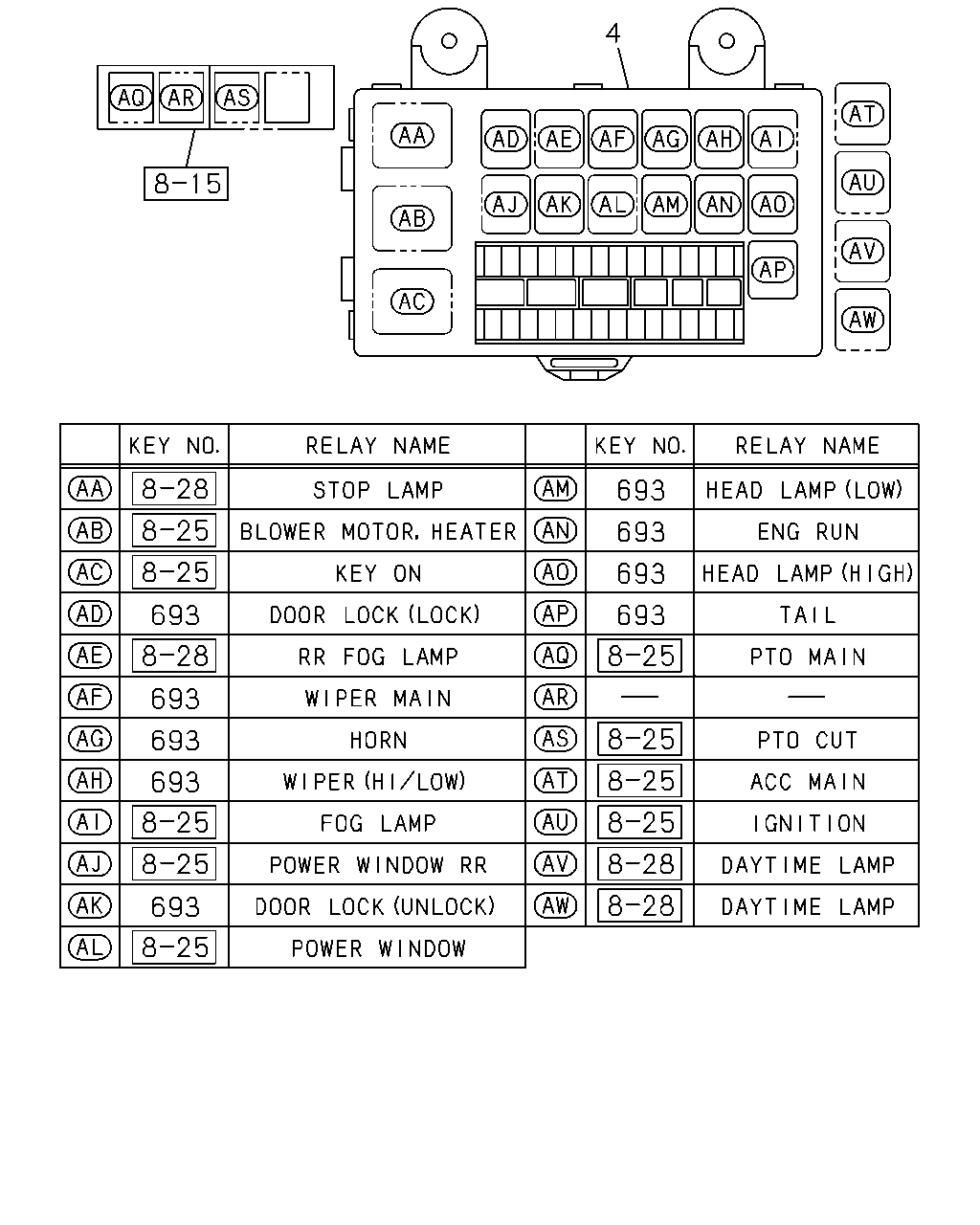

çizim 484446
693 693 693 693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1507-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1507-

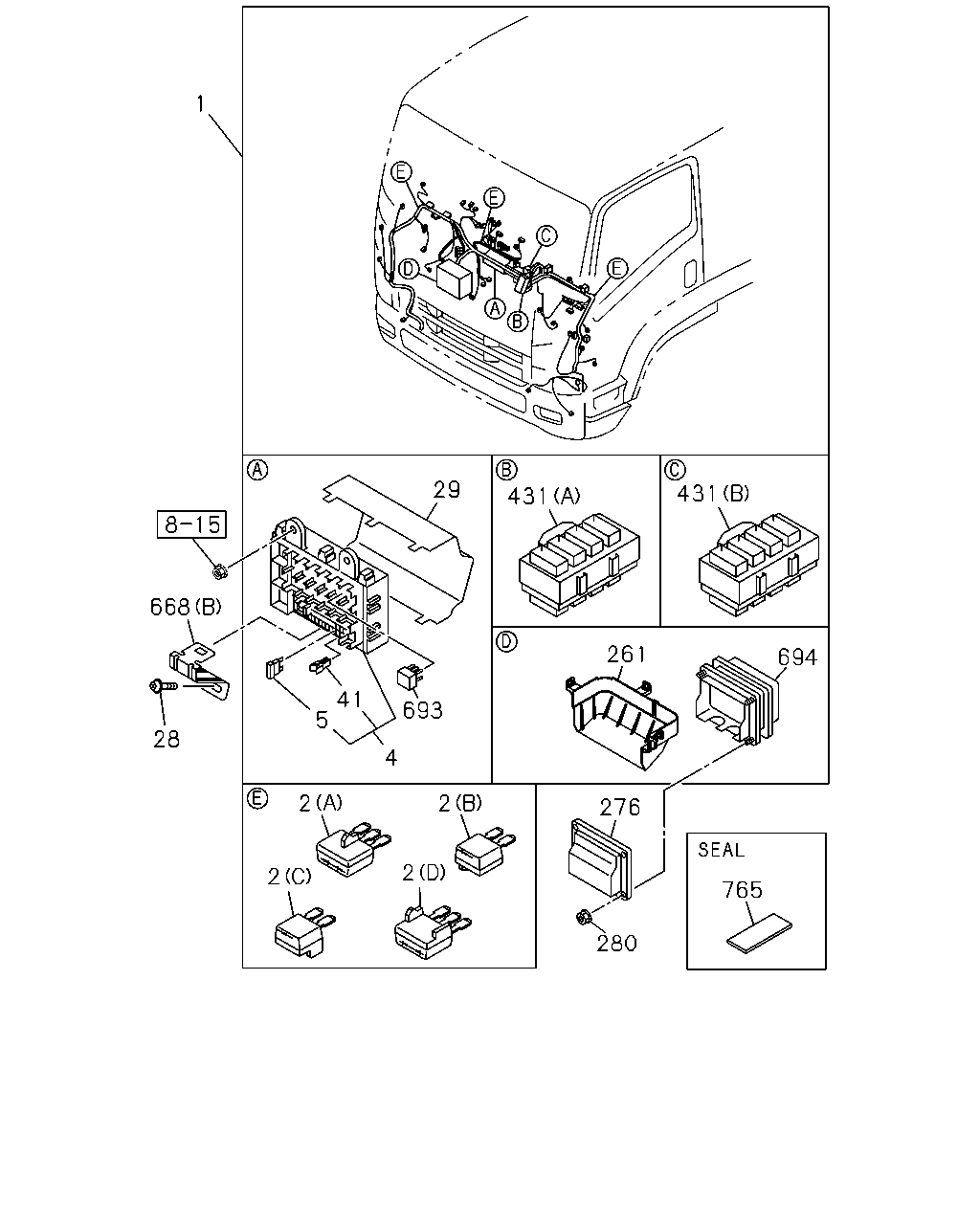

çizim 484482
1 668 28 41 5 4 693 2 2 2 2 280 276 765 694 431 431 29 261
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98303-368-1 01 1 1507-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 05 1 1507-
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1507-
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 01 1 1507-
2 DIODE; CABLE HARNESS
(C) 2P 		8-98223-969-0 01 1 1507-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1507-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1507-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1507-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1507-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1507-
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1507-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1507-
41 PULLER; FUSE 8-98054-260-0 01 1 1507-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1507-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1507-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1507-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1507-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1507-
668 BRACKET; HARNESS
(M) 		1-82698-167-0 01 1 1507-
668 BRACKET; HARNESS
(L) 		8-97612-957-1 01 1 1507-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1507-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1507-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1507-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1507-
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1507-
668 BRACKET; HARNESS
(Q) 		8-98151-455-3 01 1 1507-
668 BRACKET; HARNESS
(R) 		8-98152-414-2 01 1 1507-
668 BRACKET; HARNESS
(J) 		8-98158-109-1 01 1 1507-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1507-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 01 1 1507-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1507-
668 BRACKET; HARNESS
(K) 		8-98207-043-0 01 1 1507-
668 BRACKET; HARNESS
(G) 		8-98240-490-0 01 1 1507-
668 BRACKET; HARNESS
(D) 		8-98240-491-0 01 1 1507-
668 BRACKET; HARNESS
(C) 		8-98254-592-0 01 1 1507-
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1507-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1507-
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1507-
765 TAPE
100X40 		1-72498-022-1 01 1 1507-1509

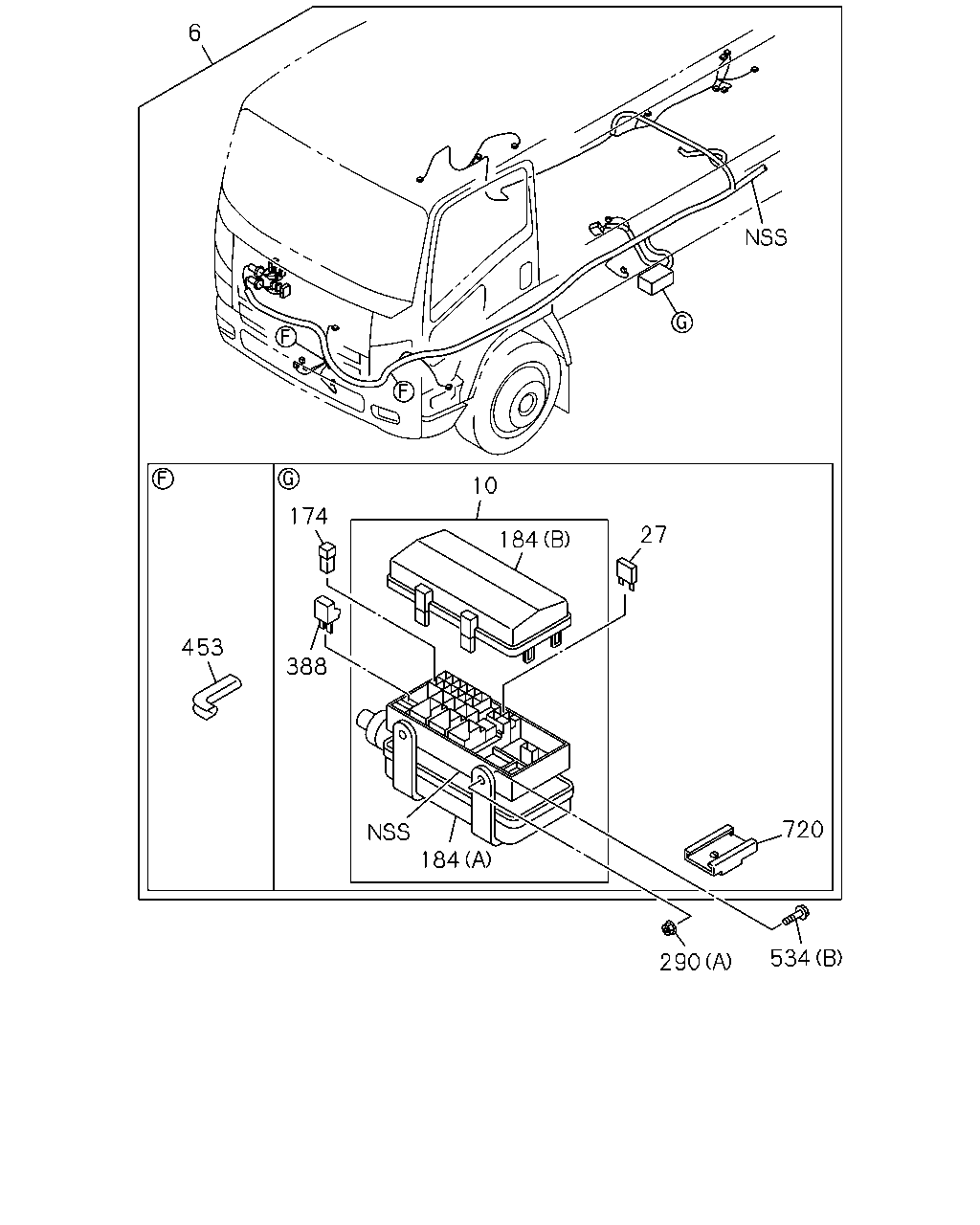

çizim 484525
6 10 27 174 184 388 453 184 720 290 534
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98269-611-2 01 1 1507-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1507-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1507-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1507-
27 FUSE UNIT
20A YELLOW 		8-98054-259-0 01 1 1507-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1507-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1507-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1507-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 1507-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1507-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1507-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1507-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 05 1 1507-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1507-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1507-
453 PROTECTOR; HARNESS 1-82699-709-0 03 1 1507-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1507-
534 BOLT
(D) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1507-
534 BOLT
(A) M10X55 FLANGE 		8-97365-449-0 03 1 1507-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1507-

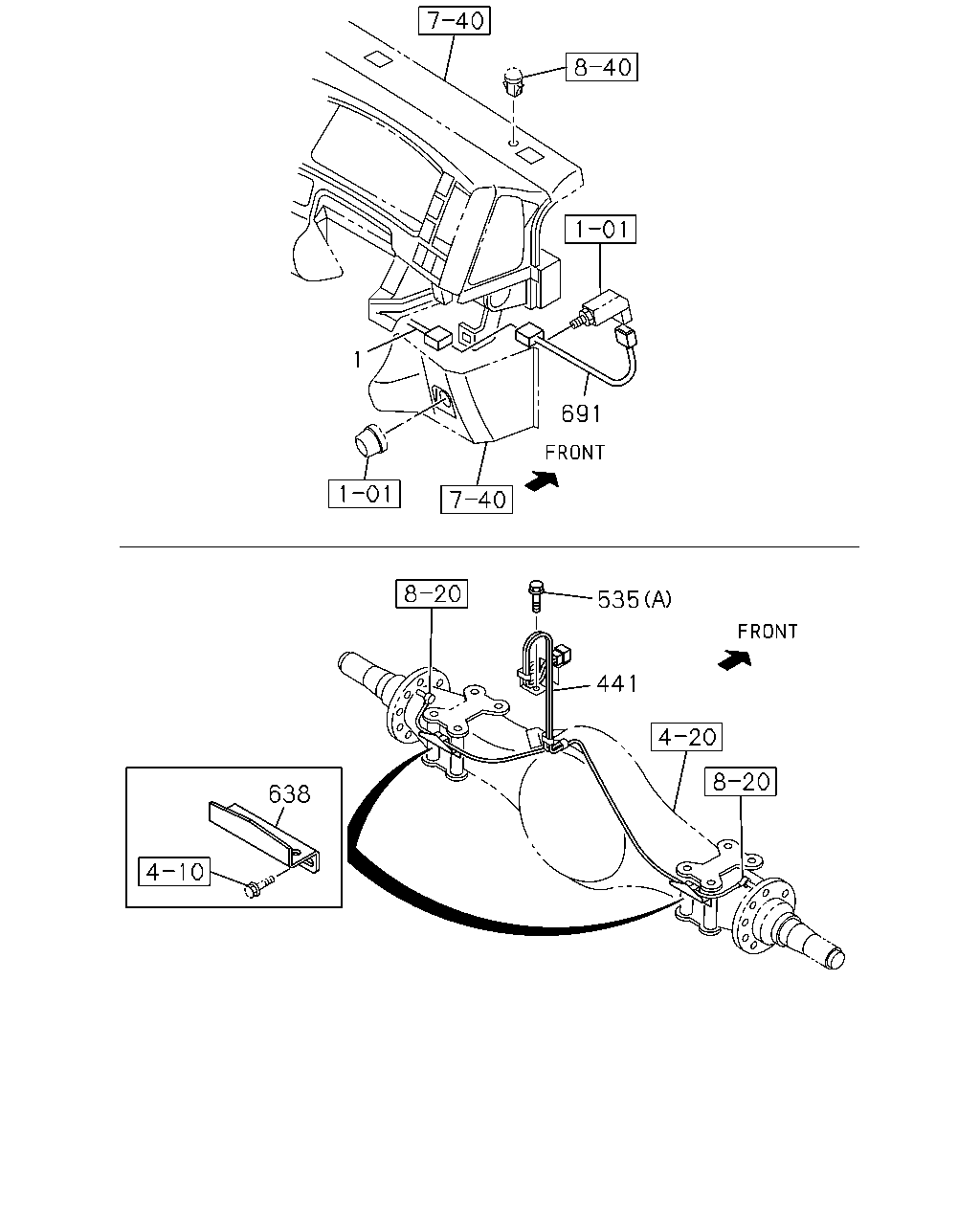

çizim 484608
1 691 535 441 638
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98303-368-1 01 1 1507-
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 1507-
535 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
535 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1507-
535 BOLT; BRKT FIX
(A) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1507-
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 1507-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1507-

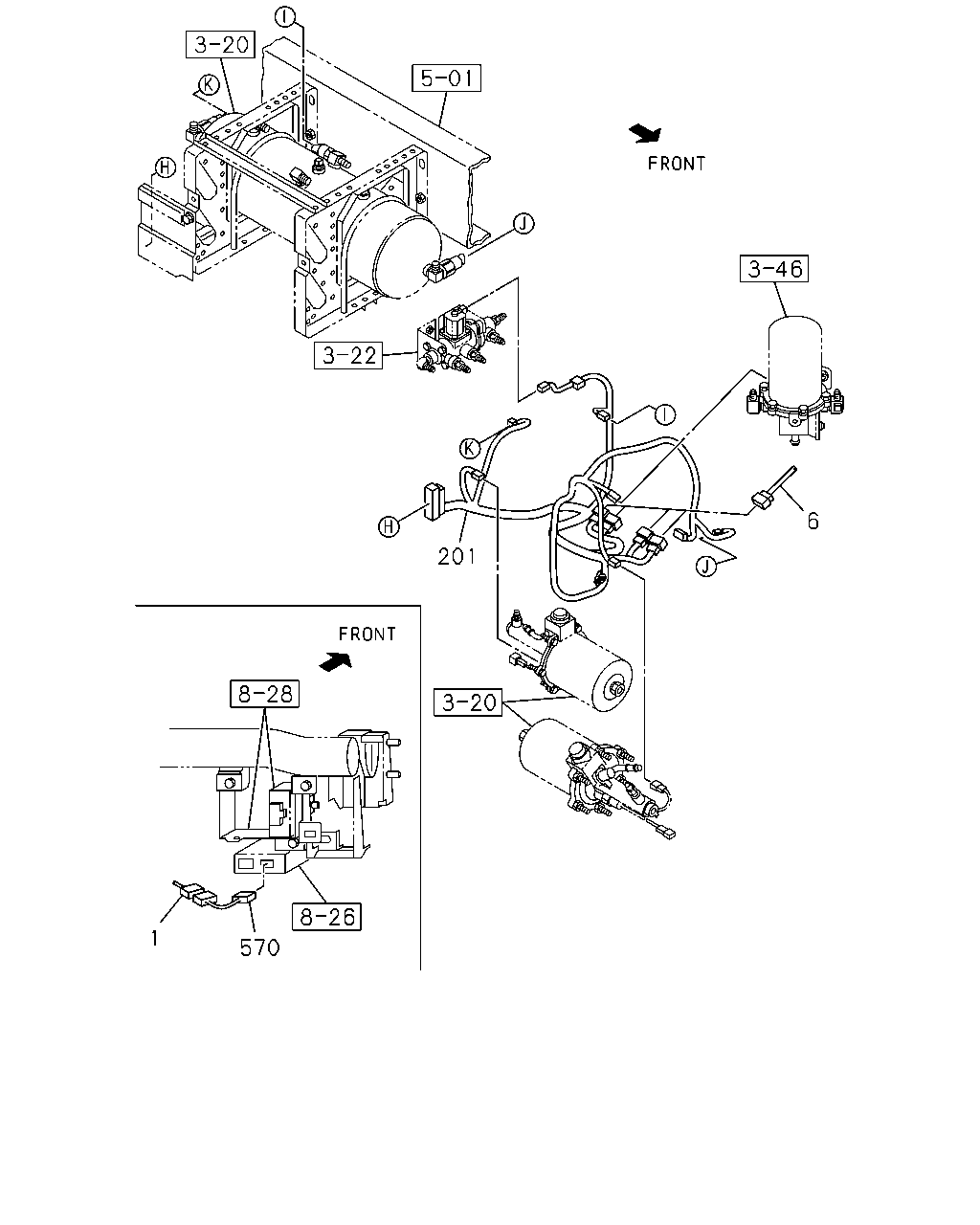

çizim 484973
6 201 570 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98303-368-1 01 1 1507-
6 HARNESS; FRAME 8-98269-611-2 01 1 1507-
201 HARNESS; AIR TANK 8-98269-408-2 01 1 1507-
570 HARNESS; SPEED SENSOR 8-98091-562-0 01 1 1507-

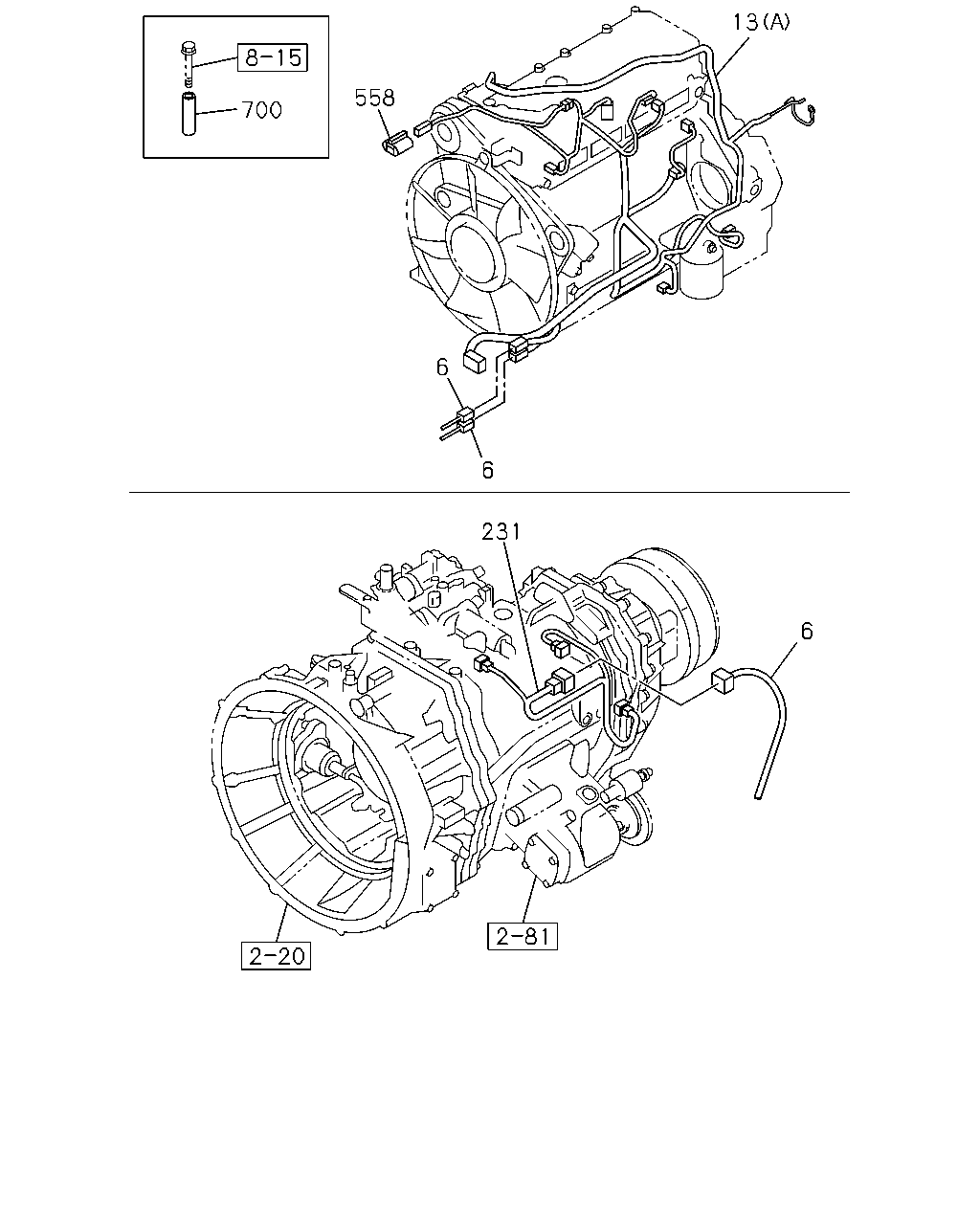

çizim 485159
558 13 6 6 700 231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98269-611-2 01 1 1507-
13 HARNESS; ENG
(B) 		8-98203-297-0 01 1 1507-
13 HARNESS; ENG
(A) 		8-98308-975-0 01 1 1507-
231 HARNESS; TRANS 8-98151-320-1 01 1 1507-
558 CONNECTOR; HARNESS 1-82690-668-0 01 1 1507-
700 TUBE; DISTANCE
L=51 		1-11369-157-0 02 1 1507-
700 TUBE; DISTANCE
ID=9 OD=18 T=5 		9-14149-173-0 01 1 1507-

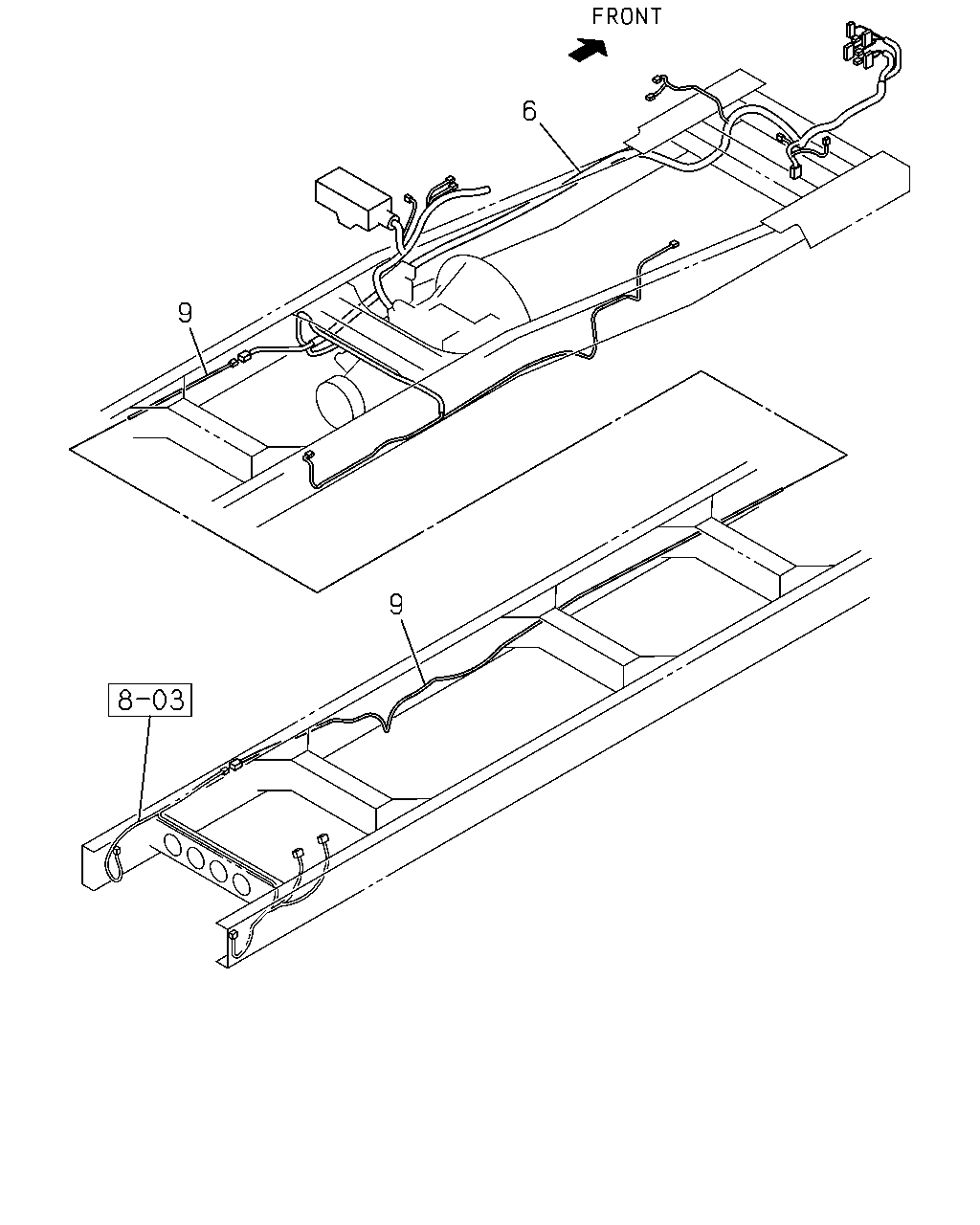

çizim 485258
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98269-611-2 01 1 1507-
9 HARNESS; FRAME,RR 8-98268-633-0 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
