◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#164338) — 41 parça

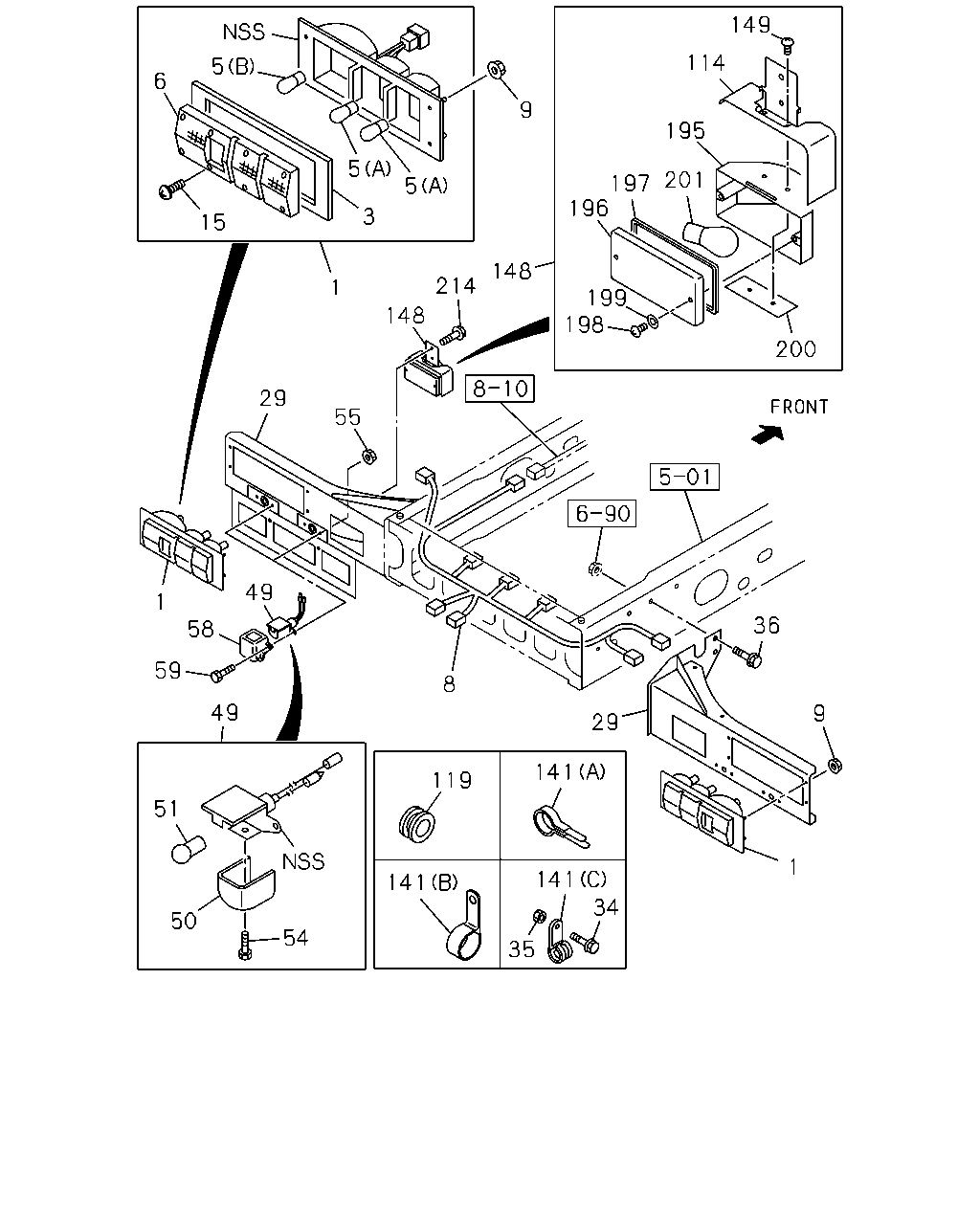

çizim 485361
200 198 198 196 197 201 195 114 149 9 3 1 5 5 15 6 5 49 55 29 1 59 49 8 119 214 148 141 1 9 36 35 141 54 50 58 148 29 141 34 51
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB 8-98223-616-0 01 1 1507-
1 LAMP ASM; RR COMB 8-98223-615-0 01 1 1507-
3 GASKET; RR COMB LAMP 5-82236-002-0 01 1 1507-
3 GASKET; RR COMB LAMP 5-82236-001-0 01 1 1507-
5 BULB; RR COMB LAMP
(A) 24V 21W 		8-98017-972-0 04 1 1507-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		8-98017-973-0 02 1 1507-
6 LENS; RR COMB LAMP 5-82235-002-0 01 1 1507-
6 LENS; RR COMB LAMP 5-82235-001-0 01 1 1507-
8 HARNESS; RR COMB LAMP 8-98203-884-0 01 1 1507-
9 NUT; LAMP,RR COMB
M5 FLANGE 		1-09984-170-0 08 1 1507-
15 SCREW; RR COMB LAMP 8-97017-759-0 16 1 1507-
29 BRACKET; LAMP,RR COMB 8-98248-986-0 01 1 1507-
29 BRACKET; LAMP,RR COMB 8-98248-985-0 01 1 1507-
34 BOLT; SUPPORT FIX
M8X25 FLANGE 		0-28650-825-0 06 1 1507-
35 NUT; SUPPORT FIX
M8 FLANGE 		0-91180-108-0 06 1 1507-
36 BOLT; BRKT,RR COMB
M10X30 FLANGE 		0-28651-030-0 04 1 1507-
49 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 1507-1509
49 LAMP; LICENSE PLATE
24V 5W 		8-98329-430-0 02 1 1510-
50 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 1507-
51 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 1507-
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 02 1 1507-
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		1-09984-170-0 04 1 1507-
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 1507-
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 04 1 1507-
114 BRACKET; RR FOG LAMP 8-97108-583-0 01 1 1507-
119 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1507-
141 CLIP; LICENSE & BODY HARNESS
(C) ID=14.5 L=20 		1-09701-012-0 04 1 1507-
141 CLIP; LICENSE & BODY HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1507-1507
141 CLIP; LICENSE & BODY HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1507-
141 CLIP; LICENSE & BODY HARNESS
(A) ID=14 L=44 		9-09917-427-0 07 1 1507-1507
141 CLIP; LICENSE & BODY HARNESS
(A) ID=14 L=44 		9-09917-427-0 03 1 1507-
148 LAMP ASM; RR FOG 8-97181-000-0 01 1 1507-
149 SCREW; BRKT TO LAMP BODY 8-94336-372-0 02 1 1507-
195 LAMP UNIT; RR FOG 8-94336-322-0 01 1 1507-
196 LENS; RR FOG LAMP 8-94336-325-0 01 1 1507-
197 GASKET; RR FOG LAMP 8-94336-324-0 01 1 1507-
198 SCREW; LENS TO BODY 0-71190-416-0 02 1 1507-
199 WASHER; LENS,RR FOG LAMP 8-94336-326-0 02 1 1507-
200 PLATE; SET,RR FOG LAMP 8-94336-323-0 01 1 1507-
201 BULB; RR FOG LAMP
24V 21W 		1-82194-036-0 01 1 1507-
214 BOLT; RR FOG LAMP
M6X16 FLANGE 		0-28650-616-0 01 1 1507-
