◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#164335) — 26 parça

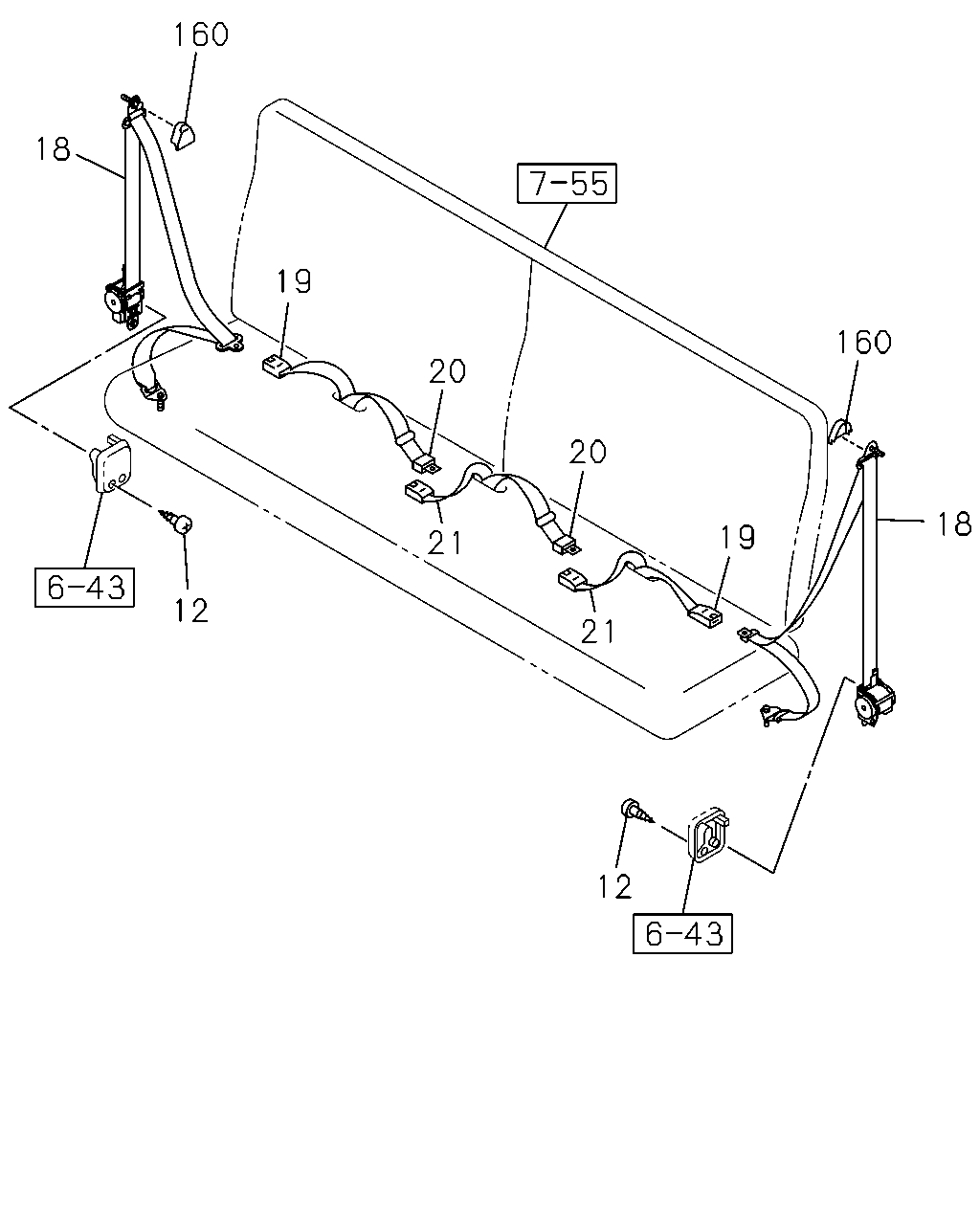

çizim 484509
160 18 19 21 21 20 20 19 160 18 12 12
BalonParca AdiParca NoAdetTipApplied Date
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1507-
18 BELT; SEAT,RR
FLEET USER PACKAGE<6SX> 		8-97465-403-8 02 1 1507-
18 BELT; SEAT,RR
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97405-185-8 02 1 1507-
19 BELT; RR SEAT,BUCKLE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-359-0 02 1 1507-
19 BELT; RR SEAT,BUCKLE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97407-379-0 02 1 1507-
20 BELT; RR SEAT CTR,TONGUE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-333-1 01 1 1507-
20 BELT; RR SEAT CTR,TONGUE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-334-1 01 1 1507-
20 BELT; RR SEAT CTR,TONGUE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97423-710-1 01 1 1507-
20 BELT; RR SEAT CTR,TONGUE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97423-709-1 01 1 1507-
21 BELT; RR SEAT CTR,BUCKLE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-357-1 01 1 1507-
21 BELT; RR SEAT CTR,BUCKLE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-360-0 01 1 1507-
21 BELT; RR SEAT CTR,BUCKLE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97407-381-1 01 1 1507-
21 BELT; RR SEAT CTR,BUCKLE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97407-380-0 01 1 1507-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 03 1 1507-
çizim 485181
123 170 160 6 5 169
BalonParca AdiParca NoAdetTipApplied Date
5 BELT; CENTER SEAT,BUCKLE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-332-1 01 1 1507-
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97407-377-1 01 1 1507-
6 BELT; CENTER SEAT,TONGUE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-330-1 01 1 1507-
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97423-515-1 01 1 1507-
123 BELT ASM; SEAT
FLEET USER PACKAGE<6SX> 		8-98331-311-0 01 1 1507-1508
123 BELT ASM; SEAT 8-98097-971-0 01 1 1507-1507
123 BELT ASM; SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-971-0 01 1 1507-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 03 1 1507-
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1507-
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=36 WHITE 		8-94271-620-1 02 1 1507-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FLEET USER PACKAGE<6SX> 		8-97466-329-0 01 1 1507-
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97428-394-0 01 1 1507-
