◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#164333) — 170 parça

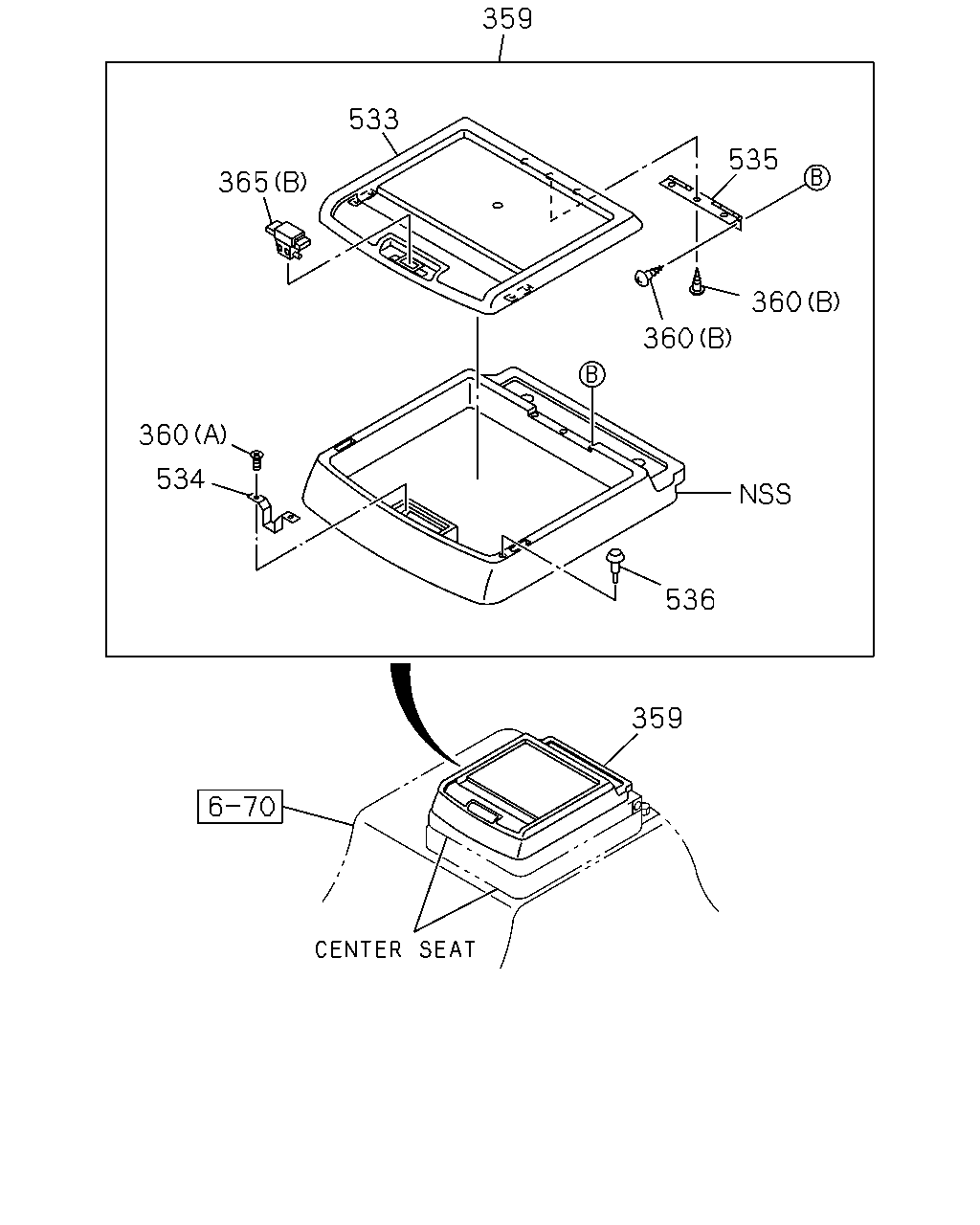

çizim 484043
359 533 365 360 534 536 360 360 535 359
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1507-
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1507-
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1507-
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1507-
365 LOCK ASM; SEAT
(B) 		1-72538-312-0 01 1 1507-
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1507-1508
365 LOCK ASM; SEAT
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-972-0 01 1 1509-
533 LID; PARCEL BOX
GRAY 		8-97417-263-0 01 1 1507-
534 STRIKER; PARCEL BOX 1-72538-190-0 01 1 1507-
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 1507-
536 RUBBER; CUSHION 1-72538-187-0 02 1 1507-

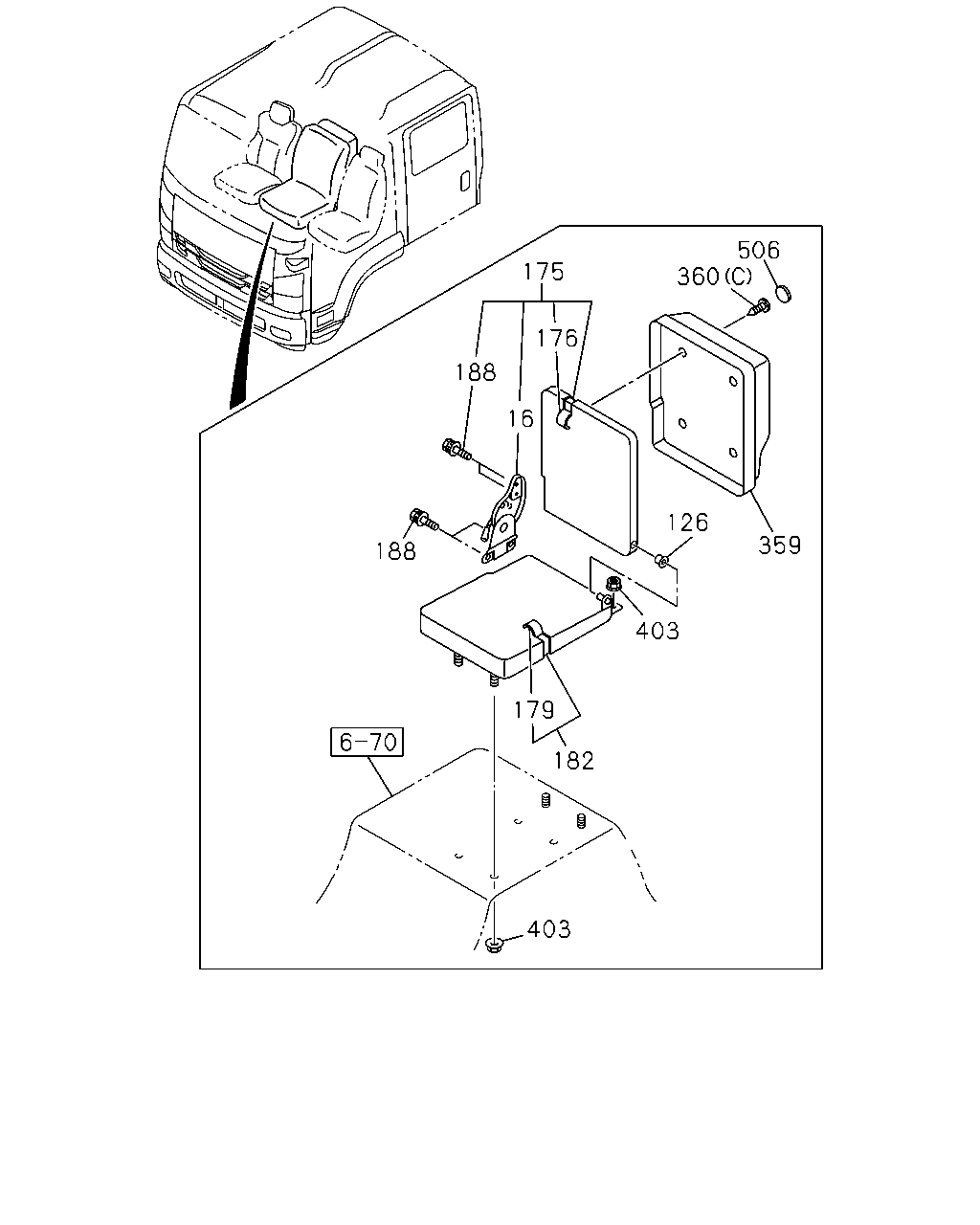

çizim 484470
175 176 360 506 359 126 403 179 182 403 188 16 188
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING 1-75418-062-1 01 1 1507-
126 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 1507-
175 BACK ASM; PASSENGER CENTER SEAT
DARK GRAY 		8-97421-434-1 01 1 1507-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DARK GRAY 		8-97421-435-1 01 1 1507-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DARK GRAY 		8-97421-432-1 01 1 1507-
182 CUSHION ASM; CENTER SEAT
DARK GRAY 		8-97421-430-3 01 1 1507-
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 1507-
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1507-
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1507-
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1507-
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1507-
403 NUT; CENTER SEAT
M8 FLANGE 		0-91180-108-0 04 1 1507-
506 CAP; PARCEL BOX
GRAY 		8-97409-980-1 02 1 1507-

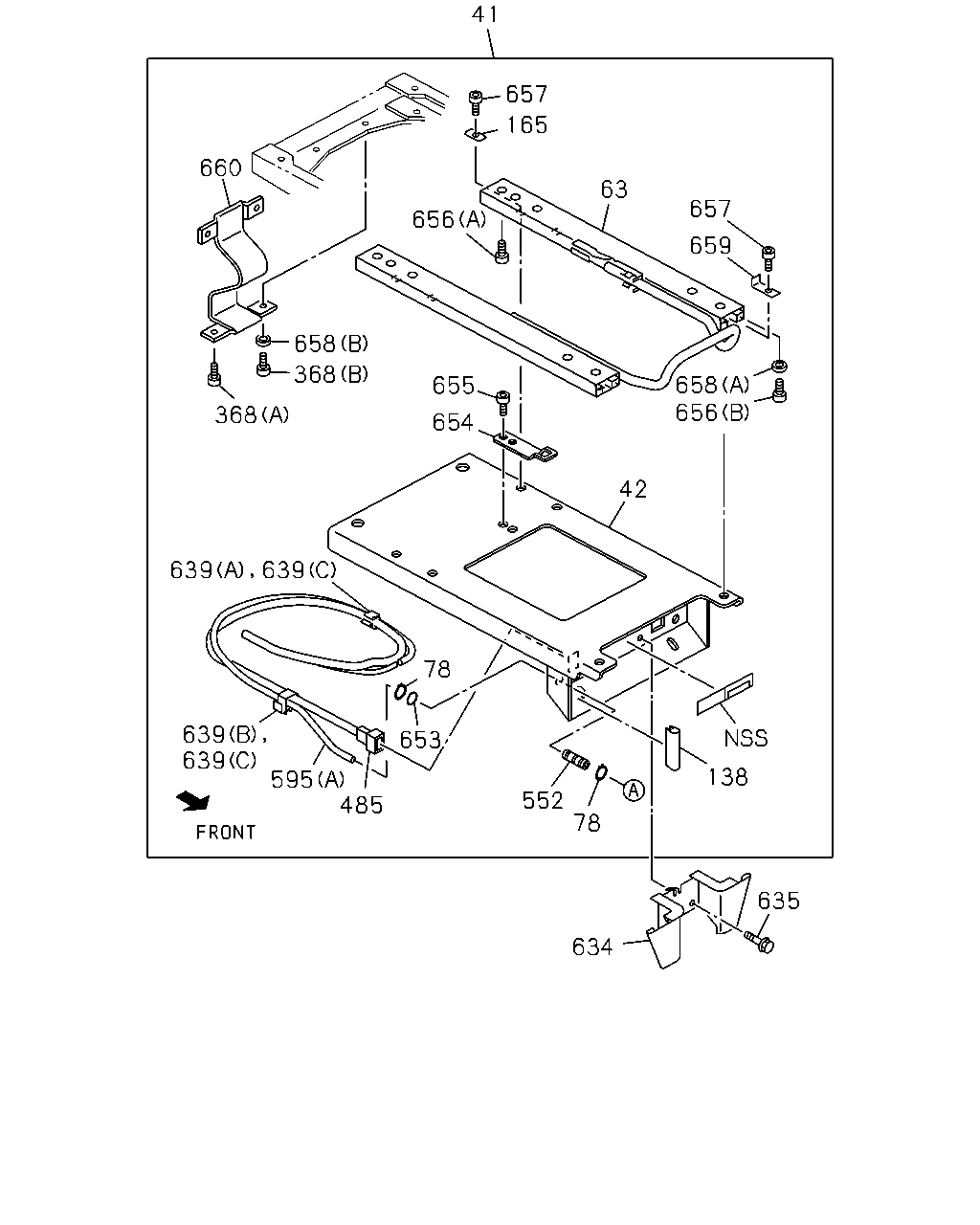

çizim 484521
41 657 63 165 657 658 659 656 42 654 655 368 658 368 639 639 78 653 485 595 639 552 639 78 634 635 138 656 660
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
FLEET USER PACKAGE<6SX> 		8-98302-797-0 01 1 1507-1508
41 SEAT ASM; DRIVER 8-98195-063-0 01 1 1507-1507
41 SEAT ASM; DRIVER
EXC. FLEET USER PACKAGE<6SX> 		8-98195-063-1 01 1 1507-
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1507-1508
42 STAND; DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98106-346-0 01 1 1509-
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1507-1508
63 ADJUSTER; SEAT SLIDE
EXC. FLEET USER PACKAGE<6SX> 		8-98098-005-0 01 1 1509-
78 RING; SNAP 8-98101-900-0 02 1 1507-1508
78 RING; SNAP
EXC. FLEET USER PACKAGE<6SX> 		8-98101-900-0 02 1 1509-
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1507-1508
138 PROTECTOR; SEAT STAND
EXC. FLEET USER PACKAGE<6SX> 		8-98106-351-0 01 1 1509-
165 WASHER; PL 1-75590-086-0 04 1 1507-1508
165 WASHER; PL
EXC. FLEET USER PACKAGE<6SX> 		1-75590-086-0 04 1 1509-
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1507-1508
368 BOLT; SEAT
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-353-0 03 1 1509-
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1507-1508
368 BOLT; SEAT
EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-358-0 01 1 1509-
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 1507-1508
485 HARNESS; FRT SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98106-360-0 01 1 1509-
552 CONNECTOR 8-98101-902-0 01 1 1507-1508
552 CONNECTOR
EXC. FLEET USER PACKAGE<6SX> 		8-98308-101-0 01 1 1509-
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1507-
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1507-1508
595 TUBE; NYLON
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-348-0 01 1 1509-
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1507-
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1507-
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1507-1508
639 CLIP; SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98308-100-0 02 1 1509-
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1507-1508
653 GASKET 8-98101-901-0 01 1 1507-1508
653 GASKET
EXC. FLEET USER PACKAGE<6SX> 		8-98101-901-0 01 1 1509-
654 HOOK; STOPPER 8-98106-352-0 01 1 1507-1508
654 HOOK; STOPPER
EXC. FLEET USER PACKAGE<6SX> 		8-98106-352-0 01 1 1509-
655 BOLT; HOOK 8-98106-353-0 02 1 1507-1508
655 BOLT; HOOK
EXC. FLEET USER PACKAGE<6SX> 		8-98106-353-0 02 1 1509-
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1507-1508
656 BOLT; SLIDER TO SEAT
EXC. FLEET USER PACKAGE<6SX> (A) 		1-75590-085-0 04 1 1509-
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1507-1508
656 BOLT; SLIDER TO SEAT
EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-354-0 02 1 1509-
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1507-1508
657 BOLT; SLIDER TO STAND
EXC. FLEET USER PACKAGE<6SX> 		1-75590-085-0 06 1 1509-
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1507-1508
658 SPACER; BOLT
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-355-0 02 1 1509-
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1507-1508
658 SPACER; BOLT
EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-359-0 01 1 1509-
659 STOPPER 8-98106-356-0 02 1 1507-1508
659 STOPPER
EXC. FLEET USER PACKAGE<6SX> 		8-98106-356-0 02 1 1509-
660 BELT; TETHER 8-98106-357-0 01 1 1507-1508
660 BELT; TETHER
EXC. FLEET USER PACKAGE<6SX> 		8-98106-357-0 01 1 1509-

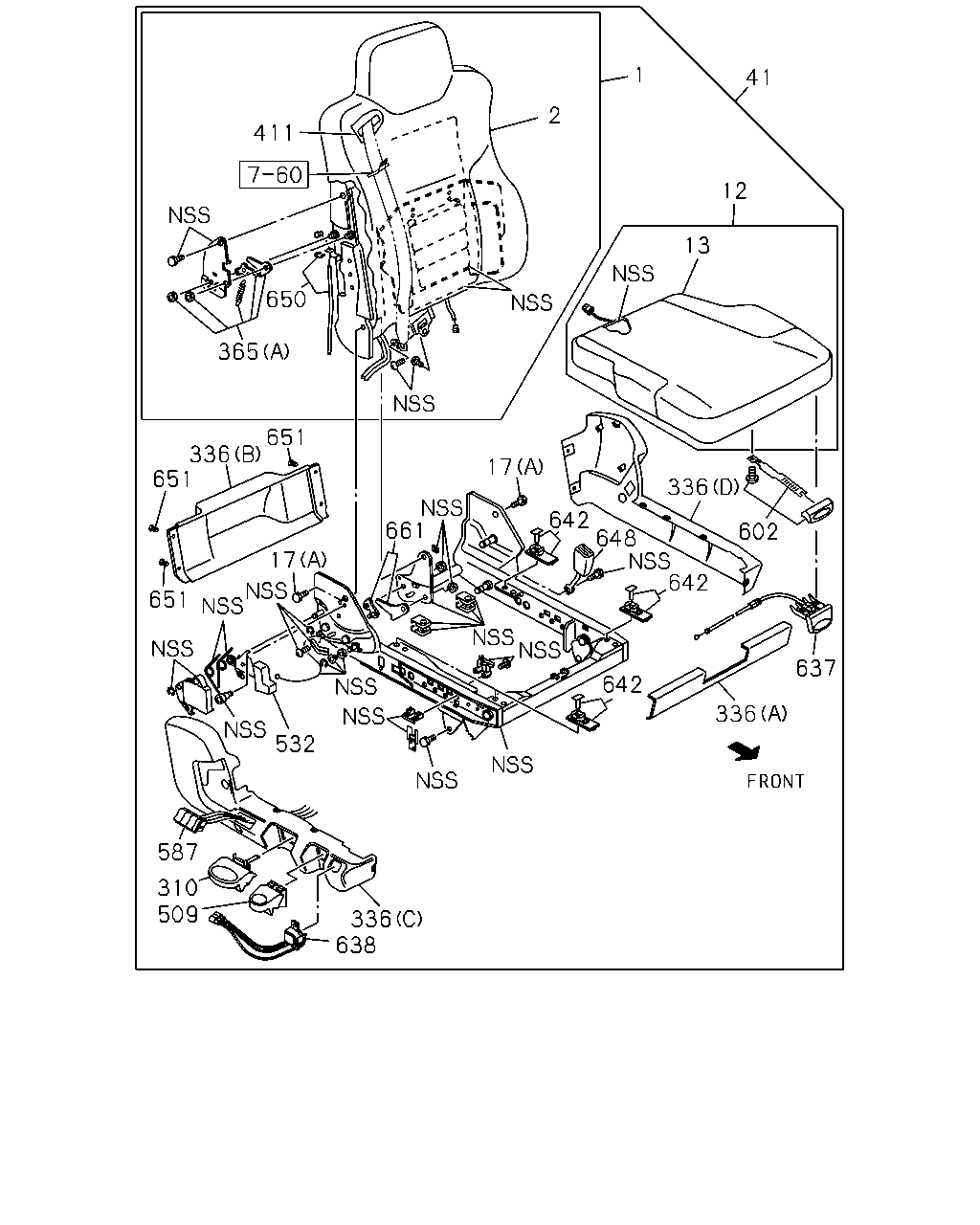

çizim 484618
411 2 1 41 12 13 651 336 651 17 651 661 17 642 336 602 637 336 642 532 587 310 509 336 648 642 638 650 365
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FLEET USER PACKAGE<6SX> 		8-98331-310-0 01 1 1507-1508
1 BACK ASM; SEAT 8-98097-964-0 01 1 1507-1507
1 BACK ASM; SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-964-0 01 1 1507-
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1507-1508
2 COVER; TRIM,FRT SEAT,BACK
EXC. FLEET USER PACKAGE<6SX> 		8-98232-353-0 01 1 1509-
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1507-1508
12 CUSHION; SEAT,FRT
EXC. FLEET USER PACKAGE<6SX> 		8-98098-006-0 01 1 1509-
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1507-1508
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FLEET USER PACKAGE<6SX> 		8-98098-007-0 01 1 1509-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1507-
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1507-1508
17 BOLT; RECLINING
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-974-0 02 1 1509-
41 SEAT ASM; DRIVER
FLEET USER PACKAGE<6SX> 		8-98302-797-0 01 1 1507-1508
41 SEAT ASM; DRIVER 8-98195-063-0 01 1 1507-1507
41 SEAT ASM; DRIVER
EXC. FLEET USER PACKAGE<6SX> 		8-98195-063-1 01 1 1507-
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 1507-1508
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-992-0 01 1 1509-
336 COVER; DRIVER SEAT
FLEET USER PACKAGE<6SX> (D) 		8-98331-313-0 01 1 1507-1508
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 1507-1507
336 COVER; DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> (D) 		8-98097-978-0 01 1 1507-1508
336 COVER; DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> (D) 		8-98331-313-0 01 1 1509-
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1507-1508
336 COVER; DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> (C) 		8-98097-984-0 01 1 1509-
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1507-1508
336 COVER; DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-995-0 01 1 1509-
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1507-1508
336 COVER; DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> (B) 		8-98097-996-0 01 1 1509-
365 LOCK ASM; SEAT
(B) 		1-72538-312-0 01 1 1507-
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1507-1508
365 LOCK ASM; SEAT
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-972-0 01 1 1509-
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1507-1508
411 GUIDE; SEAT BELT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-967-0 01 1 1509-
509 LEVER; DAMPER 8-98097-988-0 01 1 1507-1508
509 LEVER; DAMPER
EXC. FLEET USER PACKAGE<6SX> 		8-98097-988-0 01 1 1509-
532 LEVER ASM; TILT 8-98097-982-0 01 1 1507-1508
532 LEVER ASM; TILT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-982-0 01 1 1509-
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 1507-1508
587 VALVE; LUMBAR SUPPORT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-986-0 01 1 1509-
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1507-1508
602 KNOB; ADJ,SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98098-008-0 01 1 1509-
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1507-1508
637 LEVER; SLOPE ADJ
EXC. FLEET USER PACKAGE<6SX> 		8-98097-989-0 01 1 1509-
638 VALVE; LOWERING 8-98097-994-0 01 1 1507-1508
638 VALVE; LOWERING
EXC. FLEET USER PACKAGE<6SX> 		8-98097-994-0 01 1 1509-
642 SLIDER; CUSHION 8-98192-932-0 04 1 1507-1508
642 SLIDER; CUSHION
EXC. FLEET USER PACKAGE<6SX> 		8-98192-932-0 04 1 1509-
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1507-1508
648 BUCKLE; SEAT BELT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-976-0 01 1 1509-
650 CABLE 8-98232-354-0 01 1 1507-1508
650 CABLE
EXC. FLEET USER PACKAGE<6SX> 		8-98232-354-0 01 1 1509-
651 RIVET 8-98194-075-0 04 1 1507-1508
651 RIVET
EXC. FLEET USER PACKAGE<6SX> 		8-98194-075-0 04 1 1509-
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 1507-1508
661 LOCK ASM; RECLINING
EXC. FLEET USER PACKAGE<6SX> 		8-98097-980-0 01 1 1509-

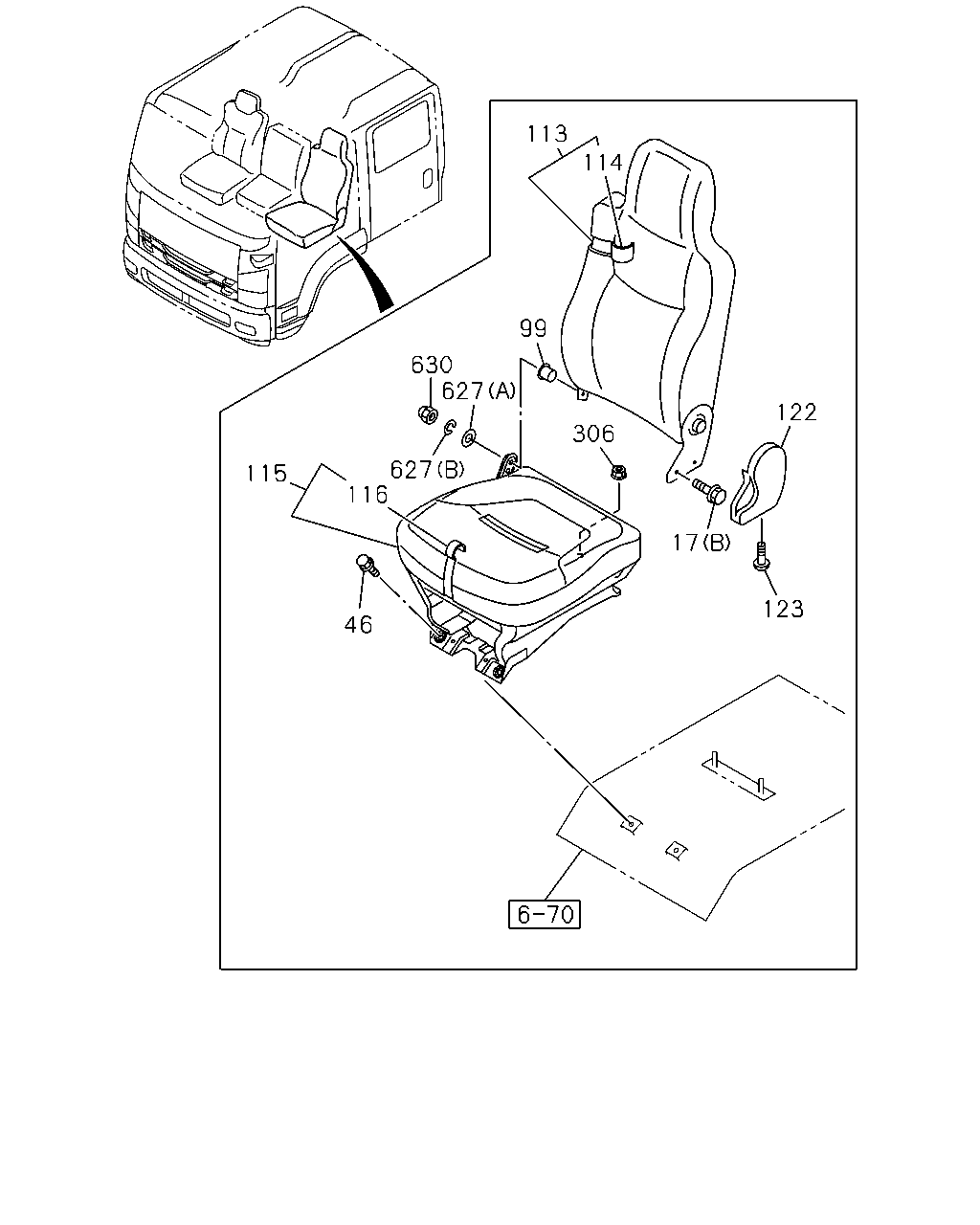

çizim 484955
113 122 123 17 306 99 46 115 116 627 630 627 114
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1507-
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1507-1508
17 BOLT; RECLINING
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-974-0 02 1 1509-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1507-
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1507-
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1507-
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1507-
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1507-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1507-
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1507-
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1507-
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1507-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1507-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1507-
630 NUT; CAP
M8 		8-98063-225-0 01 1 1507-

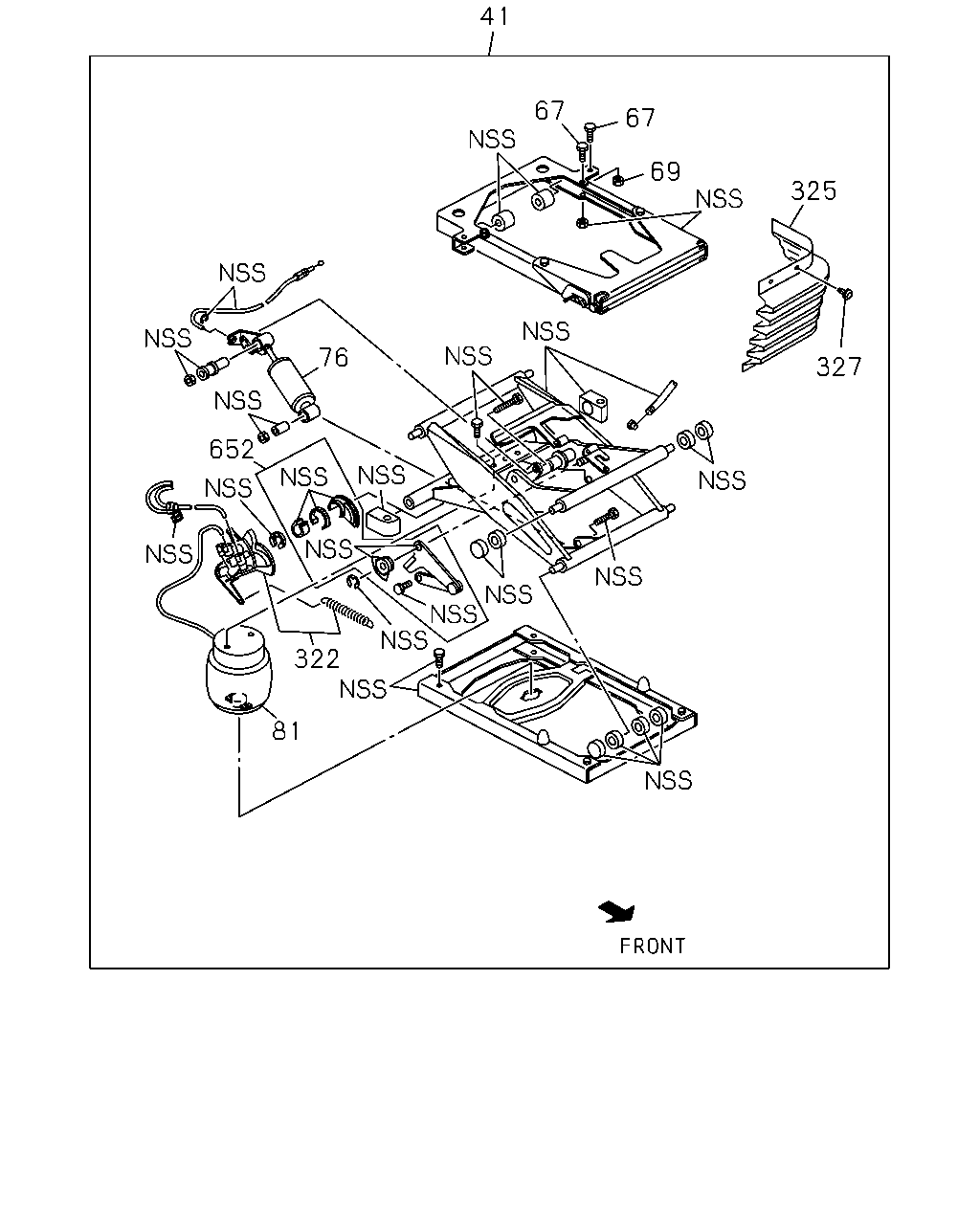

çizim 485249
41 67 67 69 325 327 322 81 652 76
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
FLEET USER PACKAGE<6SX> 		8-98302-797-0 01 1 1507-1508
41 SEAT ASM; DRIVER 8-98195-063-0 01 1 1507-1507
41 SEAT ASM; DRIVER
EXC. FLEET USER PACKAGE<6SX> 		8-98195-063-1 01 1 1507-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1507-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1507-
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1507-1508
76 DAMPER; AIR SUSP
EXC. FLEET USER PACKAGE<6SX> 		8-98097-999-0 01 1 1509-
81 SPRING; AIR 8-98098-000-0 01 1 1507-1508
81 SPRING; AIR
EXC. FLEET USER PACKAGE<6SX> 		8-98098-000-0 01 1 1509-
322 VALVE; AIR SPRING
FLEET USER PACKAGE<6SX> 		8-98331-314-0 01 1 1507-1508
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1507-1507
322 VALVE; AIR SPRING
EXC. FLEET USER PACKAGE<6SX> 		8-98098-001-0 01 1 1507-1508
322 VALVE; AIR SPRING
EXC. FLEET USER PACKAGE<6SX> 		8-98331-314-0 01 1 1509-
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1507-1508
325 COVER; SUSPENSION DEVICE
EXC. FLEET USER PACKAGE<6SX> 		8-98098-003-0 01 1 1509-
327 CLIP; COVER 8-98098-004-0 01 1 1507-1508
327 CLIP; COVER
EXC. FLEET USER PACKAGE<6SX> 		8-98098-004-0 01 1 1509-
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1507-1508
652 LOCK ASM; HEIGHT
EXC. FLEET USER PACKAGE<6SX> 		8-98098-002-0 01 1 1509-

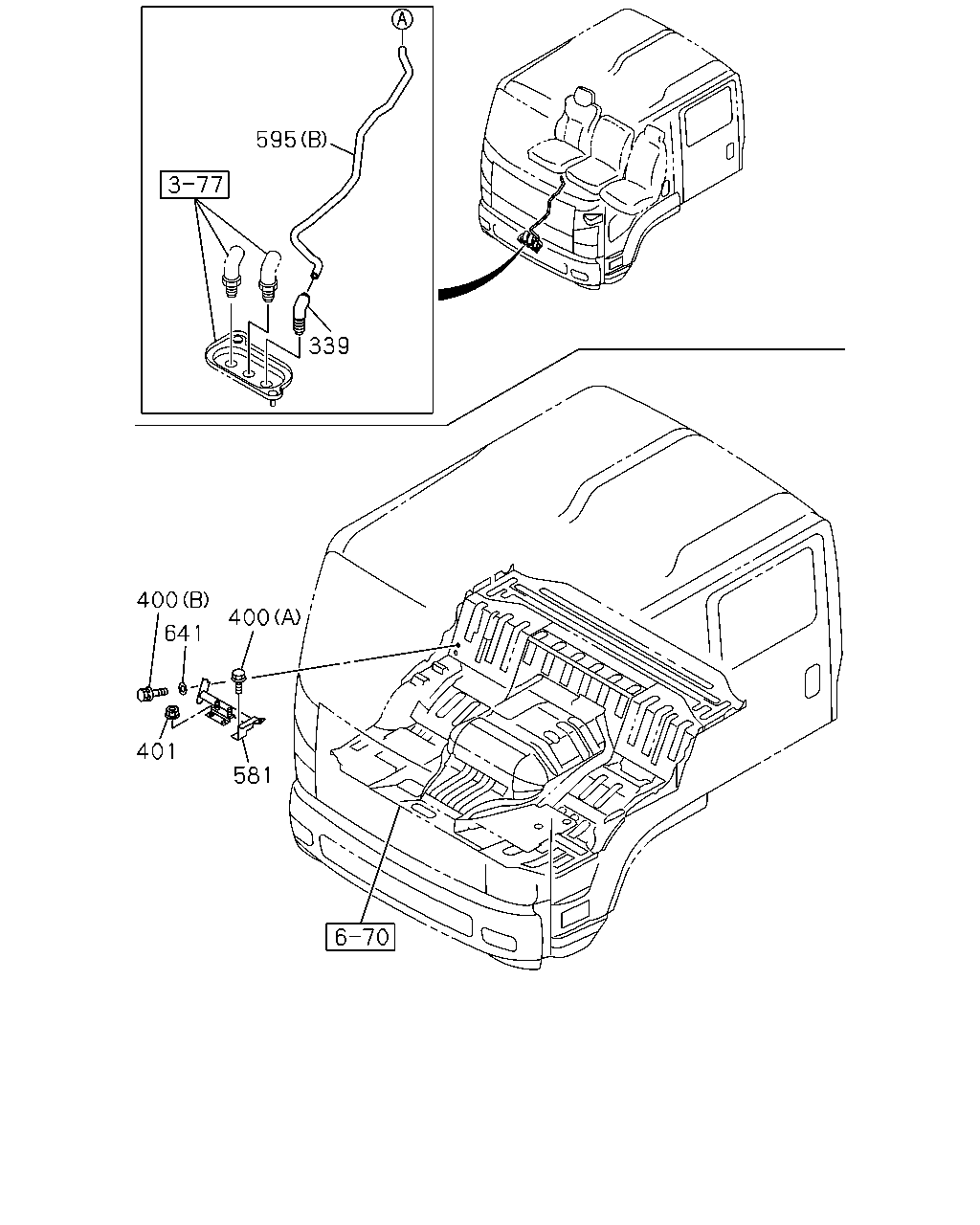

çizim 485322
595 339 581 401 400 641 400
BalonParca AdiParca NoAdetTipApplied Date
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 1507-
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1507-
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1507-
581 PIPE; SEAT 8-98051-067-2 01 1 1507-
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1507-
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1507-1508
595 TUBE; NYLON
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-348-0 01 1 1509-
641 WASHER; SUPPORT 8-98099-007-0 02 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
