◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#164331) — 95 parça

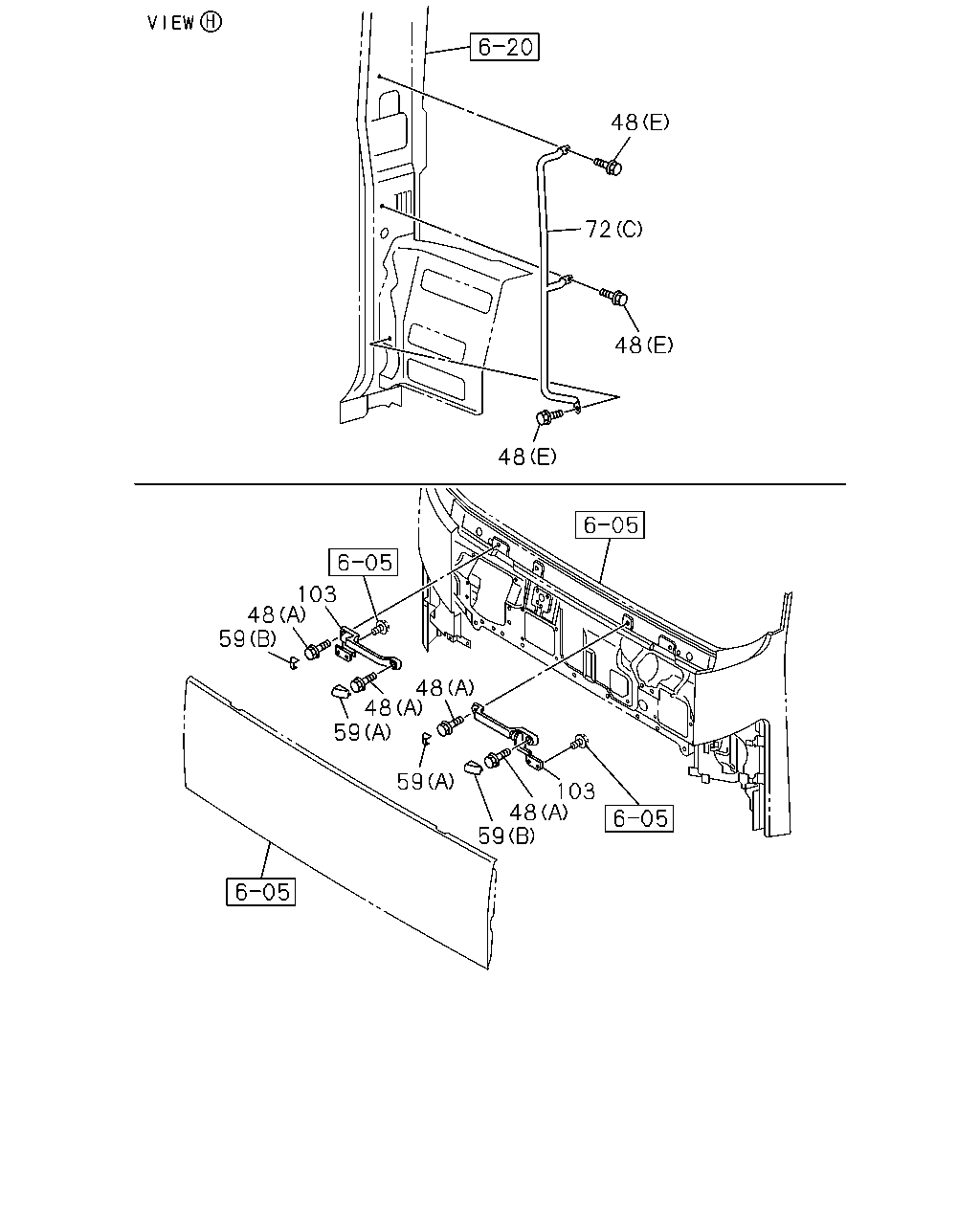

çizim 484396
48 72 48 48 103 48 59 59 59 59 48 103 48 48
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(C) M6X10 FLANGE 		0-28050-610-0 04 1 1507-
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1507-
48 BOLT; ASSIST GRIP
(D) M6X20 FLANGE 		0-28650-620-0 01 1 1507-
48 BOLT; ASSIST GRIP
(E) M8X20 FLANGE 		0-28650-820-0 06 1 1507-
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1507-
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1507-
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1507-
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97583-744-3 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(B) 		8-98080-429-0 04 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(C) 		8-98080-432-0 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(D) 		8-98084-137-1 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(C) 		8-98080-431-0 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(D) 		8-98084-136-1 01 1 1507-
103 GRIP; ASSIST,FRT PNL 8-98036-565-1 01 1 1507-
103 GRIP; ASSIST,FRT PNL 8-98036-566-1 01 1 1507-

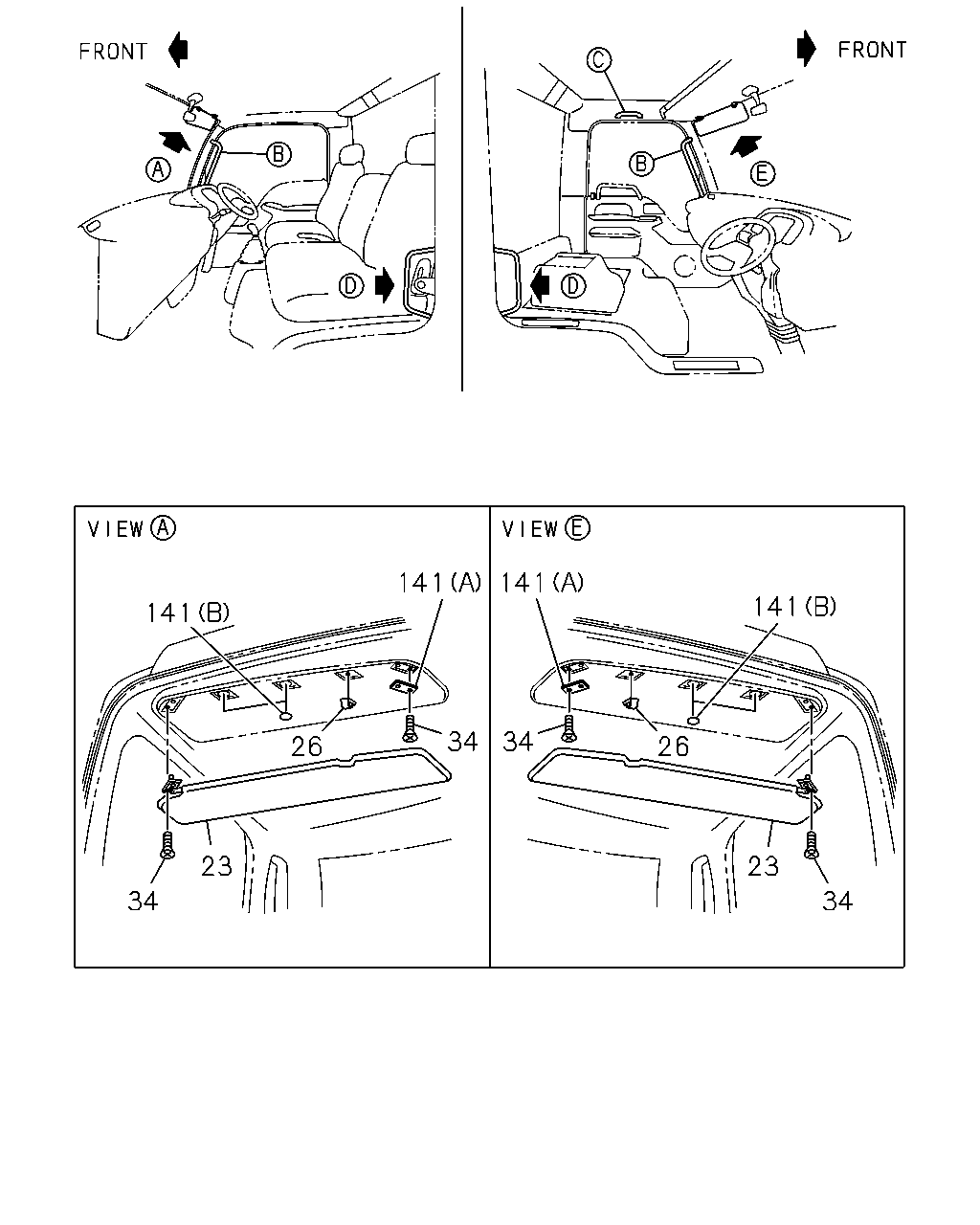

çizim 484397
34 23 26 141 34 34 26 141 141 141 23 34
BalonParca AdiParca NoAdetTipApplied Date
23 SUN VISOR
DARK GRAY 		8-97428-627-1 01 1 1507-
23 SUN VISOR
DARK GRAY 		8-97427-611-0 01 1 1507-
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 1507-
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 1507-
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 1507-
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 1507-
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1507-
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1507-
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1507-
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1507-

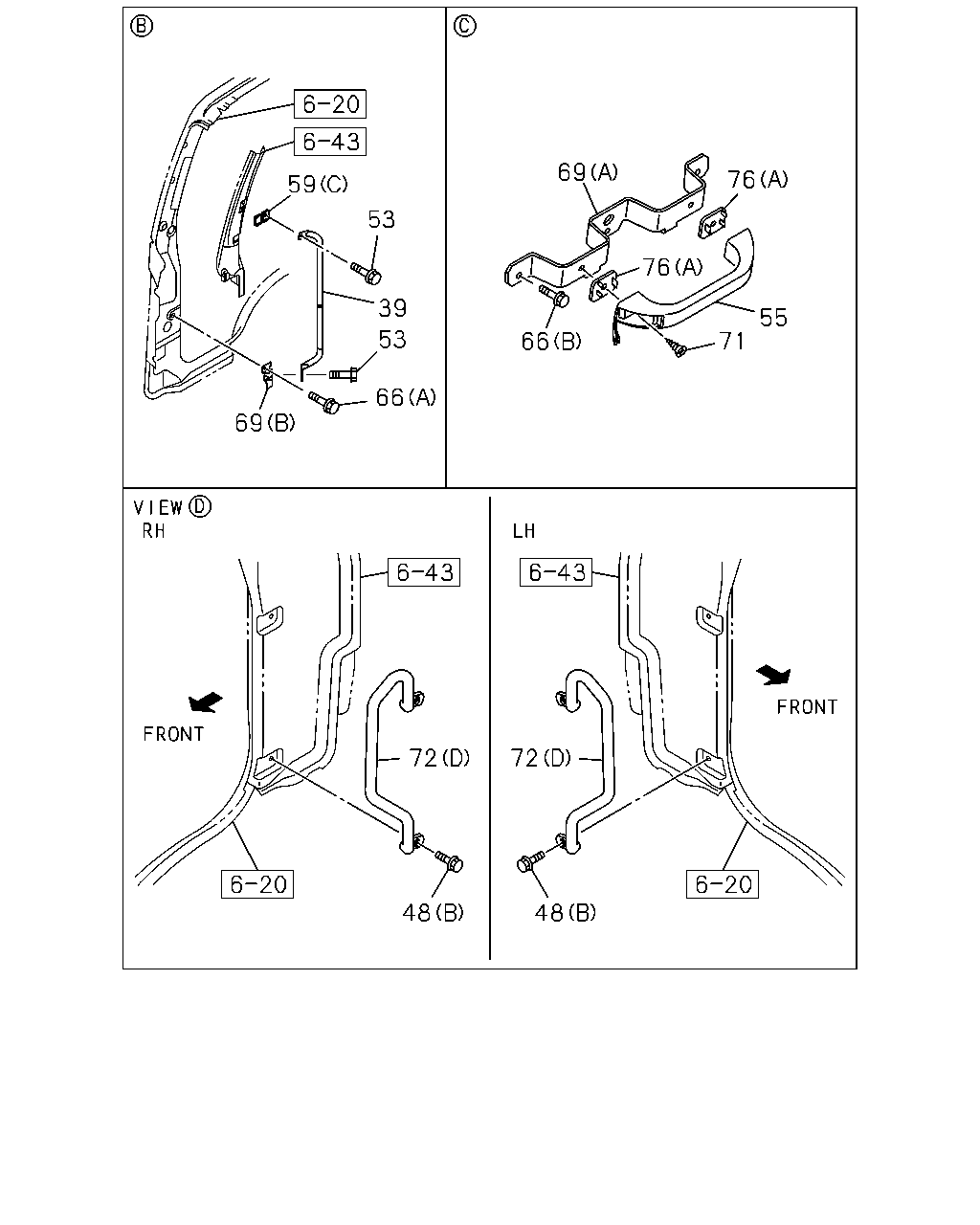

çizim 484400
59 53 39 53 66 69 72 48 72 48 69 76 76 71 55 66
BalonParca AdiParca NoAdetTipApplied Date
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97412-924-1 01 1 1507-
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97412-923-1 01 1 1507-
48 BOLT; ASSIST GRIP
(C) M6X10 FLANGE 		0-28050-610-0 04 1 1507-
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1507-
48 BOLT; ASSIST GRIP
(D) M6X20 FLANGE 		0-28650-620-0 01 1 1507-
48 BOLT; ASSIST GRIP
(E) M8X20 FLANGE 		0-28650-820-0 06 1 1507-
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1507-
53 SCREW; ASSIST HANDLE
M8X20 FLANGE 		0-28650-820-0 04 1 1507-
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 1507-
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1507-
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1507-
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1507-
66 BOLT; ASSIST GRIP BRKT
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1507-
66 BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE 		8-97108-669-0 06 1 1507-
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 02 1 1507-
69 BRACKET; ASSIST GRIP
(B) 		8-98057-972-2 01 1 1507-
69 BRACKET; ASSIST GRIP
(B) 		8-98057-971-2 01 1 1507-
71 SCREW
M6X28 		8-98004-344-0 02 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97583-744-3 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(B) 		8-98080-429-0 04 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(C) 		8-98080-432-0 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(D) 		8-98084-137-1 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(C) 		8-98080-431-0 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(D) 		8-98084-136-1 01 1 1507-
76 SPACER; ASSIST GRIP
(A) DARK GRAY 		8-97405-286-0 02 1 1507-
76 SPACER; ASSIST GRIP
(B) 		8-98081-584-0 02 1 1507-

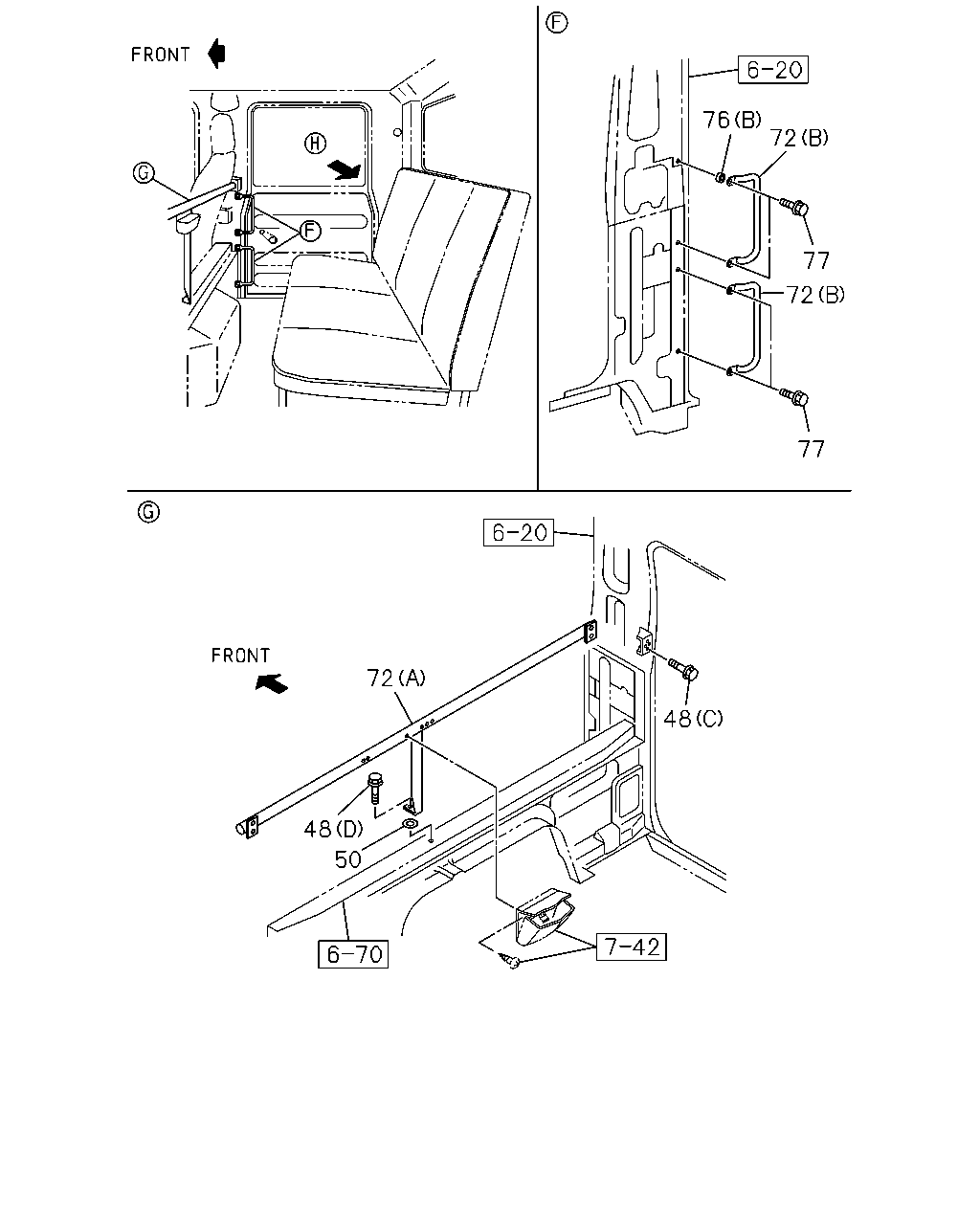

çizim 484565
76 72 77 72 77 72 48 50 48
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(C) M6X10 FLANGE 		0-28050-610-0 04 1 1507-
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1507-
48 BOLT; ASSIST GRIP
(D) M6X20 FLANGE 		0-28650-620-0 01 1 1507-
48 BOLT; ASSIST GRIP
(E) M8X20 FLANGE 		0-28650-820-0 06 1 1507-
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1507-
50 WASHER; PL,ASSIST GRIP
ID=8.4 OD=16 		0-91610-508-0 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97583-744-3 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(B) 		8-98080-429-0 04 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(C) 		8-98080-432-0 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(D) 		8-98084-137-1 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(C) 		8-98080-431-0 01 1 1507-
72 GRIP; ASSIST,CAB ENTRY,BACK
(D) 		8-98084-136-1 01 1 1507-
76 SPACER; ASSIST GRIP
(A) DARK GRAY 		8-97405-286-0 02 1 1507-
76 SPACER; ASSIST GRIP
(B) 		8-98081-584-0 02 1 1507-
77 SCREW; ASSIST GRIP
M6X25 W/LK&PL WASHER 		0-50640-625-0 08 1 1507-

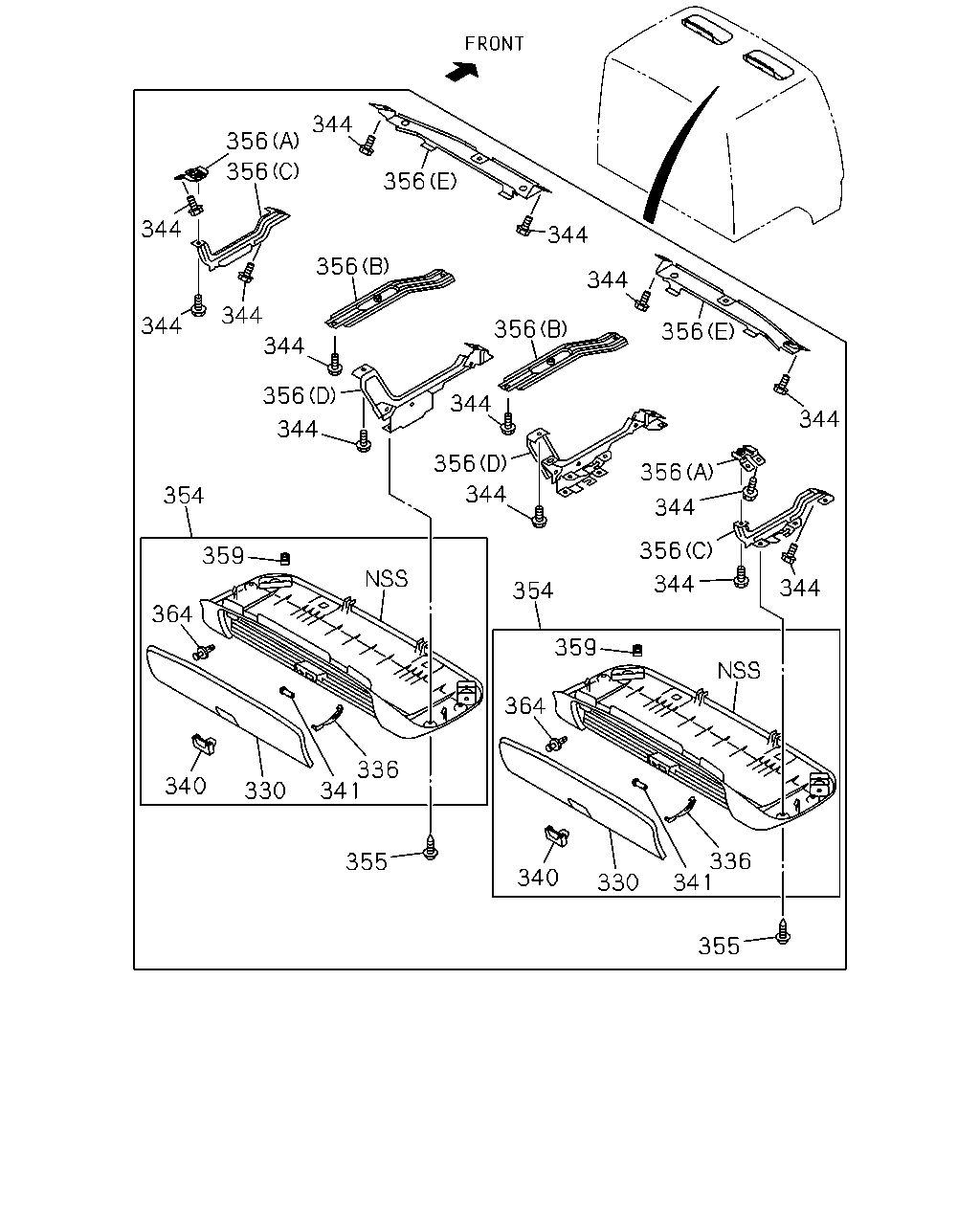

çizim 485252
355 336 341 330 340 359 364 354 336 341 355 330 340 364 359 354 344 356 344 344 344 344 356 356 344 356 356 344 344 356 344 356 356 344 344 356 344 344 344 356
BalonParca AdiParca NoAdetTipApplied Date
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 1507-
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 1507-
336 STAY; LID 1-72448-379-3 02 1 1507-
336 STAY; LID 1-72448-379-3 02 1 1507-
340 LOCK; HEADER SHELF 1-72448-376-0 01 1 1507-
340 LOCK; HEADER SHELF 1-72448-376-0 01 1 1507-
341 HINGE; LID,HEADER SHELF 8-98025-428-2 02 1 1507-
341 HINGE; LID,HEADER SHELF 8-98025-428-2 02 1 1507-
344 BOLT; BRKT,FRT
M6X12 FLANGE 		8-97108-669-0 08 1 1507-
344 BOLT; BRKT,FRT
M6X12 FLANGE 		8-97108-669-0 12 1 1507-
354 TRAY; HEADER ROOF
DARK GRAY 		8-97428-821-0 01 1 1507-
354 TRAY; HEADER ROOF
DARK GRAY 		8-97428-821-0 01 1 1507-
355 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1507-
355 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1507-
356 BRACKET; ROOF OUTER
(A) 		8-97386-874-1 01 1 1507-
356 BRACKET; ROOF OUTER
(A) 		8-97386-874-1 01 1 1507-
356 BRACKET; ROOF OUTER
(B) 		8-98010-059-0 01 1 1507-
356 BRACKET; ROOF OUTER
(B) 		8-98010-059-0 01 1 1507-
356 BRACKET; ROOF OUTER
(C) 		8-98016-871-3 01 1 1507-
356 BRACKET; ROOF OUTER
(D) 		8-98042-009-2 01 1 1507-
356 BRACKET; ROOF OUTER
(E) 		8-98042-016-3 01 1 1507-
356 BRACKET; ROOF OUTER
(C) 		8-98014-088-3 01 1 1507-
356 BRACKET; ROOF OUTER
(D) 		8-98023-257-2 01 1 1507-
356 BRACKET; ROOF OUTER
(E) 		8-98042-015-3 01 1 1507-
359 HOLDER; HEADER TRAY 8-98041-754-0 04 1 1507-
359 HOLDER; HEADER TRAY 8-98041-754-0 04 1 1507-
364 STOPPER; LID 8-98010-867-1 03 1 1507-
364 STOPPER; LID 8-98010-867-1 03 1 1507-
