◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#164318) — 89 parça

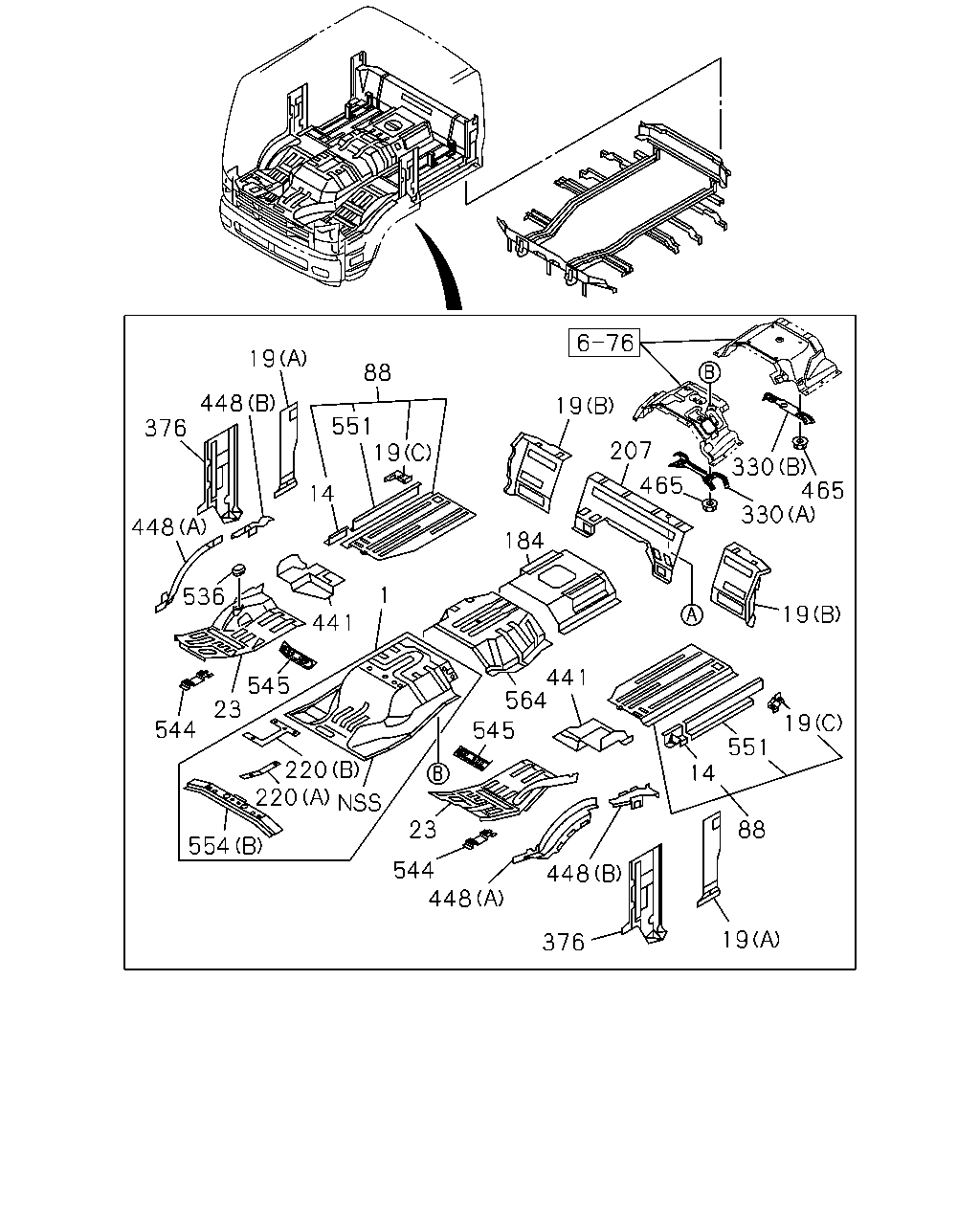

çizim 485378
88 551 19 448 376 14 19 448 536 441 1 545 23 544 220 220 554 23 544 448 376 448 19 88 14 551 19 545 564 441 19 330 330 465 465 207 19 184
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 8-98257-371-0 01 1 1507-
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 1507-
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 1507-
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 1507-
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 1507-
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 1507-
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 1507-
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-841-1 01 1 1507-
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-842-1 01 1 1507-
23 PANEL; FLOOR,SIDE 8-97410-882-4 01 1 1507-
23 PANEL; FLOOR,SIDE 8-98216-751-0 01 1 1507-
88 BOARD ASM; FLOOR 8-98085-409-1 01 1 1507-
88 BOARD ASM; FLOOR 8-98085-410-1 01 1 1507-
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 1507-
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 1507-
220 PATCH
(A) 		8-97589-603-3 01 1 1507-
220 PATCH
(B) 		8-97589-627-2 01 1 1507-
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1507-
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1507-
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 1507-
376 CLOSING; PILLAR,LWR 8-98088-029-3 01 1 1507-
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-911-2 01 1 1507-
441 PANEL; EXTENSION,FLOOR SIDE 8-98050-317-2 01 1 1507-
448 CLOSING; ROCKER
(A) 		8-97610-658-1 01 1 1507-
448 CLOSING; ROCKER
(A) 		8-97610-659-1 01 1 1507-
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1507-
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1507-
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1507-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1507-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1507-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1507-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1507-
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1507-
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 1507-
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 1507-
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97584-351-2 01 1 1507-
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97610-063-2 01 1 1507-
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97610-064-2 01 1 1507-
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 1507-

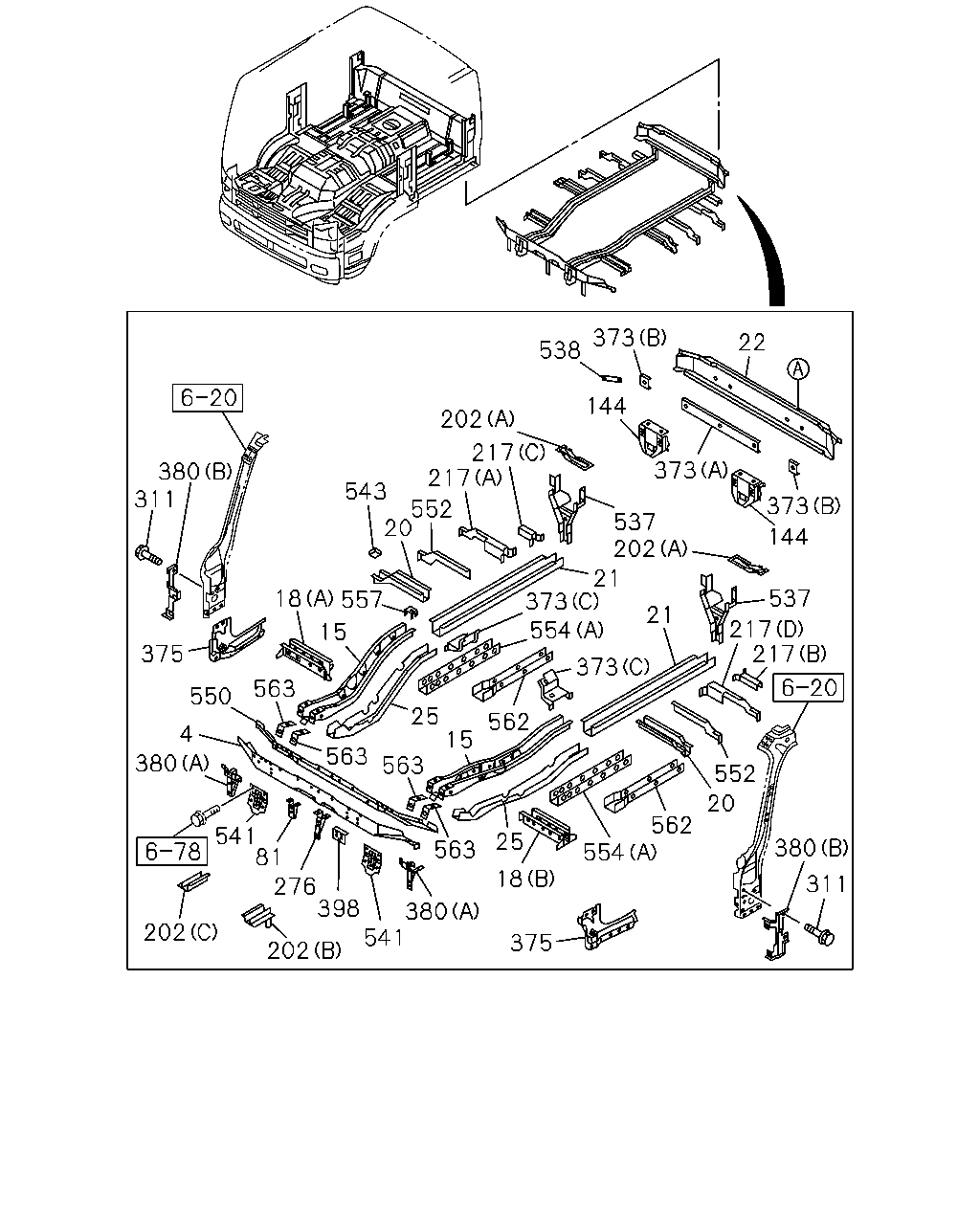

çizim 485379
22 373 144 537 217 217 552 20 380 311 375 18 25 554 562 373 21 554 373 21 202 537 373 144 373 538 202 217 217 552 20 543 557 15 18 563 563 563 25 15 562 563 380 541 398 276 202 202 81 541 380 4 550 375 311 380
BalonParca AdiParca NoAdetTipApplied Date
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1507-
15 FRAME; UNDER 8-97584-388-9 01 1 1507-
15 FRAME; UNDER 8-97584-412-7 01 1 1507-
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1507-
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-98242-338-1 01 1 1507-
20 FRAME; FLOOR SIDE,REAR 8-98057-164-1 01 1 1507-
20 FRAME; FLOOR SIDE,REAR 8-98057-167-1 01 1 1507-
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 1507-
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 1507-
22 FRAME; FLOOR REAR 8-97410-959-1 01 1 1507-
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 1507-
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 1507-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1507-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1507-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1507-
202 PANEL; CENTER MTG REINF
(A) 		8-97584-426-0 02 1 1507-
202 PANEL; CENTER MTG REINF
(C) 		8-97607-514-0 01 1 1507-
202 PANEL; CENTER MTG REINF
(B) 		8-97607-515-0 01 1 1507-
217 PANEL; SEAT STAND
(C) 		8-97410-945-1 01 1 1507-
217 PANEL; SEAT STAND
(B) 		8-97410-956-1 01 1 1507-
217 PANEL; SEAT STAND
(A) 		8-98057-178-1 01 1 1507-
217 PANEL; SEAT STAND
(D) 		8-98057-196-1 01 1 1507-
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1507-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1507-
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1507-
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1507-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97410-963-1 01 1 1507-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 1507-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1507-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1507-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1507-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1507-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1507-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1507-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1507-
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1507-
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1507-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1507-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1507-
543 GUSSET; RR PILLAR,LWR 8-98024-396-0 01 1 1507-
543 GUSSET; RR PILLAR,LWR 8-98035-734-0 01 1 1507-
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1507-
552 PANEL; STEP RR 8-98057-170-0 01 1 1507-
552 PANEL; STEP RR 8-98057-171-0 01 1 1507-
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97584-351-2 01 1 1507-
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97610-063-2 01 1 1507-
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97610-064-2 01 1 1507-
557 PATCH; SEAT 8-98074-333-0 01 1 1507-
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 1507-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1507-
