Isuzu WW
▶
TRUCKS
▶
FRR
▶
11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

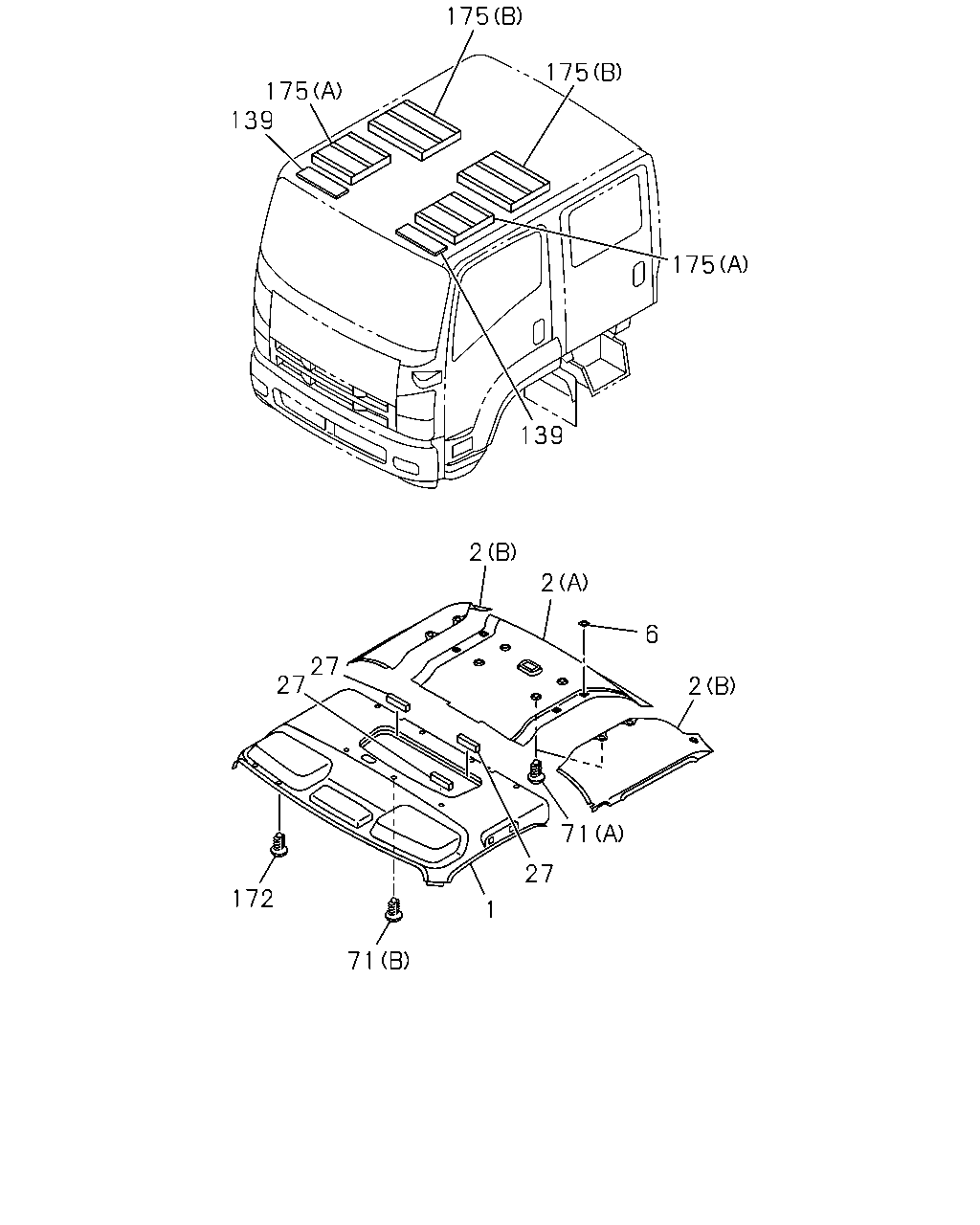

6-66 - HEAD LINING AND TRIM
▶
6-66 — HEAD LINING AND TRIM
(#164317) — 13 parça
139
175
175
175
175
139
2
6
2
2
27
27
172
71
1
71
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
FLUORESCENT LAMP<6UC> DARK GRAY
8-97428-630-1
01
1
1507-
1
LINING; HD
EXC. FLUORESCENT LAMP<6UC> DARK GRAY
8-97429-614-0
01
1
1507-
2
LINING; HD,ROOF RR
(A) DARK GRAY
8-97407-454-1
01
1
1507-
2
LINING; HD,ROOF RR
(B) DARK GRAY
8-97408-557-1
01
1
1507-
2
LINING; HD,ROOF RR
(B) DARK GRAY
8-97408-555-1
01
1
1507-
6
SPACER; HD LINING
1 SET=20 PIECE
8-98100-429-0
04
1
1507-
27
INSULATION; ROOF
FLUORESCENT LAMP<6UC>
8-98046-638-2
03
1
1507-
71
FASTENER; HD LINING
(B) DARK GRAY
8-97405-282-0
03
1
1507-
71
FASTENER; HD LINING
(A) DARK GRAY
8-97411-797-0
14
1
1507-
139
SEAL; ROOF
8-98169-116-0
02
1
1507-
172
RETAINER; HEAD LINING
DARK GRAY
8-97411-875-0
04
1
1507-
175
CUSHION; HEAD LINING
(A)
8-98030-965-2
02
1
1507-
175
CUSHION; HEAD LINING
(B)
8-98082-685-1
02
1
1507-
