6-60 — ROOF PANEL (#164316) — 13 parça

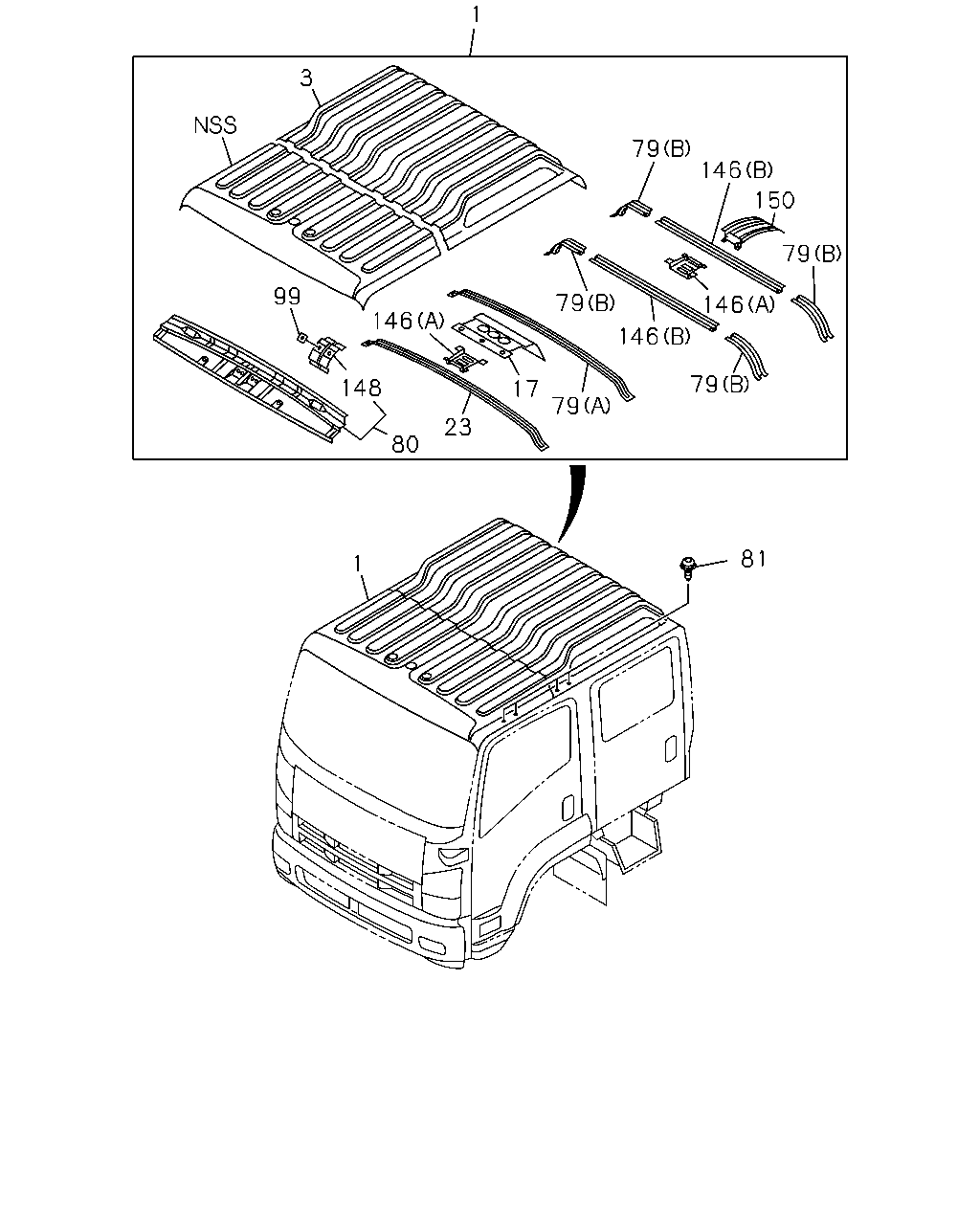

çizim 484677
1 3 99 148 80 146 23 17 79 79 146 146 79 79 79 150 146 1 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF 8-97587-641-7 01 1 1507-
3 PANEL; ROOF,RR 8-97411-040-1 01 1 1507-
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1507-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1507-
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 1507-
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-98008-023-0 04 1 1507-
80 PANEL; HEADER,ROOF 8-97584-191-4 01 1 1507-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1507-
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1507-
146 REINFORCEMENT; ROOM LAMP
(B) 		8-98010-736-1 02 1 1507-
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 02 1 1507-
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 1507-
150 REINFORCEMENT; ROOF BACK 8-98085-374-0 01 1 1507-
