11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

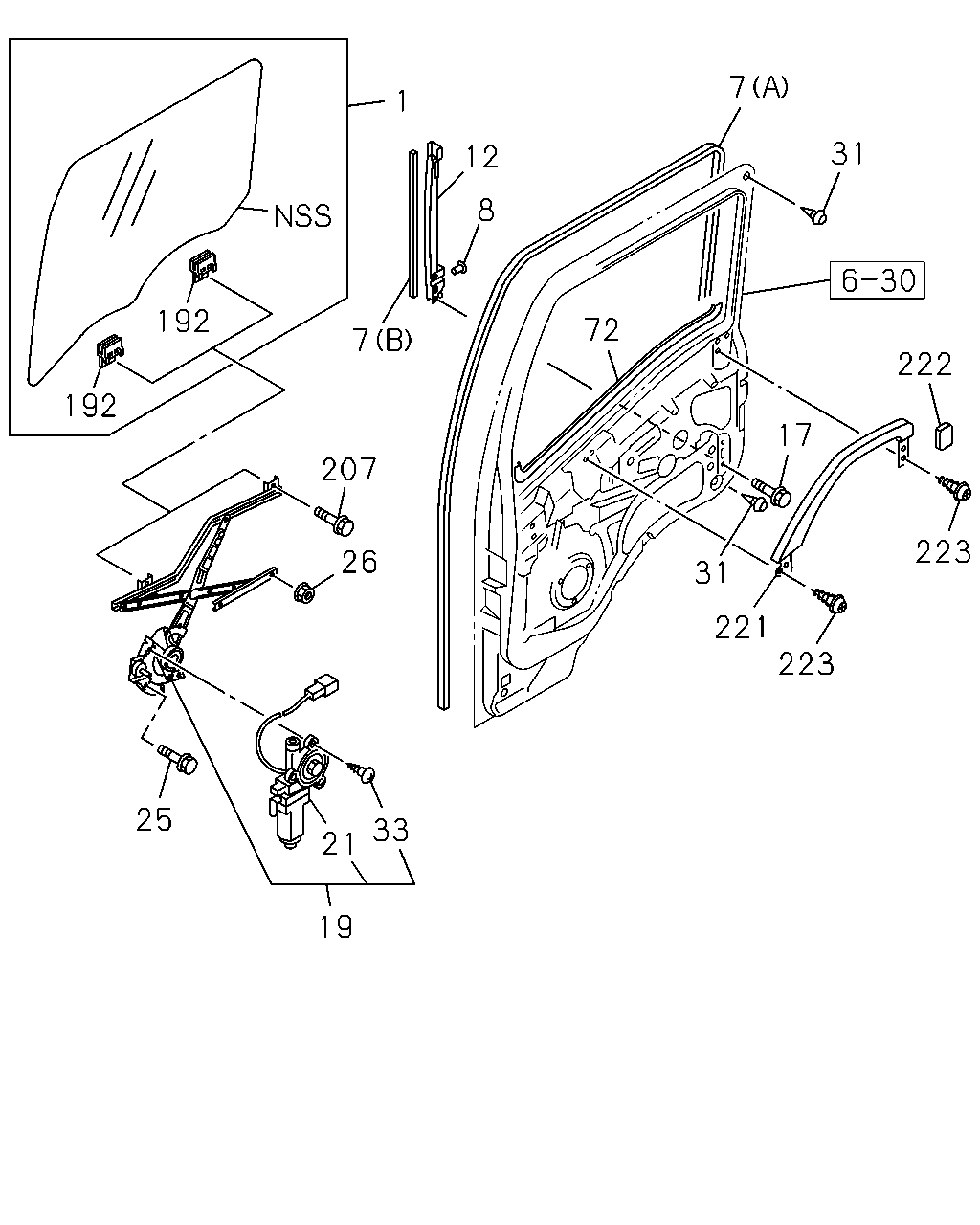

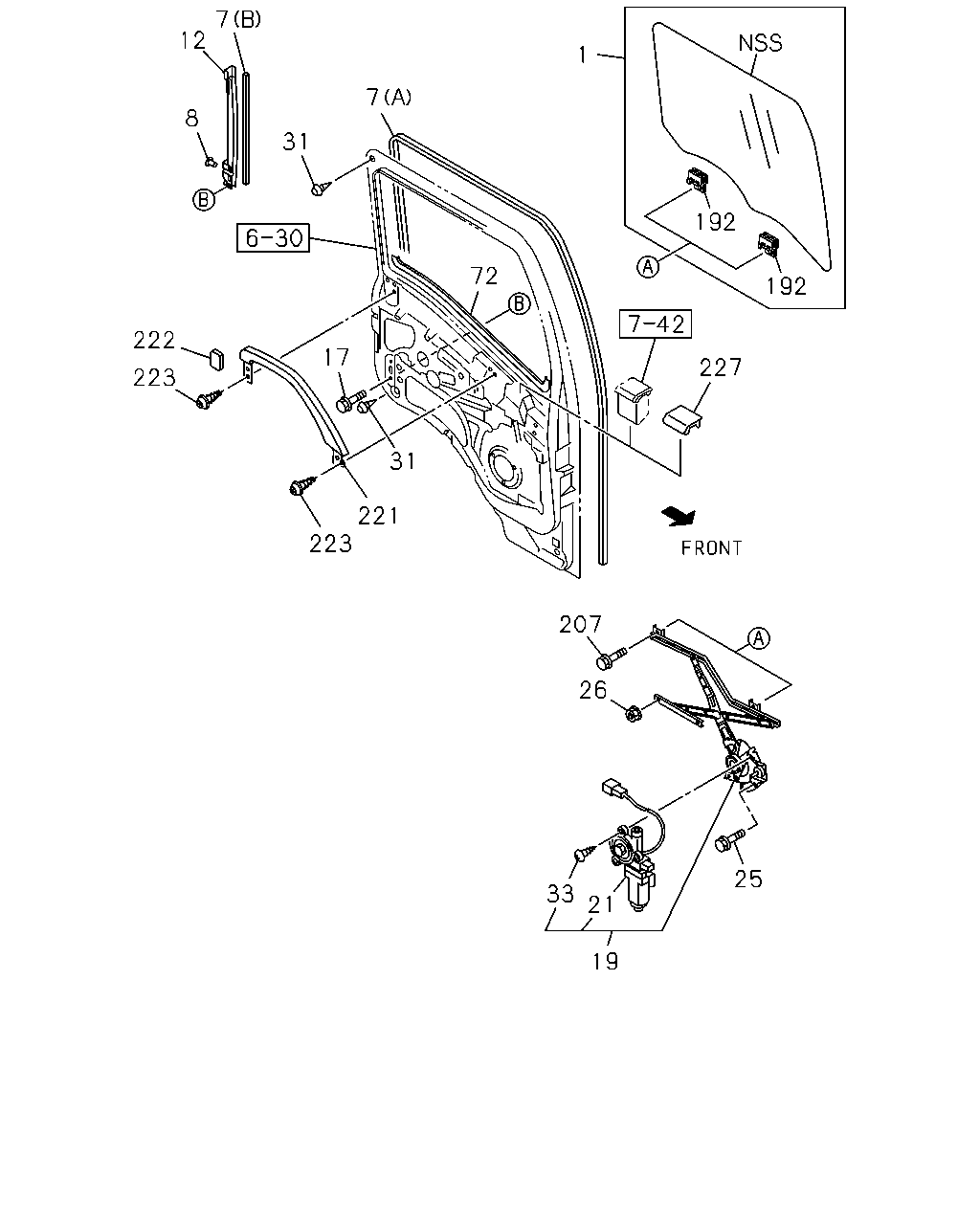

6-31 - FRONT DOOR GLASS AND REGULATOR
▶
6-31 — FRONT DOOR GLASS AND REGULATOR
(#164307) — 55 parça
◀
[631A] LH (28 parça)
[631A] RH (27 parça)
▶
7
12
8
31
7
1
192
192
227
72
17
31
221
223
222
223
207
26
25
33
21
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
8-98211-765-0
01
1
1507-
1
GLASS; FRT DOOR
8-98211-764-0
01
1
1507-
7
GLASS RUN; FRT DOOR
(B)
8-98260-310-0
02
1
1507-
7
GLASS RUN; FRT DOOR
(A)
8-98260-309-0
01
1
1507-
7
GLASS RUN; FRT DOOR
(A)
8-98260-308-0
01
1
1507-
8
CLIP; GLASS GUIDE
8-98048-796-0
02
1
1507-
12
CHANNEL; GLASS RUN,FRT
8-98260-319-0
01
1
1507-
12
CHANNEL; GLASS RUN,FRT
8-98260-318-0
01
1
1507-
17
SCREW; RR CHANNEL
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1507-
19
REGULATOR; WINDOW,FRT DOOR
8-98029-237-3
01
1
1507-
19
REGULATOR; WINDOW,FRT DOOR
8-98029-236-3
01
1
1507-
21
MOTOR; POWER WINDOW REG,FRT DOOR
8-98058-430-0
01
1
1507-
21
MOTOR; POWER WINDOW REG,FRT DOOR
8-98058-429-0
01
1
1507-
25
BOLT; WINDOW REG
M6X10 FLANGE
0-28050-610-0
08
1
1507-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
1507-
31
STOPPER; RUBBER,DOOR INNER
8-94358-581-0
04
1
1507-
33
SCREW; REG MOTOR
8-98058-431-0
06
1
1507-
72
SEAL; WAIST,FRT DOOR
8-98029-193-1
01
1
1507-
72
SEAL; WAIST,FRT DOOR
8-98029-192-1
01
1
1507-
192
HOLDER; DOOR GLASS
8-98211-762-0
02
1
1507-
192
HOLDER; DOOR GLASS
8-98211-762-0
02
1
1507-
207
SCREW; DOOR GLASS
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1507-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-317-2
01
1
1507-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-316-2
01
1
1507-
222
CAP; GUARD BAR
GRAY
8-97405-319-0
01
1
1507-
222
CAP; GUARD BAR
GRAY
8-97405-318-0
01
1
1507-
223
SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET
0-38050-625-0
08
1
1507-
227
RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY
8-97405-321-0
01
1
1507-
1
8
12
72
7
207
26
192
192
25
19
21
33
31
221
223
223
222
17
31
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
8-98211-765-0
01
1
1507-
1
GLASS; FRT DOOR
8-98211-764-0
01
1
1507-
7
GLASS RUN; FRT DOOR
(B)
8-98260-310-0
02
1
1507-
7
GLASS RUN; FRT DOOR
(A)
8-98260-309-0
01
1
1507-
7
GLASS RUN; FRT DOOR
(A)
8-98260-308-0
01
1
1507-
8
CLIP; GLASS GUIDE
8-98048-796-0
02
1
1507-
12
CHANNEL; GLASS RUN,FRT
8-98260-319-0
01
1
1507-
12
CHANNEL; GLASS RUN,FRT
8-98260-318-0
01
1
1507-
17
SCREW; RR CHANNEL
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1507-
19
REGULATOR; WINDOW,FRT DOOR
8-98029-237-3
01
1
1507-
19
REGULATOR; WINDOW,FRT DOOR
8-98029-236-3
01
1
1507-
21
MOTOR; POWER WINDOW REG,FRT DOOR
8-98058-430-0
01
1
1507-
21
MOTOR; POWER WINDOW REG,FRT DOOR
8-98058-429-0
01
1
1507-
25
BOLT; WINDOW REG
M6X10 FLANGE
0-28050-610-0
08
1
1507-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
1507-
31
STOPPER; RUBBER,DOOR INNER
8-94358-581-0
04
1
1507-
33
SCREW; REG MOTOR
8-98058-431-0
06
1
1507-
72
SEAL; WAIST,FRT DOOR
8-98029-193-1
01
1
1507-
72
SEAL; WAIST,FRT DOOR
8-98029-192-1
01
1
1507-
192
HOLDER; DOOR GLASS
8-98211-762-0
02
1
1507-
192
HOLDER; DOOR GLASS
8-98211-762-0
02
1
1507-
207
SCREW; DOOR GLASS
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1507-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-317-2
01
1
1507-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-316-2
01
1
1507-
222
CAP; GUARD BAR
GRAY
8-97405-319-0
01
1
1507-
222
CAP; GUARD BAR
GRAY
8-97405-318-0
01
1
1507-
223
SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET
0-38050-625-0
08
1
1507-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
