◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#164303) — 234 parça

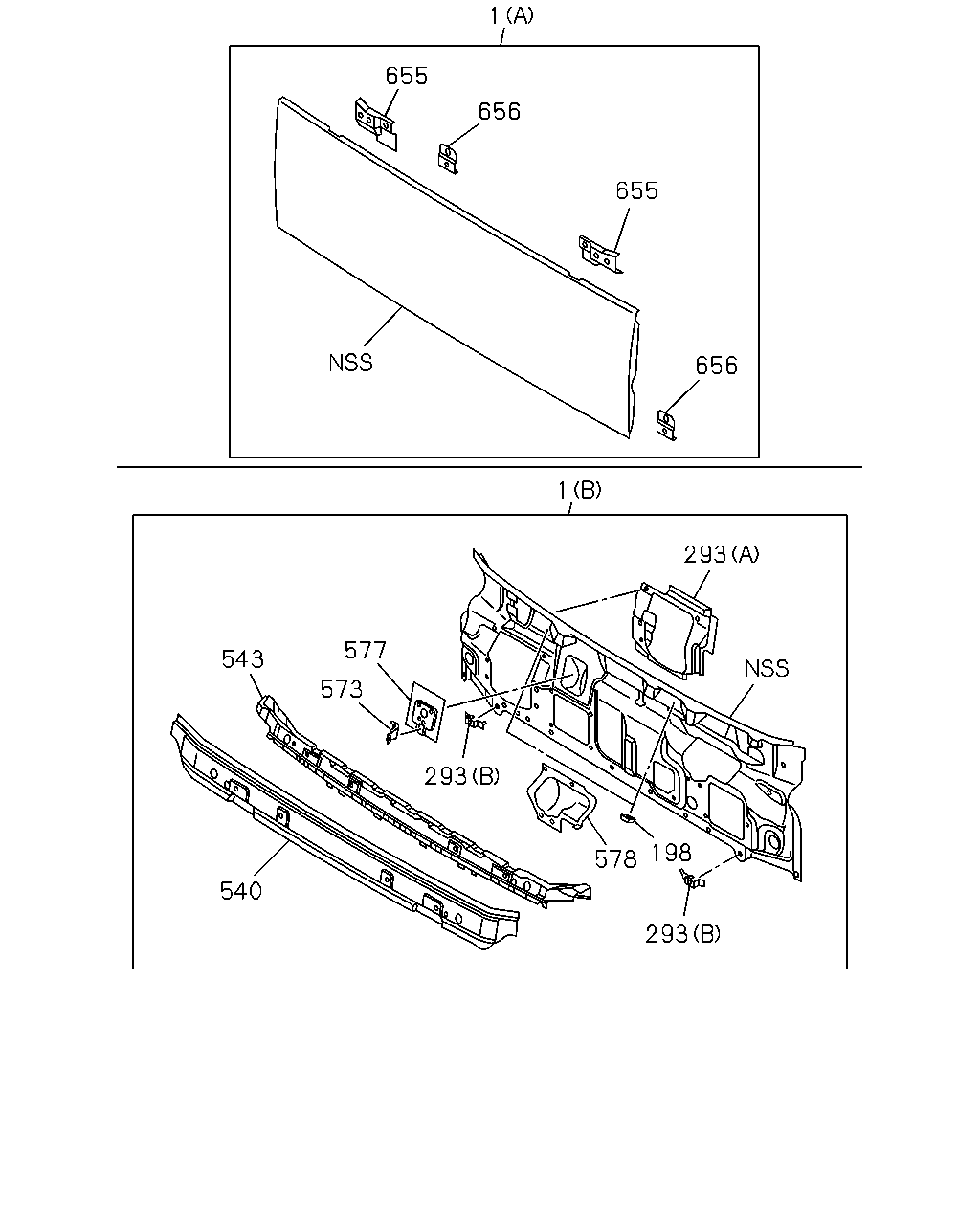

çizim 484636
1 655 656 655 656 1 577 543 540 293 578 293 573 198 293
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1507-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1507-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1507-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1507-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1507-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1507-
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 1507-
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 1507-
573 BRACKET; SUPPORT 8-98008-127-2 01 1 1507-
577 BRACKET; IDLER 8-97586-019-1 01 1 1507-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1507-
655 PATCH; HINGE 8-98031-263-0 01 1 1507-
655 PATCH; HINGE 8-98031-264-0 01 1 1507-
656 PATCH; STRIKER 8-98031-265-0 02 1 1507-

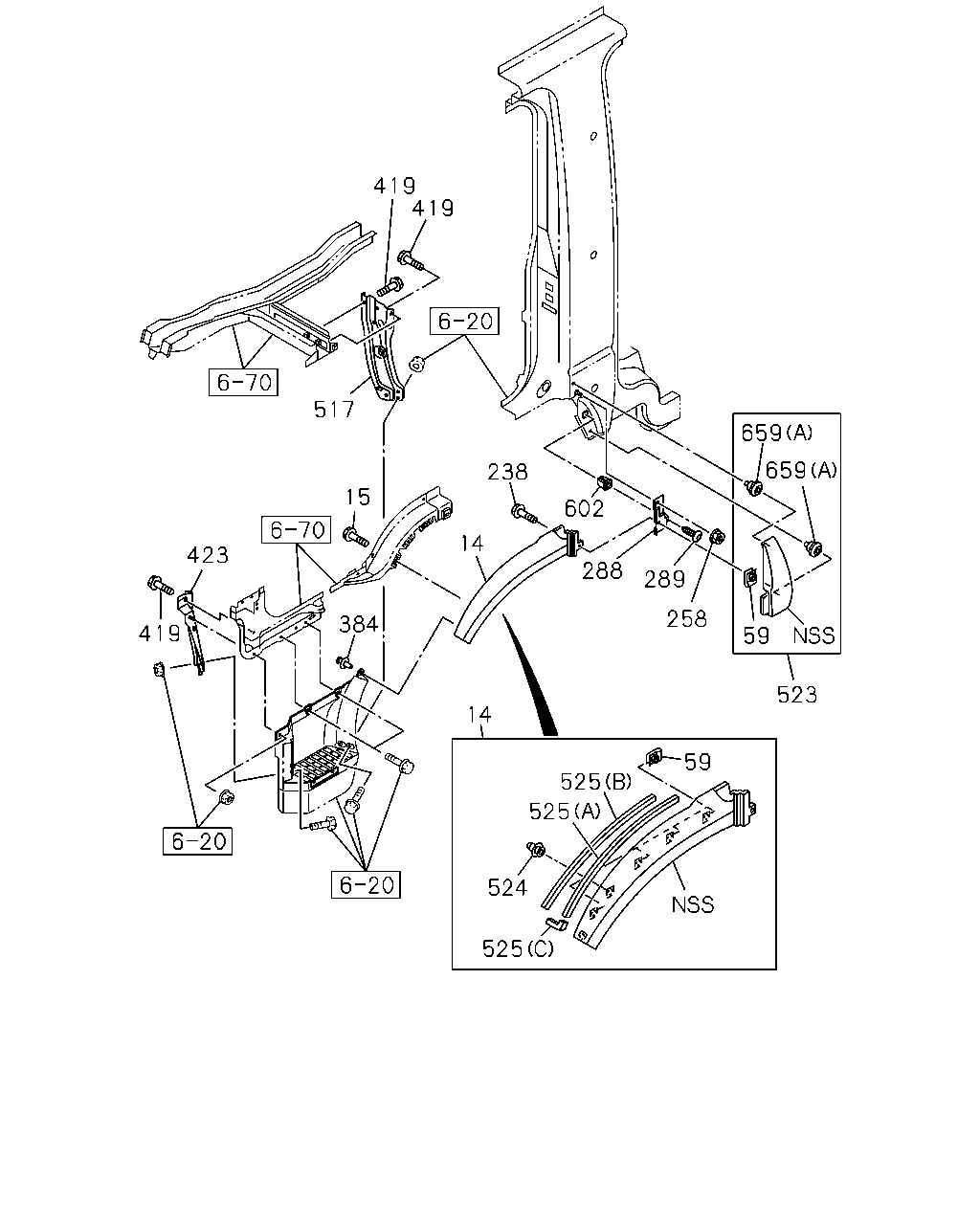

çizim 484688
419 419 517 15 238 602 14 288 289 258 659 659 59 523 14 59 525 525 524 525 384 423 419
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 1507-
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 1507-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1507-
59 GROMMET; SCREW 8-94279-723-0 04 1 1507-
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> 		8-94279-723-0 08 1 1507-
238 SCREW
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1507-
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1507-
288 BRACKET; FENDER SKIRT 8-98019-871-3 01 1 1507-
288 BRACKET; FENDER SKIRT 8-98019-870-3 01 1 1507-
289 BOLT; FENDER SKIRT BRKT
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1507-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1507-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1507-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1507-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1507-
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1507-
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1507-
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-447-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-679-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-124-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-117-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-121-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-114-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-450-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-682-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-122-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-115-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-449-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-681-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-125-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-118-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-456-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-688-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-454-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-686-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-453-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-685-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-739-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-738-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-448-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-680-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-126-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-119-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-120-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-113-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-452-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-684-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-451-1 01 1 1507-
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-683-1 01 1 1507-
524 CLIP; FENDER COVER
CAB ALL PAINTING<TFD> OD=7.9 BLACK 		8-94279-974-1 02 1 1507-
525 SEAL; FENDER
CAB ALL PAINTING<TFD> (A) 		8-98061-760-0 02 1 1507-
525 SEAL; FENDER
CAB ALL PAINTING<TFD> (B) 		8-98061-761-0 02 1 1507-
525 SEAL; FENDER
CAB ALL PAINTING<TFD> (C) 		8-98061-762-0 02 1 1507-
602 RETAINER; COVER
D=10X10 L=8 M6 		1-09983-119-0 02 1 1507-
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 1507-
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 1507-

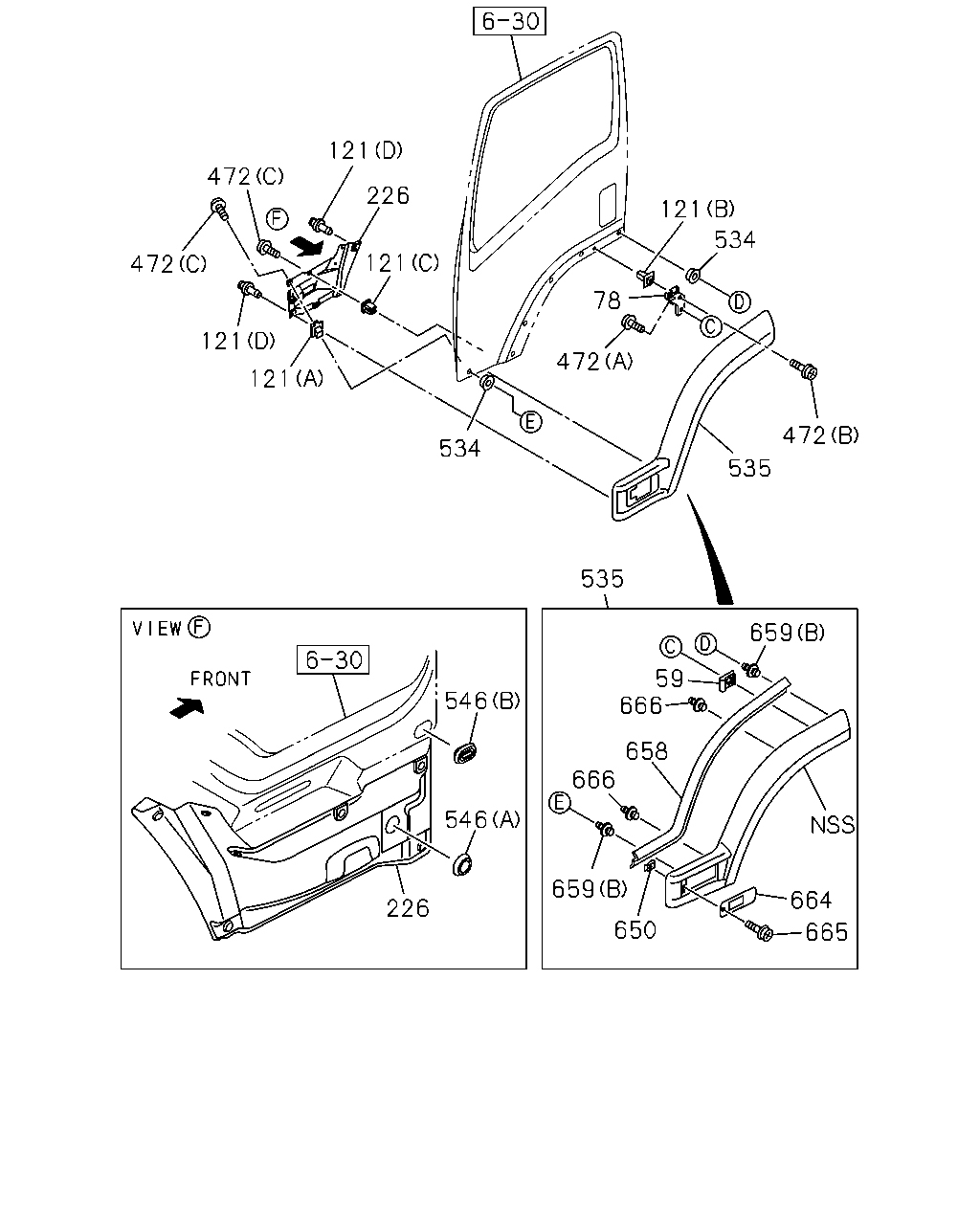

çizim 484748
121 121 226 534 121 121 472 535 535 472 121 78 534 472 59 659 666 658 666 659 664 665 650 546 546 226 472
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 04 1 1507-
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> 		8-94279-723-0 08 1 1507-
78 BRACKET; FENDER 8-98041-166-1 01 1 1507-
78 BRACKET; FENDER 8-98041-165-1 01 1 1507-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1507-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1507-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1507-
121 GROMMET; FENDER
(A) 		8-98073-421-0 01 1 1507-
121 GROMMET; FENDER
(A) 		8-98073-420-0 01 1 1507-
226 PROTECTOR; FRT 8-98080-913-1 01 1 1507-
226 PROTECTOR; FRT 8-98080-912-1 01 1 1507-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1507-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1507-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1507-
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1507-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97417-708-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97417-698-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97412-869-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97412-862-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97412-870-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97412-863-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97417-711-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97417-701-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97412-872-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97412-865-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97417-710-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97417-700-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-873-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-866-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97417-717-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97417-707-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-715-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-705-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-714-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-704-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-716-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-706-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-709-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-699-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-871-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-864-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-874-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-867-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97417-713-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97417-703-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97417-712-3 01 1 1507-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97417-702-3 01 1 1507-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1507-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1507-
650 NUT; SPIRE 8-94279-501-0 02 1 1507-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1507-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1507-
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 1507-
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-549-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-521-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-497-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-485-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-499-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-487-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-539-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-511-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-503-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-491-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-551-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-523-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-505-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-493-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-543-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-515-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-559-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-531-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-563-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-535-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-607-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-605-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-537-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-509-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-501-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-489-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-507-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-495-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-596-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-533-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-547-0 01 1 1507-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-519-0 01 1 1507-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1507-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1507-

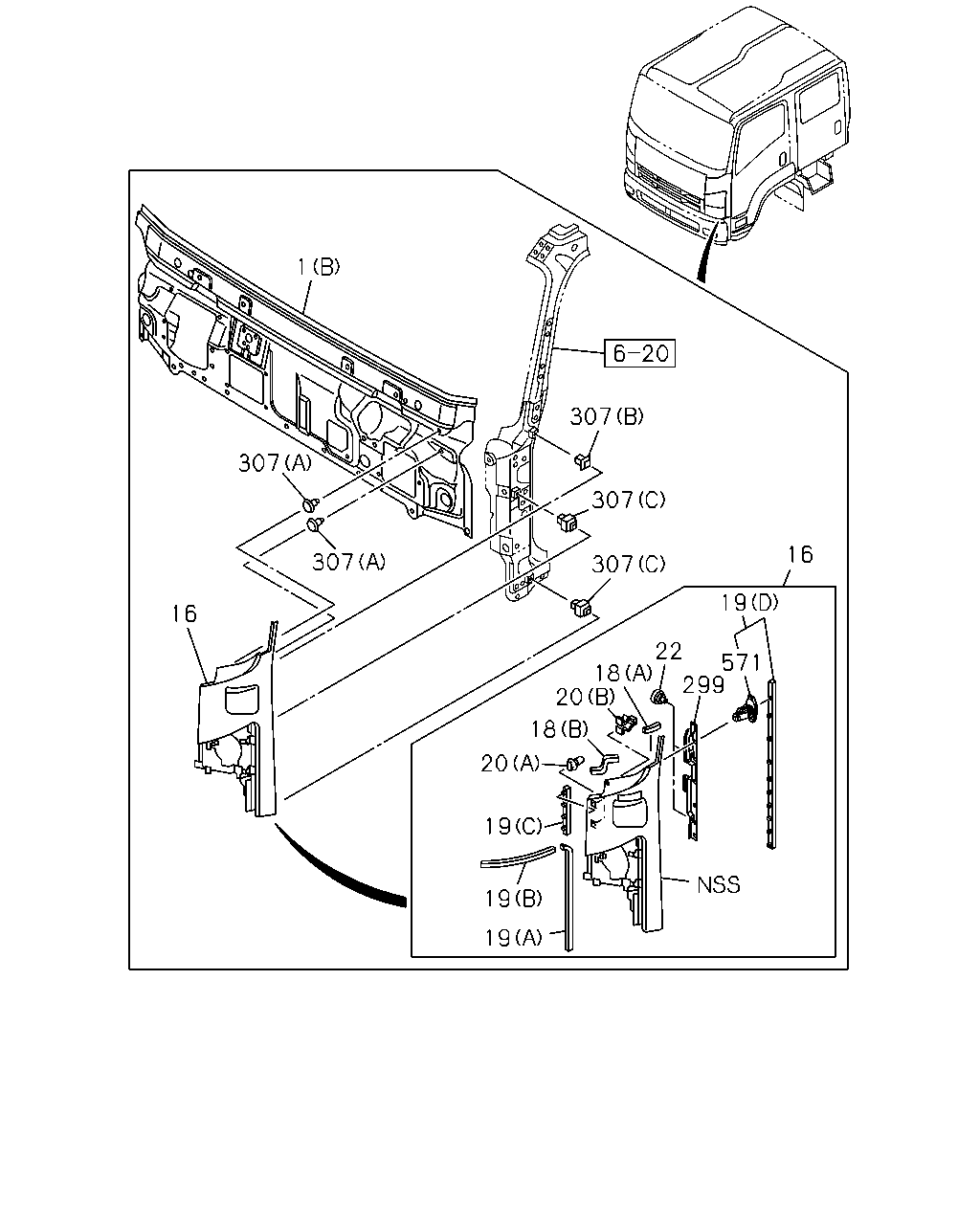

çizim 484835
1 307 307 307 16 19 571 299 22 18 20 18 20 19 19 19 16 307 307
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1507-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-654-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-576-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-901-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97407-509-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-298-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-292-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97415-030-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-579-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-301-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-295-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-656-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-578-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-302-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-296-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-660-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-585-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-658-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-583-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-657-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-582-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-659-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-653-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-655-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-577-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-299-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-293-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-303-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-297-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-032-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-581-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-031-4 01 1 1507-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-580-4 01 1 1507-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 01 1 1507-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 01 1 1507-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 1507-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 1507-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1507-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1507-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 02 1 1507-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 02 1 1507-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1507-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1507-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1507-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1507-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1507-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1507-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 1507-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 1507-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1507-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1507-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1507-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1507-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1507-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1507-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1507-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1507-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1507-

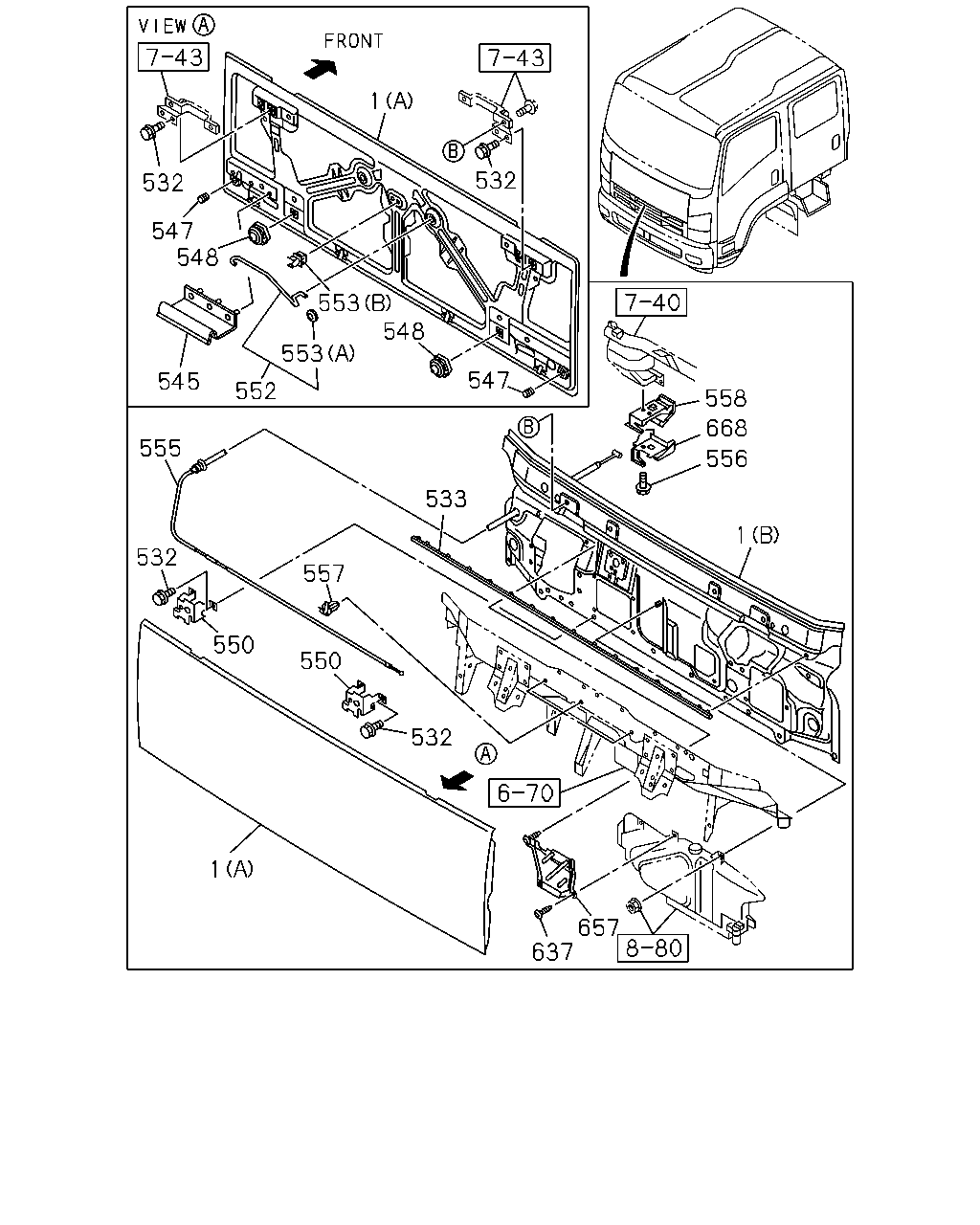

çizim 484853
637 532 1 657 1 556 668 558 533 557 550 550 532 555 547 553 552 545 553 548 547 532 1 532 548
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1507-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1507-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1507-
533 SEAL; FRT PANEL 8-98096-288-0 01 1 1507-
545 SEAL; FRT LID 8-98123-264-0 01 1 1507-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1507-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1507-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1507-
552 STAY; FRT LID 8-98089-836-0 01 1 1507-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1507-
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 1507-
555 CABLE; FRT LID 8-98036-573-1 01 1 1507-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1507-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1507-
558 LEVER; FRT LID 1-79338-007-1 01 1 1507-
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 1507-
657 COVER; WIPER IDLER 8-98060-908-0 01 1 1507-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
