5-30 — SPARE TIRE CARRIER AND COVER (#1643) — 31 parça

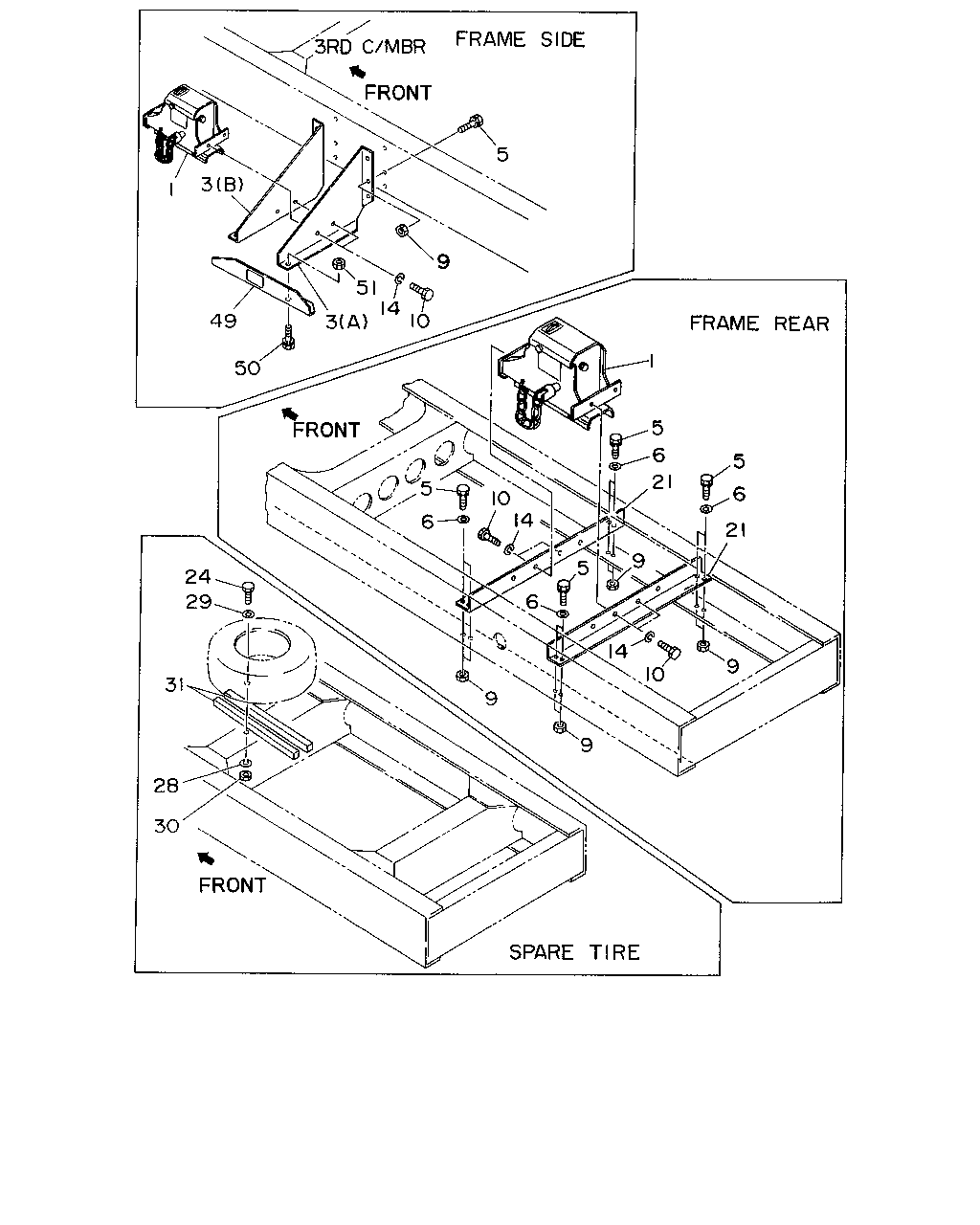

çizim 29864
30 28 31 29 24 9 9 14 10 9 21 6 5 21 6 5 1 6 14 10 5 6 49 50 3 51 14 10 9 5 1 3 5 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIF TING TYPE VAR1<SY8> EXC. REARWARD INNER SINGLE TIRE<YK3> 		1-53630-147-2 01 1 9207- ● ● ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> REARWARD INNER SINGLE TIRE<YK3> 		1-53630-162-1 01 1 9207- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13> REARWARD INNER SINGLE TIRE<YK3> 		1-53630-195-2 01 1 9207- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-180-2 01 1 9207- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-181-3 01 1 9207- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. REARWARD INNER SINGLE TIRE<YK3> M10X30 W/LK WASHER 		0-50041-030-0 08 1 9207-9210 ● ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. REARWARD INNER SINGLE TIRE<YK3> M10X30 W/LK&PL WASHER 		0-50141-030-0 08 1 9211- ● ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> REARWARD INNER SINGLE TIRE<YK3> M10X40 W/LK WASHER 		0-50041-040-0 08 1 9207- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 W/LK WASHER 		0-50041-235-0 06 1 9207- ●
6 WASHER; PL,BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> ID=10.5 		9-09164-510-0 08 1 9207-9210 ● ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9207- ● ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 06 1 9207- ●
10 BOLT; TIRE HANGER
M16X30 		0-20801-630-0 04 1 9207- ● ● ● ● ●
14 WASHER; LK,TIRE HANGER
ID=16.2 		9-09150-516-0 04 1 9207- ● ● ● ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-208-1 02 1 9207- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> REARWARD INNER SINGLE TIRE<YK3> 		1-53631-269-0 02 1 9207- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. REARWARD INNER SINGLE TIRE<YK3> 		1-53631-209-2 02 1 9207- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-209-2 02 1 9207- ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> M12X35 W/LK WASHER 		0-50041-235-0 02 1 9207- ● ●
24 BOLT; SPARE TIRE
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE FIXING<RE3> M12X35 W/LK WASHER 		0-50041-235-0 02 1 9207- ● ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) M12X80 		0-20801-280-0 02 1 9207- ● ● ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) ID=14.2 		9-09150-614-0 02 1 9207- ● ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-414-0 02 1 9207- ● ● ● ● ●
30 NUT; SPARE TIRE
SPARE TIRE FIXING<RE3> M12 		9-99110-512-0 02 1 9207- ● ● ● ● ●
31 SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-53637-007-0 02 1 9207- ● ● ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-182-0 01 1 9207-9302 ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-278-1 01 1 9303- ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 W/LK WASHER 		0-50041-230-0 02 1 9207-9302 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X20 FLANGE 		0-28080-820-0 04 1 9303- ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-412-0 02 1 9207-9302 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		9-09110-408-0 04 1 9303- ●
