Isuzu WW
▶
TRUCKS
▶
FRR
▶
11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

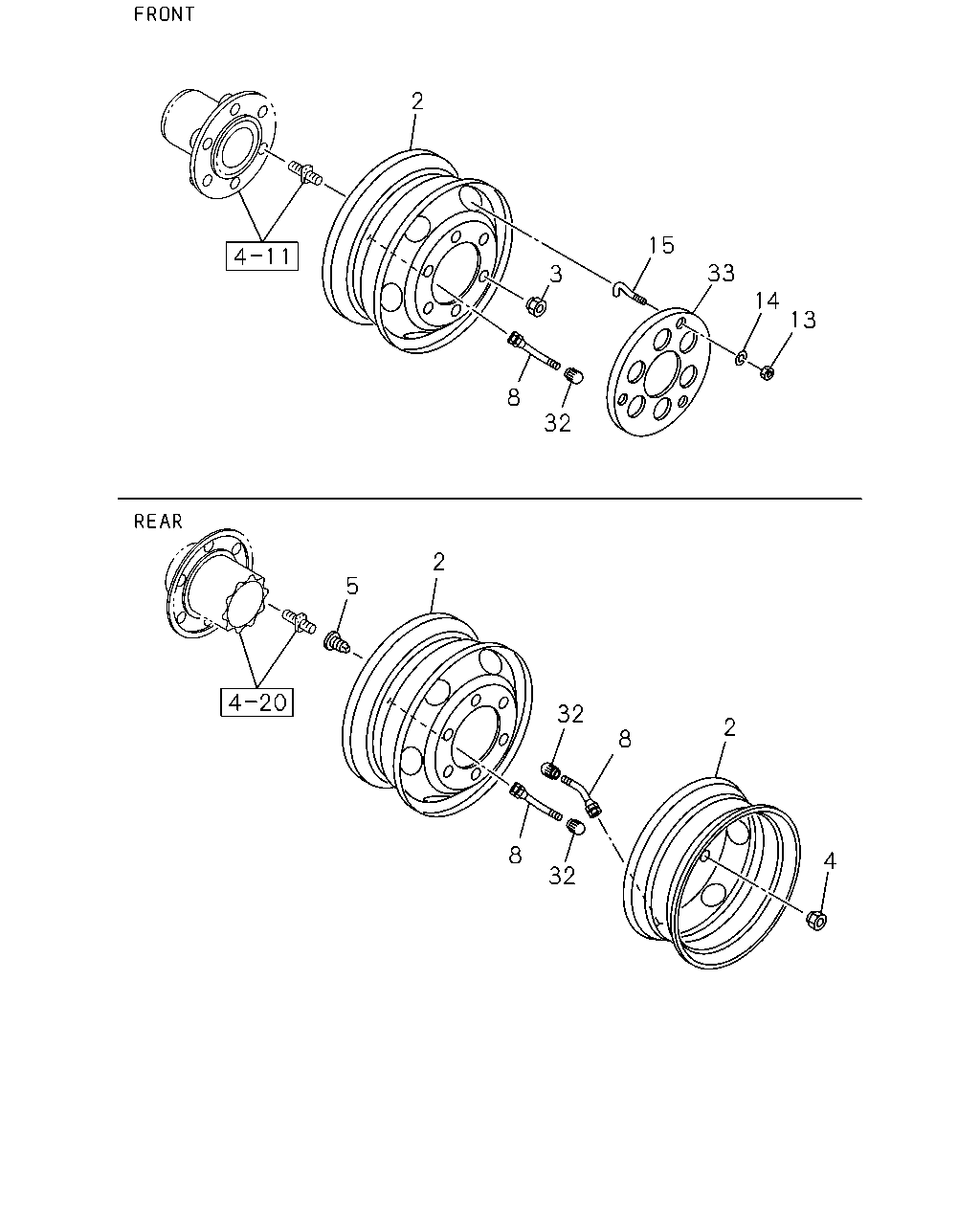

4-80 — ROAD WHEEL
(#164292) — 16 parça
2
15
33
14
13
3
8
32
2
4
8
32
32
8
2
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
FRONT,REAR
1-42350-767-0
06
1
1507-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42350-767-0
01
1
1507-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
06
1
1507-
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
06
1
1507-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
1507-
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
1507-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
1507-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
1507-
8
VALVE; TIRE
FRONT,REAR
1-42370-007-1
06
1
1507-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42370-007-1
01
1
1507-
13
NUT; STEP DISC
M10
0-91110-510-0
06
1
1507-
14
WASHER; LK,STEP DISC
ID=10.2
0-91510-810-0
06
1
1507-
15
BOLT; STEP DISC
1-43139-064-1
06
1
1507-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>
1-42374-001-0
07
1
1507-
32
CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46>
1-42374-001-0
06
1
1507-
33
COVER; WHEEL
1-43139-061-2
02
1
1507-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
