Isuzu WW
▶
TRUCKS
▶
FYH
▶
11354 - FYH(THAILAND)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#16429) — 33 parça
◀

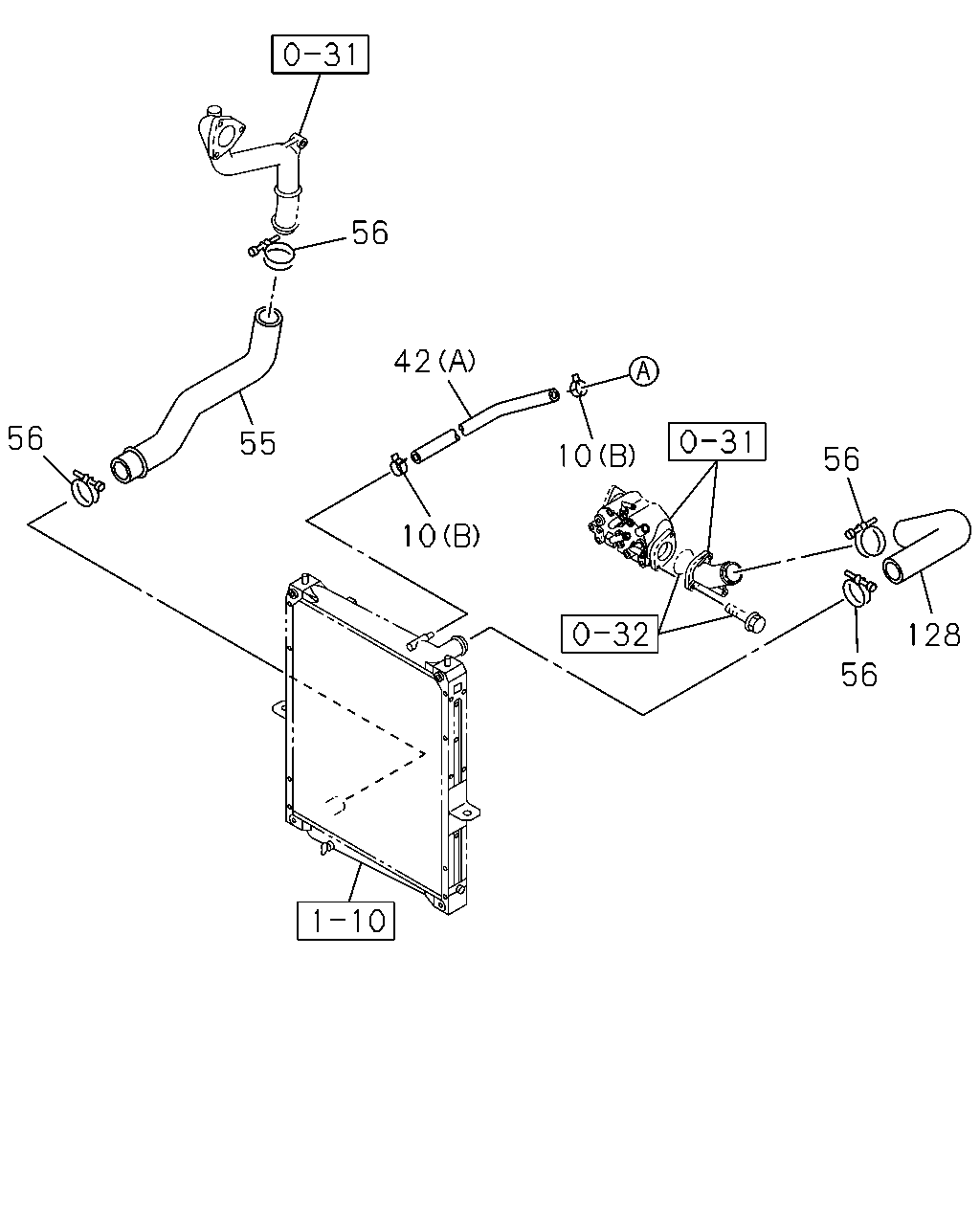

[111A] RADIATOR SIDE (9 parça)

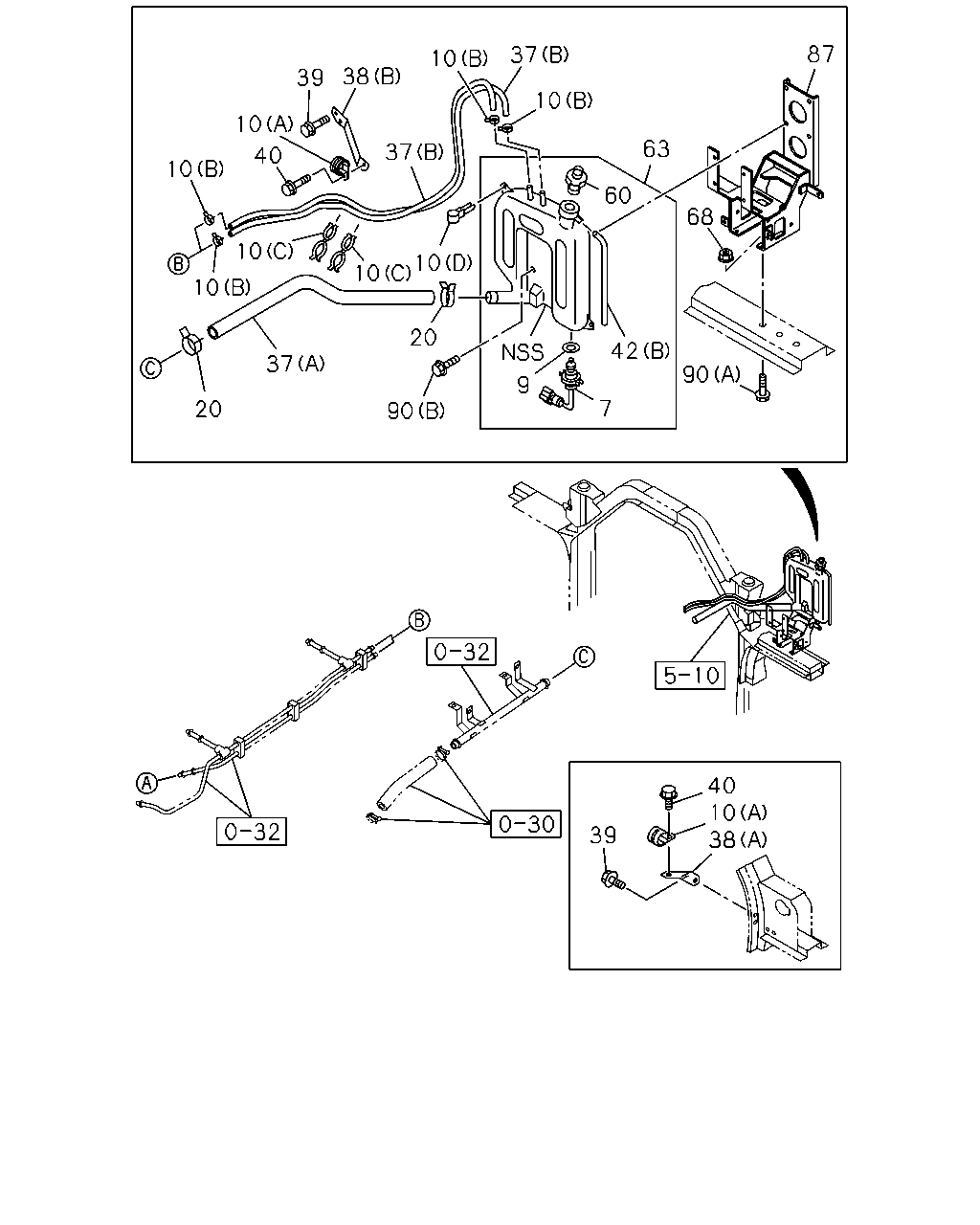

[111A] SUB TANK SIDE (24 parça)
▶
56
42
10
10
55
56
56
56
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(D) ID=28 L=58
1-09700-400-0
02
1
1110-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
02
1
1110-
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
1110-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
1110-
42
HOSE; RUBBER
(A) L=480 SERVICED BY L=3000 THA
0-03559-300-0
01
1
1110-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
1110-
55
HOSE; WATER,RAD OUTLET
THA
1-21430-209-1
01
1
1110-
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
1110-
128
HOSE; WATER,RAD INL
1-21437-976-1
01
1
1110-
39
38
37
10
40
10
10
10
10
10
60
63
10
37
10
68
87
90
42
7
9
90
20
37
20
40
10
38
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
1-82480-093-1
01
1
1110-1206
7
SWITCH ASM; TANK
8-97640-800-0
01
1
1207-
9
GASKET; SWITCH
ID=28 OD=35
1-09630-130-0
01
1
1110-
10
CLIP; RUBBER HOSE
(D) ID=28 L=58
1-09700-400-0
02
1
1110-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
02
1
1110-
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
1110-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
1110-
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
1110-
37
HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 THA
0-03559-300-0
02
1
1110-
37
HOSE; RUBBER
(A) THA
8-98055-703-0
01
1
1110-
38
BRACKET; RUBBER HOSE
(A)
8-97608-796-0
01
1
1110-
38
BRACKET; RUBBER HOSE
(B)
8-98055-724-1
01
1
1110-
39
BOLT; BRKT FIX
M10X20 FLANGE THA
0-28151-020-0
01
1
1110-
39
BOLT; BRKT FIX
M8X25 FLANGE THA
0-28650-825-0
02
1
1110-
40
BOLT; CLIP
M10X25 FLANGE THA
0-28651-025-0
02
1
1110-
42
HOSE; RUBBER
(A) L=480 SERVICED BY L=3000 THA
0-03559-300-0
01
1
1110-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
1110-
60
CAP; SUB TANK
1-21450-137-0
01
1
1110-
63
TANK ASM; SUB
1-21481-143-2
01
1
1110-
68
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
06
1
1110-
87
BRACKET; SUB TANK
1-21489-210-1
01
1
1110-1308
87
BRACKET; SUB TANK
8-98244-207-0
01
1
1309-
90
BOLT; SUB TANK TO BRKT
(A) M8X25 FLANGE THA
0-28650-825-0
04
1
1110-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
1110-
