Isuzu WW
▶
TRUCKS
▶
FRR
▶
11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-36 - POWER STEERING CONTROL; ENGINE SIDE
▶

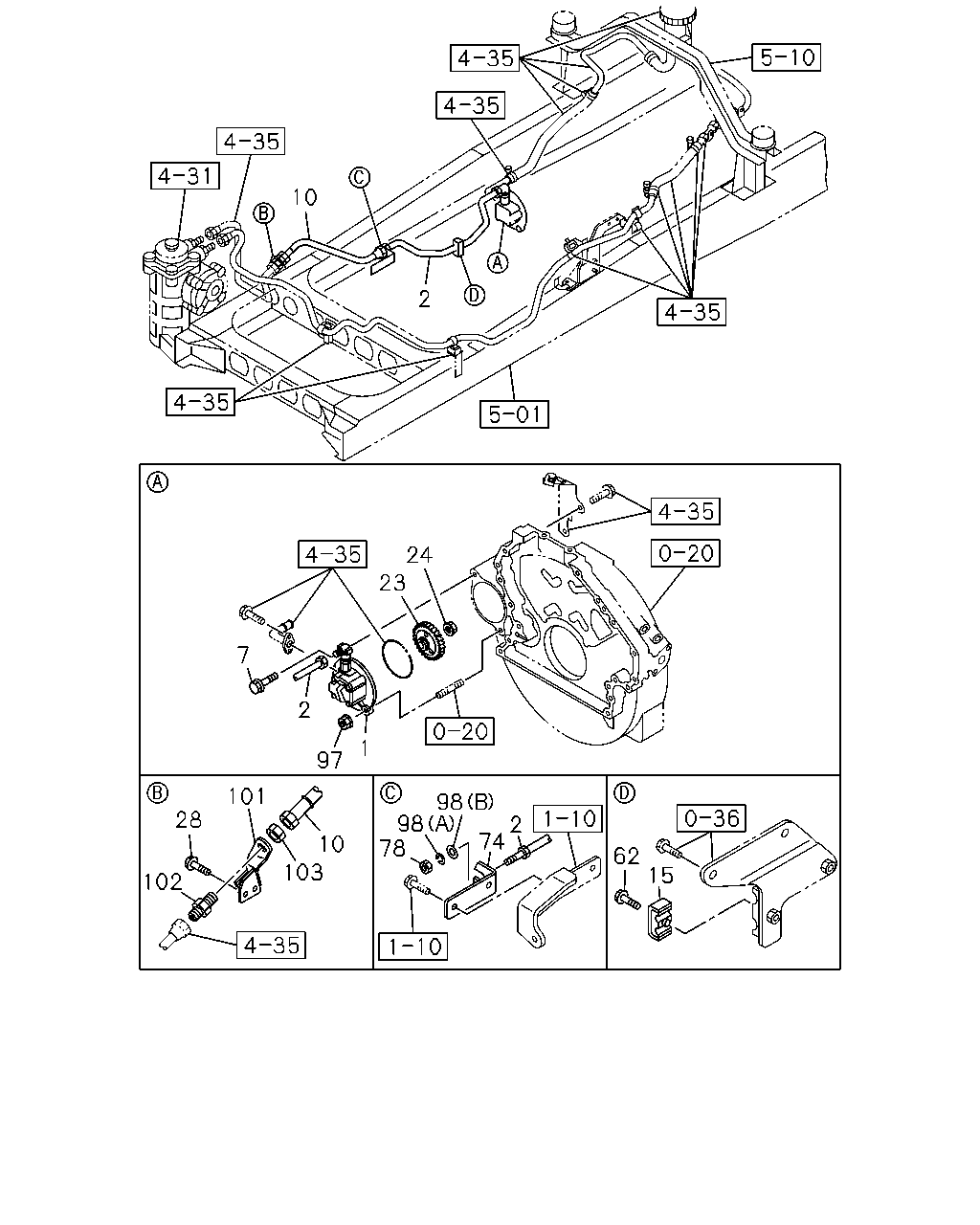

4-36 — POWER STEERING CONTROL; ENGINE SIDE
(#164285) — 17 parça
10
2
24
23
2
97
1
7
101
10
103
102
28
78
98
98
2
74
62
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
1-19500-636-1
01
1
1507-
2
PIPE ASM; OIL,SUCTION
8-98086-746-0
01
1
1507-
7
BOLT; OIL PUMP,P/S
M10X30 FLANGE
0-28751-030-0
01
1
1507-
10
HOSE; FLEX,P/S OIL PUMP,INL
L=500
1-09364-957-2
01
1
1507-
15
CLIP; OIL PIPE SUCTION
ID=9 & 9 L=25
1-09701-212-2
01
1
1507-
23
GEAR; OIL PUMP
Z=30
8-94390-842-1
01
1
1507-
24
NUT; GEAR,P/S PUMP
M12 FLANGE
0-91180-112-0
01
1
1507-
28
BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE
0-28050-825-0
02
1
1507-
62
BOLT; CLIP
M6X30 FLANGE
0-28650-630-0
01
1
1507-
74
BRACKET; PIPE
8-98060-044-1
01
1
1507-
78
NUT; BRKT
M20
0-91111-520-0
01
1
1507-
97
NUT; OIL PUMP,P/S
M10 FLANGE
0-91180-110-0
01
1
1507-
98
WASHER; LK,BRKT
(A) ID=20.2
0-91510-620-0
01
1
1507-
98
WASHER; LK,BRKT
(B) ID=21
0-91610-520-0
01
1
1507-
101
BRACKET; UNION
8-98175-720-0
01
1
1507-
102
UNION
M20 & M22 STRAIGHT
1-09654-167-1
01
1
1507-
103
NUT; UNION
M22
0-91111-522-0
01
1
1507-
