Sayfa 4-35 - Isuzu EPC

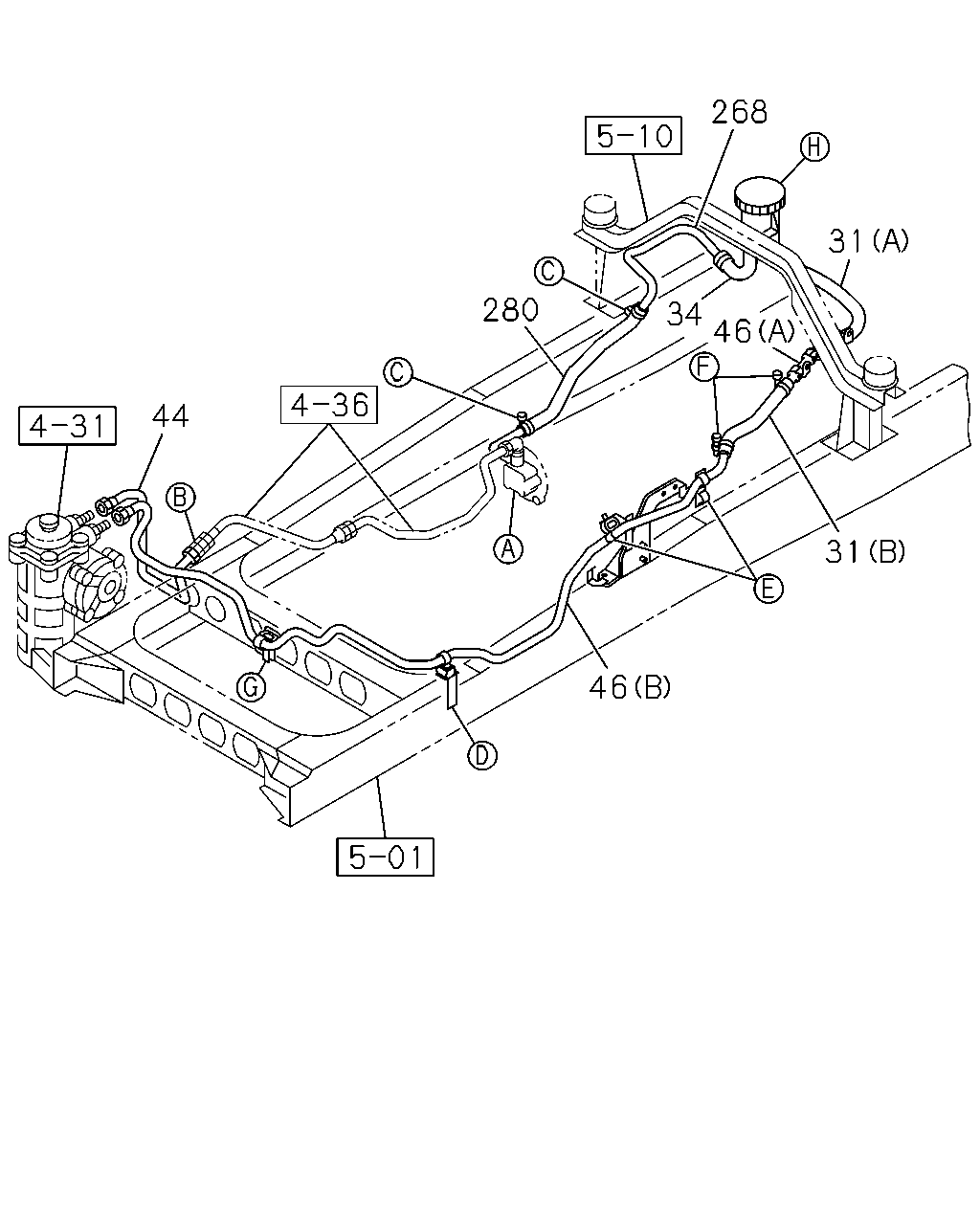

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#164284) — 60 parça

44 46 31 31 268 46 34 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL (B) L=260 SERVICED BY L=400	0-09814-400-0	01	1	1507-
31	HOSE; P/S OIL TANK,INL (A) L=400	0-09814-400-0	01	1	1507-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1507-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98077-661-0	01	1	1507-
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=366	8-98183-766-0	01	1	1507-
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2577	8-98232-612-0	01	1	1507-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98183-765-0	01	1	1507-
280	HOSE; P/S OIL PUMP,INL	8-98086-764-1	01	1	1507-

157 163 371 41 65 153 61 65 61 58 65 153 61 65 37 79 59 153 61 65 65 65 44 63 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	1507-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1507-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1507-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98077-661-0	01	1	1507-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1507-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	03	1	1507-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1507-
59	BRACKET; CLIP,OIL PIPE (B)	8-98183-767-0	01	1	1507-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	03	1	1507-
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	1507-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1507-
63	BRACKET; CLIP,P/S	8-98075-954-0	01	1	1507-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1507-
66	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1507-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1507-
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1507-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1507-
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1507-
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1507-

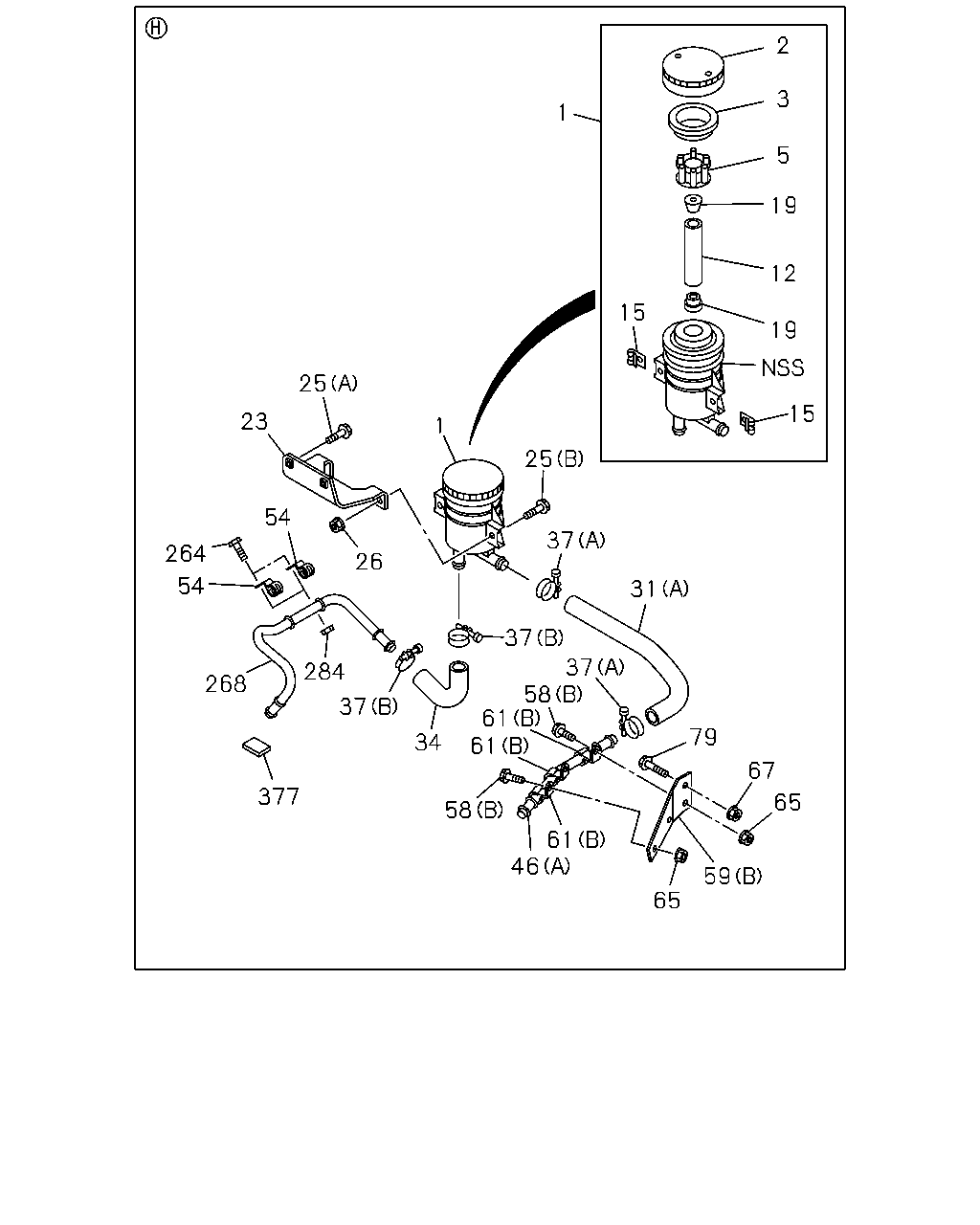

1 2 3 5 19 12 19 15 15 1 25 25 23 54 264 54 268 284 37 377 34 61 61 58 37 37 37 31 79 67 65 59 65 61 46 58 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1507-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1507-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1507-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1507-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1507-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1507-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1507-
23	BRACKET; OIL TANK,P/S	8-98060-024-0	01	1	1507-
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1507-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1507-
31	HOSE; P/S OIL TANK,INL (B) L=260 SERVICED BY L=400	0-09814-400-0	01	1	1507-
31	HOSE; P/S OIL TANK,INL (A) L=400	0-09814-400-0	01	1	1507-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1507-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	1507-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1507-
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=366	8-98183-766-0	01	1	1507-
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2577	8-98232-612-0	01	1	1507-
54	CLIP; OIL PIPE ID=19 L=39 H=21	1-09700-972-1	02	1	1507-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1507-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	03	1	1507-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1507-
59	BRACKET; CLIP,OIL PIPE (B)	8-98183-767-0	01	1	1507-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	03	1	1507-
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	1507-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1507-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1507-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1507-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1507-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	02	1	1507-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98183-765-0	01	1	1507-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1507-
377	INSULATOR	8-98270-804-0	01	1	1507-
