◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#164275) — 25 parça

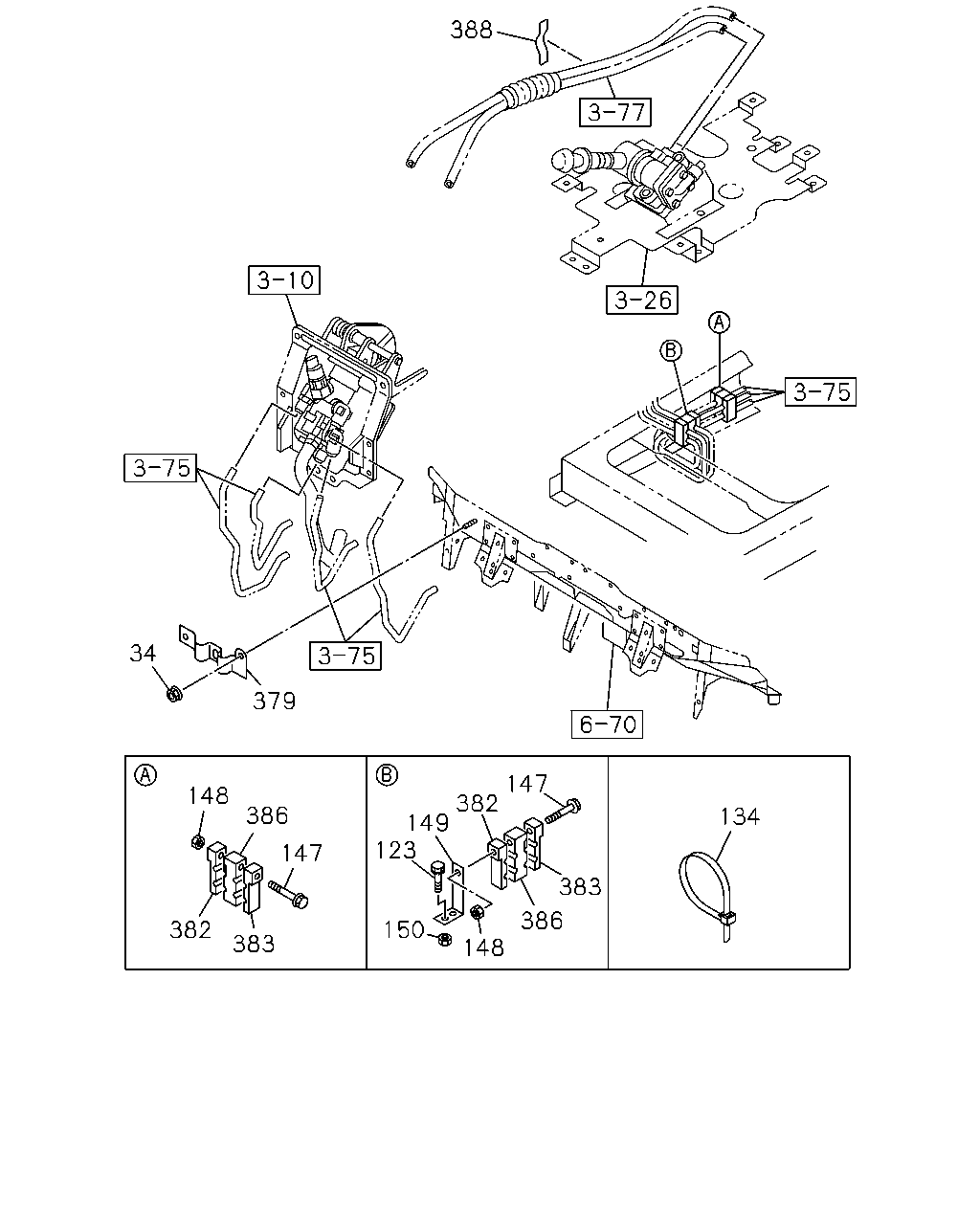

çizim 484684
134 383 386 148 147 382 149 123 150 386 147 148 383 382 379 34 388
BalonParca AdiParca NoAdetTipApplied Date
34 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1507-
123 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1507-
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1507-
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 03 1 1507-
148 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1507-
149 BRACKET; PIPE CLIP 8-98296-534-0 01 1 1507-
150 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1507-
379 BRACKET; NYLON TUBE 8-98044-013-0 01 1 1507-
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 03 1 1507-
383 CLIP; LWR
ID=10 & 10 		1-09709-241-0 03 1 1507-
386 CLIP; CENTER
ID=10 		1-09709-242-0 03 1 1507-
388 SEAL
100X40 		1-72498-022-1 03 1 1507-

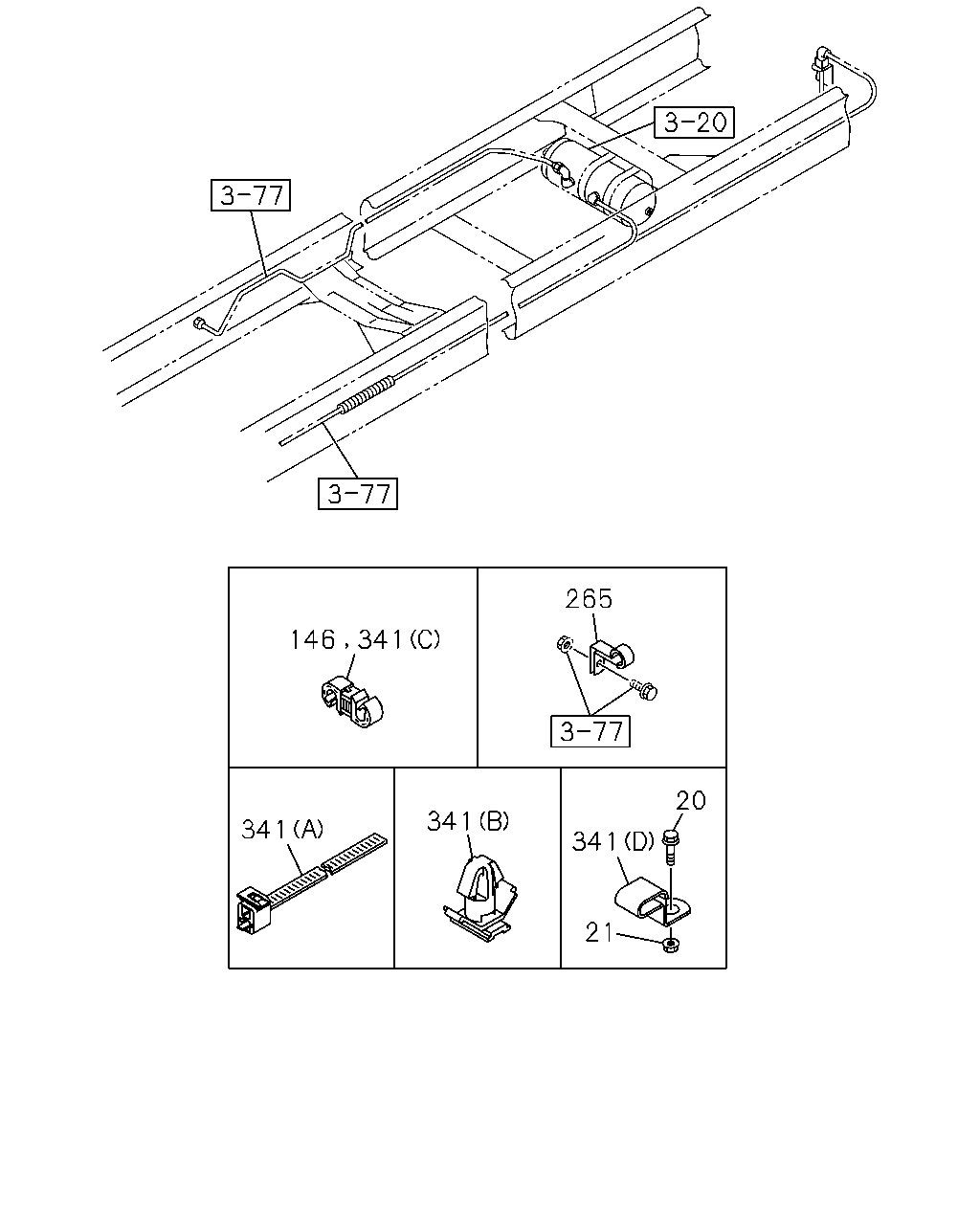

çizim 484743
21 341 341 20 341 146 341 265
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M10X30 FLANGE 		0-28051-030-0 01 1 1507-
21 NUT; CLIP
M10 FLANGE 		0-91180-210-0 01 1 1507-
146 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 03 1 1507-
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1507-
341 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 1507-
341 CLIP; HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1507-
341 CLIP; HARNESS
(C) ID=10 & 10 		1-09709-277-1 01 1 1507-
341 CLIP; HARNESS
(C) ID=10 & 12 		1-09709-278-1 02 1 1507-
341 CLIP; HARNESS
(C) ID=10 & 15 		1-09709-279-1 01 1 1507-
341 CLIP; HARNESS
(C) ID=15 & 15 		1-09709-282-1 01 1 1507-
341 CLIP; HARNESS
(D) ID=17.5X2 L=25 		5-09700-358-0 01 1 1507-
341 CLIP; HARNESS
(A) L=250 		5-09707-030-1 03 1 1507-
341 CLIP; HARNESS
(B) OD=8.95 H=6.25 		8-97375-754-0 01 1 1507-
