Isuzu WW
▶
TRUCKS
▶
FRR
▶
11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#164270) — 23 parça
◀

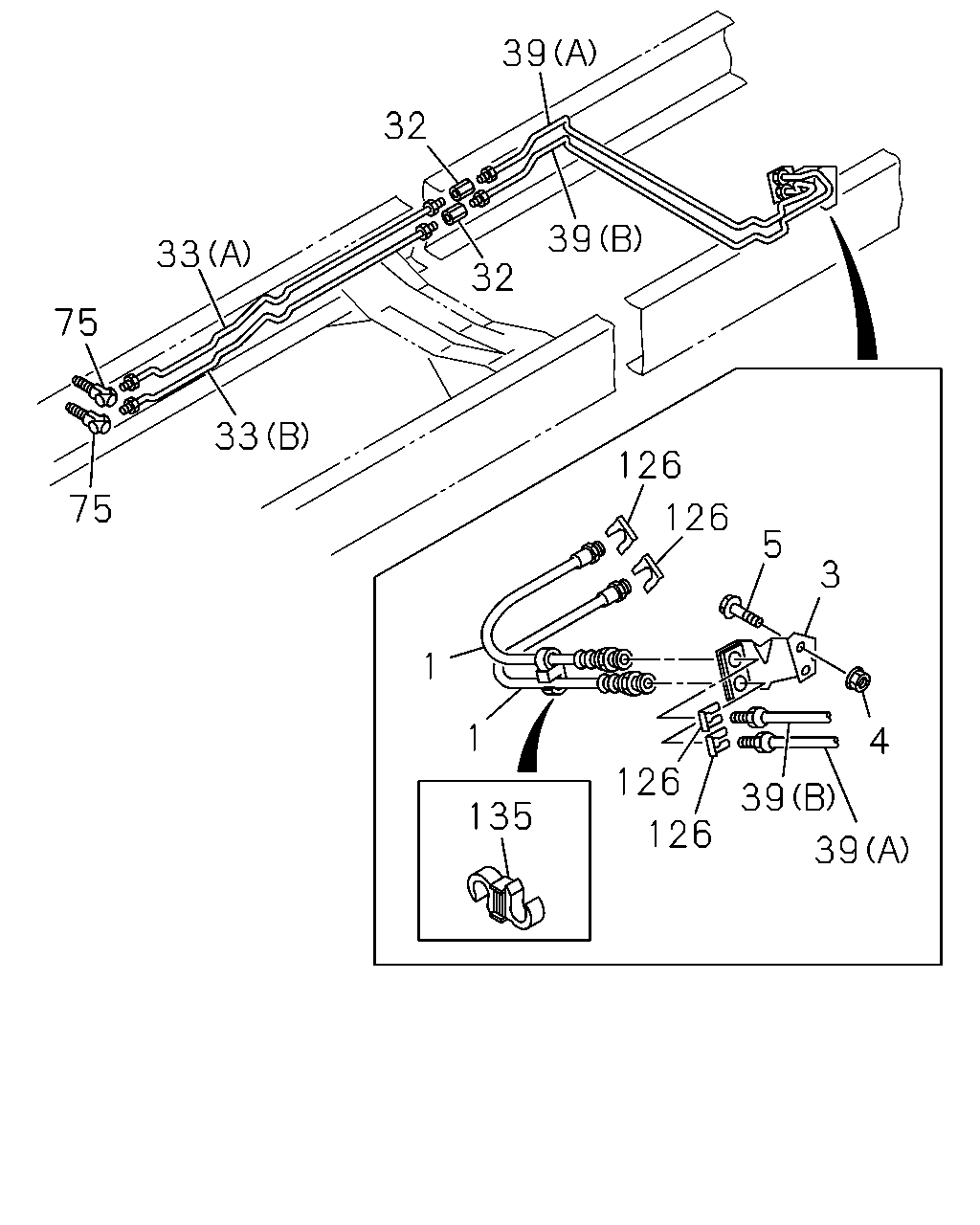

[355A] FRAME SIDE (12 parça)

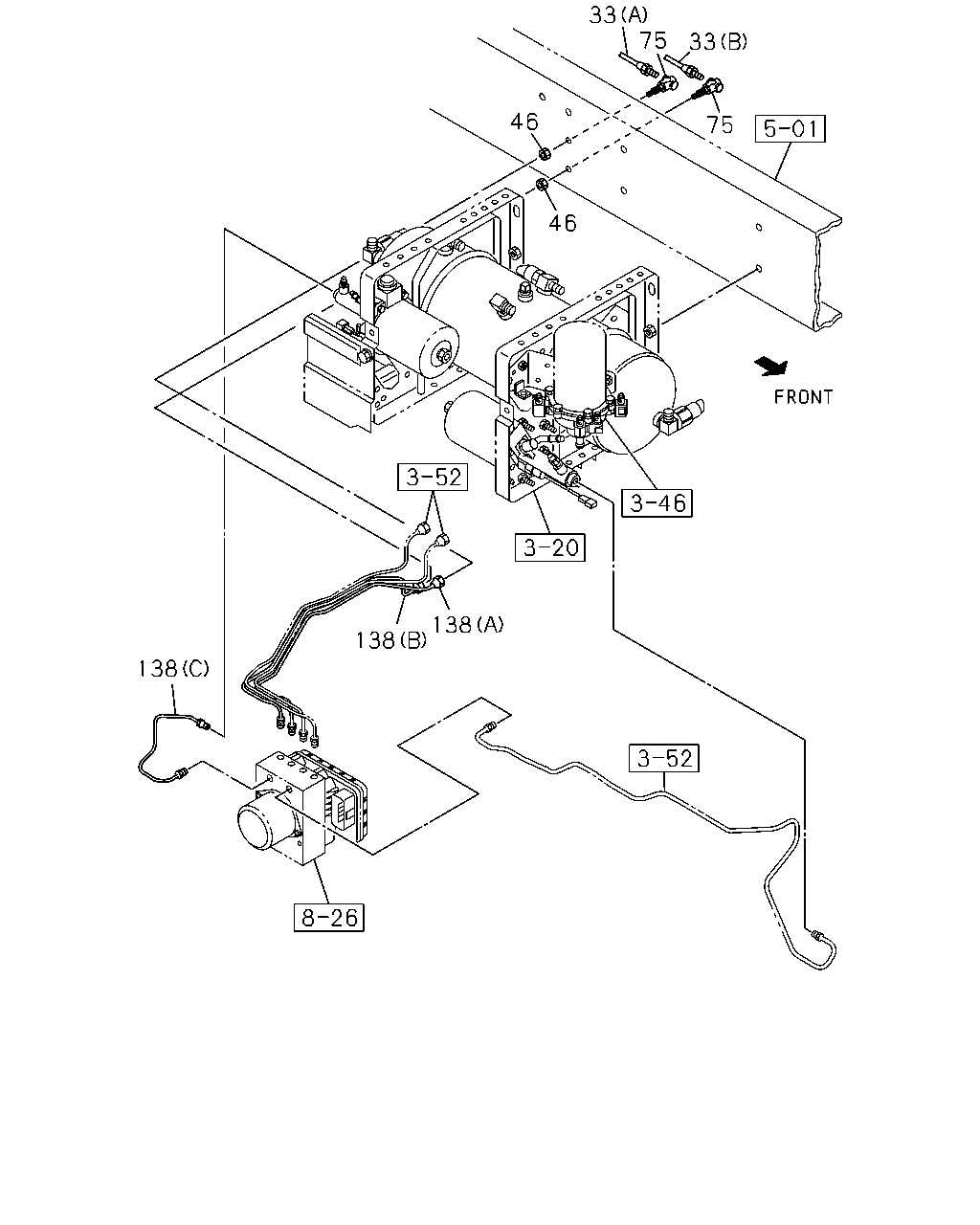

[355A] AIR TANK SIDE (7 parça)

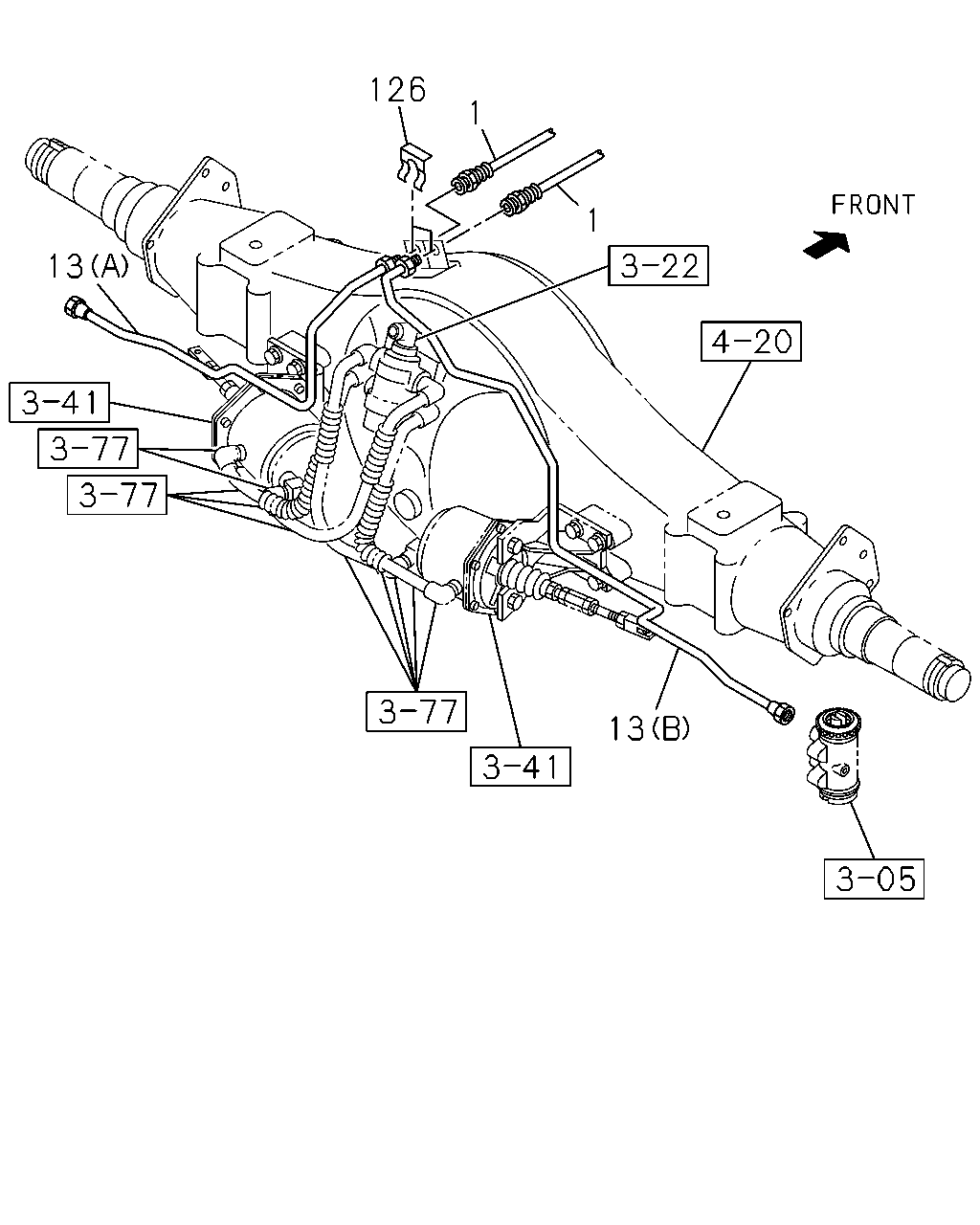

[355A] REAR AXLE SIDE (4 parça)
▶
75
75
33
33
32
32
39
39
126
126
5
4
3
1
1
135
126
126
39
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=350
8-97138-885-0
02
1
1507-
3
BRACKET; FLEX HOSE,RR BRK
8-98065-999-2
01
1
1507-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
1507-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
1507-
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
02
1
1507-
33
PIPE; OIL,UNION TO UNION
(A) L=3254
8-98210-654-0
01
1
1507-
33
PIPE; OIL,UNION TO UNION
(B) L=3250
8-98210-655-0
01
1
1507-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(A) L=1671
8-98203-627-0
01
1
1507-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(B)
8-98203-628-0
01
1
1507-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1507-
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
1507-
135
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
1507-
33
46
46
75
75
33
138
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
PIPE; OIL,UNION TO UNION
(A) L=3254
8-98210-654-0
01
1
1507-
33
PIPE; OIL,UNION TO UNION
(B) L=3250
8-98210-655-0
01
1
1507-
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
1507-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1507-
138
PIPE; HYDRAULIC UNIT
(C) L=279
8-98245-158-0
01
1
1507-
138
PIPE; HYDRAULIC UNIT
(A) L=486
8-98259-284-0
01
1
1507-
138
PIPE; HYDRAULIC UNIT
(B) L=499
8-98259-285-0
01
1
1507-
126
13
1
1
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=350
8-97138-885-0
02
1
1507-
13
PIPE; BRK,RR AXLE
(B) RH LINE
8-98281-557-0
01
1
1507-
13
PIPE; BRK,RR AXLE
(A) LH LINE
8-98281-558-0
01
1
1507-
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
1507-
