2-39 — POWER ASSISTOR (#164252) — 27 parça

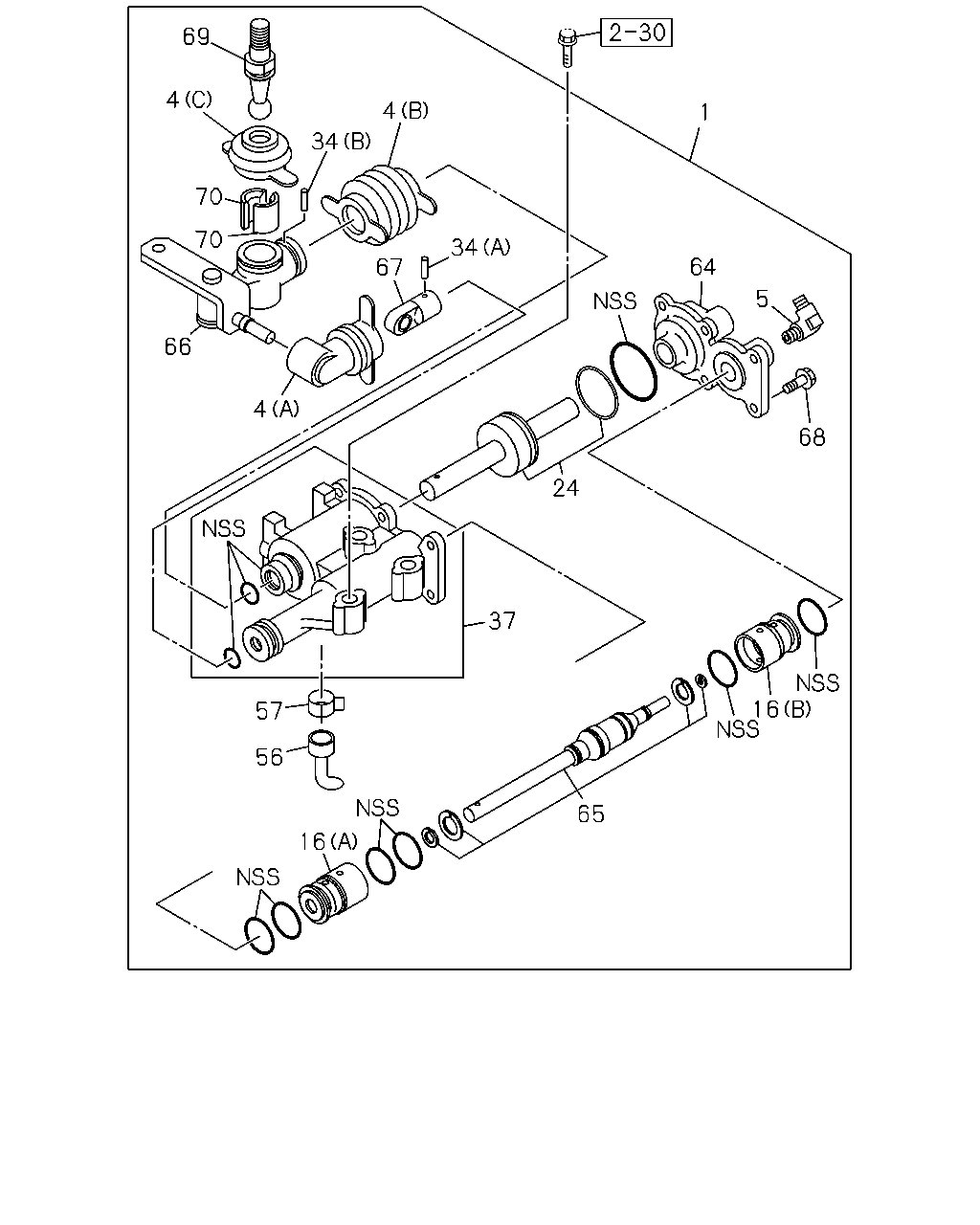

çizim 484322
4 34 69 4 70 70 66 4 57 56 16 65 16 5 68 64 1 34 67 24 37
BalonParca AdiParca NoAdetTipApplied Date
1 ASSISTOR ASM; POWER,SHIFT 8-98237-813-0 01 1 1507-
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 1507-
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 1507-
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 1507-
5 CONNECTOR; CYL
M12 & PT1/8 		0-92124-306-0 01 1 1507-
16 SEAT; VALVE
(B) 		8-97388-032-0 01 1 1507-
16 SEAT; VALVE
(A) 		8-97388-033-0 01 1 1507-
24 PISTON 8-98065-242-0 01 1 1507-
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 1507-
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 1507-
37 HOUSING; POWER SHIFTER 8-97388-027-0 01 1 1507-
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 1507-
57 CLAMP; HOSE 1-33739-849-0 01 1 1507-
64 COVER; HOUSING 8-98025-483-0 01 1 1507-
65 VALVE; POWER SHIFTER 8-97388-029-0 01 1 1507-
66 JOINT ASM; POWER SHIFTER 8-97388-137-0 01 1 1507-
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 1507-
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 1507-
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 1507-
70 SEAT; BALL STUD 1-33659-118-0 02 1 1507-

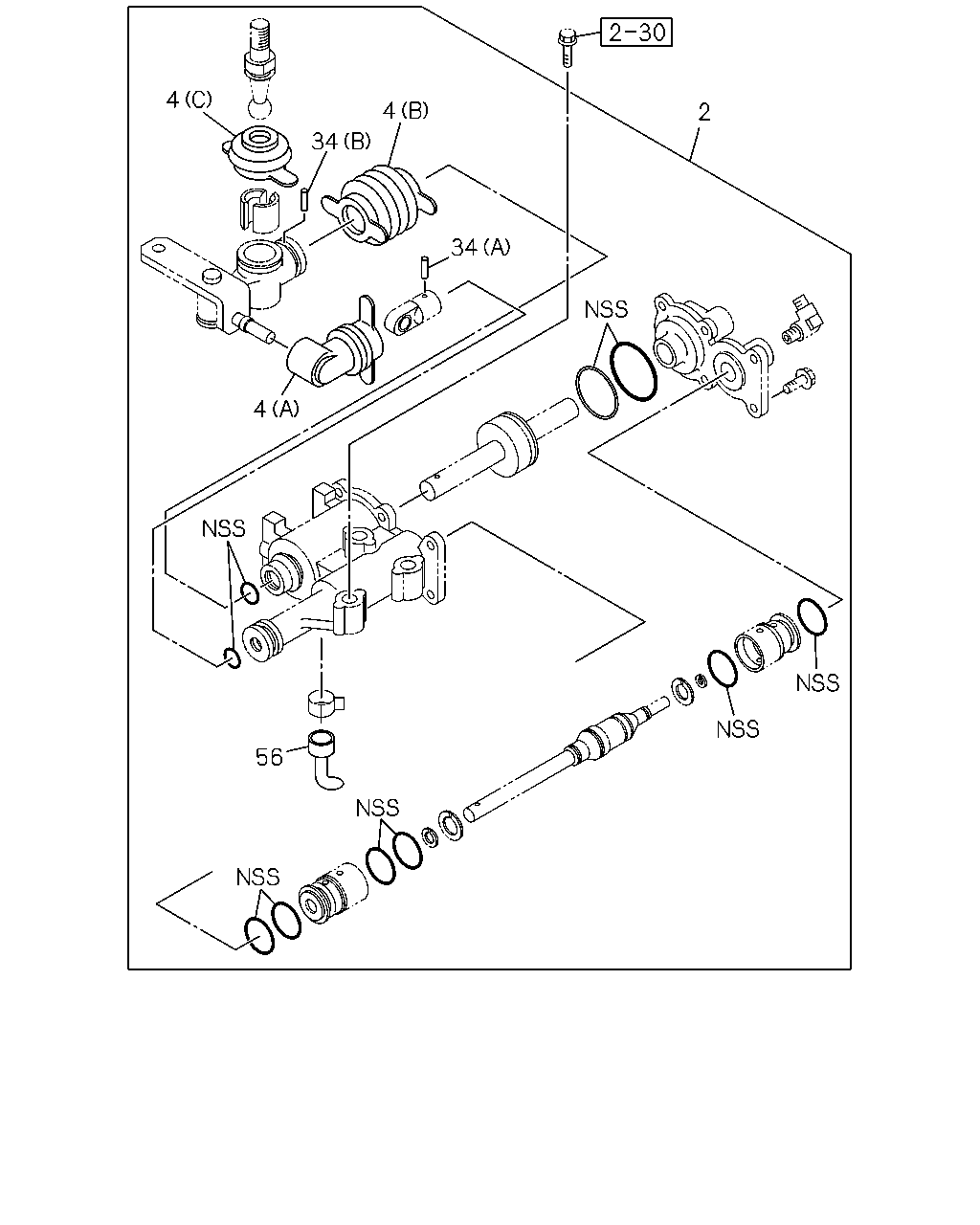

çizim 484325
2 4 4 34 4 34 56
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER SHIFTER 8-97388-035-0 01 1 1507-
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 1507-
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 1507-
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 1507-
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 1507-
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 1507-
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 1507-
