◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#164250) — 22 parça

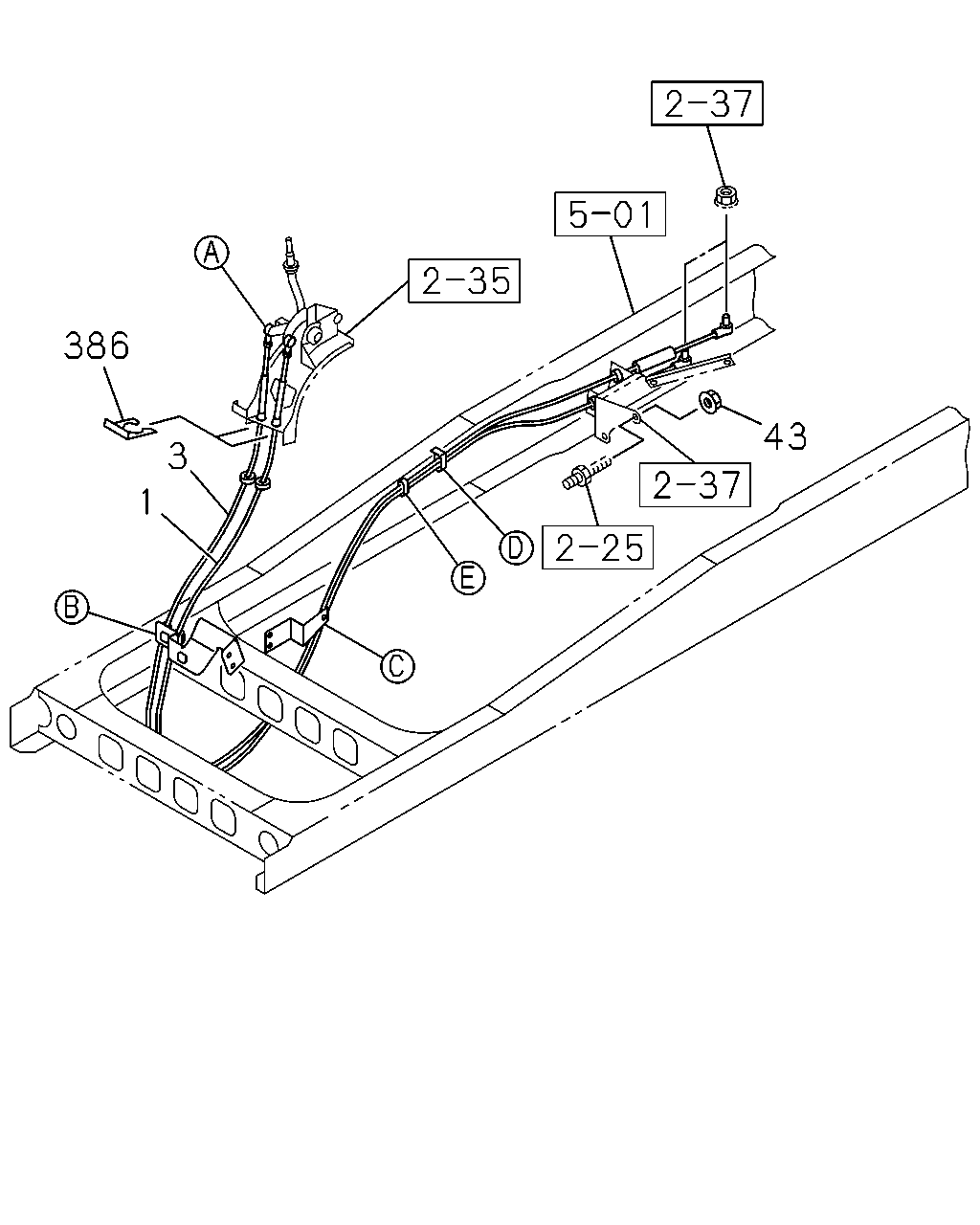

çizim 484287
43 3 1 386
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
L=3020 		8-98177-697-1 01 1 1507-
3 CABLE; SELECT,TRANS CONT
L=3105 		8-98177-701-1 01 1 1507-
43 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1507-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1507-

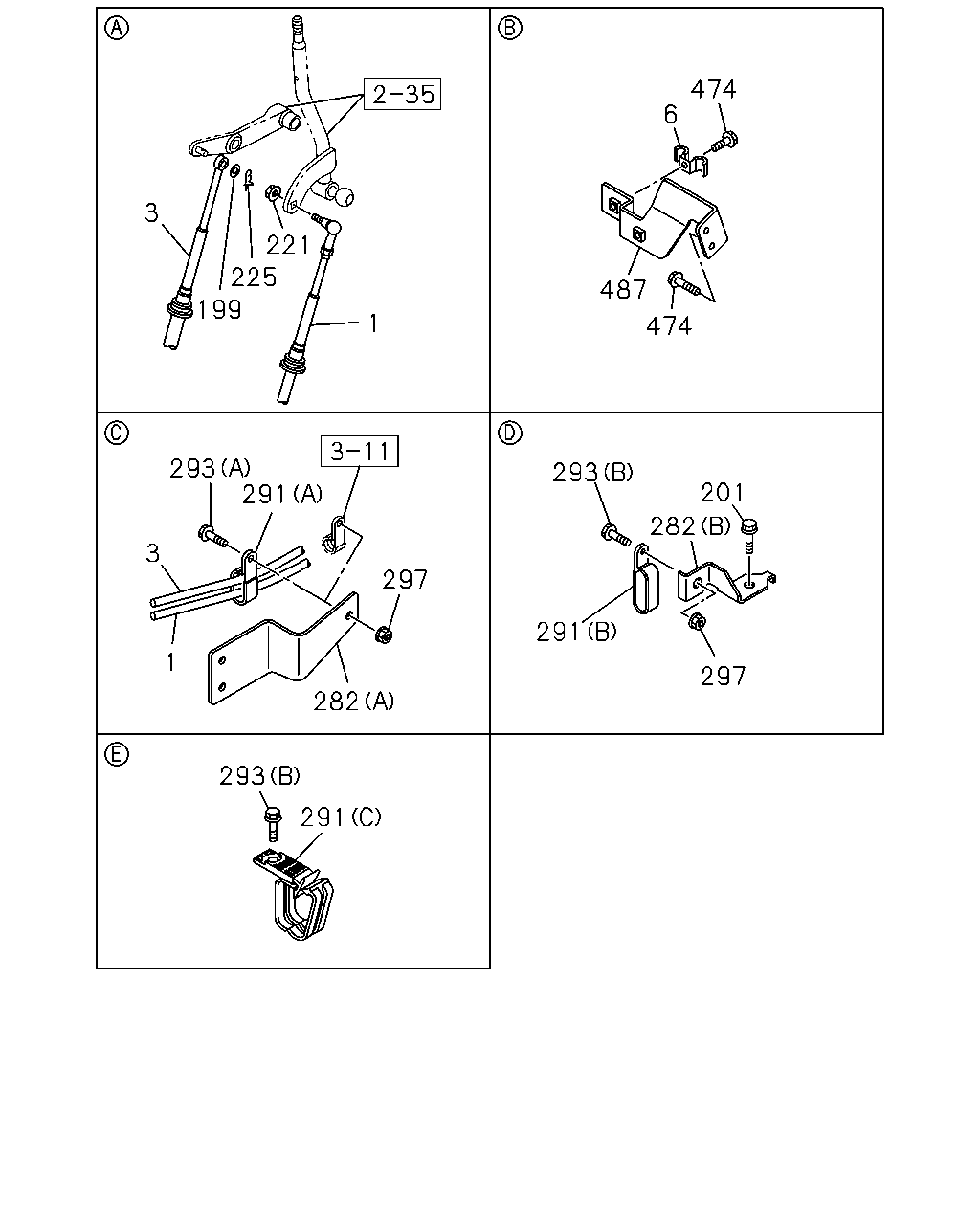

çizim 484288
3 221 225 199 1 6 474 487 474 293 291 3 1 282 297 291 293 282 201 297 293 291
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
L=3020 		8-98177-697-1 01 1 1507-
3 CABLE; SELECT,TRANS CONT
L=3105 		8-98177-701-1 01 1 1507-
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1507-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1507-
201 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1507-
201 BOLT; BRKT
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1507-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1507-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1507-
282 BRACKET; TRANS SIDE
(B) 		8-98126-426-0 01 1 1507-
282 BRACKET; TRANS SIDE
(A) 		8-98287-327-0 01 1 1507-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 1507-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=32 		0-95325-066-0 01 1 1507-
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1507-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1507-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1507-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1507-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1507-
487 BRACKET; CONT CABLE 8-98183-009-0 01 1 1507-
