Isuzu WW
▶
TRUCKS
▶
FRR
▶
11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶

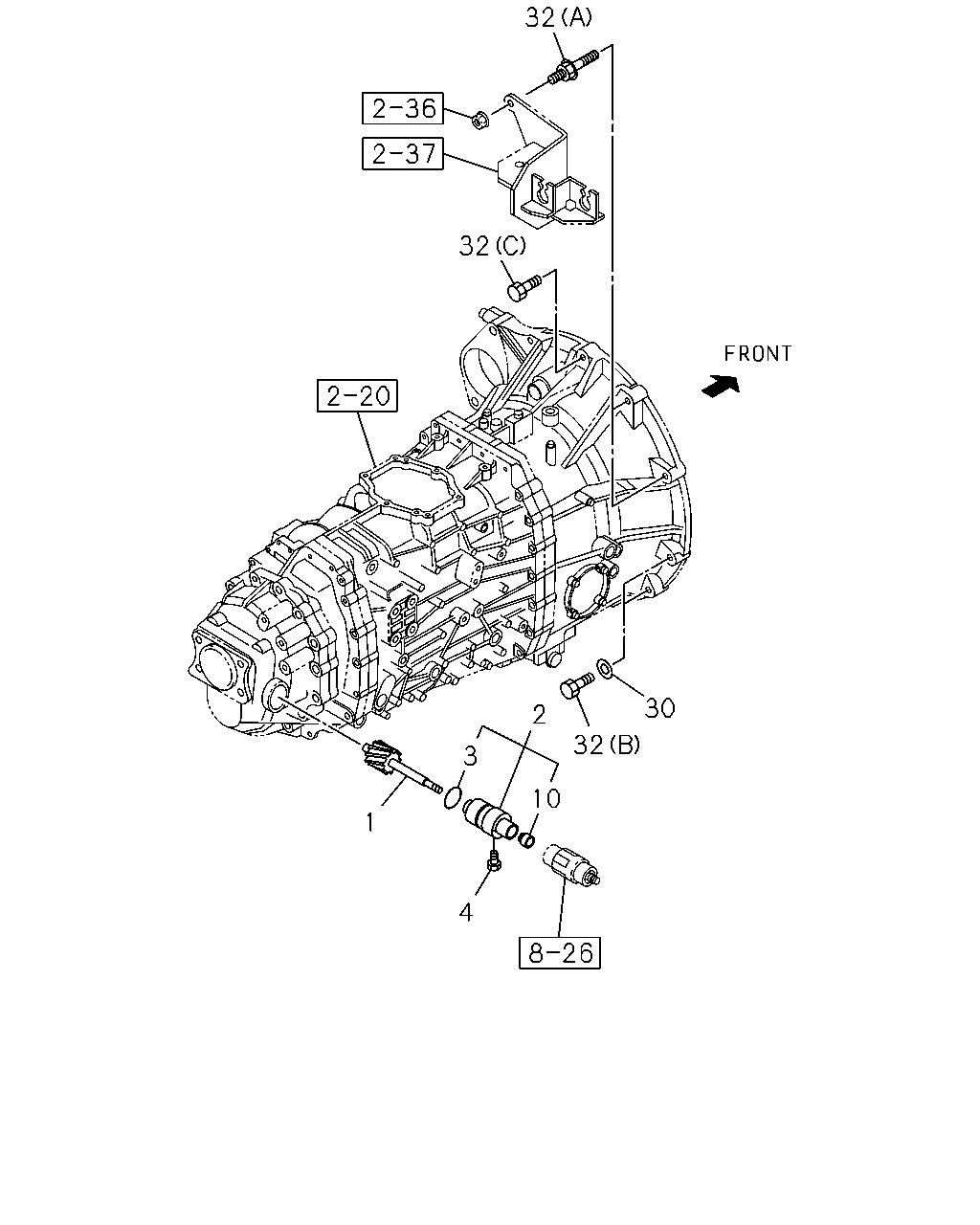

2-25 — SPEEDOMETER DRIVEN GEAR
(#164246) — 9 parça
32
32
30
32
2
10
4
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
Z=15
1-33372-133-5
01
1
1507-
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
8-98000-271-0
01
1
1507-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
1507-
4
BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
1507-
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1507-
30
WASHER; PL,TRANS
ID=11 OD=24
8-94152-902-0
02
1
1507-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE
0-28151-045-0
06
1
1507-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X55 FLANGE
8-97365-449-0
02
1
1507-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75
8-98010-335-0
02
1
1507-
