◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#164242) — 52 parça

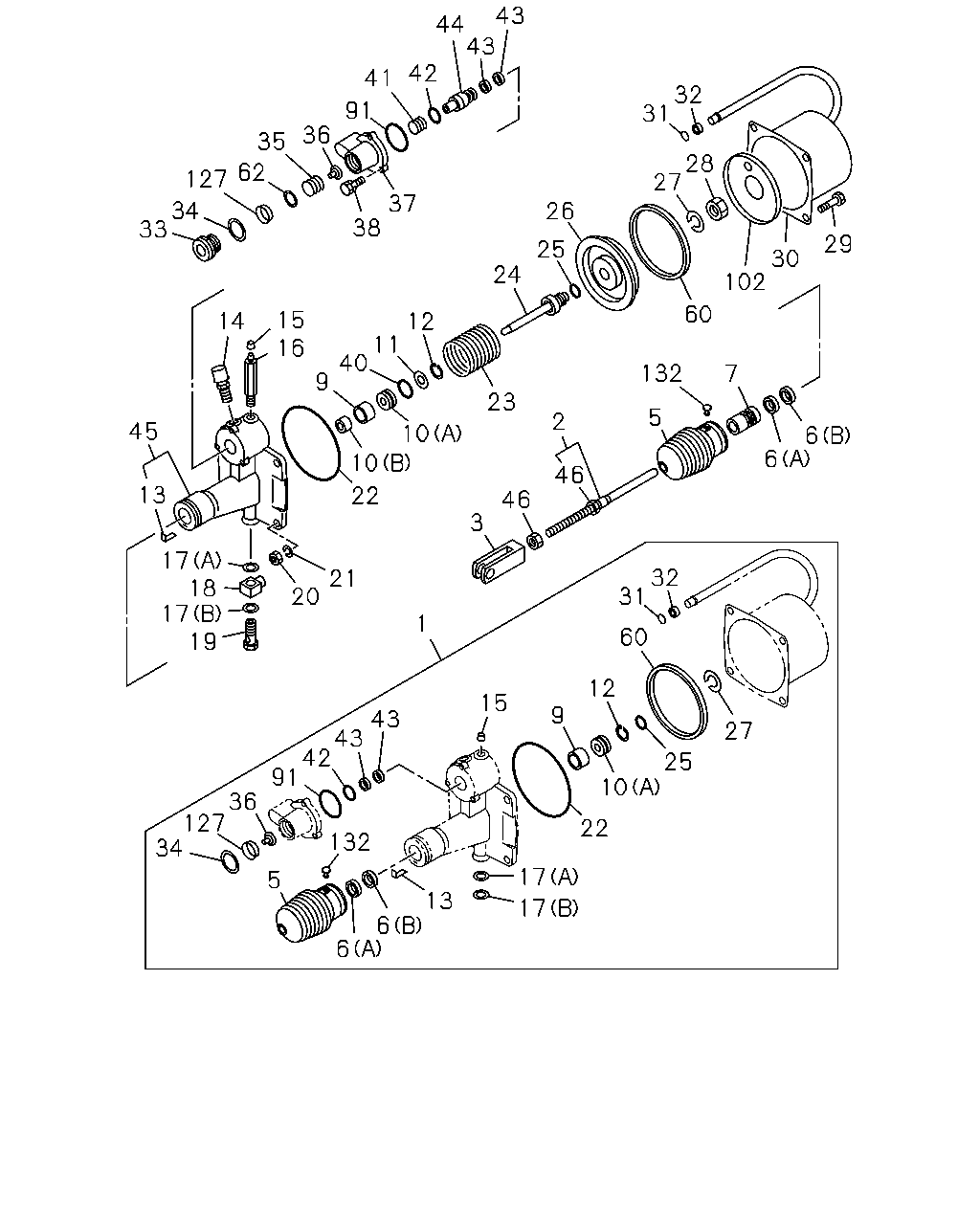

çizim 485188
44 43 43 42 41 91 37 38 36 35 62 127 34 33 14 15 16 9 40 11 12 24 25 26 27 28 31 32 45 13 17 17 19 18 20 21 1 22 10 10 23 2 46 46 3 5 132 7 6 6 60 102 30 29 32 31 60 27 25 12 9 15 10 22 17 17 13 6 6 132 5 43 43 42 91 36 127 34
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-636-0 01 1 1507-
2 ROD; PUSH,CLU BOOSTER 1-31824-261-0 01 1 1507-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-189-0 01 1 1507-
5 GUARD; PISTON,CLU BOOSTER 1-31829-633-0 01 1 1507-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1507-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1507-
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1507-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1507-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1507-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1507-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1507-
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 1507-
13 PIN; SPR 1-31829-109-0 01 1 1507-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1507-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1507-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1507-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1507-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1507-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1507-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1507-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1507-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1507-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1507-
23 SPRING; SHELL,CLU BOOSTER 1-31829-632-0 01 1 1507-
24 ROD; PUSH,CLU BOOSTER 1-31824-259-0 01 1 1507-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1507-
26 PISTON; SHELL,CLU BOOSTER 1-31821-007-0 01 1 1507-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1507-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1507-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1507-
30 SHELL; CYL,CLU BOOSTER 1-31811-155-0 01 1 1507-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1507-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1507-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1507-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1507-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1507-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1507-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1507-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1507-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1507-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-329-0 01 1 1507-
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 1507-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1507-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-092-0 01 1 1507-
45 PLATE; END,CLU BOOSTER 1-31811-156-0 01 1 1507-
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-624-0 02 1 1507-
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 1507-
62 RETAINER; POPPET 1-31829-489-0 01 1 1507-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1507-
102 PLATE; BOOSTER 1-31829-635-0 01 1 1507-
127 FILTER; POPPET 1-31829-495-0 01 1 1507-
132 CAP; CLU BOOSTER 1-31829-634-0 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
