◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#164236) — 104 parça

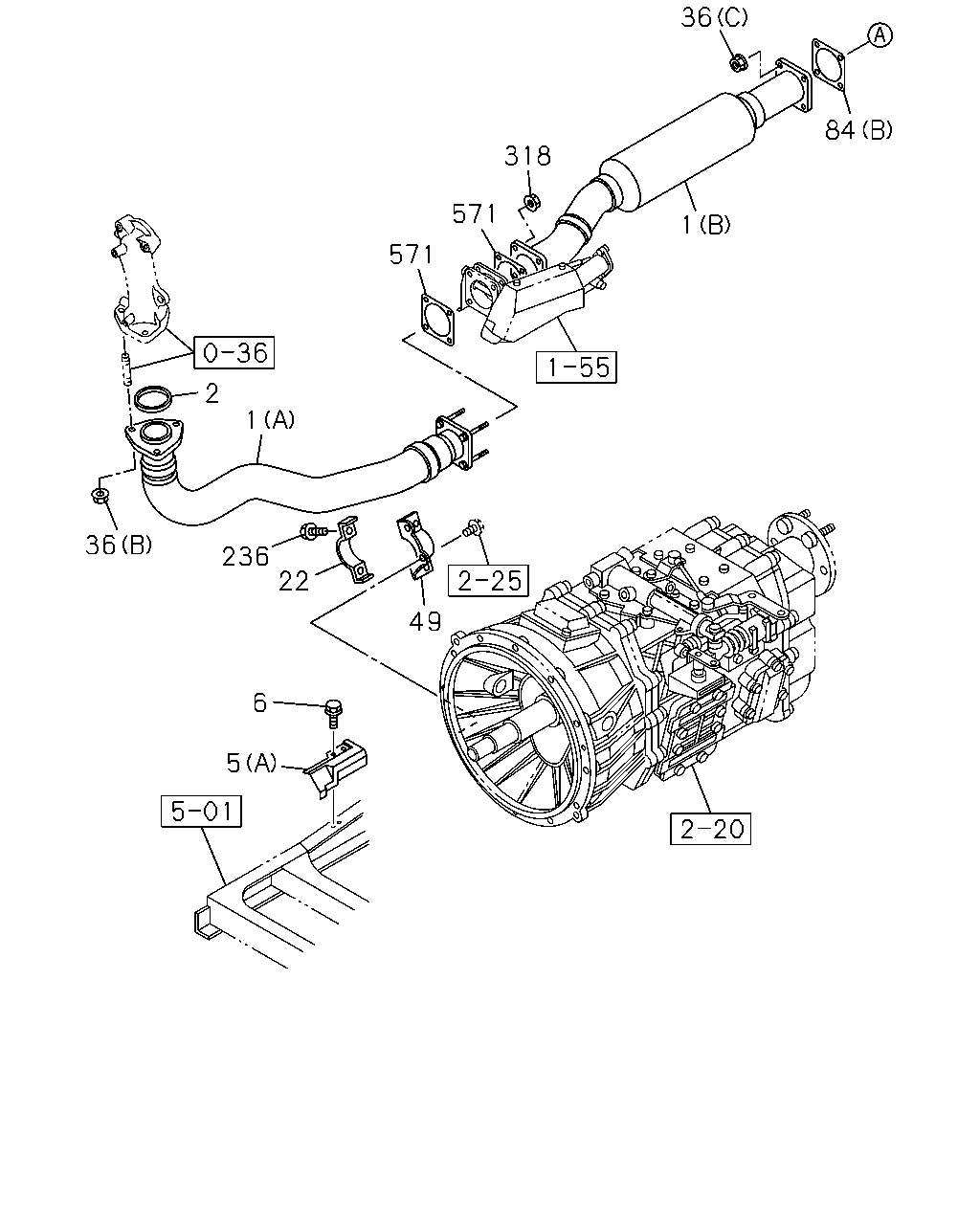

çizim 485044
36 84 1 318 571 571 49 22 236 36 2 5 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		8-98229-233-0 01 1 1507-
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1507-
1 PIPE; EXH
(A) 		8-98243-550-0 01 1 1507-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 1507-
5 PROTECTOR; HEAT
(A) 		8-98044-122-0 01 1 1507-
5 PROTECTOR; HEAT
(B) 		8-98236-295-0 01 1 1507-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 1507-
22 CLAMP; EXH PIPE 8-97646-674-0 01 1 1507-
36 NUT; EXH PIPE
(A) M8 FLANGE 		0-91180-108-0 04 1 1507-
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1507-
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1507-
49 BRACKET; EXH PIPE TO TRANS 8-98208-167-0 01 1 1507-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1507-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 03 1 1507-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 1507-
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1507-
571 GASKET
ID=64 		8-97373-108-0 02 1 1507-

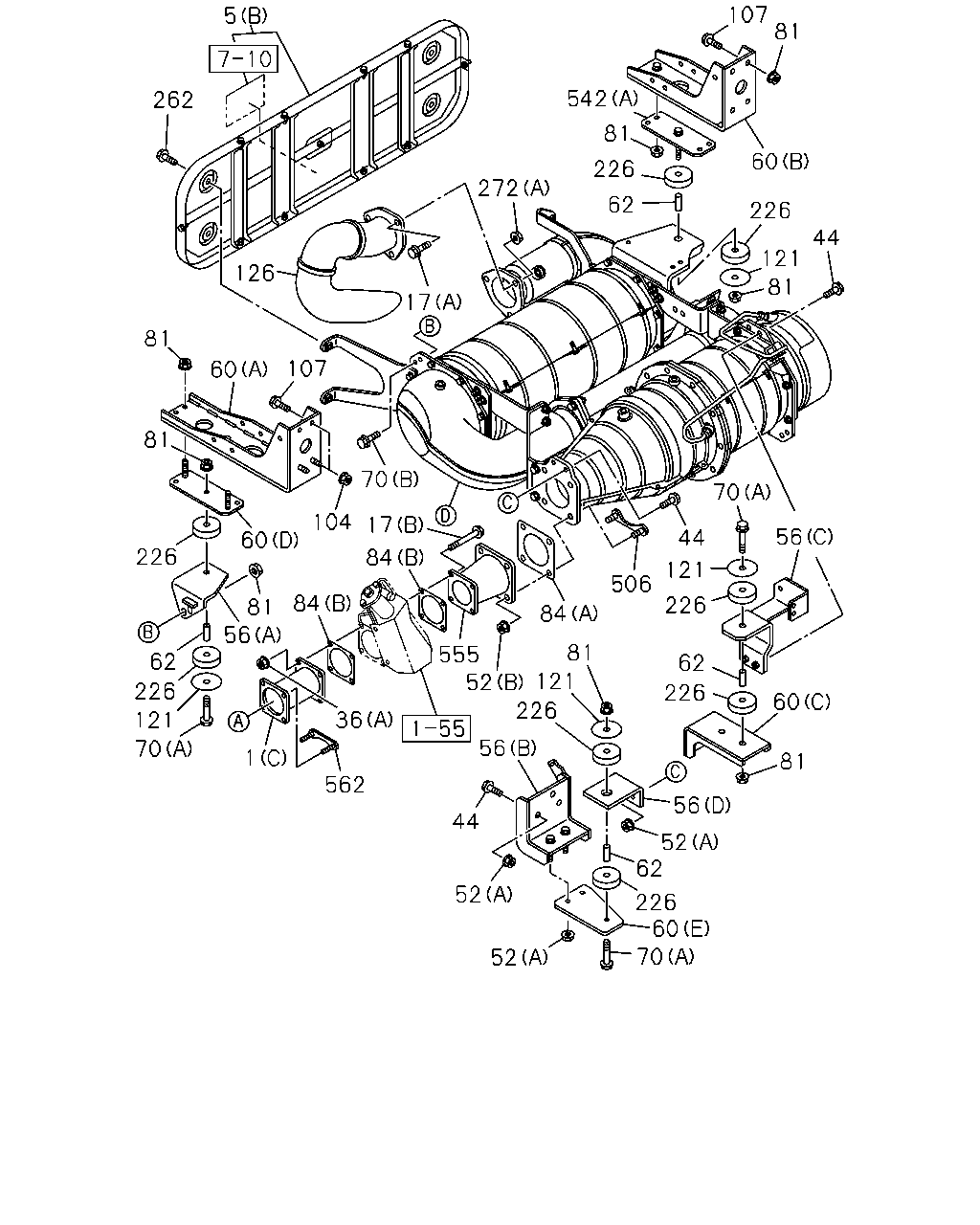

çizim 485231
5 262 126 81 60 107 81 70 104 60 226 81 56 62 226 121 70 1 562 36 84 84 17 555 52 56 226 44 52 52 121 81 84 506 121 44 226 62 226 56 52 62 226 60 70 81 60 56 70 81 121 44 226 60 81 107 542 81 226 62 272 17
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		8-98229-233-0 01 1 1507-
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1507-
1 PIPE; EXH
(A) 		8-98243-550-0 01 1 1507-
5 PROTECTOR; HEAT
(A) 		8-98044-122-0 01 1 1507-
5 PROTECTOR; HEAT
(B) 		8-98236-295-0 01 1 1507-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1507-
17 BOLT; EXH PIPE
(B) M8X65 FLANGE 		1-09044-072-1 04 1 1507-
36 NUT; EXH PIPE
(A) M8 FLANGE 		0-91180-108-0 04 1 1507-
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1507-
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1507-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 09 1 1507-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 07 1 1507-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 1507-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98203-966-0 01 1 1507-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98224-250-1 01 1 1507-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98229-042-0 01 1 1507-
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98229-237-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(A) 		8-98159-854-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(D) 		8-98159-985-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(B) 		8-98223-954-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(E) 		8-98224-330-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(C) 		8-98229-041-0 01 1 1507-
62 TUBE; DIST,BRKT 8-98131-254-0 04 1 1507-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 03 1 1507-
70 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1507-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 12 1 1507-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1507-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 03 1 1507-
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1507-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1507-
121 WASHER; PL,BRKT
ID=10.5 OD=70 		8-97625-671-0 04 1 1507-
126 PIPE; EXH,RR 8-98224-713-0 01 1 1507-
226 RUBBER; CUSHION 8-97625-670-0 08 1 1507-
262 BOLT; HANGER TO BODY
M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1507-
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1507-
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1507-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1507-
542 BRACKET
(B) 		8-98232-788-0 01 1 1507-
542 BRACKET
(A) 		8-98236-728-0 01 1 1507-
555 PIPE; EXH,DPD 8-98224-353-0 01 1 1507-
562 PLATE; STUD,BOLT 8-97373-966-0 02 1 1507-

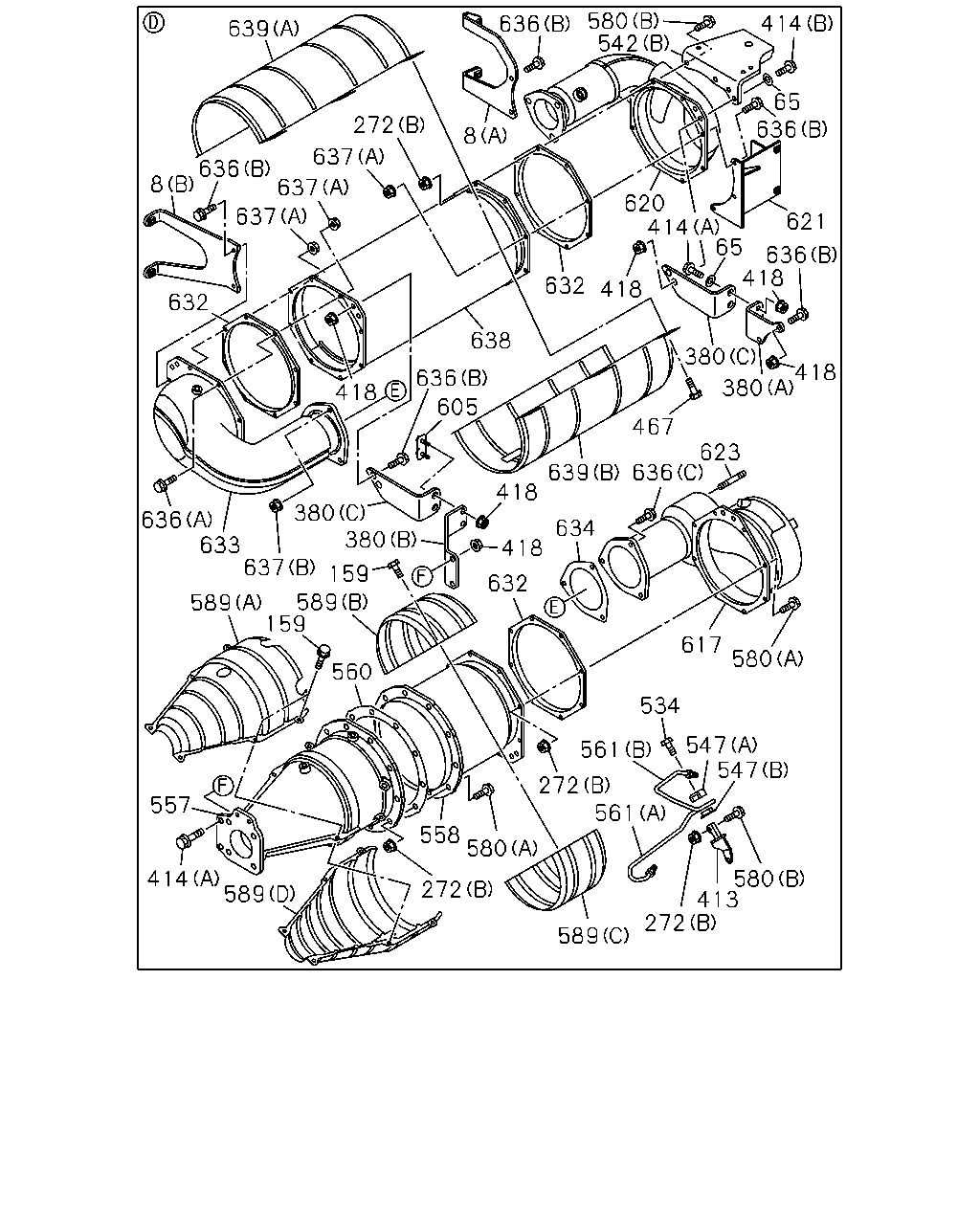

çizim 485384
639 636 8 637 632 636 633 637 589 159 560 589 380 380 159 632 418 418 634 639 636 623 617 580 534 547 547 580 413 272 589 272 589 414 557 558 580 272 561 561 467 605 418 636 638 632 418 380 380 418 418 636 621 65 414 620 636 65 414 542 580 636 8 637 637 272
BalonParca AdiParca NoAdetTipApplied Date
8 BRACKET; EXH PIPE
(A) 		8-98144-459-0 01 1 1507-
8 BRACKET; EXH PIPE
(B) 		8-98203-726-0 01 1 1507-
65 WASHER; PL
ID=10.5 OD=22 		0-91614-610-0 06 1 1507-
159 BOLT; HEAT PROTECTOR
M6X16 		8-98019-179-0 10 1 1507-
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1507-
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1507-
380 BRACKET; STAY
(A) 		8-98118-879-0 01 1 1507-
380 BRACKET; STAY
(C) 		8-98138-457-1 02 1 1507-
380 BRACKET; STAY
(B) 		8-98205-012-0 01 1 1507-
413 BRACKET; EXH PIPE,CONN 8-98138-485-0 01 1 1507-
414 BOLT; BRKT
(A) M10X35 FLANGE 		0-28051-035-0 06 1 1507-
414 BOLT; BRKT
(B) M10X45 FLANGE 		0-28051-045-0 02 1 1507-
418 NUT; BRKT
M10 FLANGE 		0-91180-110-0 10 1 1507-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 06 1 1507-
534 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 1507-
542 BRACKET
(B) 		8-98232-788-0 01 1 1507-
542 BRACKET
(A) 		8-98236-728-0 01 1 1507-
547 CLIP; PIPE
(A) 		8-97381-635-0 01 1 1507-
547 CLIP; PIPE
(B) 		8-97381-636-0 01 1 1507-
557 CATALYST ASM 8-98204-940-1 01 1 1507-
558 FILTER ASM 8-98204-942-0 01 1 1507-
560 GASKET; DPD 8-97611-080-0 01 1 1507-
561 PIPE; DPD
(A) 		8-98138-575-0 01 1 1507-
561 PIPE; DPD
(B) 		8-98138-576-0 01 1 1507-
580 BOLT; FLANGE
(A) M8X30 FLANGE 		0-28050-830-0 14 1 1507-
580 BOLT; FLANGE
(B) M8X40 FLANGE 		0-28050-840-0 04 1 1507-
589 PROTECTOR; HEAT,DPD
(A) 		8-97611-086-0 01 1 1507-
589 PROTECTOR; HEAT,DPD
(B) 		8-97628-261-0 01 1 1507-
589 PROTECTOR; HEAT,DPD
(C) 		8-97628-262-0 01 1 1507-
589 PROTECTOR; HEAT,DPD
(D) 		8-98140-713-0 01 1 1507-
605 PLATE; NUT 8-98148-511-0 01 1 1507-
617 CHAMBER SUB ASM; MIXER 8-98204-944-1 01 1 1507-
620 CHAMBER ASM; RR 8-98205-011-0 01 1 1507-
621 BRACKET; PROTECTOR 8-98159-190-1 01 1 1507-
623 STUD; FLANGE
M6 		8-98141-351-0 03 1 1507-
632 GASKET; FILTER,DEF 8-97628-257-0 03 1 1507-
633 CHAMBER SUB ASM; DEF,FRONT 8-98138-451-0 01 1 1507-
634 GASKET; MIXER 8-98118-422-1 01 1 1507-
636 BOLT; FLANGE,DEF FRONT
(A) M8X30 FLANGE 		0-28050-830-0 07 1 1507-
636 BOLT; FLANGE,DEF FRONT
(B) M8X40 FLANGE 		0-28050-840-0 09 1 1507-
636 BOLT; FLANGE,DEF FRONT
(C) M10X40 FLANGE 		0-28051-040-0 03 1 1507-
637 NUT; FLANGE,DEF FRONT
(A) M8 FLANGE 		0-91180-108-0 15 1 1507-
637 NUT; FLANGE,DEF FRONT
(B) M10 FLANGE 		0-91180-110-0 03 1 1507-
638 CATALYST ASM; DEF 8-98205-010-0 01 1 1507-
639 PROTECTOR; HEAT,CATALYST ASM DEF
(A) 		8-98136-188-0 01 1 1507-
639 PROTECTOR; HEAT,CATALYST ASM DEF
(B) 		8-98136-189-1 01 1 1507-
