1-46 — DEF TANK AND PIPING (#164235) — 164 parça

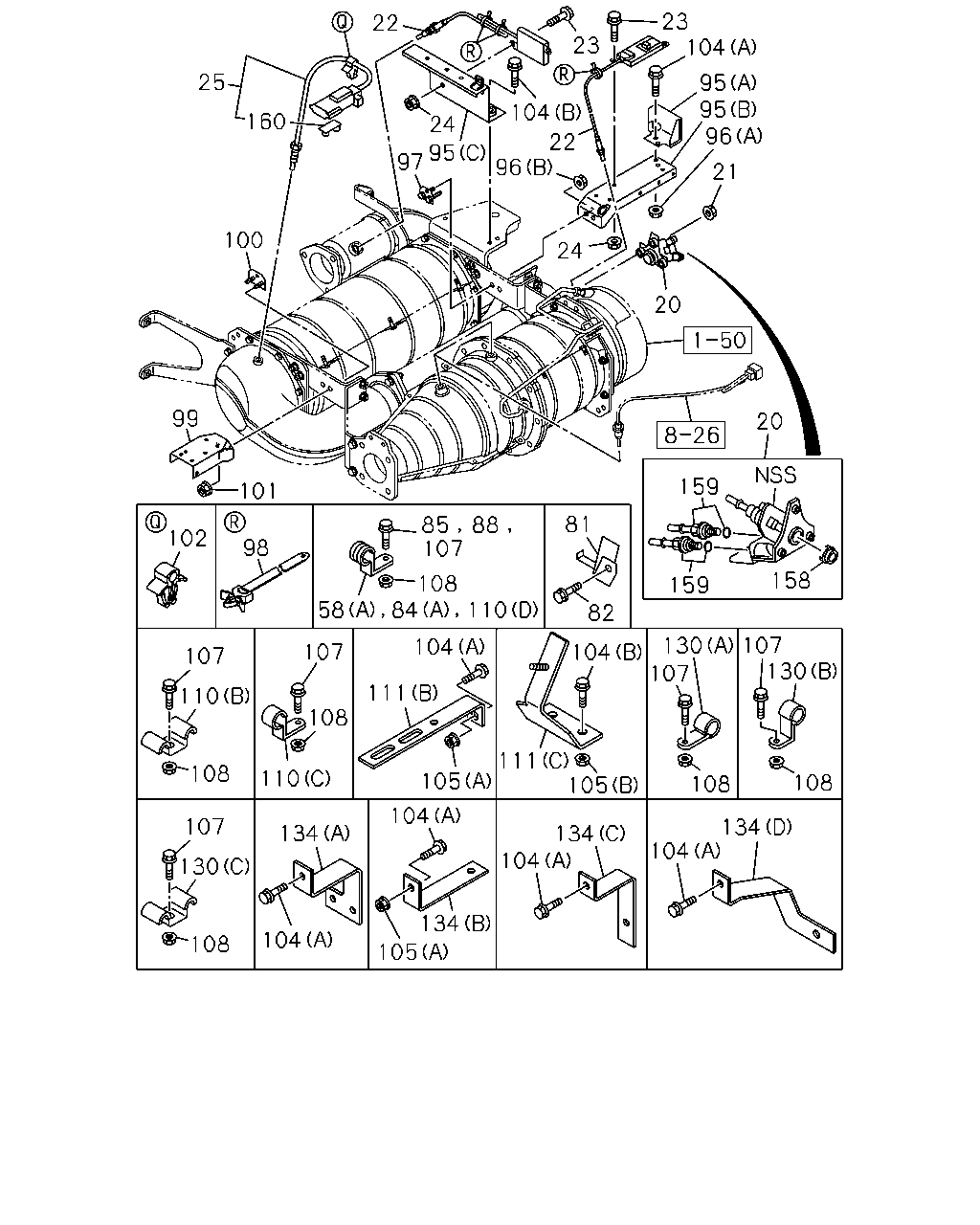

22 160 25 97 95 96 22 104 24 100 99 101 102 98 107 110 108 108 130 108 104 134 104 105 134 104 134 104 134 108 130 107 130 104 111 105 104 111 105 110 108 107 58 84 108 110 107 85 88 81 82 159 159 158 20 21 96 95 95 104 23 23 108 107 20 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	INJECTOR ASM; DEF DCM	8-98231-898-2	01	1	1507-
21	NUT; INJECTOR ASM,DEF DCM M6 FLANGE	0-91180-106-0	03	1	1507-
22	SENSOR; DEF DCM EXH NOX	8-98302-394-0	02	1	1507-
23	BOLT; SENSOR,DEF DCM EXH NOX	8-98155-181-0	04	1	1507-
24	NUT; SENSOR,DEF DCM EXH NOX M6 FLANGE	0-91180-106-0	04	1	1507-
25	SENSOR; DEF DCM EXH TEMP	8-98086-329-0	01	1	1507-
58	CLIP; DEF RSVR HTR DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1507-
58	CLIP; DEF RSVR HTR DLVY HOSE (B) ID=16	8-97329-628-0	02	1	1507-
81	BRACKET; DEF DCM MDL COOL RTN HOSE	8-98239-525-0	01	1	1507-
82	BOLT/SCREW;DEF DCM MDL COOL RTN HOSE B M8X30 FLANGE	0-28650-830-0	01	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (B) ID=16	8-97329-628-0	03	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (C) ID=16	8-98008-098-0	01	1	1507-
85	BOLT/SCREW;DEF DCM MDL COOL RTN HOSE C M8X20 FLANGE	0-28650-820-0	01	1	1507-
88	BOLT; CLIP,DEF RSVR HTR DLVY HOSE M8X20 FLANGE	0-28650-820-0	01	1	1507-
95	BRACKET; HARN,DEF DCM EXH NOX SEN (B)	8-98142-266-3	01	1	1507-
95	BRACKET; HARN,DEF DCM EXH NOX SEN (A)	8-98170-211-0	01	1	1507-
95	BRACKET; HARN,DEF DCM EXH NOX SEN (C)	8-98241-870-0	01	1	1507-
96	NUT; BRACKET,DEF DCM EXH NOX SEN HARN (A) M8 FLANGE	0-91180-108-0	02	1	1507-
96	NUT; BRACKET,DEF DCM EXH NOX SEN HARN (B) M10 FLANGE	0-91180-210-0	02	1	1507-
97	STUD; BRACKET,DEF DCM EXH NOX SEN HARN	8-98005-985-0	01	1	1507-
98	CLIP; DEF DCM EXH NOX SEN HARN L=112	8-94232-618-0	08	1	1507-
99	BRACKET; DEF DCM EXH TEMP SEN HARN	8-98248-149-0	01	1	1507-
100	BOLT; BRKT,DEF DCM EXH TEMP SEN HARN	8-98005-985-0	01	1	1507-
101	NUT; CLIP,DEF DCM EXH TEMP SEN HARN M10 FLANGE	0-91180-210-0	02	1	1507-
102	CLIP; DEF DCM EXH TEMP SEN HARN ID=4.8	1-09701-218-0	03	1	1507-
104	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
104	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1507-
104	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	05	1	1507-
104	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	07	1	1507-
104	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1507-
105	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1507-
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	07	1	1507-
107	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	09	1	1507-
108	NUT; CLIP M8 FLANGE	0-91180-108-0	10	1	1507-
110	CLIP; TUBE ASM (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1507-
110	CLIP; TUBE ASM (B) ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	1507-
110	CLIP; TUBE ASM (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1507-
110	CLIP; TUBE ASM (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1507-1508
110	CLIP; TUBE ASM (D) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1509-
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	07	1	1507-
111	BRACKET; CLIP,TUBE ASM (A)	8-98309-774-0	03	1	1507-
111	BRACKET; CLIP,TUBE ASM (B) L=225	1-47477-646-3	02	1	1507-
111	BRACKET; CLIP,TUBE ASM (C)	8-98206-696-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM (D)	8-98206-700-0	01	1	1507-
130	CLIP; PIPE ASM (A) ID=13 L=20	0-95235-235-0	02	1	1507-
130	CLIP; PIPE ASM (C) ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	03	1	1507-
130	CLIP; PIPE ASM (B) ID=13 H=18 L=20	1-09700-813-0	02	1	1507-
134	BRACKET; PIPE ASM (B)	1-34656-009-0	01	1	1507-
134	BRACKET; PIPE ASM (C)	8-98210-678-0	02	1	1507-
134	BRACKET; PIPE ASM (D)	8-98210-679-0	01	1	1507-
134	BRACKET; PIPE ASM (A)	8-98255-027-0	01	1	1507-
158	GASKET; INJECTOR ASM,DEF DCM	8-98086-333-0	01	1	1507-
159	CONNECTOR KIT; COOLANT,INJECTOR ASM DE	8-98169-416-1	02	1	1507-
160	CLIP; HARNESS,SENSOR DEF DCM EXH TEMP	8-98170-331-0	01	1	1507-

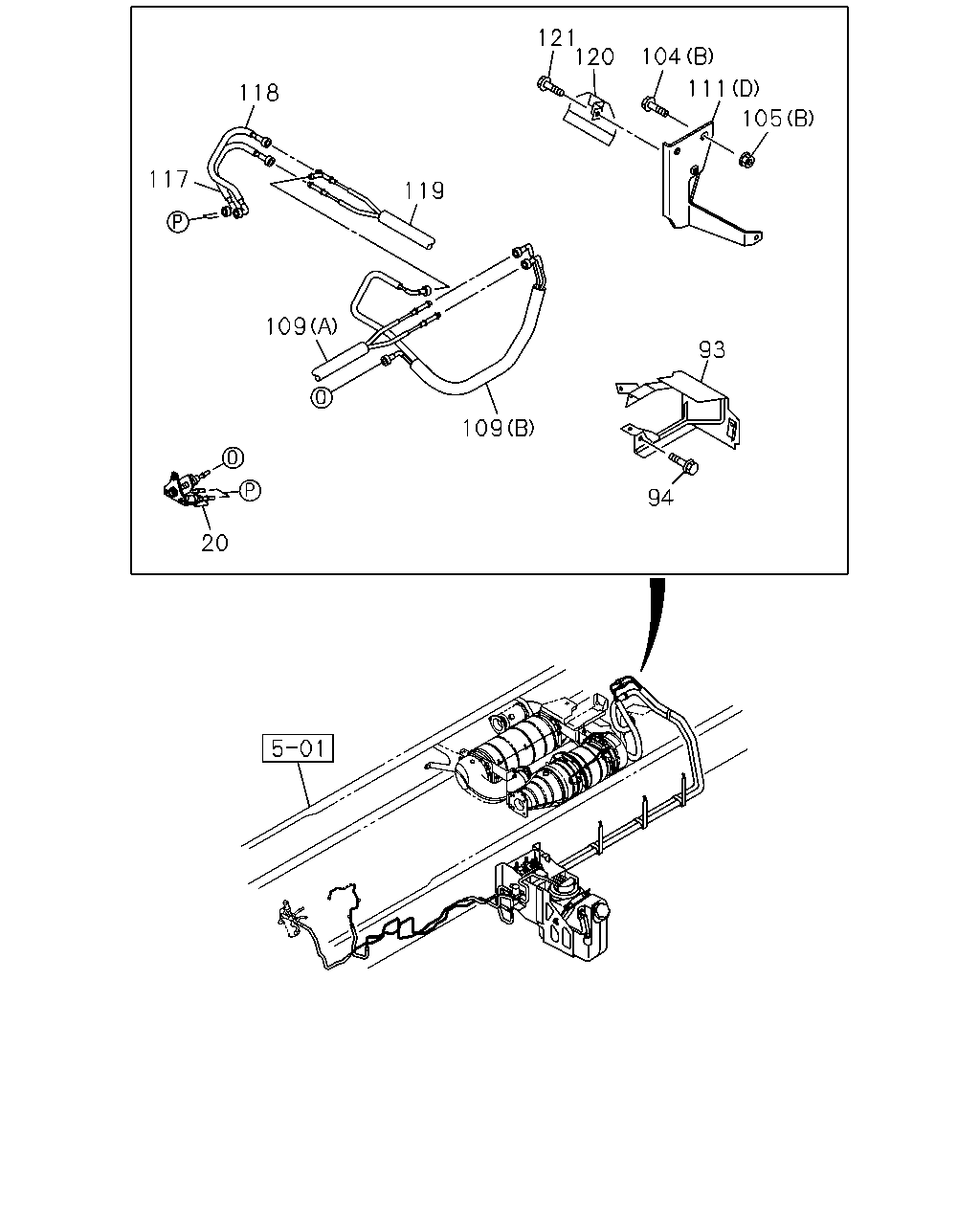

117 118 119 109 109 20 94 93 105 111 104 120 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	INJECTOR ASM; DEF DCM	8-98231-898-2	01	1	1507-
93	PROTECTOR; DEF DCM	8-98166-811-0	01	1	1507-
94	BOLT; PROTECTOR,DEF DCM M8X25 FLANGE	0-28650-825-0	02	1	1507-
104	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
104	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1507-
104	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	05	1	1507-
104	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	07	1	1507-
104	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1507-
105	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1507-
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	07	1	1507-
109	TUBE ASM; DEF & WATER (B)	8-98206-720-0	01	1	1507-1508
109	TUBE ASM; DEF & WATER (B)	8-98329-849-0	01	1	1509-
109	TUBE ASM; DEF & WATER (A)	8-98210-675-1	01	1	1507-1509
109	TUBE ASM; DEF & WATER (A)	8-98329-848-0	01	1	1510-
109	TUBE ASM; DEF & WATER (C)	8-98233-439-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM (A)	8-98309-774-0	03	1	1507-
111	BRACKET; CLIP,TUBE ASM (B) L=225	1-47477-646-3	02	1	1507-
111	BRACKET; CLIP,TUBE ASM (C)	8-98206-696-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM (D)	8-98206-700-0	01	1	1507-
117	TUBE ASM; DEF DCM COOL DLVY	8-98169-122-0	01	1	1507-
118	TUBE ASM; DEF DCM COOL RTN	8-98169-121-0	01	1	1507-
119	TUBE ASM; DEF COOL & HTR WAT	8-98210-676-2	01	1	1507-1509
119	TUBE ASM; DEF COOL & HTR WAT	8-98329-850-0	01	1	1510-
120	PROTECTOR; DEF COOL & HTR WAT TUBE	8-98169-727-0	01	1	1507-
121	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	01	1	1507-

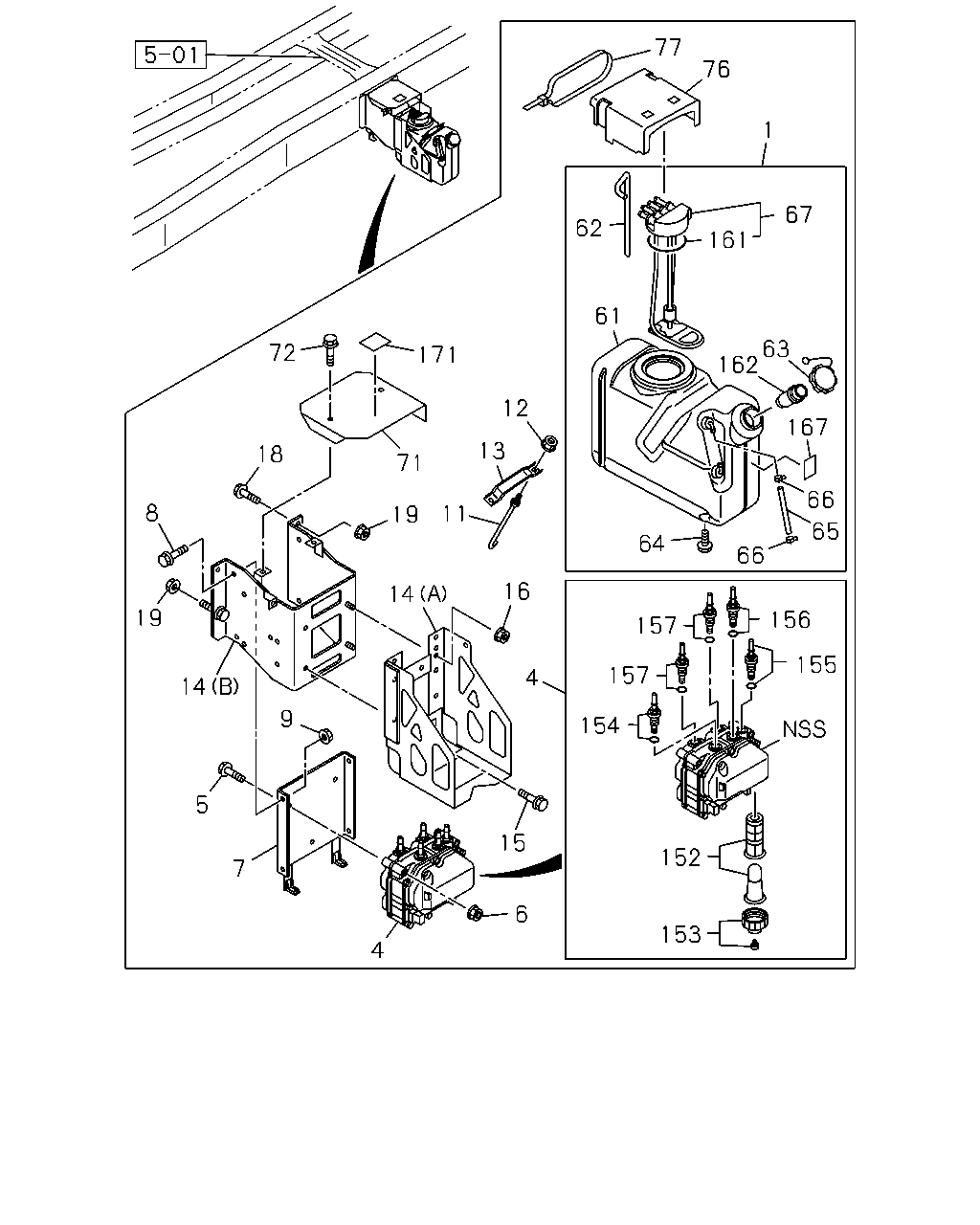

77 76 1 67 161 62 61 162 63 167 66 65 66 64 157 157 154 156 155 152 153 6 15 4 7 5 14 19 8 18 72 171 71 19 14 11 13 12 16 4 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; DEF	8-98239-382-3	01	1	1507-
4	PUMP ASM; DEF,DCM SPLY	8-98268-812-0	01	1	1507-
5	BOLT; PUMP ASM,DEF DCM SPLY M8X90 FLANGE	0-28050-890-0	03	1	1507-
6	NUT; DEF DCM SPLY M8 FLANGE	0-91180-108-0	03	1	1507-
7	BRACKET; DEF DCM SPLY	8-98239-367-0	01	1	1507-
8	BOLT; BRKT,DEF DCM SPLY M8X20 FLANGE	0-28050-820-0	04	1	1507-
9	NUT; BRKT,DEF DCM SPLY M8 FLANGE	0-91180-208-0	04	1	1507-
11	BOLT; DEF TANK	8-98157-936-0	02	1	1507-
12	NUT; DEF TANK M10 FLANGE	0-91180-110-0	02	1	1507-
13	RETAINER; DEF TANK	8-98156-747-0	01	1	1507-
14	BRACKET ASM; DEF TANK (A)	8-98214-590-0	01	1	1507-
14	BRACKET ASM; DEF TANK (B)	8-98239-989-1	01	1	1507-
15	BOLT; BRKT,DEF TANK M10X40 FLANGE	0-28651-040-0	02	1	1507-
16	NUT; BRKT,DEF TANK M10 FLANGE	0-91180-210-0	04	1	1507-
18	BOLT; BRKT,DEF TANK M10X40 FLANGE	0-28651-040-0	02	1	1507-
19	NUT; BRKT,DEF TANK M10 FLANGE	0-91180-210-0	04	1	1507-
61	BODY ASM; DEF TANK	8-98220-878-1	01	1	1507-
62	HOSE; VENT,DEF TANK	8-98239-981-1	01	1	1507-
63	CAP ASM; FILLER,DEF TANK	8-98147-581-1	01	1	1507-
64	PLUG; DRAIN,DEF TANK	8-98120-263-0	01	1	1507-
65	HOSE; WATER LEVEL	8-98120-264-1	01	1	1507-
66	CLAMP; WATER LEVEL HOSE	8-98120-265-1	02	1	1507-
67	SENSOR ASM; DEF TANK	8-98213-926-1	01	1	1507-
71	COVER; DEF DCM SPLY	8-98233-434-0	01	1	1507-
72	BOLT; COVER,DEF DCM SPLY M8X20 FLANGE	0-28650-820-0	02	1	1507-
76	COVER; DEF TANK CAP	8-98156-298-1	01	1	1507-
77	CLIP; DEF TANK CAP CVR L=350	1-09707-183-0	01	1	1507-
152	FILTER KIT; PUMP ASM,DEF DCM SPLY	8-98169-403-0	01	1	1507-
153	COVER KIT; PUMP ASM,DEF DCM SPLY	8-98169-408-0	01	1	1507-
154	CONNECTOR KIT; INLET PUMP,DEF	8-98169-409-0	01	1	1507-
155	CONNECTOR KIT; OUTLET PUMP,DEF	8-98169-411-0	01	1	1507-
156	CONNECTOR KIT; RETURN PUMP,DEF	8-98268-813-0	01	1	1507-
157	CONNECTOR KIT; COOLANT PUMP,DEF	8-98169-414-1	02	1	1507-
161	GASKET; SENSOR ASM,DEF TANK	8-98170-383-0	01	1	1507-
162	ADAPTER; DEF TANK	8-98131-158-0	01	1	1507-
167	PLATE; CAUTION,DEF	8-98231-935-0	01	1	1507-
171	LABEL; NO STEP	8-98158-131-0	01	1	1507-

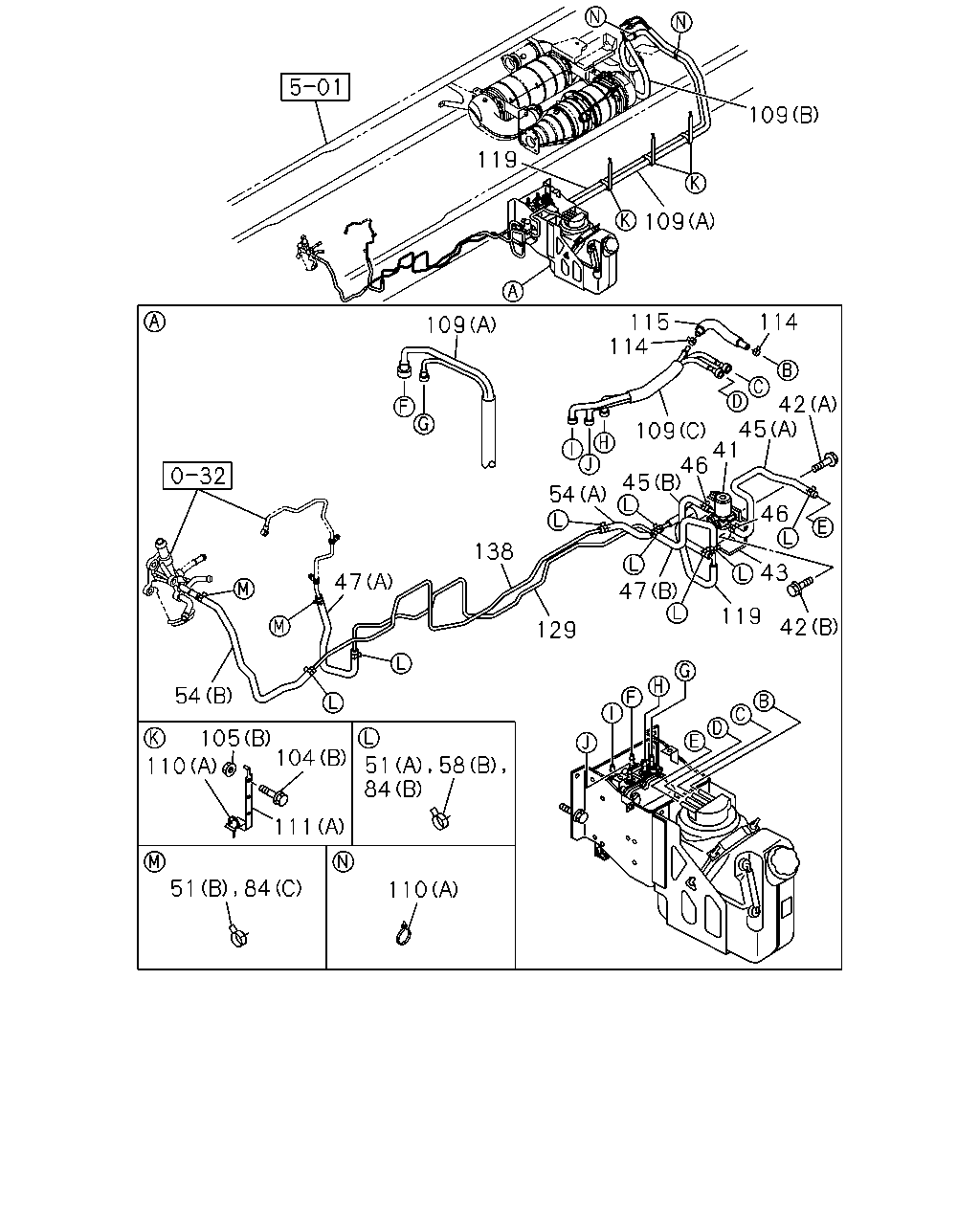

109 109 119 109 115 114 114 42 45 41 46 45 54 138 129 47 119 42 43 46 109 51 84 58 110 84 51 110 105 104 111 54 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	VALVE ASM; DEF TANK HTR DLVY	8-97628-956-1	01	1	1507-
42	BOLT; DEF RSVR HTR DLVY VLV (A) M8X16 FLANGE	0-28050-816-0	02	1	1507-
42	BOLT; DEF RSVR HTR DLVY VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1507-
43	BRACKET; DEF RSVR HTR DLVY VLV	8-98206-706-0	01	1	1507-
45	HOSE ASM; DEF TANK HTR DLVY (B)	8-98206-772-0	01	1	1507-
45	HOSE ASM; DEF TANK HTR DLVY (A)	8-98206-773-1	01	1	1507-
46	CLAMP; DEF TANK HTR DLVY ID=16	8-97329-628-0	02	1	1507-
47	HOSE; DEF DCM COOL DLVY (A)	8-98206-774-0	01	1	1507-
47	HOSE; DEF DCM COOL DLVY (B)	8-98210-707-1	01	1	1507-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (A) ID=16	8-97329-628-0	03	1	1507-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (B) ID=16	8-98008-098-0	01	1	1507-
54	HOSE; DEF DCM COOL RTN (A) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1507-
54	HOSE; DEF DCM COOL RTN (B)	8-98239-522-0	01	1	1507-
58	CLIP; DEF RSVR HTR DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1507-
58	CLIP; DEF RSVR HTR DLVY HOSE (B) ID=16	8-97329-628-0	02	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (B) ID=16	8-97329-628-0	03	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (C) ID=16	8-98008-098-0	01	1	1507-
104	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
104	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1507-
104	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	05	1	1507-
104	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	07	1	1507-
104	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1507-
105	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1507-
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	07	1	1507-
109	TUBE ASM; DEF & WATER (B)	8-98206-720-0	01	1	1507-1508
109	TUBE ASM; DEF & WATER (B)	8-98329-849-0	01	1	1509-
109	TUBE ASM; DEF & WATER (A)	8-98210-675-1	01	1	1507-1509
109	TUBE ASM; DEF & WATER (A)	8-98329-848-0	01	1	1510-
109	TUBE ASM; DEF & WATER (C)	8-98233-439-0	01	1	1507-
110	CLIP; TUBE ASM (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1507-
110	CLIP; TUBE ASM (B) ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	1507-
110	CLIP; TUBE ASM (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1507-
110	CLIP; TUBE ASM (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1507-1508
110	CLIP; TUBE ASM (D) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1509-
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	07	1	1507-
111	BRACKET; CLIP,TUBE ASM (A)	8-98309-774-0	03	1	1507-
111	BRACKET; CLIP,TUBE ASM (B) L=225	1-47477-646-3	02	1	1507-
111	BRACKET; CLIP,TUBE ASM (C)	8-98206-696-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM (D)	8-98206-700-0	01	1	1507-
114	CLIP; HOSE ID=16	8-97329-628-0	02	1	1507-
115	HOSE; DEF TANK HTR RTN	8-98237-190-0	01	1	1507-
119	TUBE ASM; DEF COOL & HTR WAT	8-98210-676-2	01	1	1507-1509
119	TUBE ASM; DEF COOL & HTR WAT	8-98329-850-0	01	1	1510-
129	PIPE ASM; DEF DCM COOL DLVY PTO CONTROL<SV6>	8-98237-822-0	01	1	1507-
129	PIPE ASM; DEF DCM COOL DLVY EXC. PTO CONTROL<SV6>	8-98210-670-0	01	1	1507-
138	PIPE ASM; DEF DCM COOL RTN	8-98210-671-0	01	1	1507-
