1-41 — FUEL PIPING; CHASSIS (#164233) — 61 parça

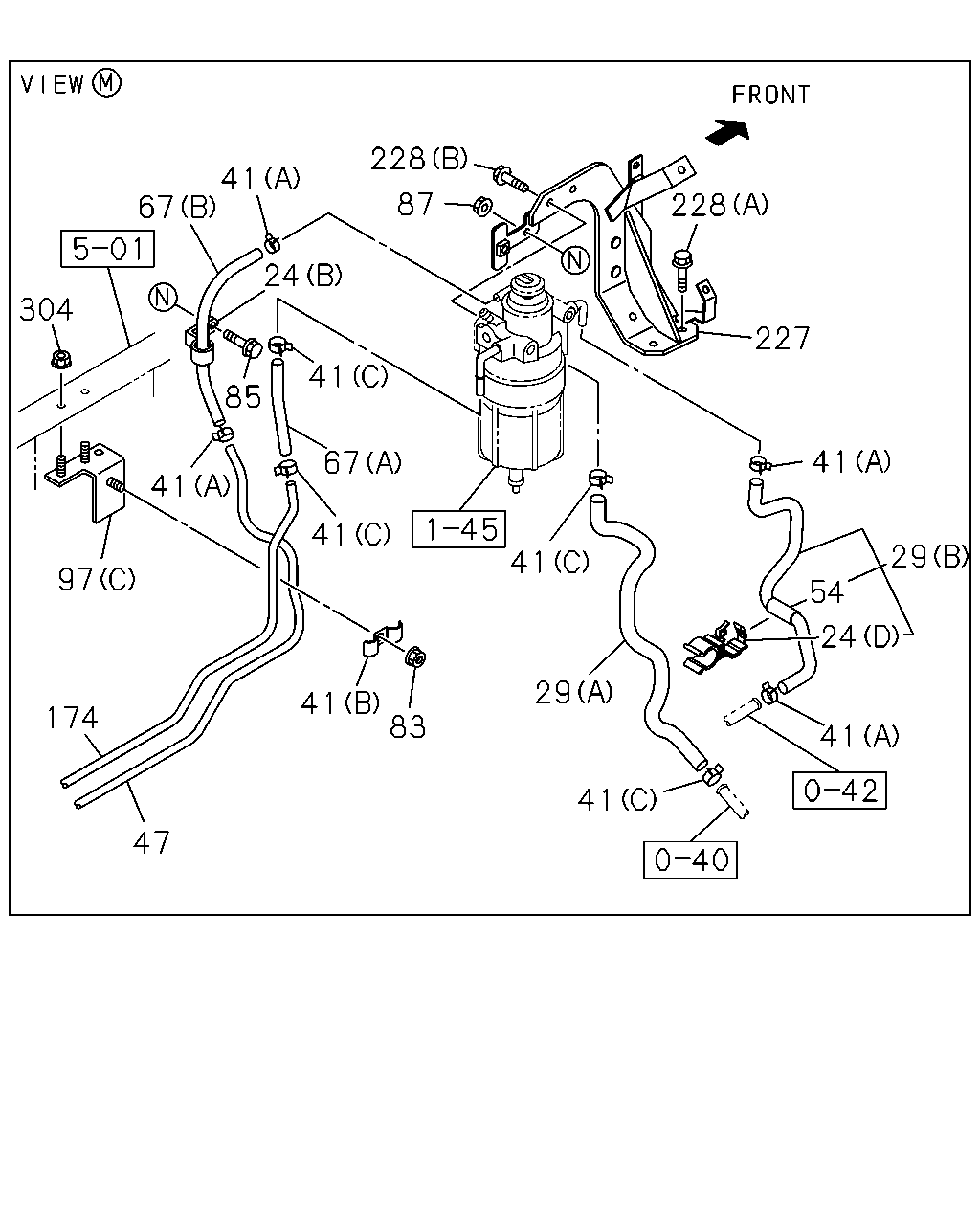

çizim 484219
67 41 24 41 67 41 41 83 47 174 97 41 304 87 228 228 227 41 29 54 24 41 41 29 41 85
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1507-
24 CLIP; FUEL HOSE
(A) ID=15 H=30 L=30 		1-09700-832-0 02 1 1507-
24 CLIP; FUEL HOSE
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 1507-
24 CLIP; FUEL HOSE
(D) ID=16.5 & 10.5-14 		8-98147-093-0 01 1 1507-
29 HOSE; FUEL
(B) 		8-98147-183-0 01 1 1507-
29 HOSE; FUEL
(A) 		8-98156-676-0 01 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=8 H=20 L=20 		1-09700-604-0 01 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 06 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=11 H=20 L=20 		8-98033-780-0 01 1 1507-
47 PIPE; FUEL,RETURN
L=2861 		8-98232-282-0 01 1 1507-
54 SPACER; CLIP,FUEL PIPE 8-98148-172-0 01 1 1507-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1507-
67 HOSE; FUEL,DELIVERY
(A) L=140 SERVICED BY L=3000 		0-01859-300-0 01 1 1507-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 07 1 1507-
85 BOLT; CLIP,FUEL HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 1507-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 01 1 1507-
97 BRACKET; CLIP
(A) 		1-47471-051-0 01 1 1507-
97 BRACKET; CLIP
(B) 		8-98117-691-0 01 1 1507-
97 BRACKET; CLIP
(C) 		8-98209-221-0 01 1 1507-
174 PIPE; FUEL,FEED,FRT 8-98232-281-0 01 1 1507-
227 BRACKET; FUEL SEDIMENTER 8-98133-172-0 01 1 1507-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1507-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1507-

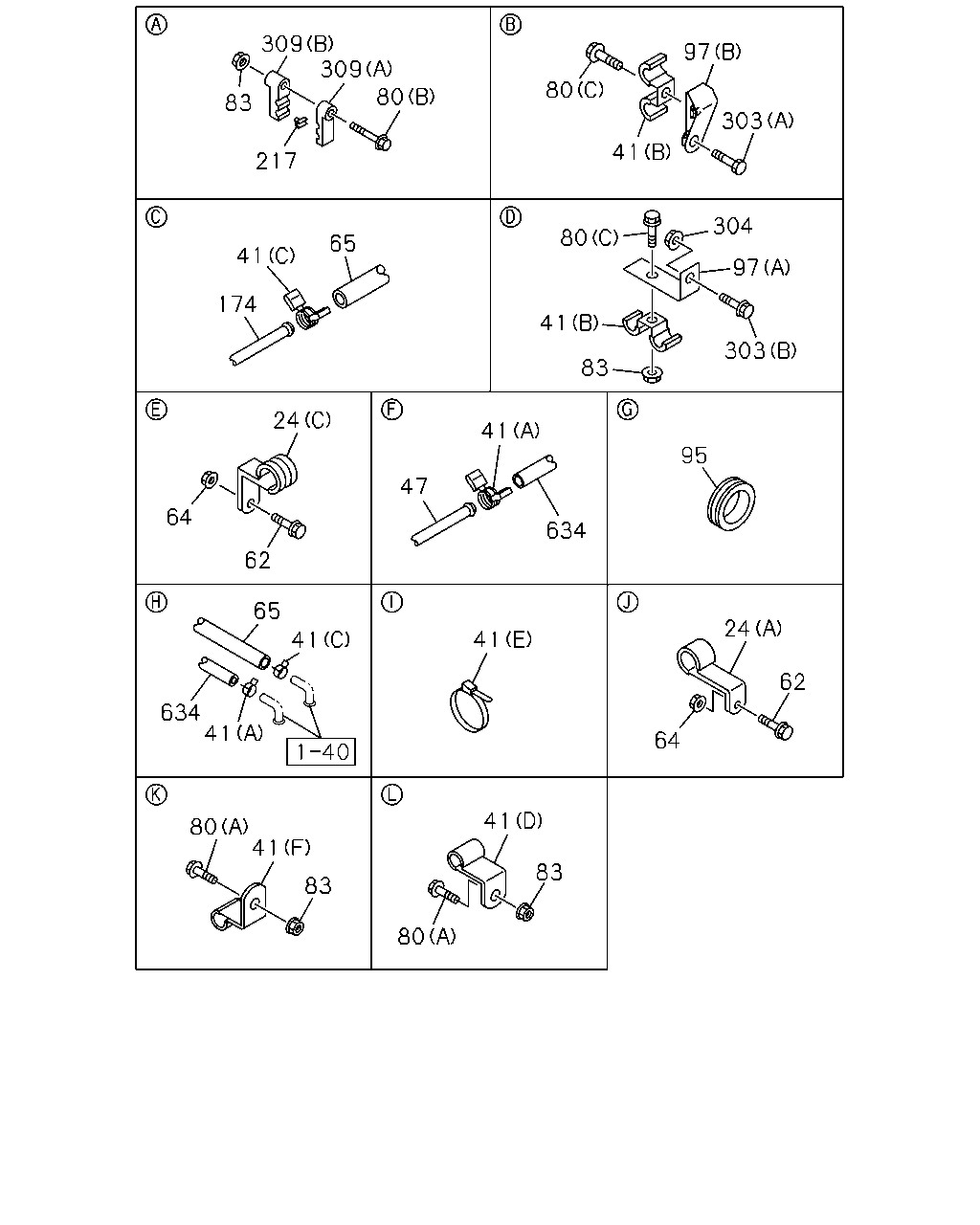

çizim 485316
309 217 83 309 80 80 41 97 303 80 304 97 303 83 41 65 41 174 24 62 64 47 41 634 95 65 41 41 634 41 64 24 62 80 41 83 41 83 80
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1507-
24 CLIP; FUEL HOSE
(A) ID=15 H=30 L=30 		1-09700-832-0 02 1 1507-
24 CLIP; FUEL HOSE
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 1507-
24 CLIP; FUEL HOSE
(D) ID=16.5 & 10.5-14 		8-98147-093-0 01 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=8 H=20 L=20 		1-09700-604-0 01 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 06 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1507-
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=11 H=20 L=20 		8-98033-780-0 01 1 1507-
47 PIPE; FUEL,RETURN
L=2861 		8-98232-282-0 01 1 1507-
62 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 03 1 1507-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1507-
65 HOSE; FUEL,DELIVERY PIPE 8-98233-330-0 01 1 1507-
80 BOLT; CLIP,FUEL TANK
(B) M8X50 FLANGE 		0-28050-850-0 03 1 1507-
80 BOLT; CLIP,FUEL TANK
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
80 BOLT; CLIP,FUEL TANK
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1507-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 07 1 1507-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1507-
97 BRACKET; CLIP
(A) 		1-47471-051-0 01 1 1507-
97 BRACKET; CLIP
(B) 		8-98117-691-0 01 1 1507-
97 BRACKET; CLIP
(C) 		8-98209-221-0 01 1 1507-
174 PIPE; FUEL,FEED,FRT 8-98232-281-0 01 1 1507-
217 COLLAR; FUEL PIPE FIX
ID=8 		1-47459-011-0 03 1 1507-
303 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
303 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1507-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1507-
309 CLIP; PIPE
(A) ID=10 & 10 		1-09709-241-0 03 1 1507-
309 CLIP; PIPE
(B) ID=10 & 10 		1-09709-243-0 03 1 1507-
634 HOSE; RUBBER RETURN 8-98245-305-0 01 1 1507-

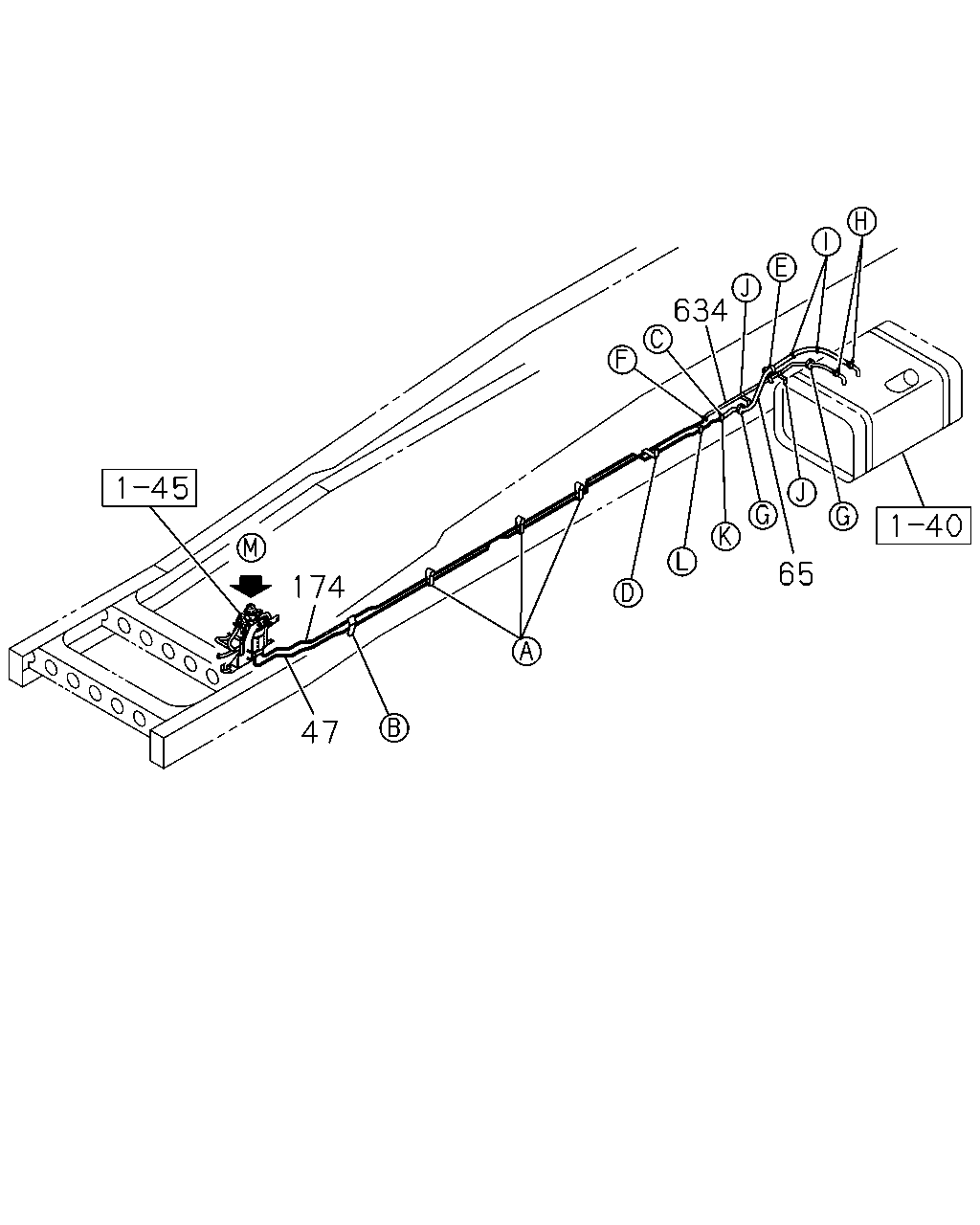

çizim 485345
174 47 65 634
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; FUEL,RETURN
L=2861 		8-98232-282-0 01 1 1507-
65 HOSE; FUEL,DELIVERY PIPE 8-98233-330-0 01 1 1507-
174 PIPE; FUEL,FEED,FRT 8-98232-281-0 01 1 1507-
634 HOSE; RUBBER RETURN 8-98245-305-0 01 1 1507-
