1-31 — AIR DUCT (#164230) — 81 parça

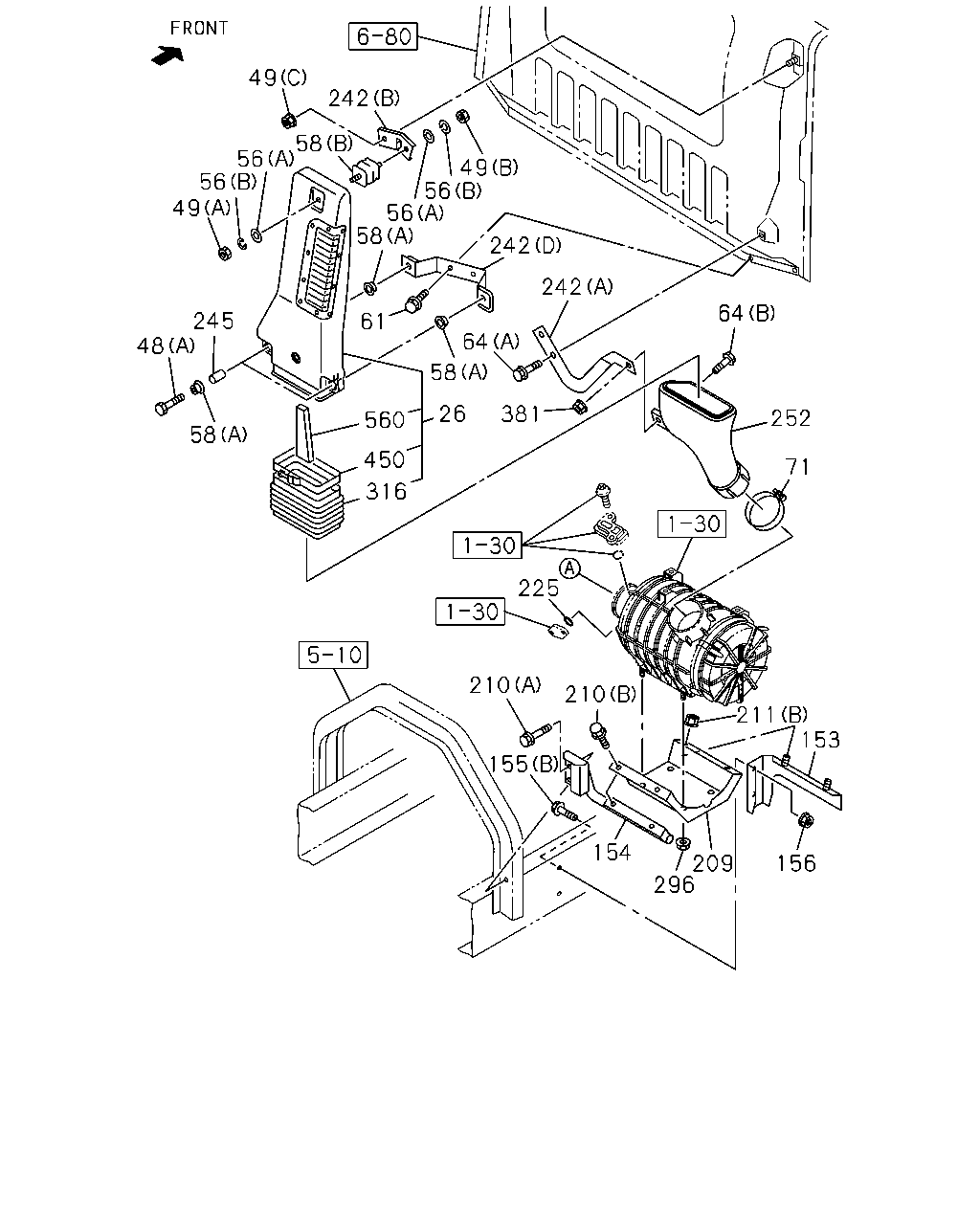

çizim 485004
49 56 56 49 245 48 58 560 450 316 381 58 26 64 252 71 225 210 210 211 153 156 209 296 154 155 64 242 242 56 49 56 58 61 58 242
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1507-
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1507-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1507-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1507-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1507-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 01 1 1507-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1507-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1507-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1507-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1507-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1507-
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1507-
64 BOLT; BRKT,AIR DUCT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1507-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1507-
153 BRACKET; ACL,FRT 8-98276-102-0 01 1 1507-
154 BRACKET; ACL,RR 8-98058-688-1 01 1 1507-
155 BOLT; BRKT
(C) M10X110 FLANGE 		0-28156-011-0 01 1 1507-
155 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1507-
155 BOLT; BRKT
(A) M10X17,M10X30 L=105 		8-97233-428-0 01 1 1507-
156 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1507-
209 BRACKET; ACL 8-98058-687-0 01 1 1507-
210 BOLT; ACL BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1507-
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1507-
211 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1507-
211 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1507-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1507-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1507-
242 BRACKET; AIR DUCT
(C) 		8-98084-231-1 01 1 1507-
242 BRACKET; AIR DUCT
(A) 		8-98092-771-0 01 1 1507-
242 BRACKET; AIR DUCT
(D) 		8-98235-300-0 01 1 1507-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1507-
252 DUCT; AIR INT 8-98166-966-0 01 1 1507-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1507-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1507-
381 NUT; BRKT,AIR DUCT
M8 FLANGE 		0-91180-108-0 01 1 1507-
450 CLAMP; HOSE 9-09915-504-1 01 1 1507-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1507-

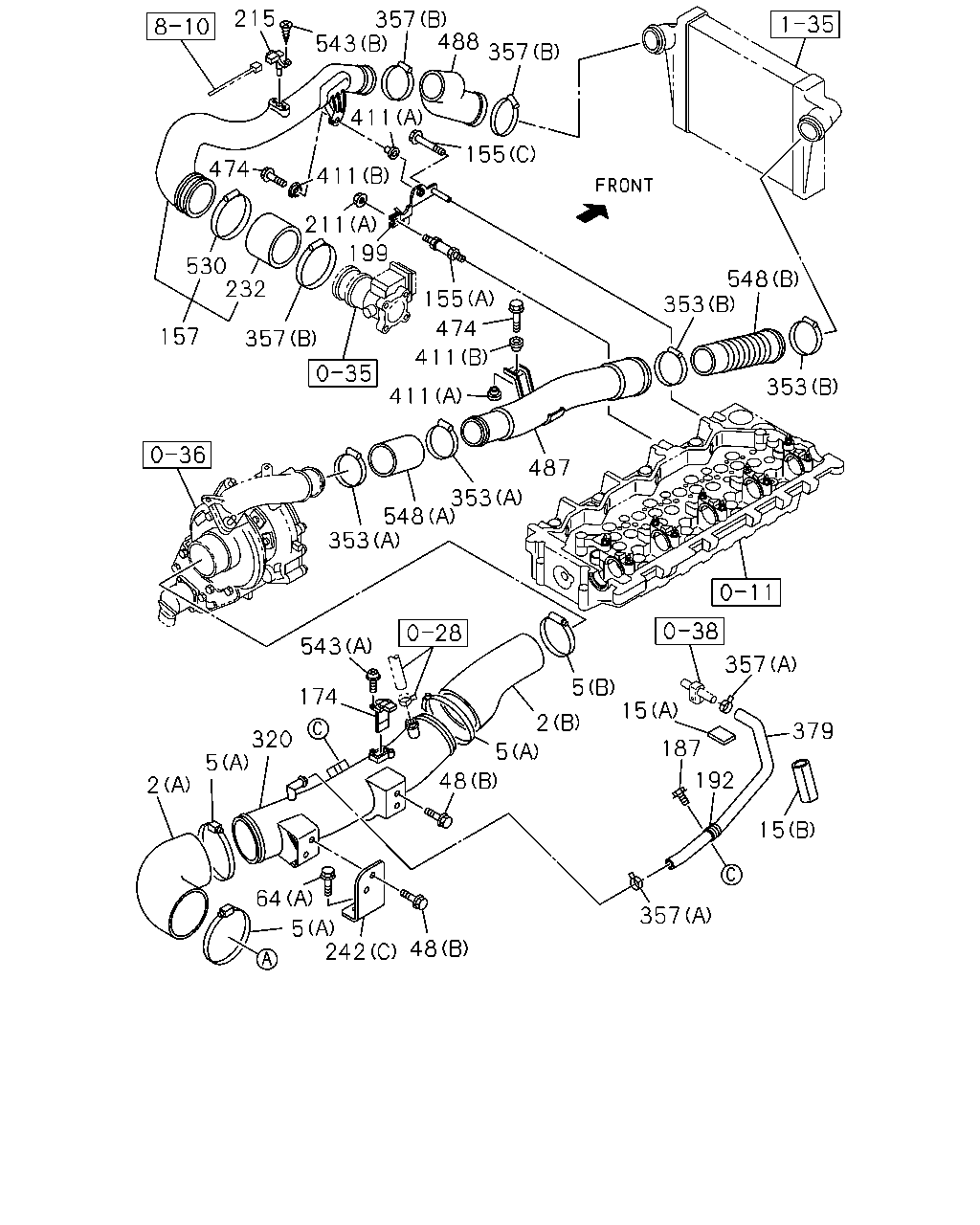

çizim 485036
215 543 357 357 488 411 155 411 211 530 232 357 411 411 474 155 353 548 353 487 353 548 353 543 174 320 5 2 48 2 5 5 15 187 192 379 15 357 357 64 5 242 48 199 157 474
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL
(A) 		8-98058-691-1 01 1 1507-
2 HOSE; ACL
(B) 		8-98081-763-0 01 1 1507-
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 01 1 1507-
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 03 1 1507-
15 INSULATOR
(B) ID=18 L=40 		8-98070-445-0 01 1 1507-
15 INSULATOR
(A) 265X79 		8-98270-803-0 01 1 1507-
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1507-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1507-
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1507-
64 BOLT; BRKT,AIR DUCT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1507-
155 BOLT; BRKT
(C) M10X110 FLANGE 		0-28156-011-0 01 1 1507-
155 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1507-
155 BOLT; BRKT
(A) M10X17,M10X30 L=105 		8-97233-428-0 01 1 1507-
157 PIPE; AIR 8-98166-967-0 01 1 1507-
174 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1507-
187 BOLT; INL HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 1507-
192 CLIP; HOSE
ID=26 L=26 		1-09701-236-0 01 1 1507-
199 BRACKET; PIPE 8-98252-223-0 01 1 1507-
211 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1507-
211 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1507-
215 SENSOR; MAP 8-98009-418-0 01 1 1507-
232 HOSE; CONN 8-98128-293-0 01 1 1507-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1507-
242 BRACKET; AIR DUCT
(C) 		8-98084-231-1 01 1 1507-
242 BRACKET; AIR DUCT
(A) 		8-98092-771-0 01 1 1507-
242 BRACKET; AIR DUCT
(D) 		8-98235-300-0 01 1 1507-
320 HOSE; CONN,ACL 8-98084-232-0 01 1 1507-
353 CLIP; RUBBER HOSE
(A) ID=45-65 		8-98133-348-0 02 1 1507-
353 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 02 1 1507-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1507-
357 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 03 1 1507-
379 HOSE; RUBBER 8-98082-252-0 01 1 1507-
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1507-
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1507-
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1507-
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98250-695-0 01 1 1507-
488 HOSE; RUBBER,PIPE 8-98204-041-0 01 1 1507-
530 CLAMP; AIR DUCT
ID=65-85 		8-98133-350-0 01 1 1507-
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1507-
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1507-
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98204-039-0 01 1 1507-1511
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98317-803-0 01 1 1512-
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98204-040-0 01 1 1507-1511
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98317-804-0 01 1 1512-
