Isuzu WW
▶
TRUCKS
▶
FRR
▶
11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#164227) — 51 parça
◀

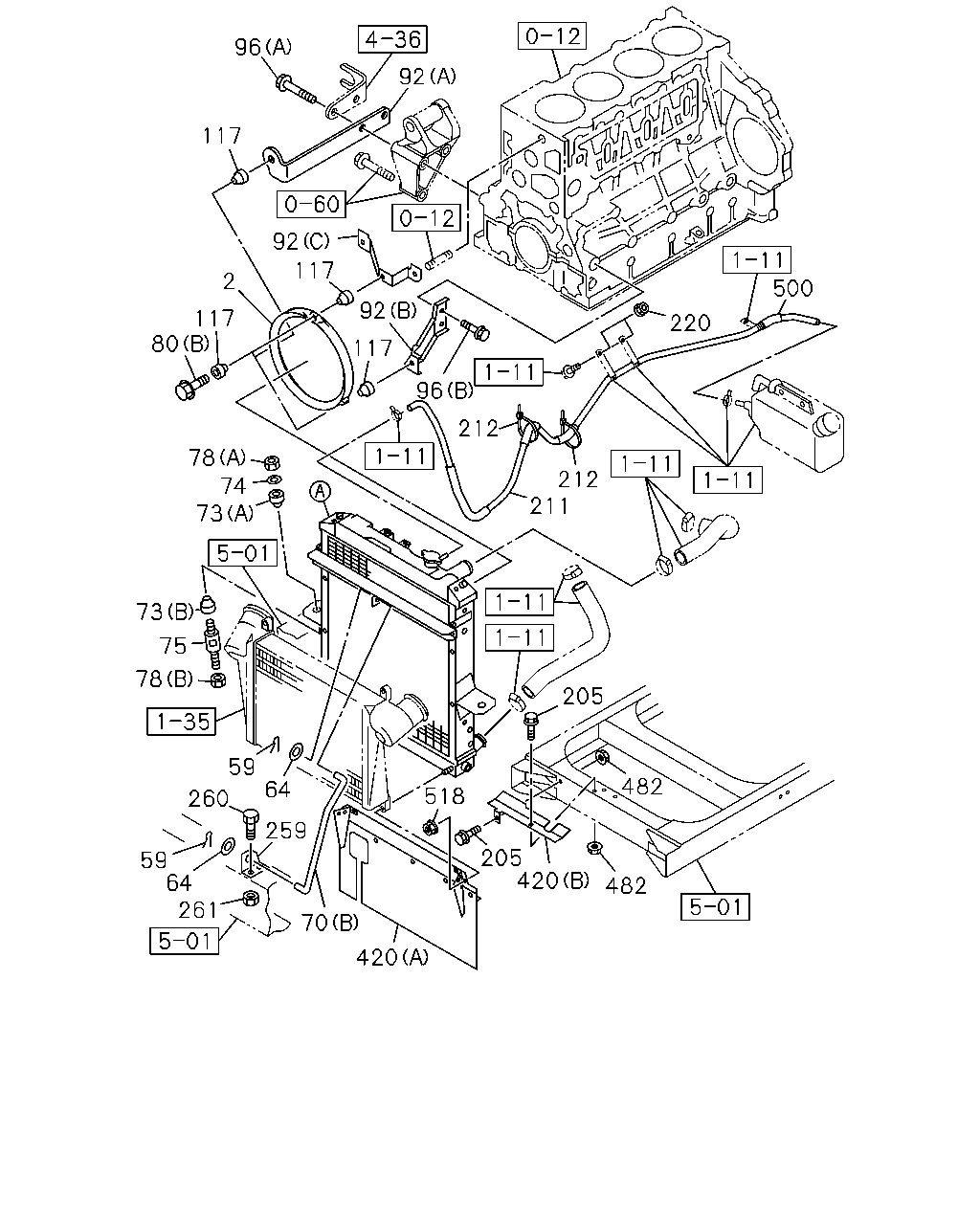

[110A] NO.2 (20 parça)

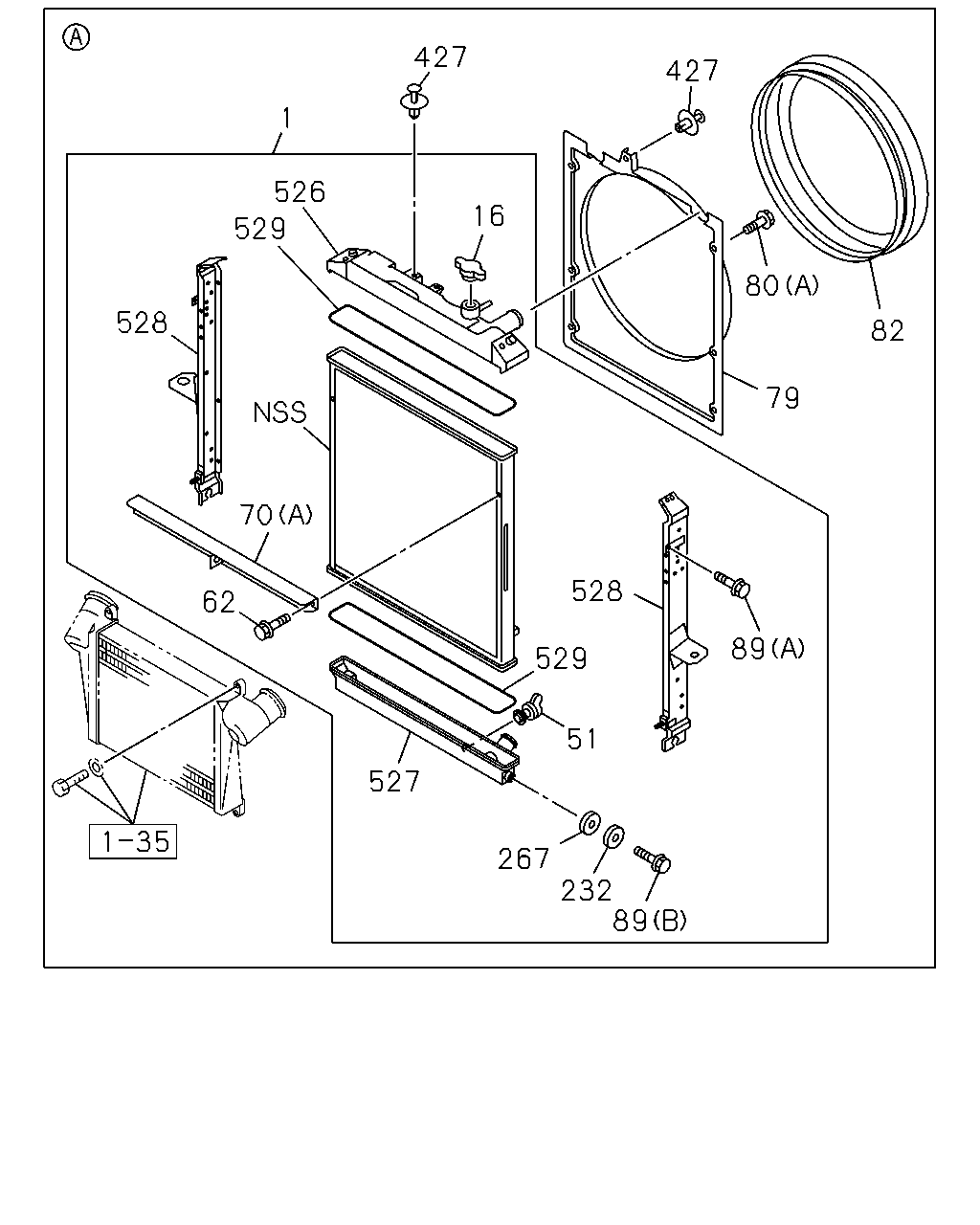

[110A] NO.1 (31 parça)
▶
1
427
427
16
526
529
528
70
62
527
267
51
232
89
89
529
528
79
80
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98248-959-0
01
1
1507-
16
CAP; RAD
8-98096-226-0
01
1
1507-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1507-
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1507-
70
STAY; RAD
(B)
8-98010-657-0
01
1
1507-
70
STAY; RAD
(A)
8-98018-941-0
01
1
1507-
79
GUIDE; FAN,RAD
8-98010-297-0
01
1
1507-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1507-
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1507-
82
COVER; FAN,RAD
8-98006-478-0
01
1
1507-
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1507-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1507-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
02
1
1507-
267
RUBBER; CUSHION
1-21467-023-0
02
1
1507-
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1507-
526
TANK; UPR,RADIATOR CORE
8-98107-793-0
01
1
1507-
527
TANK; LWR,RADIATOR CORE
8-98032-433-1
AR
1
1507-
528
PLATE; SIDE,RADIATOR CORE
8-98228-476-0
01
1
1507-
528
PLATE; SIDE,RADIATOR CORE
8-98248-891-0
01
1
1507-
529
GASKET; CORE,RADIATOR
8-98032-435-0
02
1
1507-
96
117
2
117
80
78
73
73
75
78
59
260
59
64
261
70
420
420
482
482
205
205
518
259
64
211
212
212
96
117
92
117
92
74
92
220
500
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-97350-995-0
01
1
1507-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1507-
64
WASHER; STAY TO RAD
ID=10.5
0-91610-510-0
02
1
1507-
70
STAY; RAD
(B)
8-98010-657-0
01
1
1507-
70
STAY; RAD
(A)
8-98018-941-0
01
1
1507-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1507-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1507-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1507-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1507-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1507-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1507-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1507-
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1507-
92
BRACKET; FAN GUIDE
(A)
8-97350-997-0
01
1
1507-
92
BRACKET; FAN GUIDE
(C)
8-97382-827-2
01
1
1507-
92
BRACKET; FAN GUIDE
(B)
8-97386-233-0
01
1
1507-
96
BOLT; STAY FIX
(B) M10X20 FLANGE
0-28151-020-0
02
1
1507-
96
BOLT; STAY FIX
(A) M10X75 FLANGE
8-94399-669-1
02
1
1507-
117
RUBBER; MTG,FAN GUIDE
1-09337-027-0
06
1
1507-
205
BOLT; AIR GUIDE
M8X25 FLANGE
0-28650-825-0
02
1
1507-
211
HOSE; RAD TO PIPE
8-98226-077-0
01
1
1507-
212
CLIP; HOSE
L=250
5-09707-030-1
02
1
1507-
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1507-
259
BRACKET; RAD STAY
8-98063-603-0
01
1
1507-
260
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1507-
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1507-
420
GUIDE; AIR,RAD
(B)
8-98251-563-0
01
1
1507-
420
GUIDE; AIR,RAD
(A)
8-98286-109-0
01
1
1507-
482
NUT; AIR GUIDE
M8 FLANGE
0-91180-108-0
02
1
1507-
500
SLEEVE; RUBBER
ID=29 OD=39 L=100
1-09337-022-0
01
1
1507-
518
NUT
M8 FLANGE
0-91180-108-0
02
1
1507-
