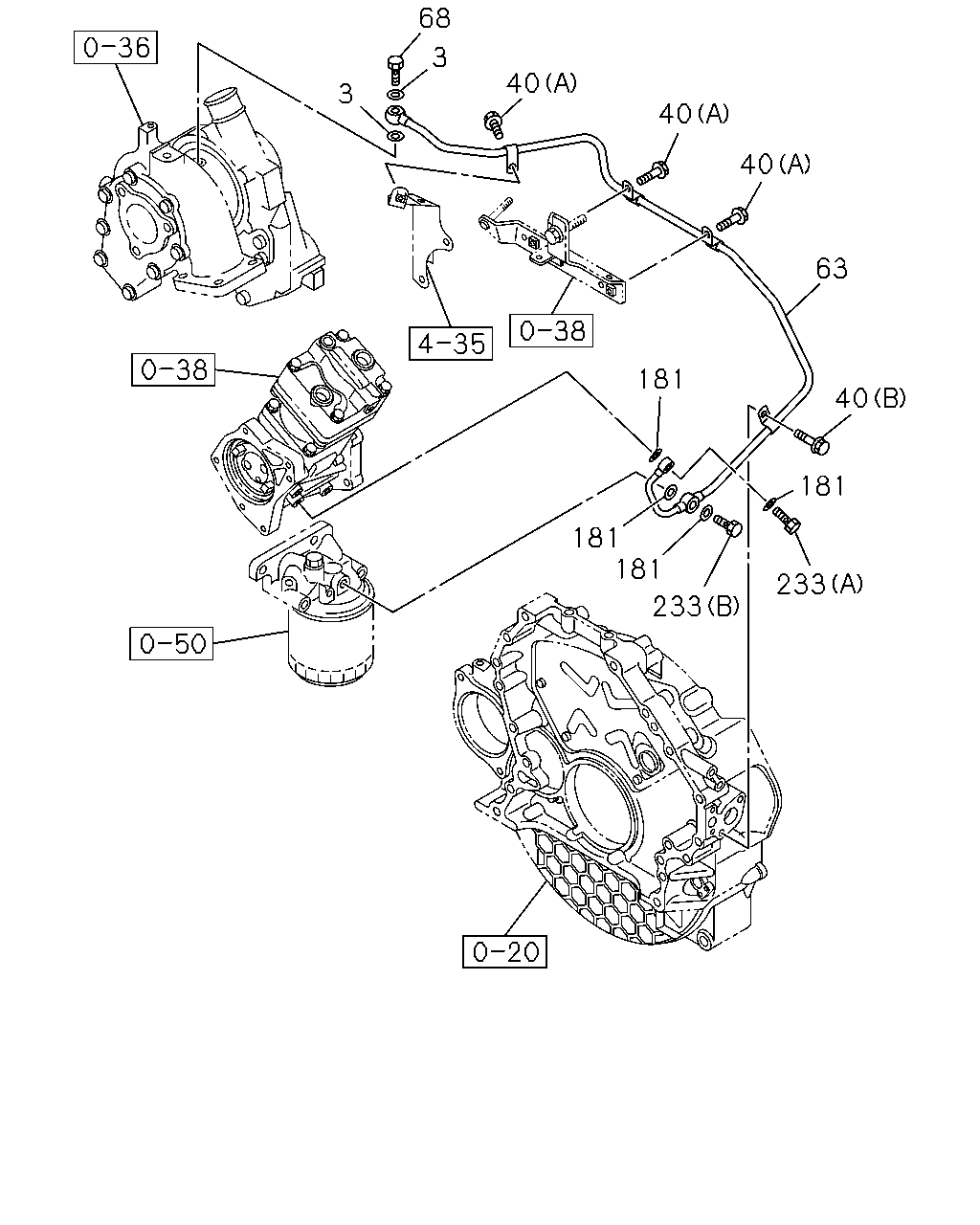

0-52 — OIL AND VACUUM PIPING; ENGINE (#164218) — 8 parça

3 68 3 40 40 40 63 40 181 233 233 181 181 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	02	1	1507-
40	BOLT; OIL PIPE (B) M8X12 FLANGE	0-28050-812-0	01	1	1507-
40	BOLT; OIL PIPE (A) M8X20 FLANGE	0-28050-820-0	03	1	1507-
63	PIPE; OIL,TURBOCHARGER FEED	8-98200-766-1	01	1	1507-
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X26	8-98037-825-0	01	1	1507-
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	1507-
233	BOLT; EYE (A) M10X22	1-09675-028-0	01	1	1507-
233	BOLT; EYE (B) M10X28	8-98037-823-0	01	1	1507-
