◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#164214) — 66 parça

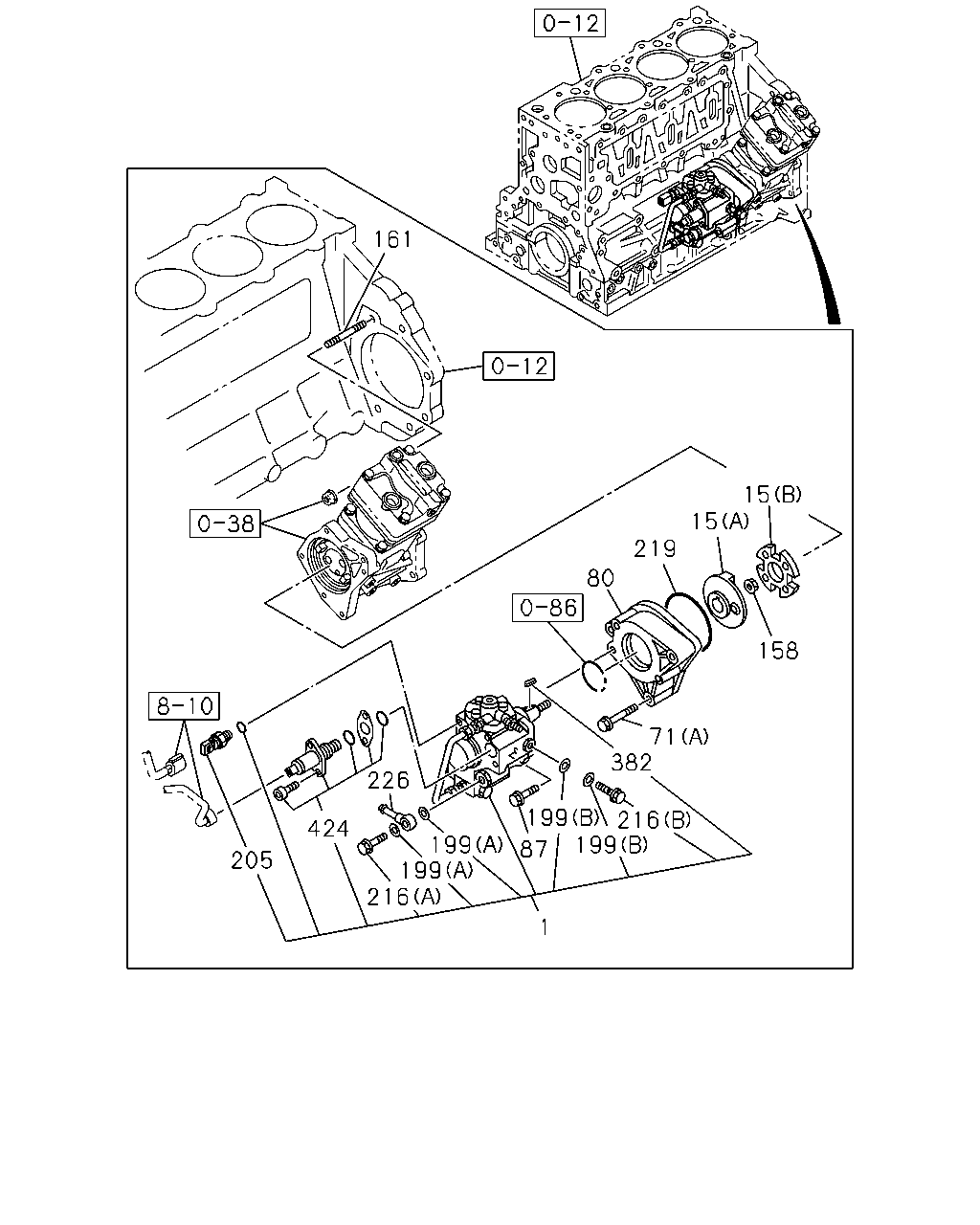

çizim 484125
161 205 226 424 216 199 199 87 199 199 216 382 80 15 158 219 15 71 1
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97386-557-5 01 1 1507-
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1507-
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1507-
71 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1507-
71 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 03 1 1507-
80 BRACKET; PUMP 8-98061-699-0 01 1 1507-
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1507-
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 1507-
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1507-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1507-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1507-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1507-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1507-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1507-
216 BOLT; EYE
(C) 		8-98035-828-0 01 1 1507-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 1507-
226 PIPE; FUEL 8-98126-332-0 01 1 1507-
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1507-
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1507-

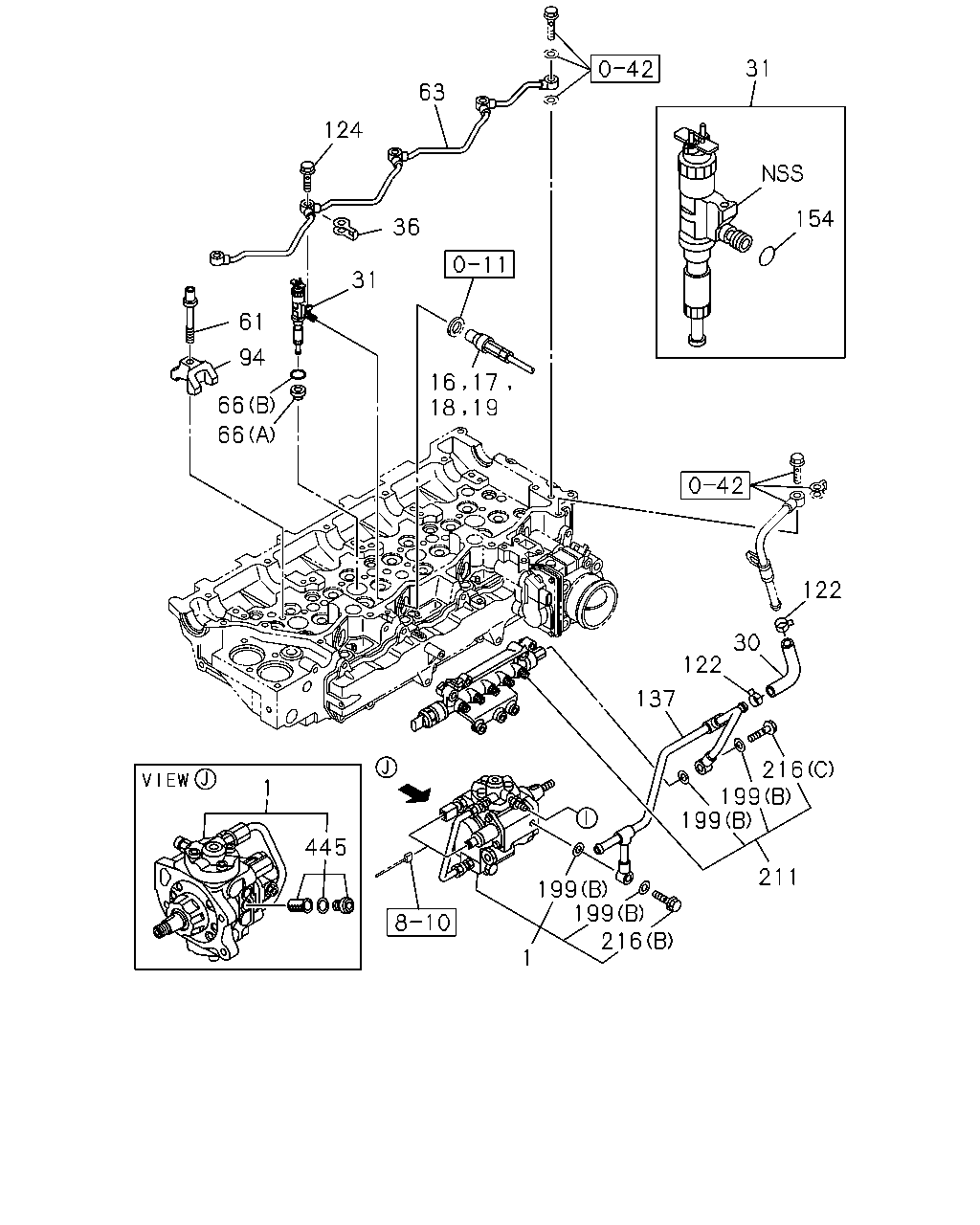

çizim 484127
124 63 31 154 16 17 18 19 31 36 61 66 66 94 445 1 1 199 199 216 199 211 199 137 30 216 122 122
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97386-557-5 01 1 1507-
16 PIPE; INJ NO.1 8-98298-636-0 01 1 1507-
17 PIPE; INJ NO.2 8-98298-637-0 01 1 1507-
18 PIPE; INJ NO.3 8-98298-638-0 01 1 1507-
19 PIPE; INJ NO.4 8-98298-640-0 01 1 1507-
30 HOSE; RUBBER,FUEL LEAK 8-98246-105-0 01 1 1507-
31 NOZZLE ASM; INJ 8-98207-435-0 04 1 1507-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1507-
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1507-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1507-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1507-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1507-
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1507-
122 CLIP; LEAK OFF PIPE
ID=11.5 		8-97375-638-0 02 1 1507-
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1507-
137 PIPE ASM; LEAK OFF 8-98240-474-0 01 1 1507-
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1507-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1507-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1507-
211 RAIL ASM; COMMON 8-98203-404-2 01 1 1507-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1507-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1507-
216 BOLT; EYE
(C) 		8-98035-828-0 01 1 1507-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1507-

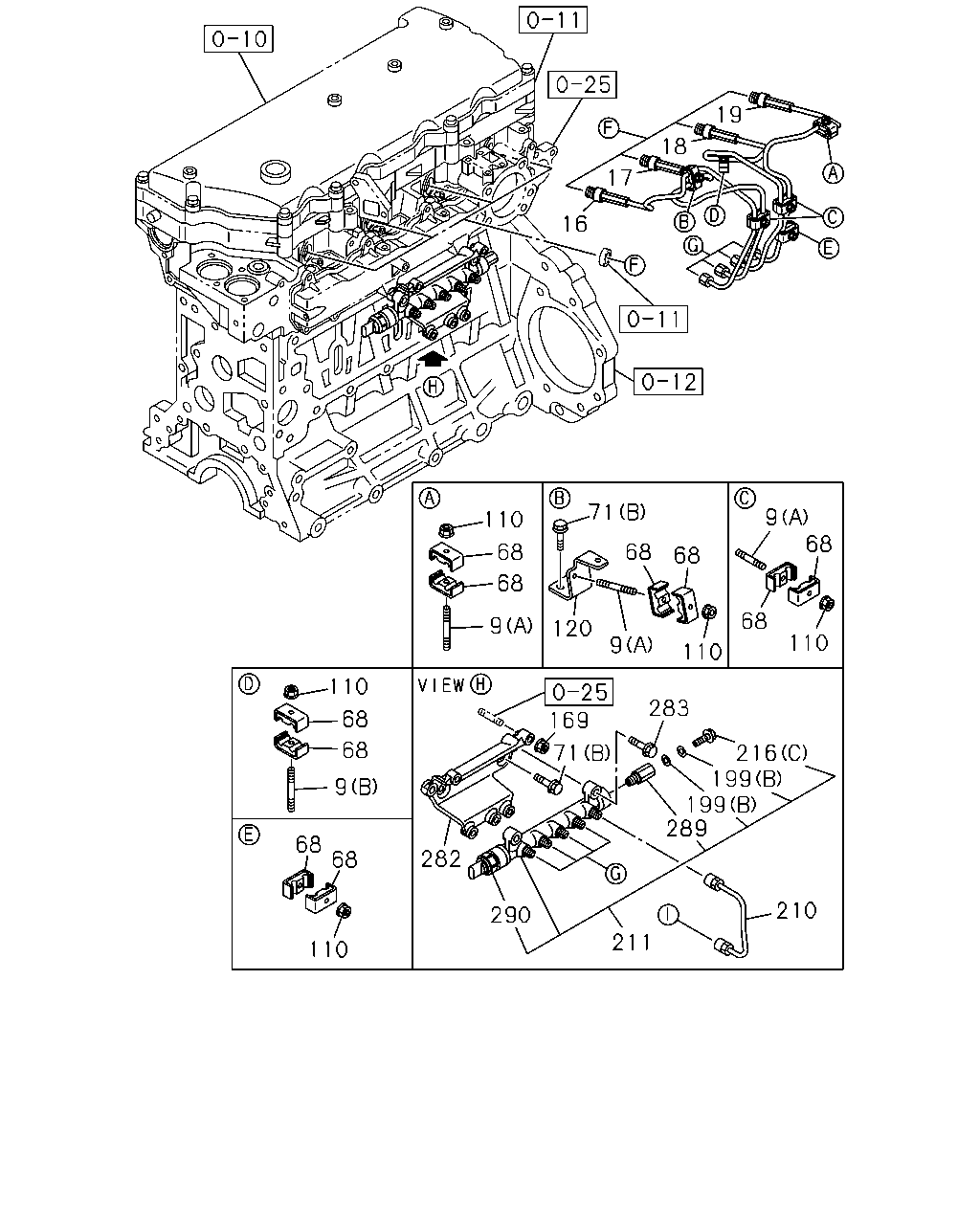

çizim 485191
16 17 18 19 110 9 68 68 71 68 68 110 9 120 110 68 68 9 68 68 110 282 290 211 289 210 199 216 199 283 169 71 110 68 9 68
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
(B) M6X40 L=50 		0-41010-640-0 01 1 1507-
9 STUD; CLIP
(A) M6X35 L=43 		8-97203-278-0 04 1 1507-
16 PIPE; INJ NO.1 8-98298-636-0 01 1 1507-
17 PIPE; INJ NO.2 8-98298-637-0 01 1 1507-
18 PIPE; INJ NO.3 8-98298-638-0 01 1 1507-
19 PIPE; INJ NO.4 8-98298-640-0 01 1 1507-
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 12 1 1507-
71 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1507-
71 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 03 1 1507-
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 06 1 1507-
120 BRACKET; INJ PIPE 8-98041-601-0 01 1 1507-
169 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1507-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1507-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1507-
210 PIPE; INJ,C/R 8-98200-785-0 01 1 1507-
211 RAIL ASM; COMMON 8-98203-404-2 01 1 1507-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1507-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1507-
216 BOLT; EYE
(C) 		8-98035-828-0 01 1 1507-
282 BRACKET; COMMON RAIL 8-98200-778-0 01 1 1507-
283 BOLT; COMMON RAIL
M10X35 FLANGE 		0-28151-035-0 02 1 1507-
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1507-
290 SENSOR; PRESS 8-98138-738-0 01 1 1507-
