◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11628 - FRR RHD EUROPE EURO6 EXC.SPACECAB EVSC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#164205) — 33 parça

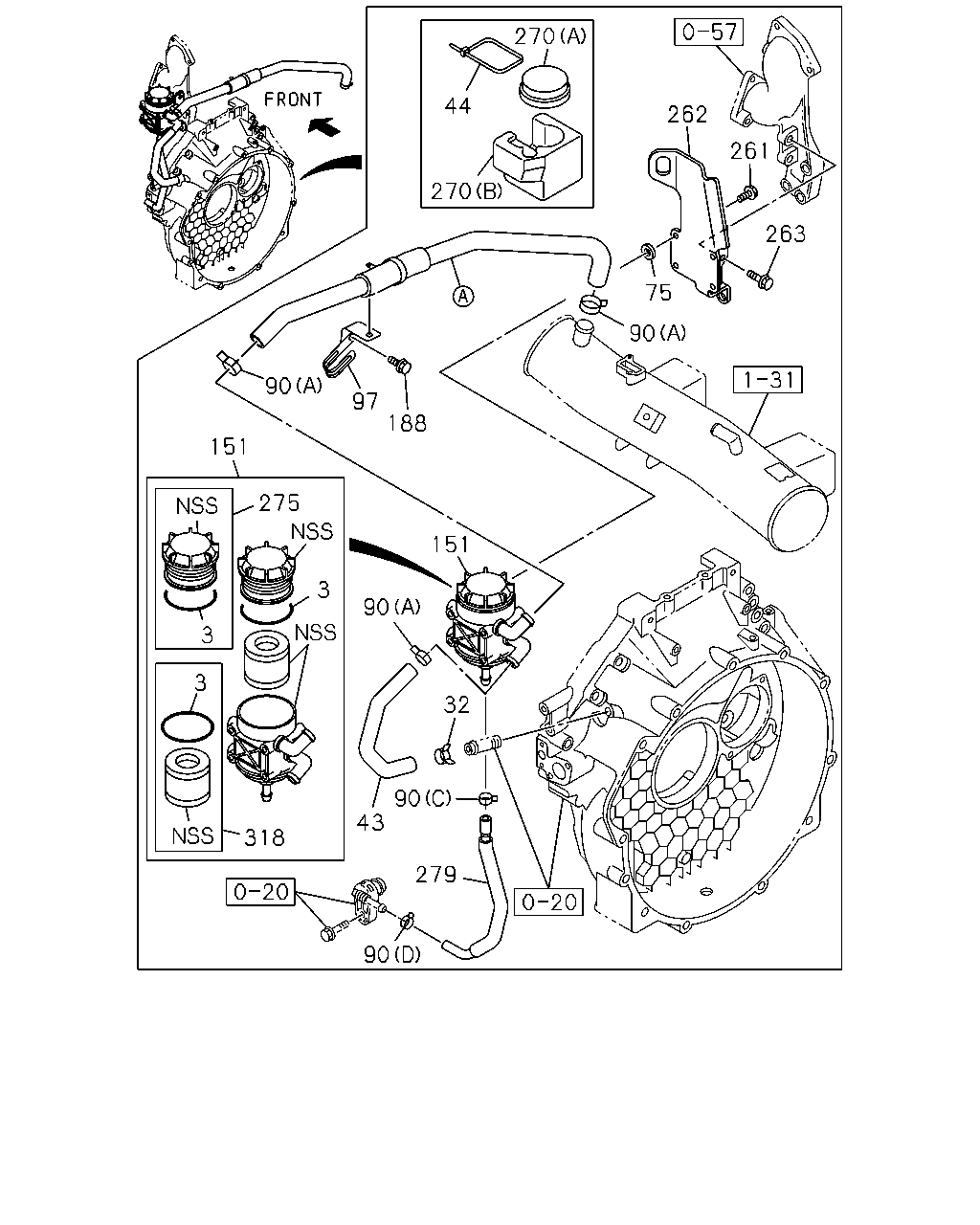

çizim 484071
151 275 3 3 3 318 90 97 188 44 270 270 262 261 263 75 90 151 90 32 90 43 279 90
BalonParca AdiParca NoAdetTipApplied Date
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 1507-
32 CLIP; VENT HOSE
ID=21 		8-94242-034-0 01 1 1507-
43 HOSE; PCV 8-98195-078-0 01 1 1507-
44 CLIP; HOSE,PCV
L=250 		8-98216-430-0 14 1 1507-
75 WASHER
ID=9 OD=18 T=5 		9-14149-173-0 04 1 1507-
90 CLIP; RUBBER HOSE
(A) ID=28 		1-09707-124-0 03 1 1507-
90 CLIP; RUBBER HOSE
(B) L=212 		8-94107-652-0 01 1 1507-
90 CLIP; RUBBER HOSE
(C) ID=13 		8-94238-571-0 01 1 1507-
90 CLIP; RUBBER HOSE
(D) ID=11.5 		8-97138-011-0 01 1 1507-
97 BRACKET; HOSE 8-98093-946-3 01 1 1507-
151 SEPARATOR; OIL,PCV 8-97324-682-1 01 1 1507-
188 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 01 1 1507-
261 BOLT; SEPARETOR
M8X30 FLANGE 		0-28650-830-0 04 1 1507-
262 BRACKET; OIL SEPARETOR 8-98296-130-0 01 1 1507-
263 BOLT; BRKT,OIL SEPARETOR
M12X30 FLANGE 		0-28151-230-0 03 1 1507-
270 COVER; VENTILATOR
(B) 		8-98139-613-0 01 1 1507-
270 COVER; VENTILATOR
(A) 		8-98172-779-0 01 1 1507-
275 CAP; PCV 8-97389-360-0 01 1 1507-
279 HOSE; RUBBER,OIL DRAIN 8-97386-653-1 01 1 1507-
318 ELEMENT KIT; PCV 8-98002-346-0 01 1 1507-
çizim 484075
328 328 317 90 328 328 328 328 328 328
BalonParca AdiParca NoAdetTipApplied Date
90 CLIP; RUBBER HOSE
(A) ID=28 		1-09707-124-0 03 1 1507-
90 CLIP; RUBBER HOSE
(B) L=212 		8-94107-652-0 01 1 1507-
90 CLIP; RUBBER HOSE
(C) ID=13 		8-94238-571-0 01 1 1507-
90 CLIP; RUBBER HOSE
(D) ID=11.5 		8-97138-011-0 01 1 1507-
317 HOSE; RUBBER,OIL SEPARATOR 8-98246-378-0 01 1 1507-
328 INSULATOR; PCV
(H) OUTER 		8-98270-794-0 02 1 1507-
328 INSULATOR; PCV
(A) INNER 		8-98270-805-0 01 1 1507-
328 INSULATOR; PCV
(B) OUTER 		8-98270-806-0 01 1 1507-
328 INSULATOR; PCV
(C) INNER 		8-98270-807-0 01 1 1507-
328 INSULATOR; PCV
(D) OUTER 		8-98270-808-0 01 1 1507-
328 INSULATOR; PCV
(E) INNER 		8-98270-809-0 01 1 1507-
328 INSULATOR; PCV
(F) OUTER 		8-98270-810-0 01 1 1507-
328 INSULATOR; PCV
(G) INNER 		8-98270-811-0 01 1 1507-
