◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#164188) — 21 parça

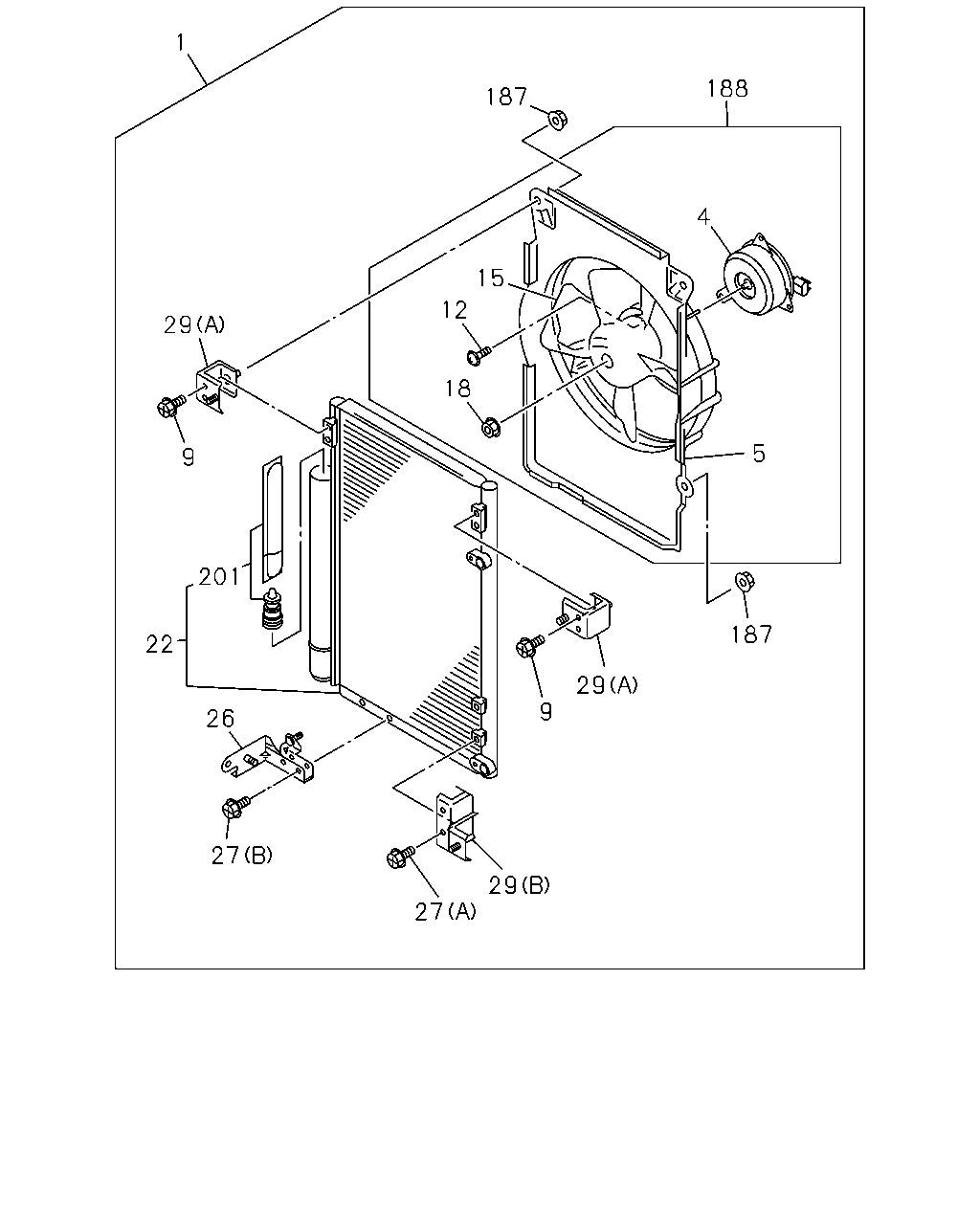

çizim 484531
1 187 188 4 5 187 29 9 29 27 27 26 22 201 9 29 18 12 15
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98115-512-2 01 1 1507-
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98116-585-0 01 1 1507-
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-093-0 01 1 1507-
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X14 		1-83539-382-0 04 1 1507-
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97180-269-0 03 1 1507-
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98152-860-0 01 1 1507-
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) M5 FLANGE 		8-94157-075-0 01 1 1507-
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98275-189-0 01 1 1507-
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-281-0 01 1 1507-
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X14 		1-83539-382-0 02 1 1507-
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25 		8-97178-770-0 02 1 1507-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98065-914-0 02 1 1507-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98065-915-0 01 1 1507-
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 04 1 1507-
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98116-588-1 01 1 1507-
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98282-482-0 01 1 1507-

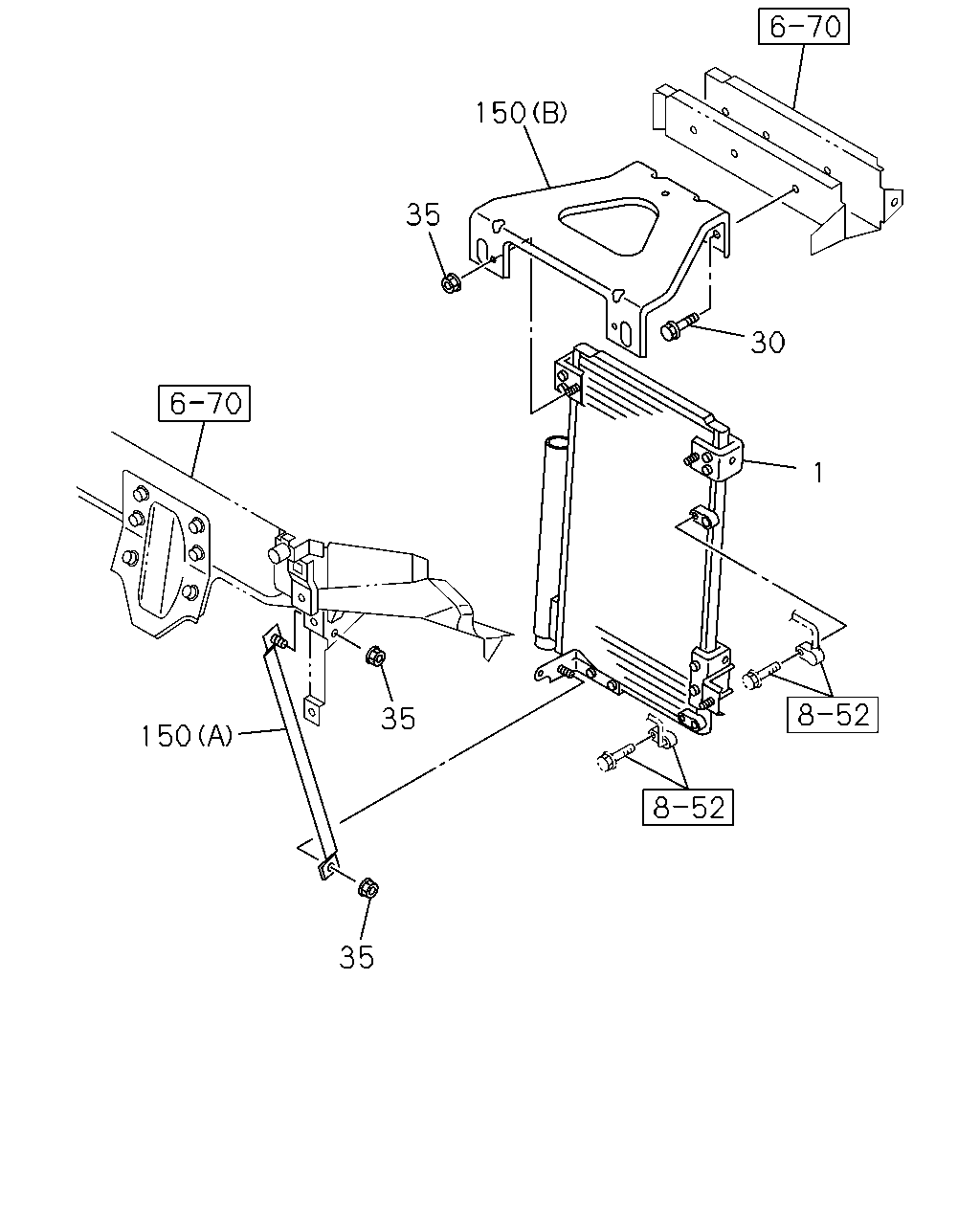

çizim 485208
150 35 30 1 35 35 150
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98115-512-2 01 1 1507-
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 1507-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98242-412-0 01 1 1507-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98270-947-0 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
